Touch screen - capactive LCD 4,3'' 800x480px DSI for Raspberry Pi - Waveshare 16239
Touch screen, IPS capacitive LCD with 800 x 480 px resolution and 4.3" diagonal. It communicates via DSI interface with Raspberry Pi 5/4B/3B+/3A+/3B/2B/B+/A+ minicomputer. The minicomputer is mounted on the back of the screen, making it completely invisible.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product Description: Touch Screen - Capacitive LCD 4.3'' IPS 800x480px DSI for Raspberry Pi - Waveshare 16239
Touch screen, IPS capacitive LCD with 800 x 480 px resolution and 4.3" diagonal. It communicates via DSI interface with Raspberry Pi 5/4B/3B+/3A+/3B/2B/B+/A+ minicomputer. A different adapter card is required for the CM3/3+/4. The minicomputer is mounted on the back of the screen, making it completely invisible.

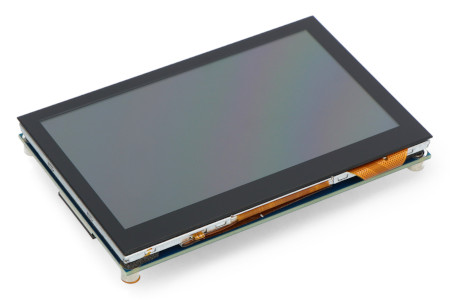

Waveshare touchscreen display for Raspberry Pi.
Botland is an official distributor of Waveshare devices. Their versatility and compatibility, particularly in display and power technology, have won over customers all over the world. Our team guarantees that all Waveshare products presented here are original.

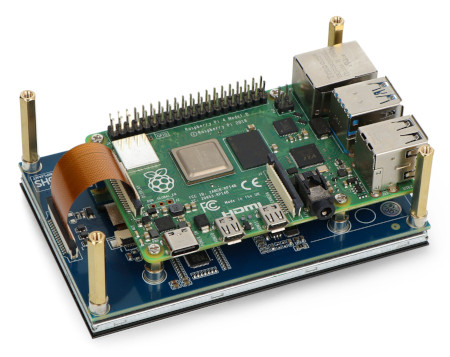

Connecting the screen from a Raspberry Pi.
Connecting the screen with the Raspberry Pi
The display communicates with the Raspberry Pi via a DSI MIPI tape. It does not require additional power, it gets its power from the minicomputer. The screen works properly with the latest Raspbian system, without the need to install additional drivers.
A detailed connection description can be found on the manufacturer's website. |
Waveshare screen specification
- Type: Touch screen, capacitive
- Diagonal: 4,3"
- Resolution: 800 x 480 px
- Works with: Raspberry Pi version 5/4B/3B+/3A+/3B/2B/B+/A+
- Communication: DSI
- 4 mounting holes (screws are included)
- Screen dimensions: 106 x 68 mm
Set includes
- 4.3" screen
- FPC 15-pin tape, 1 mm pitch, length 50 mm
- Set of screws and spacers
Perfect Raspberry Pi monitor
TheWaveshare 16239 module, a touchscreen - IPS capacitive LCD for Raspberry Pi, is deservedly popular with users. Its large 4.3" diagonal and high resolution (800x480px) make it ideal for applications where high image quality is important.
In case of this module, the IPS technology, currently used in the highest class monitors for professionals and ensuring the perfect color reproduction, is also responsible for perfect conditions for presenting graphical motifs.
Versatile display for the Raspberry
Touchscreen - 4.3'' IPS 800x480px DSI capacitive LCD for Raspberry Pi - Waveshare 16239 uses DSI MIPI interface to communicate with the minicomputer. An FPC tape to connect the module to the minicomputer is included.
The display is compatible with third and fourth generation Raspberry Pi (5/4B/3B+/3A+/3B/2B/B+/A+). The latest version of the RPi-dedicated Raspbian system can be used to operate it, and this cooperation will not require the user to install any additional drivers.
Useful links
| Name | Value |
|---|---|
| Screen - type | LCD IPS |
| Screen - diagonal | 4.3'' |
| Screen - interface | DSI |
| Screen - touch | yes |
| Screen - resolution | 800x480px |
| Width | 7.5 cm |
| Height | 11.6 cm |
| Depth | 2 cm |
| Weight | 0.12 kg |
