Touch screen - resistive LCD 5'' 800x480px HDMI + GPIO for Raspberry Pi 4/3/2/B+/Zero - Waveshare 10563
Waveshare touch display, resistive 5" for the Raspberry Pi with a resolution of 800 x 480 px. Works with Raspberry Pi version 4, 3, 2, B+, Zero, and Zero W via the HDMI connector and the GPIO pins.
We could not load the price.
The promotional price does not combine with quantity discounts.
Description
Touch screen, resistive 5" for the Raspberry Pi with a resolution of 800 x 480 px. Works withRaspberry Pi version 4, 3, 2, B+, Zero, and Zero W via the HDMI connector and the pins GPIO - necessary connectors included in the package. The device also works with minicomputers:Banana PiandBeagle Bone Black.
Botland is an official distributor of Waveshare devices. Their versatility and compatibility, particularly in display and power technology, have won over customers all over the world. Our team guarantees that all Waveshare products presented here are original.
Connect to the Raspberry Pi
In order to run screen, put the device on the GPIO pins Raspberry Pi and mount the HDMI connector.

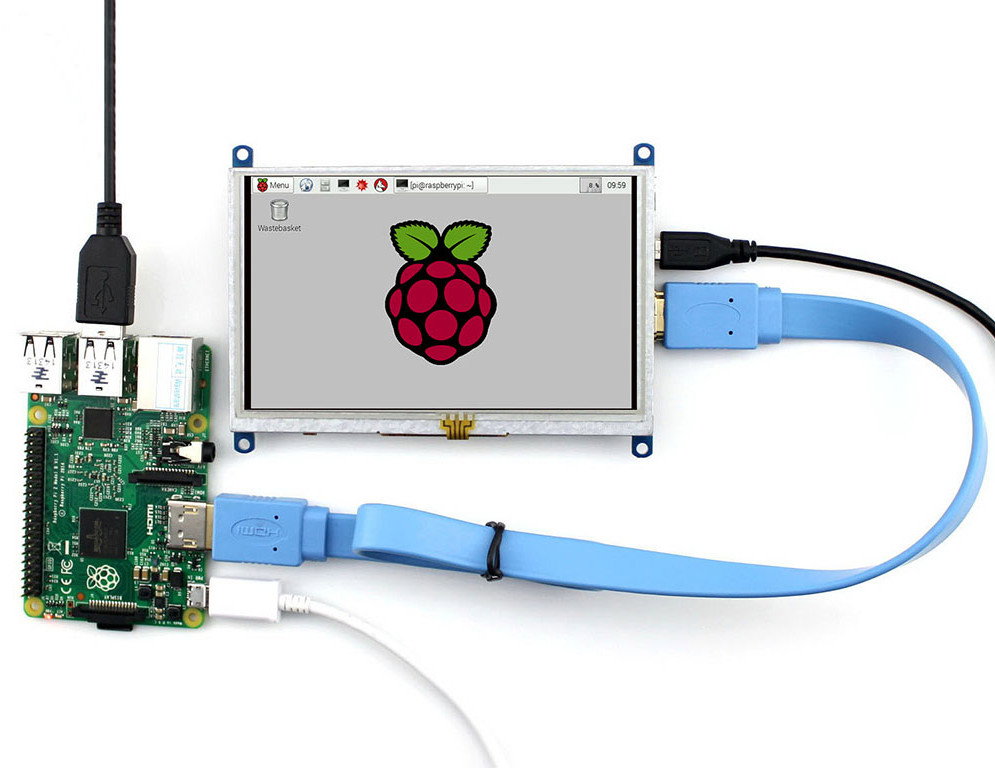

Example of connecting the screen to the Raspberry Pi.
Screenshot of the programWin32 Disk Imager, when you select the system, just press the Write button and wait until the installation process is completed.
Software
The manufacturer has prepared the operating system with the installed drivers. The system should be unpacked using an appropriate program such as WinZip and upload to the card usingWin32 Disk Imager.
A detailed description of the connection and driver installation, without changing the Raspberry Pi system and the image of the finished system, you can find onthe website of the manufacturer. |
GPIO interface
| Pin GPIO | Symbol | Description |
|---|---|---|
| 1, 17 | 3.3 V | Power 3.3 V. |
| 2, 4 | 5V | Power 5 V. |
| 3, 5, 7, 8, 10, 11, 12, 13, 15, 16, 18, 24 | NC | Not connected. |
| 6, 9, 14, 20, 25 | GND | Mass. |
| 19 | TP_SPI | Input of the data of the SPI interface for the touch panel. |
| 21 | TP_SO | The data output of the SPI interface for the touch panel. |
| 22 | TP_IRQ | The interruption of the touch panel, defining the touch, establishes a low state. |
| 23 | TP_SCK | Clock signal SPI for the touch panel. |
| 26 | TP_CS | Chip select for touch panel. |
Specification
- Screen type: resistive touch
- Diagonal: 5 "
- Resolution: 800 x 480 px
- Works with:Raspberry Piversion 4, 3, 2, B+, Zero, and Zero W (working directly with the system from manufacturer)
- The screen uses 26 pins GPIO
- Also works with all HDMI devices (touch function not available then)
- 4 mounting holes (screws included in the package)

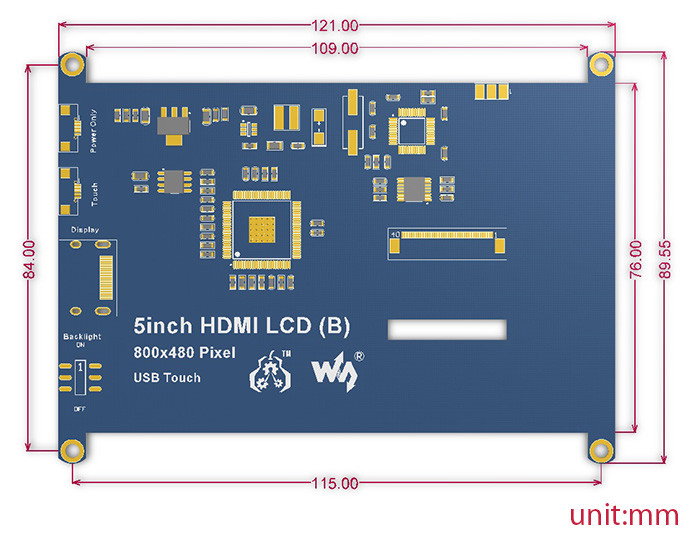

- Screen dimensions: 121 x 76 mm
Set includes
- Resistive, touch 5" screen
- Connector HDMI
- Touch stylus
- Mounting screws
Case
In our offer you will also finda special panel which allows to set the screen at an angle of 45° or 60°. Included with housing are screws for mounting the Raspberry Pi behind the screen.
In our offer you will find also
Useful links
Useful links
| Name | Value |
|---|---|
| Screen - type | LCD TFT |
| Screen - diagonal | 5'' |
| Screen - interface | HDMI+GPIO |
| Screen - touch | yes |
| Screen - resolution | 800x480px |
| Width | 14 cm |
| Height | 4 cm |
| Depth | 10 cm |
| Weight | 0.187 kg |
