OLED 1,3'' 128x64px module for Raspberry Pi 4/3+/3/2/Zero - Waveshare 13890

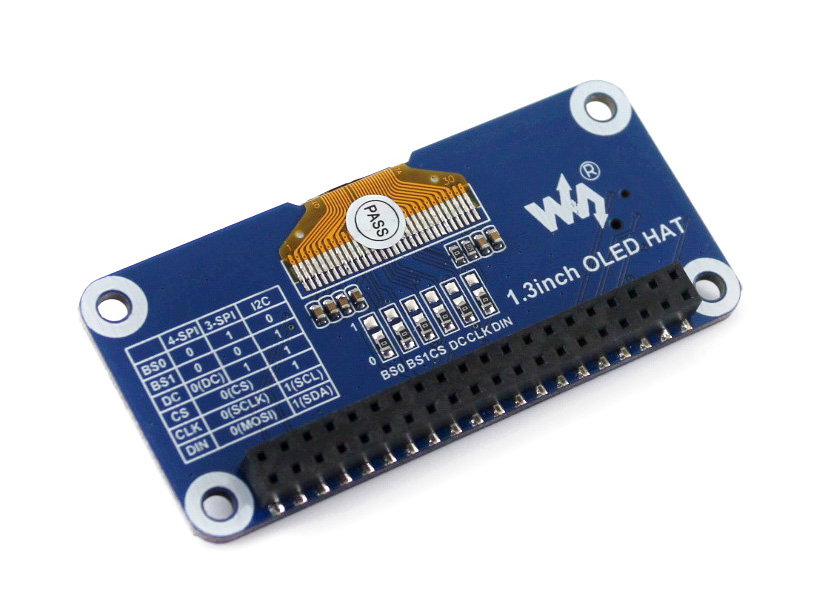

Shield for Raspberry Pi and Jetson Nano with blue OLED display with a diagonal of 1.3" and a resolution of 128 x 64 px. The screen is based on SH1106 driver, it communicates via the I2C or SPI bus. Additionally, on board is a joystick and three buttons.
We could not load the price.
The promotional price does not combine with quantity discounts.
Description
Shield for Raspberry Pi and Jetson Nano with blue OLED display with a diagonal of 1.3" and a resolution of 128 x 64 px. The screen is based on SH1106 driver, it communicates via the I2C or SPI bus. Additionally, on board is a joystick and three buttons.
Botland is an official distributor of Waveshare devices. Their versatility and compatibility, particularly in display and power technology, have won over customers all over the world. Our team guarantees that all Waveshare products presented here are original.
The subject of the sale is a shield with display, minicomputerRaspberry Pican be purchased separately.
Key features
- Standard connection via the GPIO connector of the Raspberry Pi 4 / 3+ / 3 / 2 / Zero / Zero W and Jetson Nano
- Additional interfaces: 4-SPI, 3-SPI, I2C
- The board consists of: 1x joystick (5-position), 3x buttons
Pins
The shield has an additional SPI and I2C interfaces, the board consists of three buttons and a joystick.
| Symbol | Pin Raspberry Pi | Description |
|---|---|---|
| KEY 1 | P21 | 1 button / GPIO. |
| KEY 2 | P20 | 2 button / GPIO. |
| KEY 3 | P16 | 3 button / GPIO. |
| Joystick Up | P6 | Joystick up. |
| Joystick Down | P19 | Joystick down. |
| Joystick Left | P5 | Joystick left. |
| Joystick Right | P26 | Joystick right. |
| Joystick Press | P13 | Joystick button. |
| SCLK | P11 / SCLK | The clock line of SPI. |
| MOSI | P10 / MOSI | Data line of SPI. |
| DC | P24 | Selection of data / commands (high for data, low for commands). |
| CS | P8 / CE0 | Selection of Chip,activated by low state. |
| RST | P25 | The reset system is activated by the low state. |
Specification
- Driver: SH1106 (documentation)
- Interface: 4-SPI, 3-SPI, I2C
- Display color: blue
- Resolution: 128 x 64 px
- Supply voltage: 3.3 V
- Dimensions: 65 x 30,2 mm
Useful links
| Name | Value |
|---|---|
| Screen - type | OLED |
| Screen - diagonal | 1.3'' |
| Screen - interface | SPI+I2C |
| Screen - touch | no |
| Screen - resolution | 128x64px |
| Width | 5 cm |
| Height | 2.3 cm |
| Depth | 7 cm |
| Weight | 0.02 kg |
