Description
Dual-channel DC motor driver. The module can control the direction of rotation, start, stop and speed of the DC motors. Continuous current per 10 A channel (temporary 30 A). Supply voltage from 6 V to 24 V. The module has a system of ATmega328P and is compatible with the Arduino UNO.

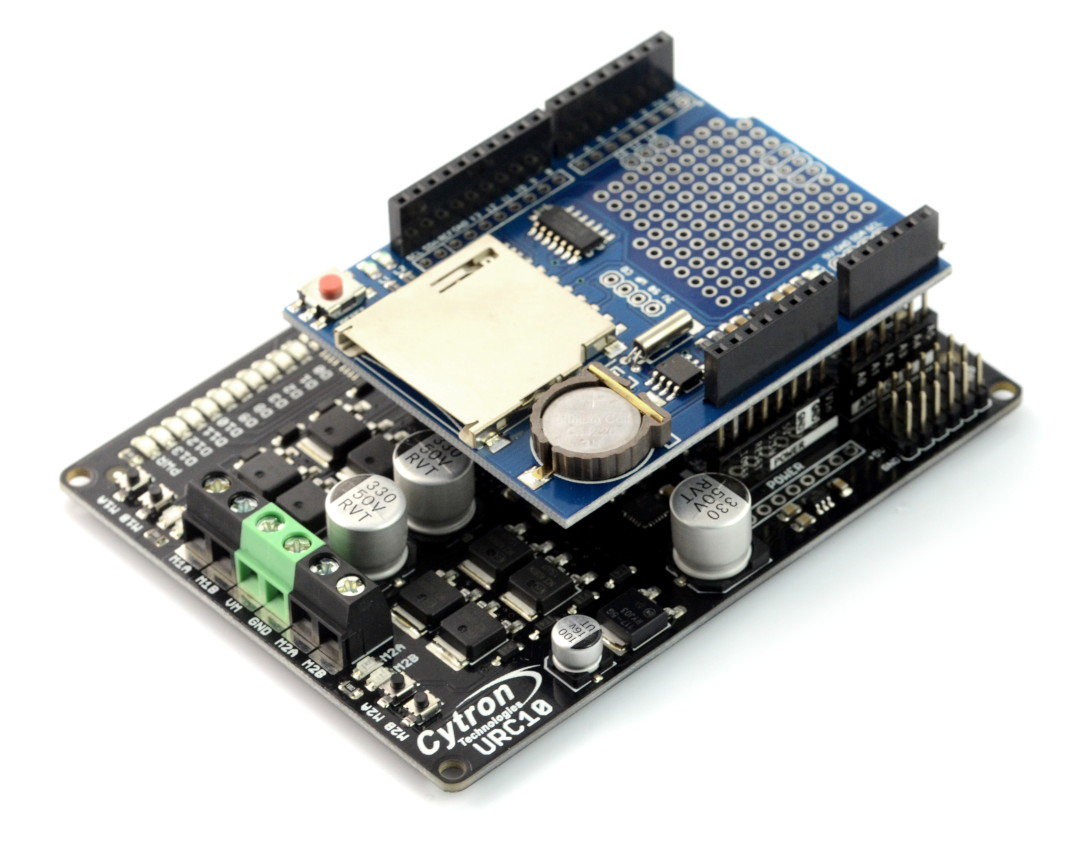

The module is compatible withshields for Arduino.
|
The product is compatible with Arduino Sample codeand detailed information can be found inthe user guide. |
Specification
- Supply voltage: 6 V to 24 V DC
- Voltage of the logic part: 5 V
- Average current per channel: 10 A (temporary 30A)
- Number of channels: 2
- Semiconductor devices providing faster response time
- PWM up to 20 kHz
- Compatible with Arduino UNO: ATmega328P chip
- the same power for the board and for motors
- Built-in voltage regulator 5 V / 1 A
- Built-in voltage regulator 3.3 V / 0.5 A
- Voltage of outputs: 0 V to 5 V
- 14 pins of I/O
- 6 PWM outputs
- 4 pins for the driver of motors
- 6 analog inputs
- 6-pin ISP connector
- Flash memory: 32 KB
- Frequency: 16 MHz
- LEDs for I/O pins
- 2 connectors of the HC-SR04 sensor
- MicroUSB connector
- Buttons and screw connectors for motors
- The lack of protection from bad polarity
- Dimensions: 75,5 x 100 mm
