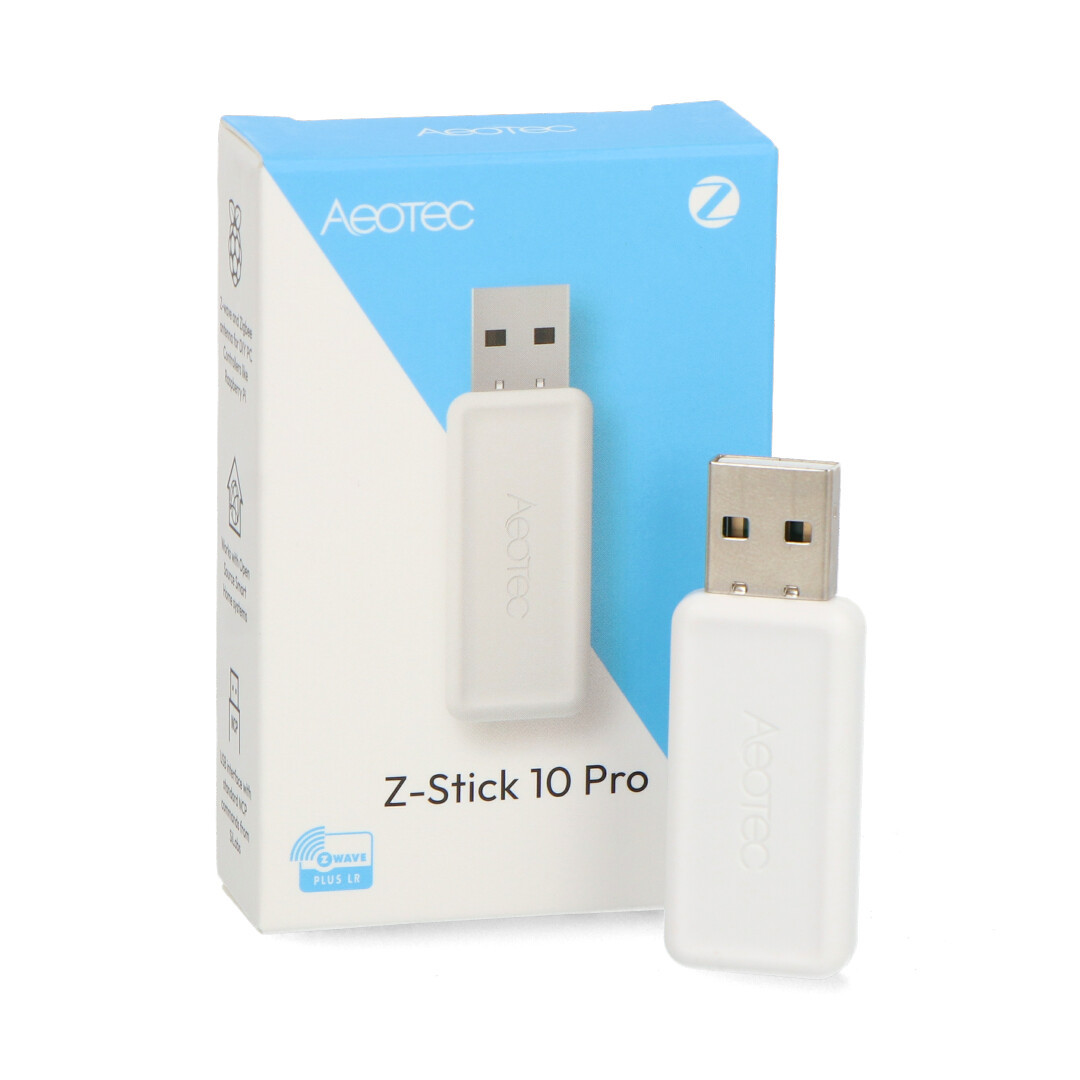

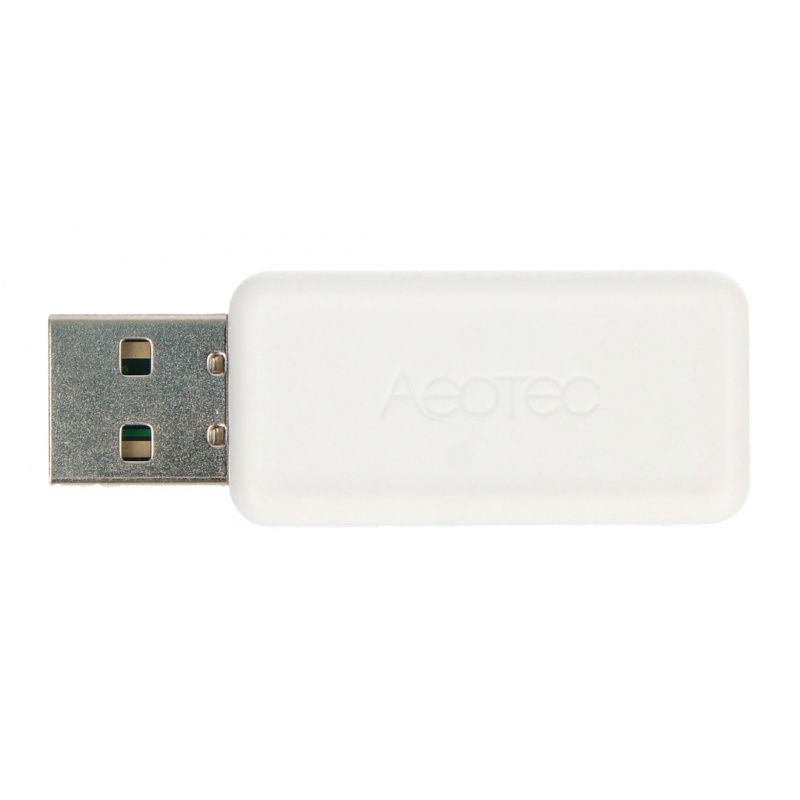

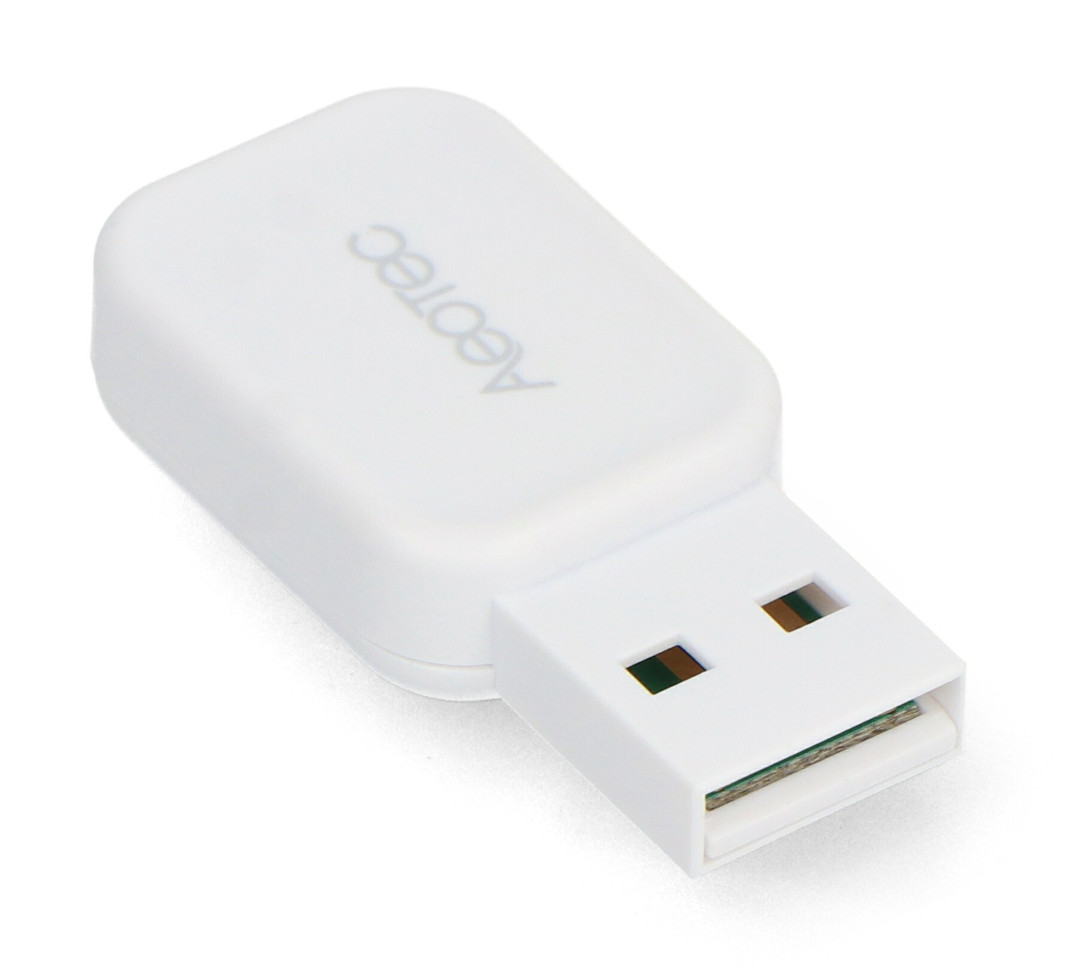

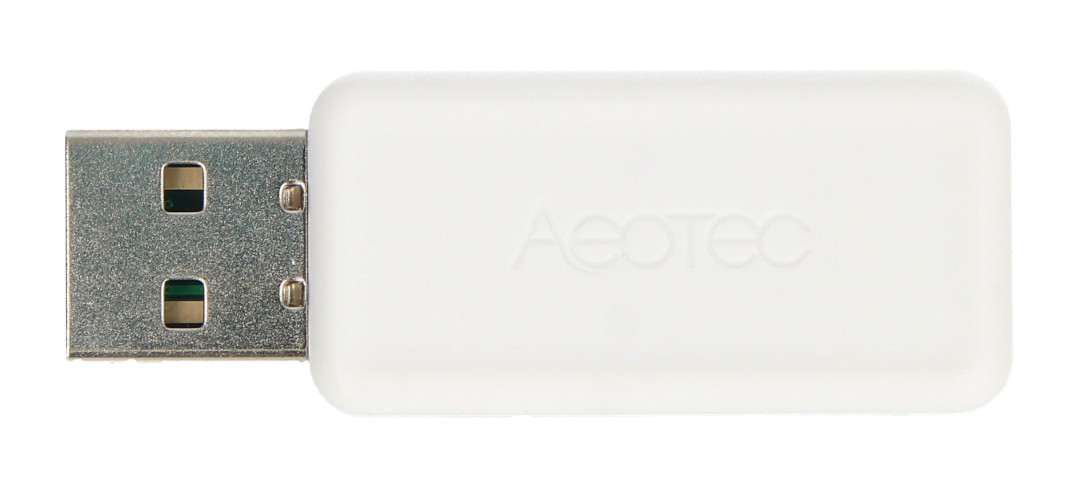

Product description: Aeotec Z-Stick 10 Pro - USB module - Z-Wave/ZigBee
The Aeotec Z-Stick 10 Pro is a universal controller in the form of a USB adapter, combining Z-Wave 800 and ZigBee 3.0 communication and enabling the creation of reliable, local Smart Home systems. The module allows you to build your own, locally hosted gateway . Based on the modern Z-Wave 800 chip, it offers Z-Wave Plus certification, S2 native security, SmartStart , and Long Range support, which in practice means a range of up to approximately 150 m outdoors and up to 1000 m in star-network mode for compatible devices. ZigBee operates in the 2.4 GHz band, with the EFR32MG21 chip, transmitting power of +20 dBm and sensitivity of -99 dBm, enabling a functional network of up to approximately 200 m in open space . The Z-Stick 10 Pro is compatible with popular platforms such as Home Assistant, openHAB, Domoticz, and Z-Wave JS. The Aeotec Z-Stick 10 Pro does not have a built-in battery. Its compact size, wide range, and advanced network management make it a great solution for beginners, DIY enthusiasts, and advanced home automation installers alike. The Z-Stick 10 Pro combines two technologies in a single, powerful, and versatile USB controller.

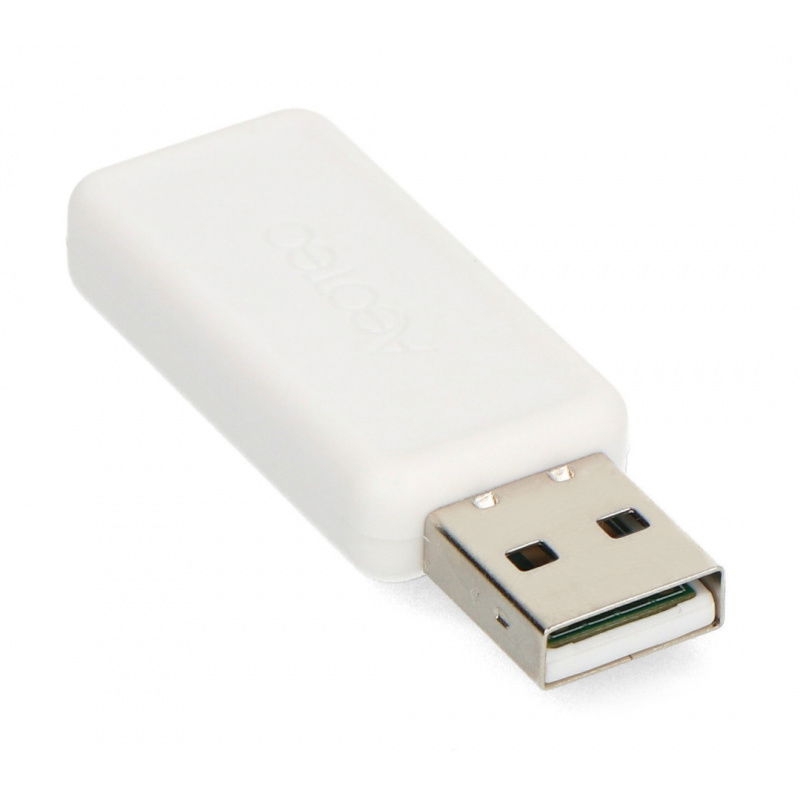

Aeotec Z-Stick 10 Pro - USB module - Z-Wave.
The Aeotec Z-Stick 10 Pro combines two technologies into one powerful and versatile USB controller.
Main features of the Aeotec Z-Stick 10 Pro
- Dual interface: Z-Wave 800 and ZigBee 3.0 : one USB adapter enables the integration of devices operating in the two most popular Smart Home communication standards
- Local control (no cloud) : full control over the system without delays or privacy risks
- Open platform compatibility : works with Home Assistant, OpenHAB, ZigBee2MQTT and other open-source solutions
- Z-Wave Long Range support : increased open space transmission range
- Powerful and sensitive ZigBee interface : with EFR32MG21 chip, TX power +20 dBm and sensitivity -99 dBm
- Safe and fast Z-Wave pairing : SmartStart support and S2 Security encryption improve transmission security and simplify device configuration
- Ergonomic design : compact dimensions of 49 x 17 x 7 mm make the Z-Srick 10 Pro ideal for use in tight, hard-to-reach spaces
- USB powered : the module does not require an external power source.
- Cross-platform support : works with Windows, Linux, macOS, and Raspberry Pi
- Upgradable Silicon Labs Firmware : Z-Stick 10 Pro is developer-ready and easy to upgrade
Z-Stick 10 Pro Setup
Installing the Z-Stick 10 Pro is simple and intuitive, allowing you to quickly get your smart home up and running. The main steps include:
- Connecting to a device: Insert the Z‑Stick 10 Pro into a USB port on your Windows, Linux, Raspberry Pi, or miniPC. The device will automatically be detected as a serial port (USB CDC).
- Platform Selection: Choose the right platform to manage your smart home, such as Raspberry Pi , Windows, Linux, etc.
- Software selection: Install a management app such as Home Assistant, Domoticz, OpenHAB or HomeSeer to configure and control Z‑Wave and ZigBee devices.
- Scanning devices: After launching the software and detecting the adapter, start searching for devices in pairing mode (inclusion mode).
- Adding and configuring devices: Once scanning is complete, add selected devices to your Z-Wave network and configure them according to your preferences, e.g. by setting schedules, creating scenarios, or remotely controlling devices.
The device configuration process is described in detail in the manufacturer's user manual .
Z-Stick 10 Pro works with popular platforms such as Home Assistant, openHAB, Domoticz and Z-Wave JS.
Aeotec Z-Stick 10 Pro offers increased open space transmission range thanks to support for Z-Wave Long Range.
The new Z-Wave Plus standard
The Z-Wave 800 Series is the latest version of Z-Wave technology, introducing a number of advanced improvements over previous generations – both in terms of range, security, and reliability. Thanks to the new chipset

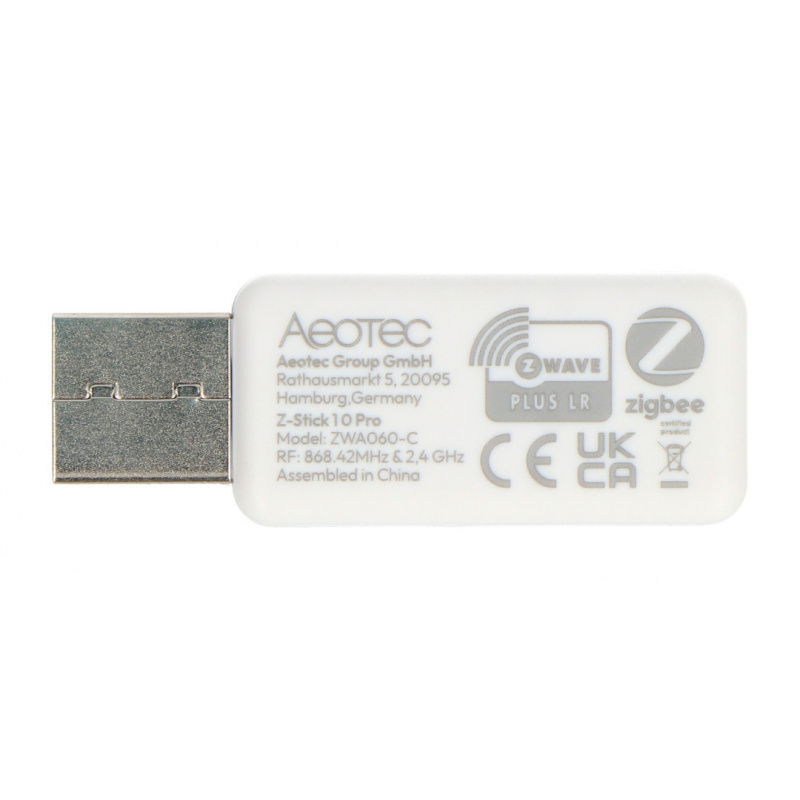

Aeotec Z-Stick 10 Pro Module Specifications
- Model: Z-Stick 10 Pro
- Device type: USB Z-Wave / ZigBee controller
- Communication: Z-Wave RF 868.42 MHz / ZigBee 2.4 GHz
- Standard: Z-Wave Plus v2 (800)
- USB DC Power: 4.75V to 5.25V
- Built-in lithium battery: none
- Maximum standby current: 30uA
- Maximum operating current: 98 mA in PA mode or 40 mA in normal mode
- RF Receiver Sensitivity: 9.6 kbps at -90 dBm and 100 kbps at -90 dBm
- Certificates: Z-Wave Plus v2 (800), ZigBee 3.0
- Compatibility: Raspberry Pi 3 and newer, Windows 10 and newer, Linux, MacOS
- Software version: V1.02
- SmartStart: yes
- SDK Version: V6.81.06
- Compatibility with free systems, e.g.:
- Home Assistant
- openHAB
- Domoticz
- Other systems, e.g.:
- HomeSeer
- Axial Control
- Indigo domotics
- Operating temperature: 0°C to 40°C
- Product dimensions: 49 x 17 x 7 mm
- Weight: 5 g
Due to power supply via the USB port, the module does not require an external power source.
