LTV-357T Lite-on optocoupler

Index: MOD-15249 EAN: 5904422307981

Transoptor with transistor output, single channel.Used for optical insulation of systems. The circuit is closed in a small, surface soldered casing.

LTV-357T Lite-on optocoupler
€0.90
€0.73 tax excl.
Delivery 10 pcs scheduled for 2024-04-09
Waiting for delivery
PayPal payment
Manufacturer: Lite-On

Product description: Transoptor Lite-on LTV-357T

Transoptor (optoisolator) with transistor output,single channel.Used for optical insulation of circuits. Closed circuit in a small,surfacesolderedhousing.Transoptors are used, among others, to maintain safety in electrical equipment. It is, for example, to apply galvanic separation between individual parts of circuits.

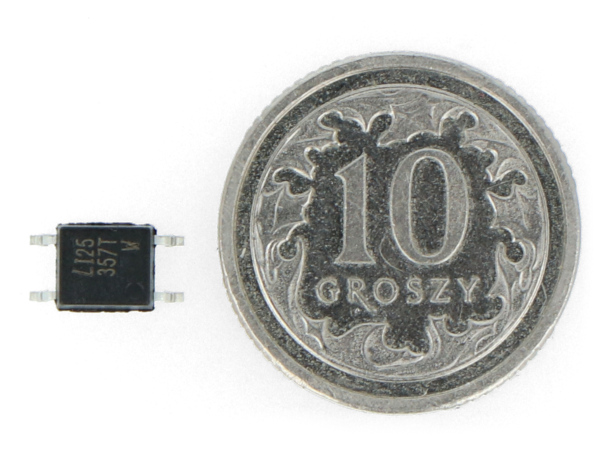

Czujnik odbiciowy LTV-357T

Transoptor LTV-357T.

Transoptor LTV-357T specifications

  • Number of channels: 1
  • Maximum voltage collector - emitter: 35 V
  • Conduction current of the diode If: 50 mA
  • Maximum collector current: 50 mA
  • Insulation voltage: 3750 Vrms
  • Voltage Vf: 1.4 V
  • Voltage Vr: 6 V
  • Power loss Pd: 170 mW
  • Operating temperature: -55°C to 100°C
  • Housing: SMD
  • Dimensions: 4.4 x 3.6 x 2 mm
  • Weight: 230 mg

Package width 3.5 cm
Package height 0.5 cm
Package depth 2.5 cm
Package weight 0.001 kg
