Distance sensor, reflective - receiver + transmiter IR - 3.3V / 5V - 40cm - Iduino ST1081

Index: OST-14256 EAN: 5903351242288

The reflective module with a transmitter and an infrared receiver, equipped with a digital output. It works with a voltage from 3.3 V to 5 V. It enables the detection of obstacles in the range from 2 to approx. 40 cm. Based on NE555 chip.

Distance sensor, reflective - receiver + transmiter IR - 3.3V / 5V - 40cm - Iduino ST1081
€2.50
€2.03 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Iduino

Product description: Iduino - distance, reflective sensor

The reflective module with a transmitter and an infrared receiver, equipped with adigital output. It works with a voltagefrom 3.3 V to 5 V. It enables the detection of obstacles in the range from 2 to approx. 40 cm. Based onNE555chip.

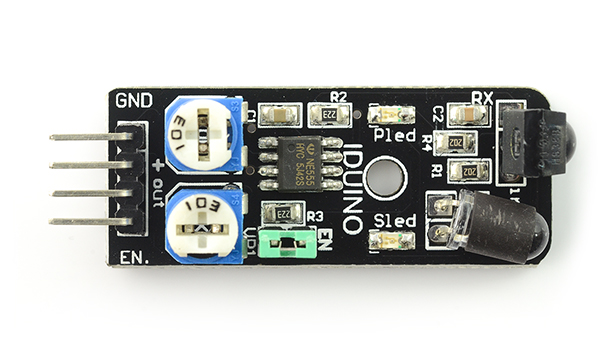

Czujnik odbiciowy Iduino

Reflective sensor's maintenance

The sensor has a 4-pin connector with digital output which should be connected to the pin of the microcontroller, e.g. Arduino.

Przykład podłączenia czujnika odległości z Arduino

Example of connecting the sensor with Arduino.

Pin Description
+ The supply voltage of 5 V.
GND The ground of the system.
OUT The output digital signal.
EN Pin activating the operation of the low status, it is usually disabled.



The product is compatible withArduino

The manufacturer has prepared a sample program for Arduino.

Specification of the distance sensor Iduino

  • Supply voltage: from 3.3 V to 5 V

  • Current consumption: 20 mA
  • The digital output signal
  • Detection range: from 2 cm to 40 cm
  • Working temperature: from -10°C to 50°C
  • Adjustable resistance
  • Viewing angle: 35°
  • Module dimensions: 45 x 16 x 10 mm
  • Weight: 9 g



Voltage to 3.3 V
Voltage from 5.0 V
Sensor - distance to 40 cm
Sensor - distance from 2.0 cm
Package width 2.5 cm
Package height 5 cm
Package depth 1.3 cm
Package weight 0.005 kg

Artur

03/22/23

Question: Good day What response time does the sensor have? What is the height from the beginning of the board (without the feet) to the tip of the diode?
Answer:

The height is 9 mm.

Unfortunately, the supplier does not have information on the sensor's response time.
