Product description: 1,3'' 64 x 128 px OLED display - SPI / I2C - black and white - for Raspberry Pi Pico - Waveshare 19376
A compactdisplayequipped with connectors compatible withRaspberry Pi Pico version. It is equipped with two buttons for simple user interaction. It has a built-inSH1107driver and usesSPIandI2C(selectable) buses. Thescreenresolution is64 x 128 pxand its diagonal is1.3''. The module presents the image in two colors -blackandwhite, and the size of a single pixel is 0.15 x 0.15 mm.

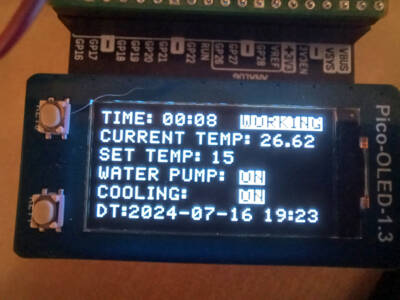

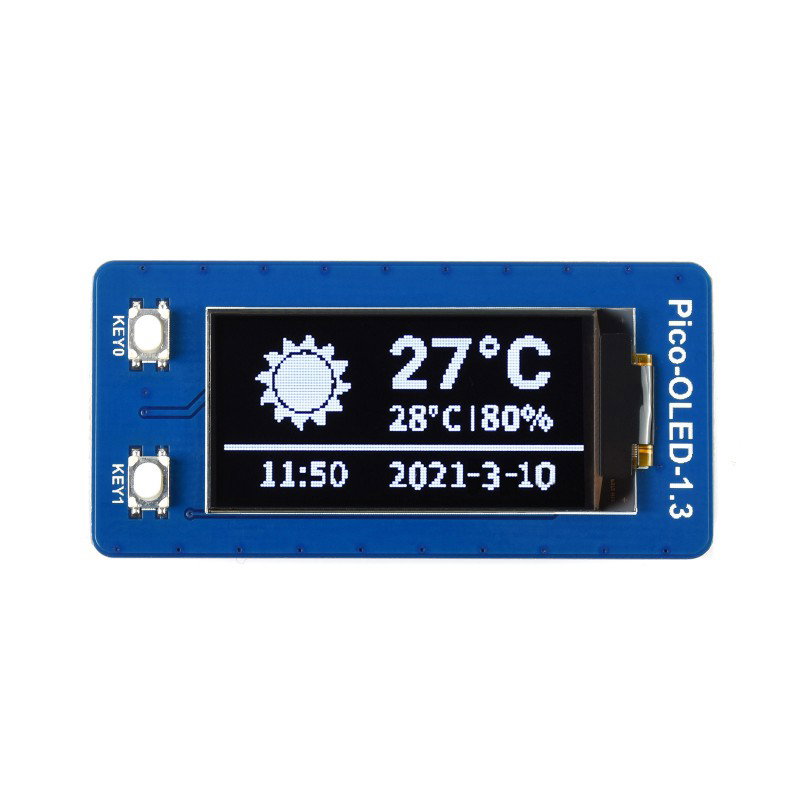

OLED display for Raspberry Pi Pico manufactured by Waveshare.
Product compatible withRaspberry Pi Pico
The manufacturer provides aproduct wiki pagethat provides information about the module's pinouts and a detailed user guide.

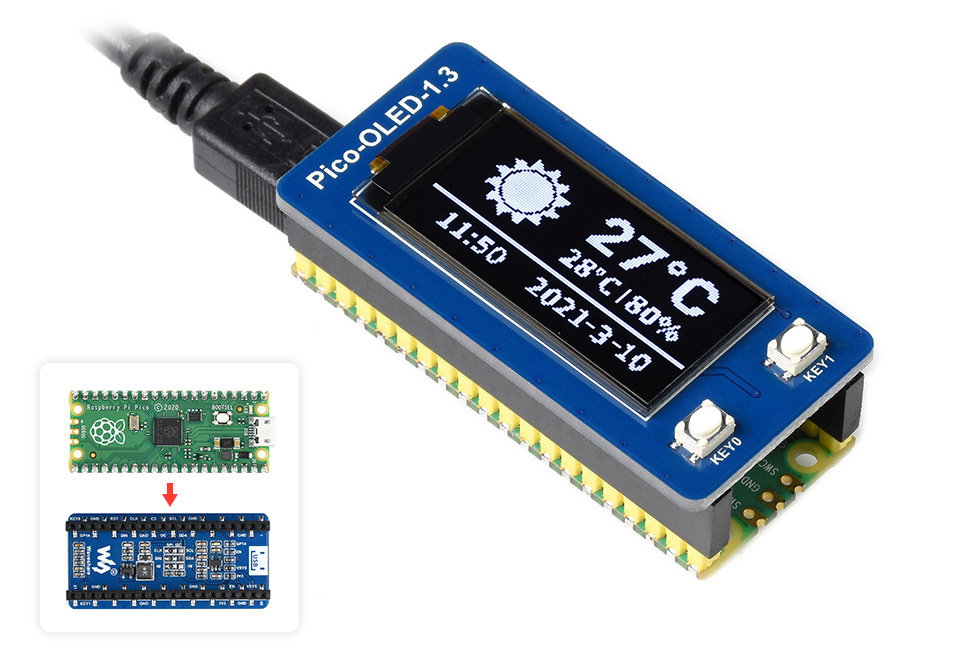

The display pinouts are compatible with the connector on the Raspberry Pi Pico.

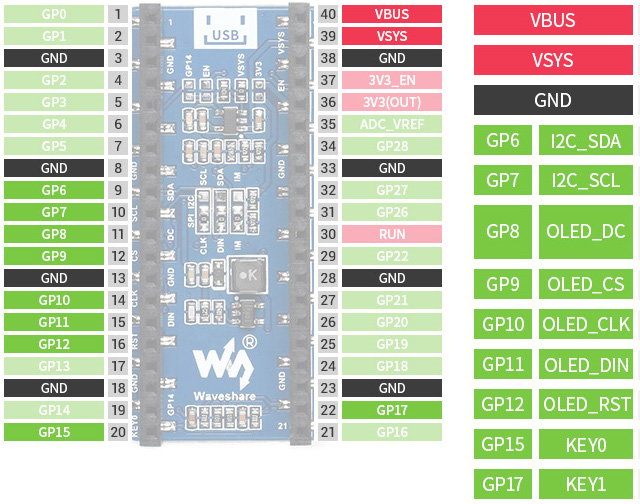

Leads
Thedisplay has pinouts in the form offemale connectors for easy connection to the Raspberry Pi Pico. Among the pinouts are:
- VBUS- power pin from 3.3 V to 5.5 V
- VSYS- power supply pin from 1.8V to 5.5V
- GND- ground of the chip
- I2C_SDA- I2C interface data line input pin
- I2C_SCL- I2C interface clock input pin
- OLED_DC- data / commands select pin (high state - data; low state - commands)
- OLED_CS- Chip Select
- OLED_CLK- SPI interface clock input pin
- OLED_DIN- SPI interface data line input pin
- OLED_RST- RESET pin (activated by low state)
- KEY0- user pin 0
- KEY1- utility pin 1
Technical specification of the display
- Dedicated toRaspberry Pi Pico version
- Type: OLED display
- Communication interface: SPI / I2C 4-pin
- Display diagonal: 1,3''
- Display resolution: 64 x 128 px
- Pixel size: 0.15 x 0.15 mm
- Display colours: black and white
- Operating voltage: 3,3 V
- Two usable buttons: KEY0 and KEY
- Programming language: C / C++ / MicroPython
- Embedded controller: SH1107
- Display dimensions: 14.7 x 29.42 mm
- Module dimensions: 52 x 25 mm
The item is only the display - Raspberry Pi Pico needs to be purchased separately.
