Product description: E-Ink E-paper display - 2,13'' 250 x 122 px - SPI - black and white - for Raspberry Pi Pico - Waveshare 19406
Display forRaspberry Pi Picomanufactured by Waveshare. The module is made withe-papertechnology, which makes this kind of display suitable for reading e-books and electronic magazines. The diagonal is2.13''and the resolution is250 x 122 px. The image is presented in two colours:blackandwhite, with the grey scale of 2. The display provides the user with a wide viewing angle exceeding 170°.

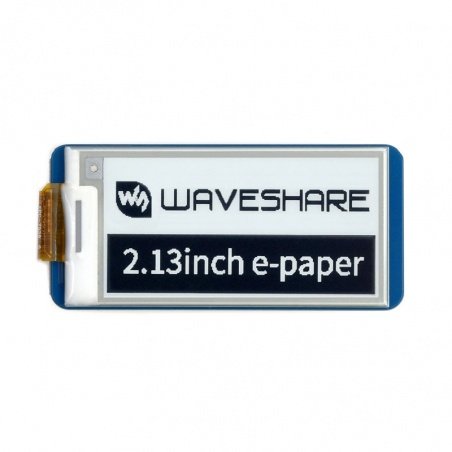

Display made with e-paper technology for Raspberry Pi Pico.Raspberry Pi Picois not part of the kit, it can be purchased separately from our store.
The diagonal of the display is 2.13''.Special features
- Display made with e-paper technology, which is used in production of e-book readers
- Image displayed in two colors: white and black
- Low power consumption during use
- Display of the last image even after disconnection of the power supply
- SPI communication interface
- Programmable with C/C++ and MicroPython
Pinouts
The displayis equipped withfemale connectors through which Raspberry Pi Pico should be connected. Among pins there are:
- VSYS - power supply pin
- GND - ground
- e-Paper_DC - pin select: data / commands (high state: data; low state: commands)
- e-Paper_CS - Chip select (activated by low state)
- e-Paper_CLK - SPI bus clock output
- e-Paper_DIN - SPI bus data output
- e-Paper_RST - RESET pin (low state activated)
- e-Paper_BUSY - Busy pin
|
Compatible withRaspberry Pi Pico |
Display Pinouts.
The image is displayed in two colors: black and white.
Technical specifications
- Compatible with: Raspberry Pi Pico
- Display type: e-paper
- Operating voltage: 3.3 V / 5 V
- Display diagonal: 2,13''
- Resolution: 250 × 122 px
- Pixel size: 0.194 × 0.194
- Communication interface: 3-wire SPI, 4-wire SPI
- Displayed colors: black and white
- Gray scale: 2
- Partial refresh time: 0.3 s
- Full refresh time: 2 s
- Refresh power: 26.4 mW
- Standby current: <0.01 a="" li="">
- Viewing angle: >170°
- External dimensions: 65 x 30.5 mm
