Product description: 1,14'' 240 x 135 px IPS LCD display - SPI - for Raspberry Pi Pico - Waveshare 19340

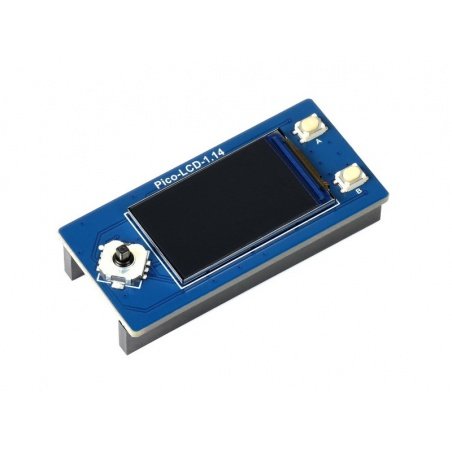

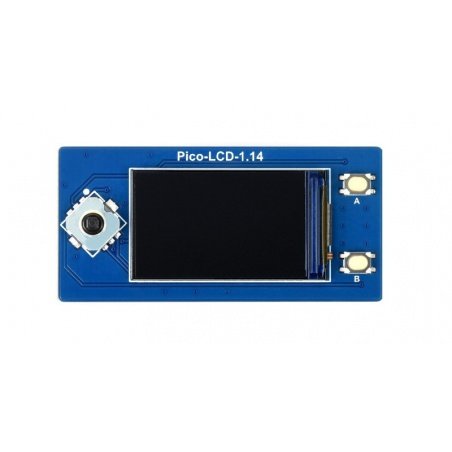

A1.14''IPS LCDdisplayfor theRaspberry Pi version of the Picominicomputer. The screen resolution is240 x 135 px. The module is manufactured by Waveshare and comes withST7789driver. It has 2 usable buttons for user interaction and comfortable joystick. The display uses an SPI communication interface and is powered from2.6 V to 5.5 V. It can be programmed in C/C++ and MicroPython language.
|

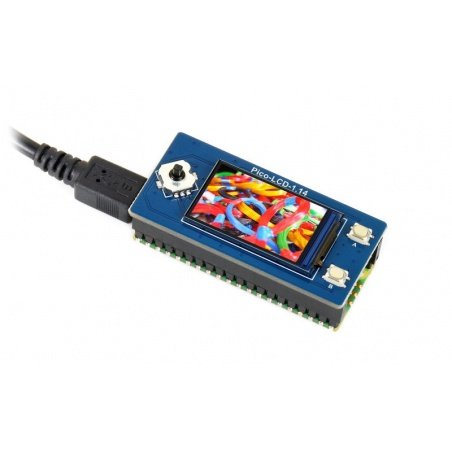

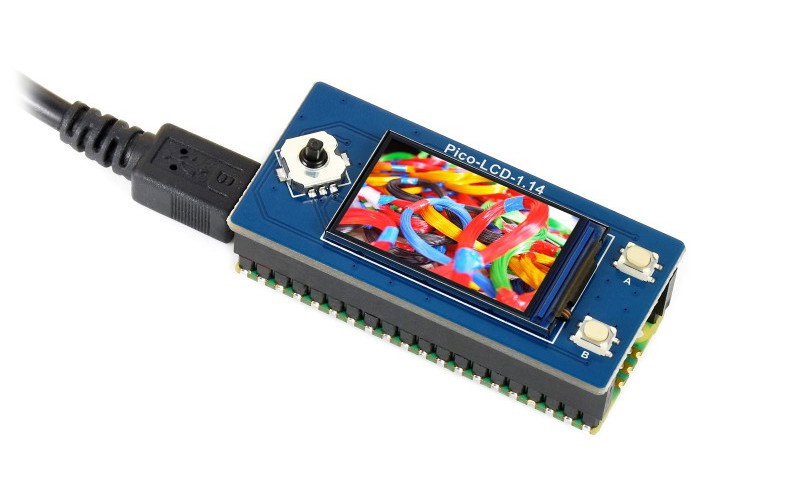

Compatible withRaspberry Pi Pico |

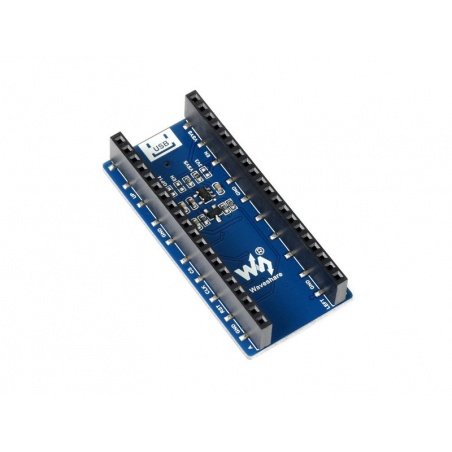

The display for Raspberry Pi Pico has special pinouts for convenient connection to the main module.

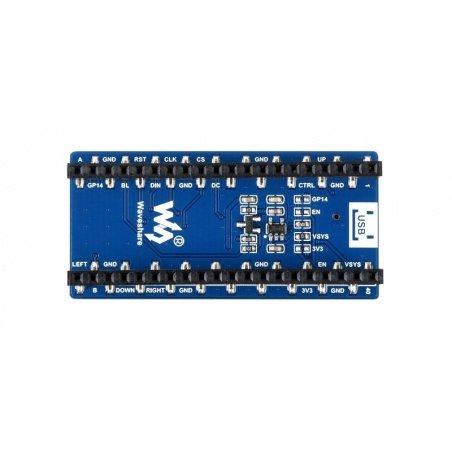

Display pinouts.
Leads
Thedisplay has pinouts in the form offemale connectorsfor easy connection to the Raspberry Pi Pico. Among the pins there are:
- VSYS- power supply pin from 1.8V to 5.5V
- GND- system ground
- LCD_DC- pin select: data / commands (high state: data; low state: commands)
- LCD_CS- chip select (activated by low state)
- LCD_CLK- SPI bus clock output
- LCD_DIN- SPI bus data output
- LCD_RST- RESET pin (low state activated)
- LCD_BL- backlight pin
- Joystick:
- GP2_UP- up movement
- GP18_DOWN- move down
- GP16_LEFT- move left
- GP20_RIGHT- move to the right
- GP3_CTRL- middle button
- GP15_A- utility button A
- GP17_B- utility button B
Technical specification
- Compatible with: Raspberry Pi Pico
- Diagonal size: 1.14''
- Resolution: 240 x 135 px
- Display type: IPS LCD
- Communication interface: SPI
- Color gamut: 65 K RGB colors
- Pixel size: 0.1101 x 0.1035 mm
- Equipped with 2 usable buttons and joystick
- Controller: ST7789
- Operating voltage: 2.6 V to 5.5 V
- Programming language: C / C++ / MicroPython
- Dimensions: 52 x 25 mm

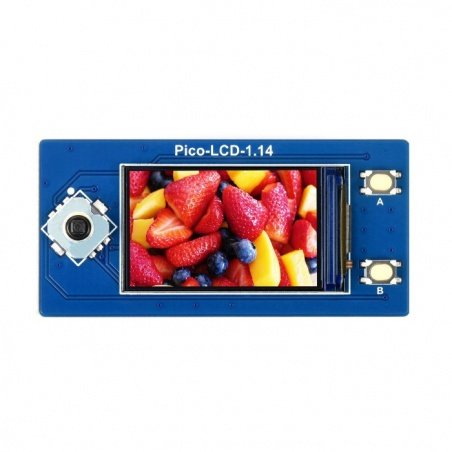

The image is displayed in true colors and with proper sharpness.
