Product Description: LCD1602 I2C 2x16 character display - color - RGB backlight Waveshare 19537

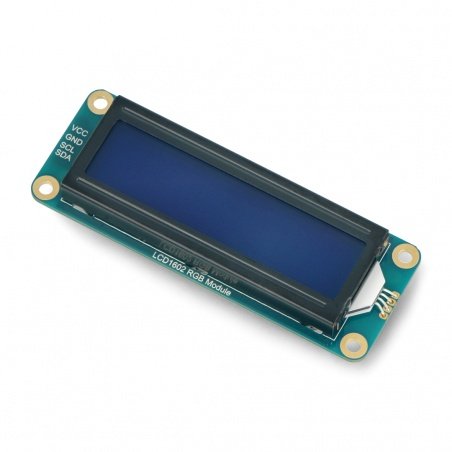

Alphanumeric LCD1602 display manufactured by Waveshare. It has built-in PCA9633 driver, which allows to customize the color of displayed characters. It presents characters in 2 x 16 configuration, with a choice of up to 16 million colors from the RGB palette. The display communicates via I2C bus. A dedicated connection cable is also included in the set.
LCD1602 I2C 2x16 characters display - colour.The product is compatible with popular microcontrollers which include Arduino, Raspberry Pi and Jetson Nano among others. The manufacturer also provides a product wiki page that makes it much easier to get started with the item.
The kit includes a dedicated connection cable.Special features
- Capable of displaying 2x16 characters

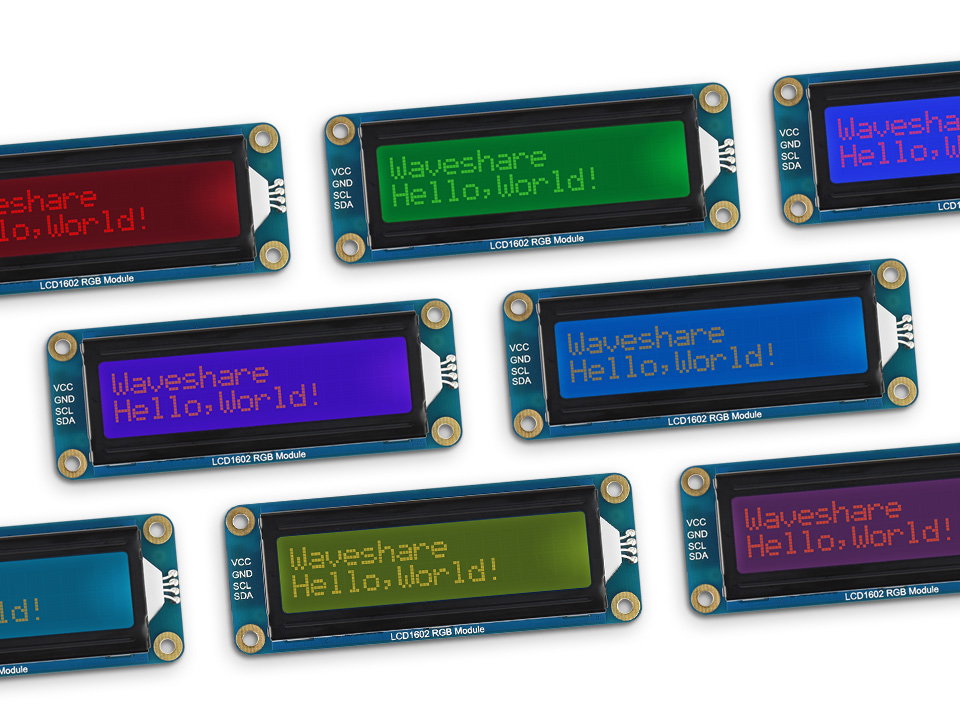

- Adjustable RGB backlight color, up to 16 million backlight colors to choose from
- Module working with voltage 3.3 V / 5 V
- Equipped with RGB controller PCA9633
Set contents

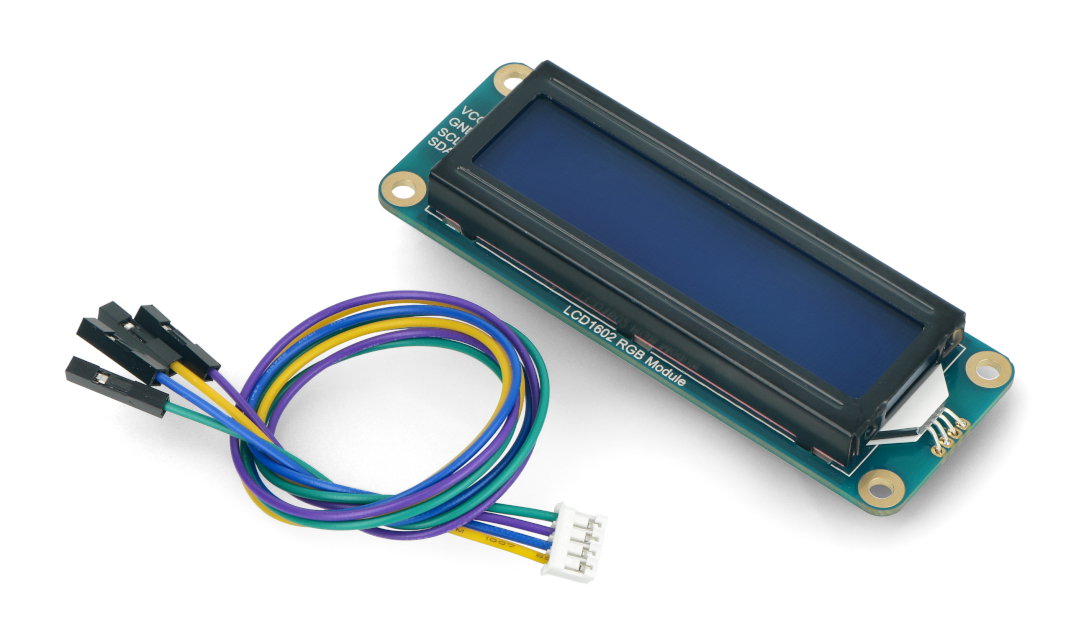

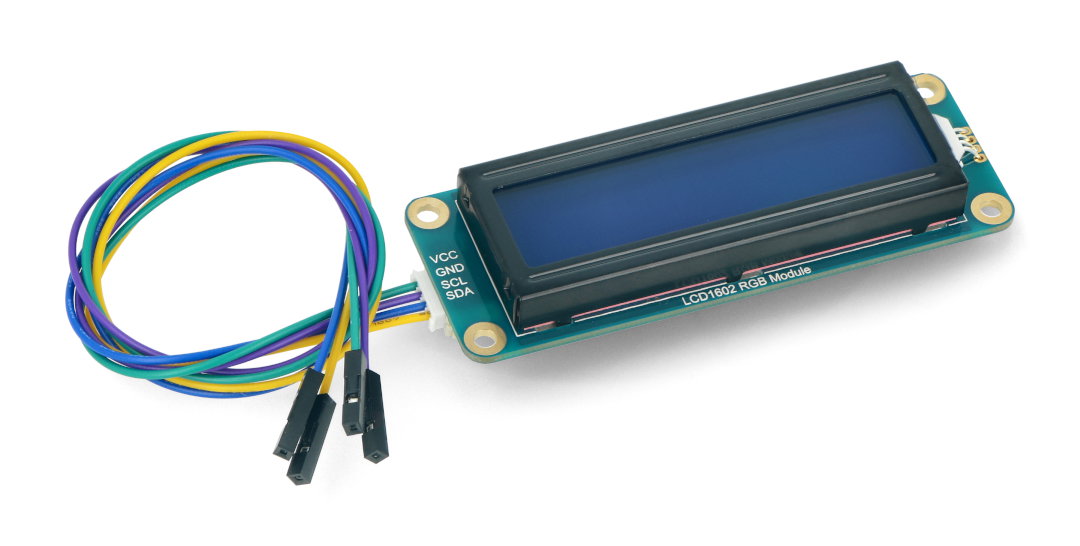

- LCD1602 I2C 2x16 characters display

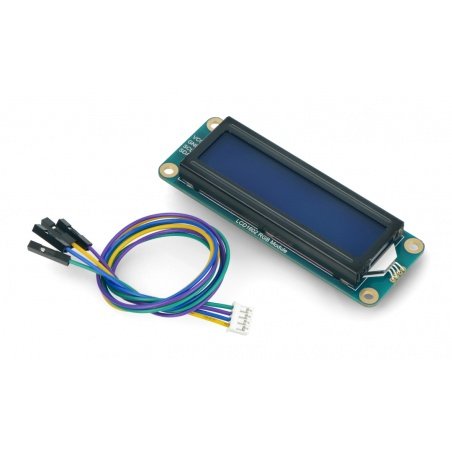

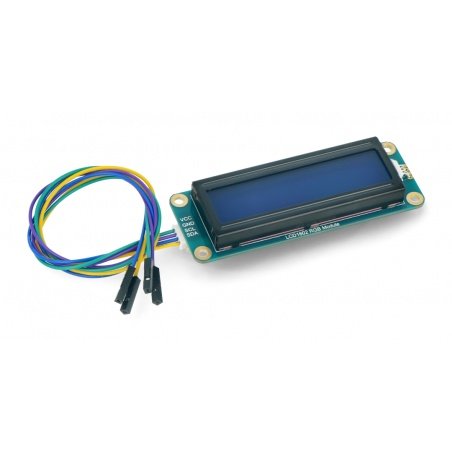

- 4-pin connection cable

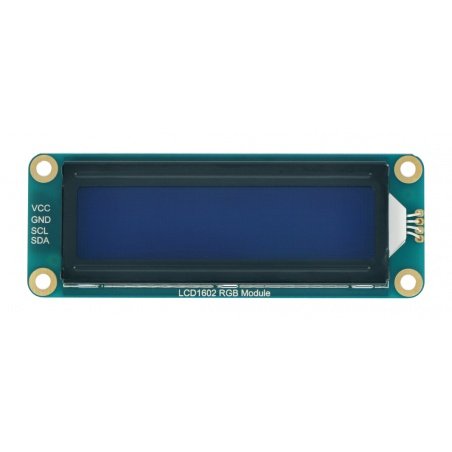

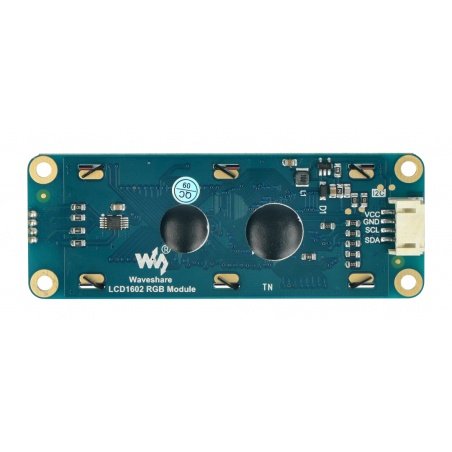

Pinout description
- VCC - power supply pin 3,3 V / 5 V
- GND - system ground
- SDA - I2C interface bus data line
- SCL - I2C bus data clock line

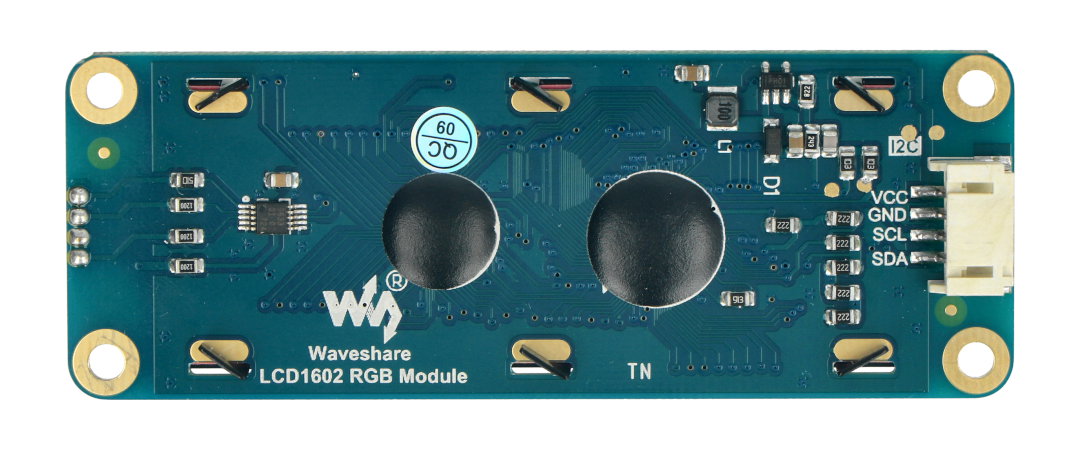

The module has pins with markings, which should be connected according to described dependencies.
Equipped with PCA9633 chip, which allows to adjust display colours according to individual preferences.Technical specification of the module
- Type: alphanumeric LCD
- Supply voltage: 3.3 V / 5 V
- Communication interface: I2C bus
- Screen resolution: 2x16 characters
- Touch screen: no
- Embedded chip:
- LCD controller: AiP31068
- RGB controller: PCA9633
- Backlight: selectable
- Backlight colors: RGB 16 million
- Display dimensions: 64.5 x 16 mm
- Module dimensions: 87 x 32 x 13 mm
In our assortment you will also find other types of displays. We invite you to familiarize yourself with the offer of our store.
