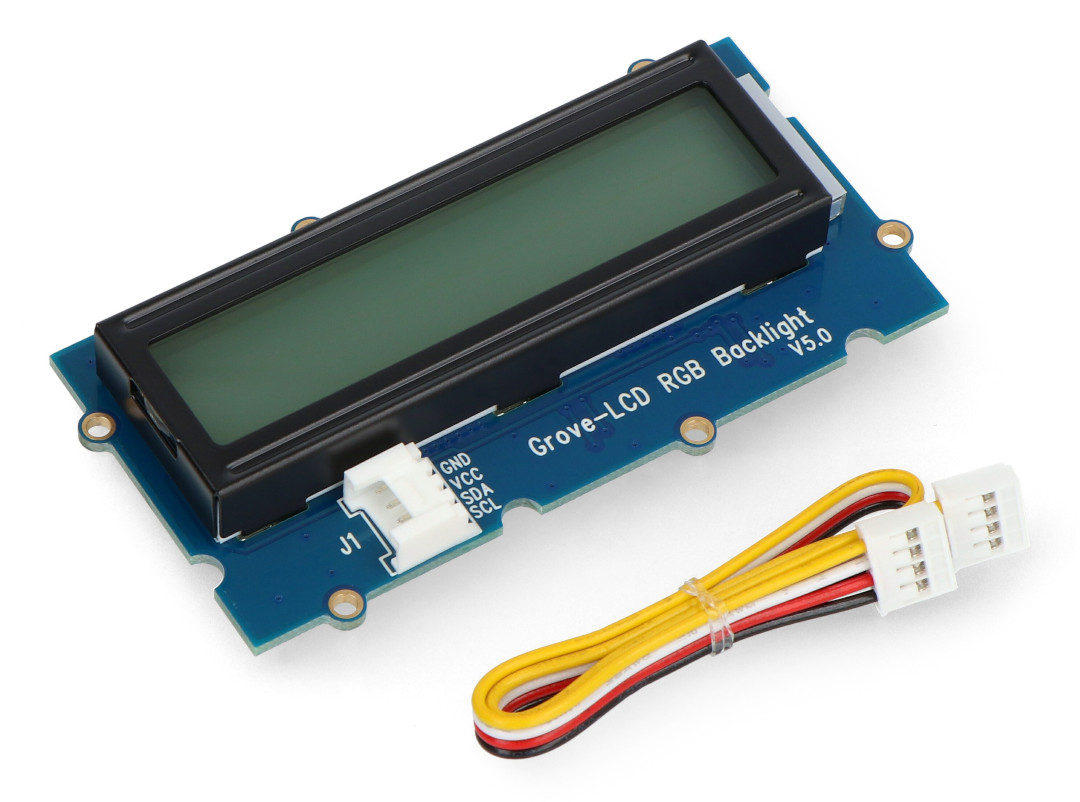

Grove - LCD display 2x16 characters with RGB backlight

Index: SEE-11326 EAN: 5903351247191

LCD display 2x16 characters with backlight in any color palette RGB. Communicates with the two-wire I2C bus. It is supplied with the voltage from 3.3 V to 5 V. The kit includes a cable adapted to Seeedstudio Base Shield v2.0.

Grove - LCD display 2x16 characters with RGB backlight
€14.76
€12.00 tax excl.
In stock, shipping 24 hours!
Check quantity
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: Seeedstudio
Compatibility: Arduino Raspberry Pi

Description

LCD display 2x16 characters with backlight in any color palette RGB. Communicates with the two-wire I2C bus. It is supplied with the voltage from 3.3 V to 5 V. The kit includes a cable adapted to Seeedstudio Base Shield v2.0.

Connection

The module is equipped with Grove interface, which facilitates its connection to Arduino along with Base Shield v2.0 or Raspberry with Hat GrovePi+.

Wyświetlacz LCD RGB

Pin Description
VCC Supply voltage from 3.3 V to 5 V.
GND The ground of the system.
SCL Clock line of the I2C bus.
SDA Data line of the I2C bus.

Specification

  • Supply voltage: from 3.3 V to 5 V
  • Current: < 60 mA
  • CGROM: 10880 bit
  • CGRAM: 64x8 bits
  • The LCD I2C address: 0X3E
  • RGB I2C address: 0x62 reset
  • Dimensions: 83 x 44 x 13 mm
  • Weight: 42 g

Screen - type alphanumeric
Screen - diagonal 2.6 ''
Screen - interface I2C
Screen - touch no
Screen - resolution 2x16 znaków
Sensor - type display
