Product description: Grove - OLED display 0,96'' (SSD1315) 128x64px SPI/I2C - Seeedstudio 104020249
Bicolor (blue and yellow) display with 0,96'' diagonal and 128 x 64 px resolution. The product is based on SSD1315 chip, using SPI/I2C bus for communication. It works with voltages of 3.3 V and 5 V. The kit also includes a cable for connection with Seeedstudio Base Shield v2.0 overlay.
Product is compatible with Arduino.
Manufacturer prepared user guide with example program for Arduino.
Grove - 0,96'' OLED display - Seeedstudio 104020249.
The display is equipped with a Grove connector.
Pinout description

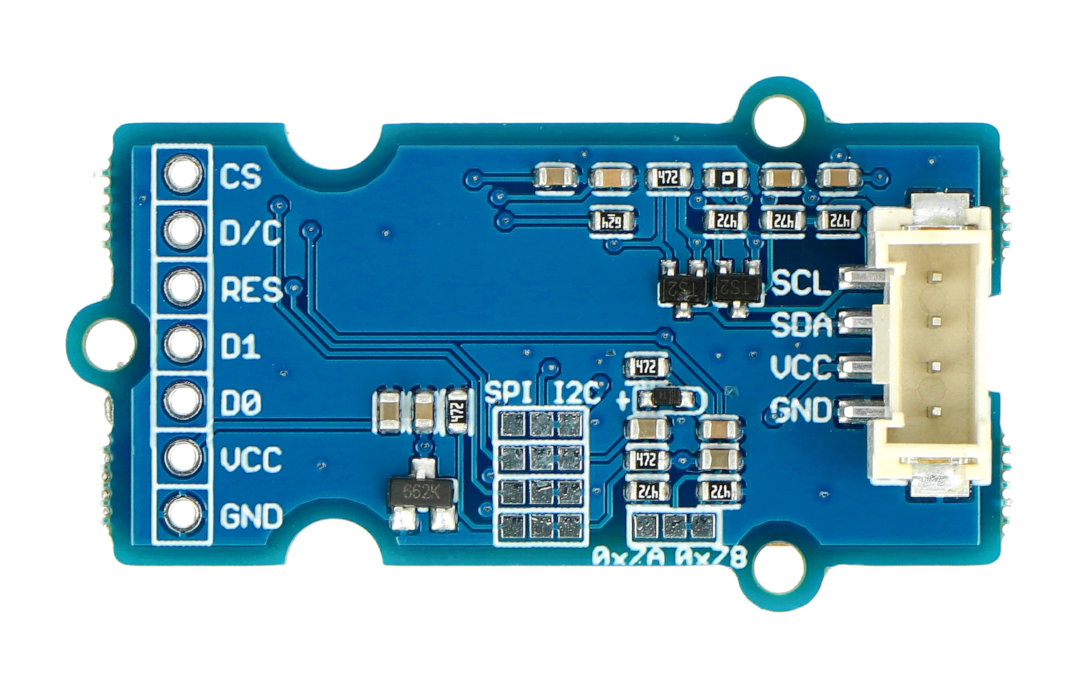

Display has 4-pin connector in Grove system standard, placed on the bottom of the screen. This solution allows a more convenient connection with the microcontroller. The Grove 0.96'' OLED display has the following I2C bus pins:
- GND: Ground of the system.
- VCC: Supply voltage from 3.3 V to 5 V.
- SCL: I2C bus clock line.
- SDA: I2C data line.
Advantages of OLED displays
Compared to traditional LCD displays, OLED (Organic Light Emitting Diode) displays have the following advantages:
- High contrast ratio
- Self-emission
- Wide viewing angle
- Slim / thin outline
- Low power consumption

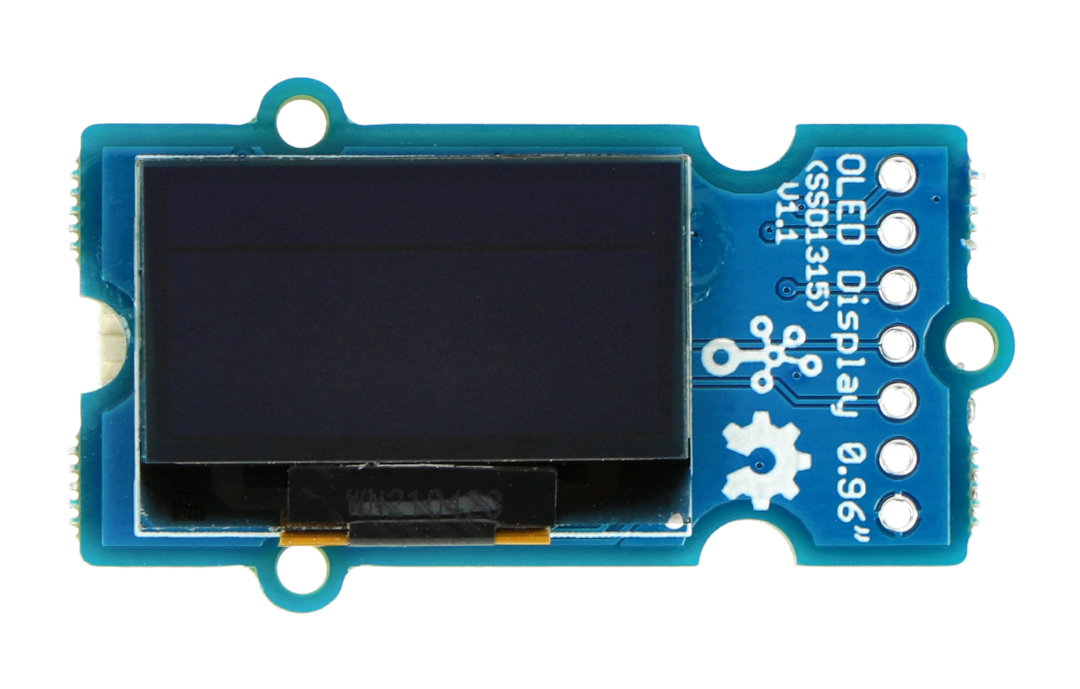

0.96'' OLED display (SSD1315).
Components included.
0.96'' OLED display specification
- Supply voltage: 3.3 V / 5 V
- Operation voltage: from 0 V to 2.3 V
- Display type: monochromatic
- Resolution: 128 x 64 px
- Diagonal size: 0,96''
- Supported interfaces: SPI/I2C
- Variable I2C address
- Product version: 1.1
- Operating temperature range: -40°C to 85°C
Set contents

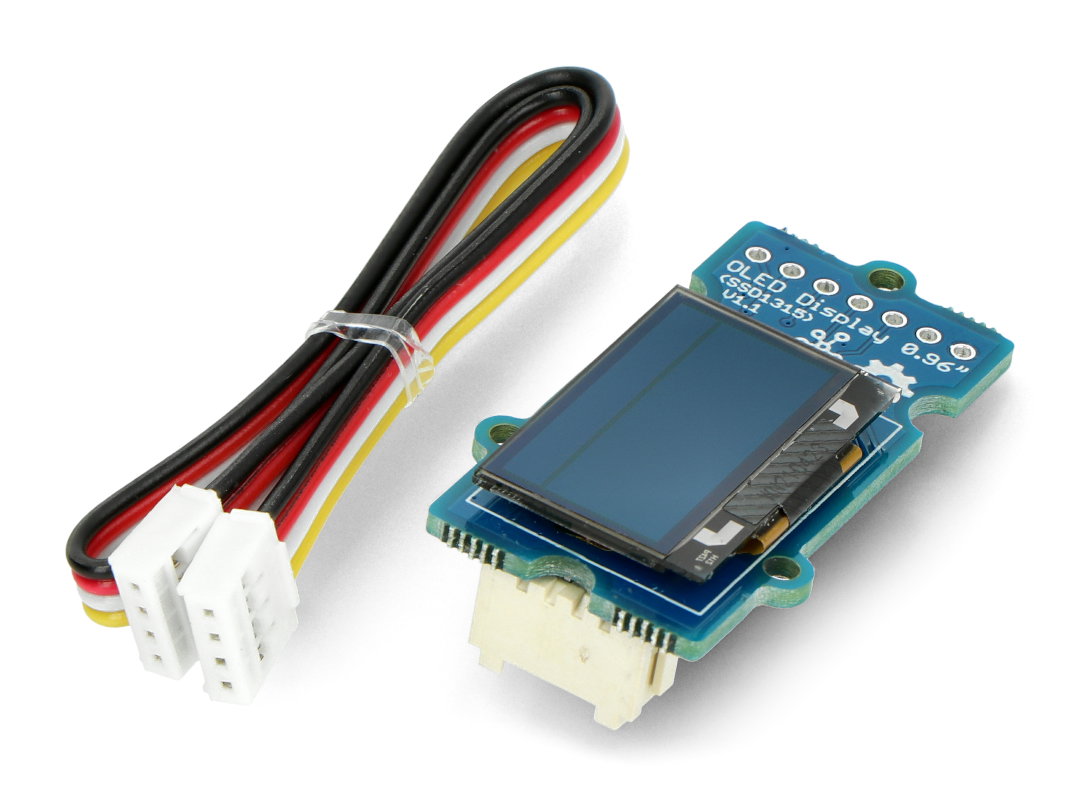

- Grove 0.96'' OLED display (SSD1315)
- Grove cable
