Product description: S13V15F5 - step-up/step-down converter - 5V 1,5A - Pololu 4084
A small step-up / step-down converter module generating 5V output voltage and 1.5A current capacity. The converter can be supplied with voltage from 2,8V to 22V. Step-up / step-down converters are used in projects where there are voltage variations due to the use of batteries, for example. The efficiency of the regulator is between 85% and 95% and can deliver between 1 A and 2 A depending on the input voltage. The module has undervoltage lockout, output overvoltage protection, and overcurrent protection. An over-temperature shutdown function also helps prevent overheating damage, and a soft-start function limits the inrush current and gradually increases the output voltage during startup.
5 V / 1.5 A step-up / step-down converter.

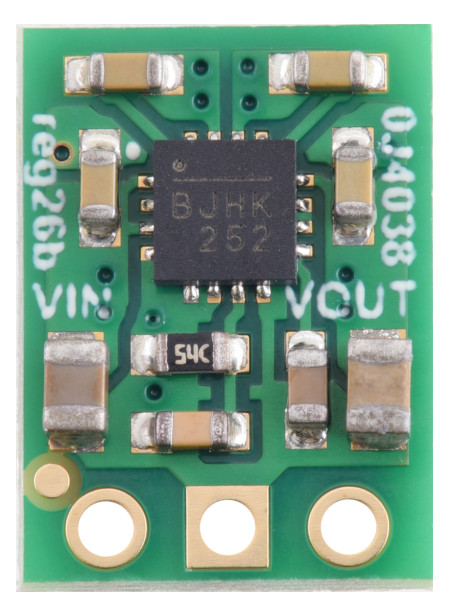

5 V / 1.5 A converter.Main features of step-up / step-down converter
- Input voltage: from 2.8 V to 22 V
- Output voltage: 5 V with 3% accuracy
- Typical maximum output current: from 1 A to 2 A, depending on the input voltage
- Typical efficiency: 85% to 95%, depending on input voltage and load
- Typical idle current: 10 mA to 20 mA no-load
- Input undervoltage lockout and input surge protection
- Soft-start function limits inrush current and gradually increases output voltage
- Output current limitation to 2 A
- Overcurrent protection and overheat cut-off
- Fixed switching frequency: ~500 kHz

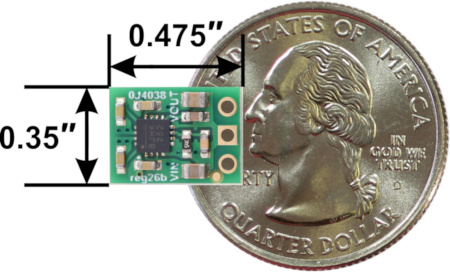

- Compact size: 8.9 x 12.1 x 5.6 mm
Module pinouts
The inverter is equipped with three pinouts labeled: input voltage (VIN), ground (GND), and output voltage (VOUT). The input voltage (VIN) is responsible for supplying the inverter with power from 2.8 V to 22 V. The VOUT connector is the 5 V output from the inverter. There is a goldpin solder strip included in the package. With it you can plug module directly into contact board.

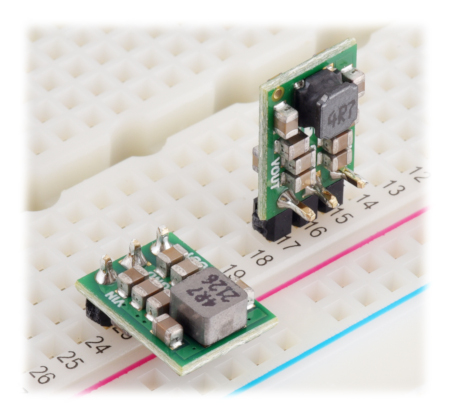

The converter connected to the pin board.

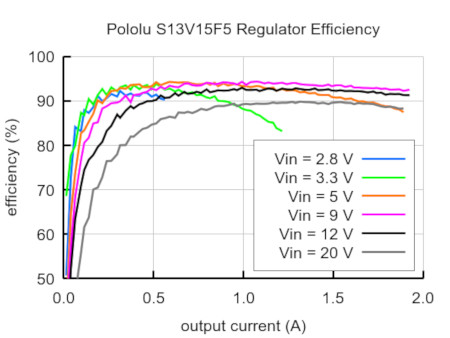

Efficiency of the Pololu converter.Typical efficiency of the inverter
The efficiency of an inverter is (power output) / (power input), it is an important measure of its performance, especially when it comes to battery life or heat generation.

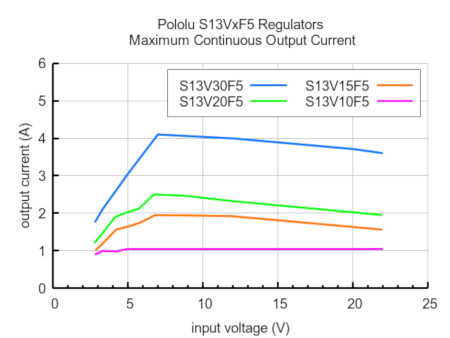

Maximum continuous output current
The maximum output current achieved by the controller depends on the input voltage and other factors such as ambient temperature, airflow, and heat absorption. The chart shows the maximum output currents that the controller can deliver continuously at room temperature, without airflow or additional heat dissipation.
Maximum output current.

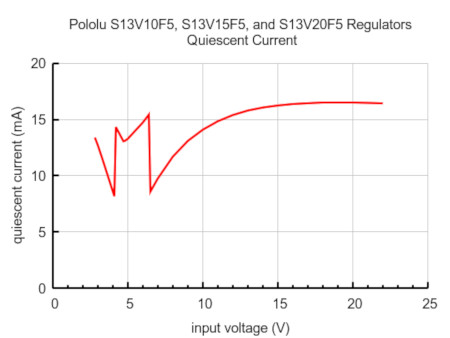

Current draw.Resting current of the system
The resting current is the current that the inverter uses to power itself, and the graph shows this as the input voltage.
Pololu step-up / step-down converter module specifications
- Input voltage: 2.8 V to 22 V
- Output voltage: 5 V
- Continuous output current: typical 1.5 A
- Maximum resting current: 20 mA
- Dimensions: 8.9 x 12.1 x 5.6 mm
- Weight: 0.7 g

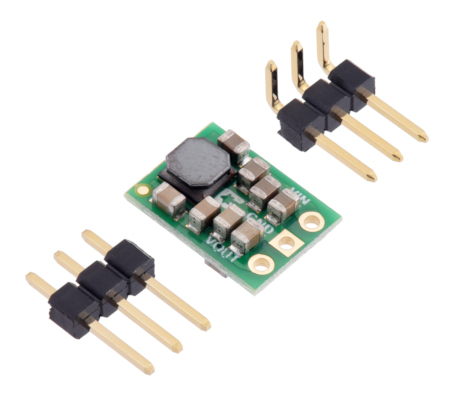

Goldpin connectors included.
