APDS9960 Proximity, Light, Color and Gesture Sensor - STEMMA QT/Qwiic - Adafruit 3595
The sensor, which can detect simple gestures, light of the surroundings, color and approaching obstacles. The device communicates with a microcontroller via the I2C bus. It works with a voltage from 3.3 V to 5 V.
We could not load the price.
The promotional price does not combine with quantity discounts.
Description
The sensor, which can detect simple gestures, light of the surroundings, color and approaching obstacles. The device communicates with a microcontroller via the I2C bus. It works with a voltage from 3.3 V to 5 V.
Botland is an official distributor of Adafruit electronics. These dependable American solutions cover sensors, controllers, Arduino shields, educational systems, smart building and a wide range of accessories. The Botland range holds original Adafruit products only.
The product is compatible with Arduino The manufacturer provides auser guide along with connection diagram for users ofArduino. |
The module has a built-in IR LED and driver along with four directions photoleds, which detect energy reflected from the IR LED. The proximity function allows you to measure distances from an object located on the front of the sensor with 8-bit resolution. The device allows you to recognize simple gestures: a top-down, bottom-up, from right to left and left to right.
Adafruit APDS9960 has a built-in voltage regulator of 3.3 V, so it works with the power supply of 3.3 V and 5 V.

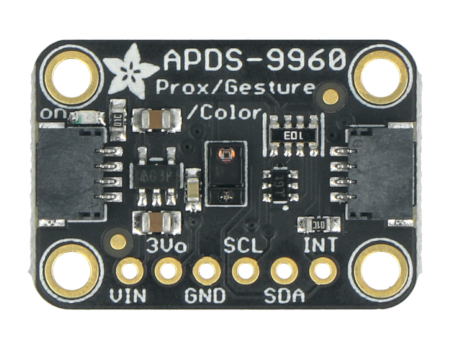

Pins
| Pin | Description |
|---|---|
| VIN | Supply voltage from the range of 3.3 V to 5 V. |
| 3Vo | The output from the regulator of 3.3 V, with a performance of 100 mA. |
| GND | The ground of the system. |
| SCL | Clock line of the I2C bus. |
| SDA | The data line of the I2C bus. |
| INT | The external interrupt of open collector type. |
Specification
- Supply voltage: from 3.3 V to 5 V
- Pins are working with logic: like 3.3 V and 5 V
- Built-in functions
- Gesture sensor
- The proximity sensor
- The light of the surroundings sensor
- Sensor of RGB colors
- Included are connectors for self-soldering
- Equipped with STEMMA QT / Qwiic connector
- Dimensions: 25 x 18 mm
Useful links
| Name | Value |
|---|---|
| Interface | Digital I / O |
| Width | 8 cm |
| Height | 0.6 cm |
| Depth | 13 cm |
| Weight | 0.004 kg |
