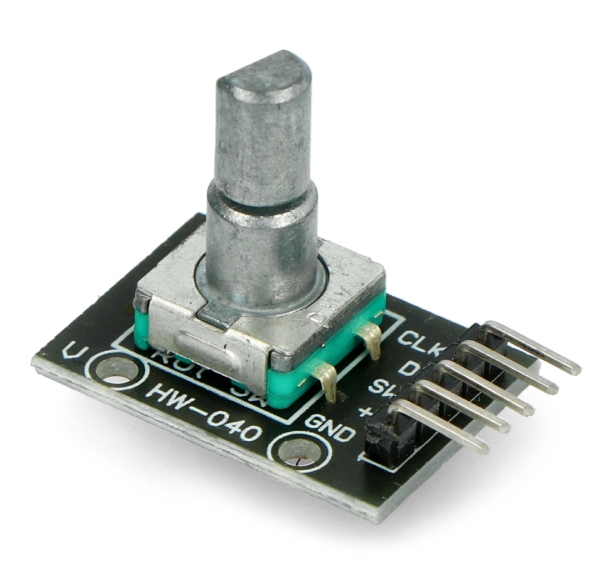

Product description: Rotation sensor, Okystar 20 pulses encoder KY-040
The KY-040 rotation sensor is an incremental encoder. The encoder's task is to generate pulses corresponding to the rotational movement. The sensor detects clockwise and counter-clockwise rotation. The sensor is supplied with5 V.It sends out 20 pulses within a 360° radius.
Rotation sensor, 20 pulses encoder Okystar KY-040.
|
Product compatible withArduino. In the network you can finda sample program for Arduino. |

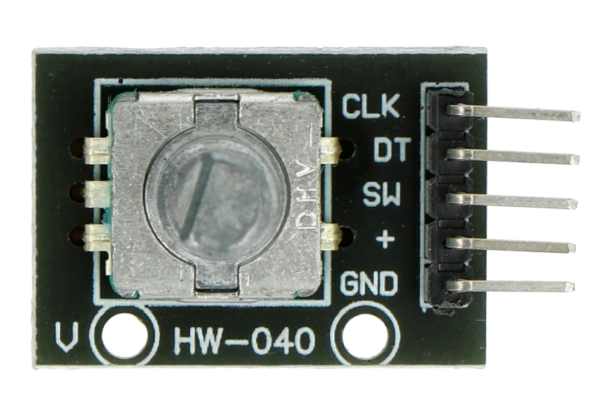

Module outputs
Thanks to the transducer used, the module sends signals determining the direction and range of rotation. Additionally, the module has a button, built in the encoder axis. The sensorhas a 5-pin connector with CLK, DT and SW digital outputs, which should be connected to the microcontroller outputs, e.g. Arduino.
Rotation sensor, Okystar 20 pulses encoder KY-040.
| N | Description | Pin |
|---|---|---|
|
1 |
Clock exit. | CLK |
|
2 |
Data output. | DT |
|
3 |
Output signal, digital from the button. | SW |
|
4 |
5 V sensor power supply. | + |
|
4 |
The weight of the system. | GND |
Rotation sensor specification
- Working voltage: 5 V
- Number of steps within a 360° radius: 20 pulses
- Button on the dial
- Detects rotation clockwise and counter-clockwise
- Module dimensions: 19 x 26 x 22.5 mm
