Product description: BME688 - 4in1 environmental sensor - AI module - I2C / SPI - Waveshare 24244
The module manufactured by Waveshare, based on the Bosch BME688 multi-functional environmental sensor system, enables the measurement of temperature , humidity , atmospheric pressure and the detection of gases contained in the air . Thanks to the built-in AI system, it is possible to distinguish between: volatile sulfur compounds, organic compounds, carbon dioxide, hydrogen and many other substances. It allows you to measure temperature in the range from -40°C to 85°C with an accuracy of +/- 0.5°C, humidity from 0% to 100% relative humidity with an accuracy of ±3% and pressure from 300 hPa to 1100 hPa with accuracy up to ±0.6 hPa. Communication with the microcontroller takes place via the I2C or SPI interface, and the supply voltages are 3.3 V or 5 V.
BME688 - 4in1 environmental sensor - AI module - I2C / SPI - Waveshare 24244.
The sensor is compatible with Arduino and Raspberry Pi !
The manufacturer provides a detailed user guide and sample code to operate the module.

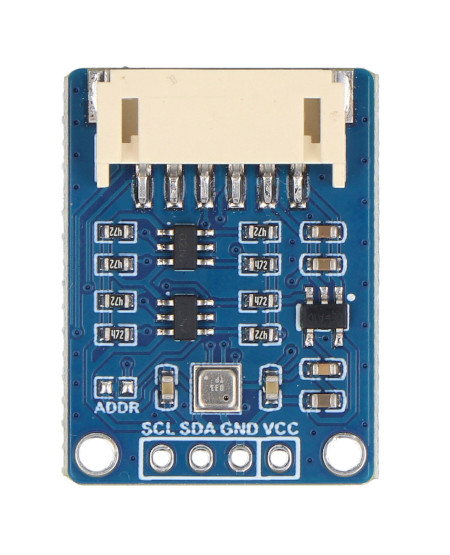

Built-in AI system that allows you to recognize gas contained in the air.Basic parameters of the BME688 sensor
- Measured parameters: temperature, atmospheric pressure, air humidity, gas detection
- Built-in AI system that allows you to recognize gas contained in the air
- Measurement range:
- Temperatures: from -40°C to 85°C with an accuracy of +/- 0.5°C (for temperatures from 0°C to 65°C)
- Relative humidity: from 0% to 100% with an accuracy of ±3%
- Pressure: from 300 hPa to 1100 hPa with an accuracy of ±0.6 hPa (at temperature from 0°C to 65°C)
- VOC content: 0d 0 to 500 IAQ (Indoor Air Quality)
- Communication interface: I2C and SPI
- Supply voltage: from 1.71 V to 3.6 V
- Sensor measurement duration:
- humidity: 8 s (for a change of 90% RH)
- gases: 10.8 s
Description of the module pins
The I2C and SPI interfaces used for communication with the module are provided on the 6-pin JST connector. Additionally, the user has pins at their disposal that allow them to solder their own wires. These included:
- CS - Chip Select SPI interface
- ADDR/MISO - I2C address or SPI data pin
- SCL/SCK - clock of both interfaces
- SDA/MOSI - data pin of the I2C and SPI interfaces
- GND - common ground of the system
- VCC - supply voltage - 3.3 V or 5 V

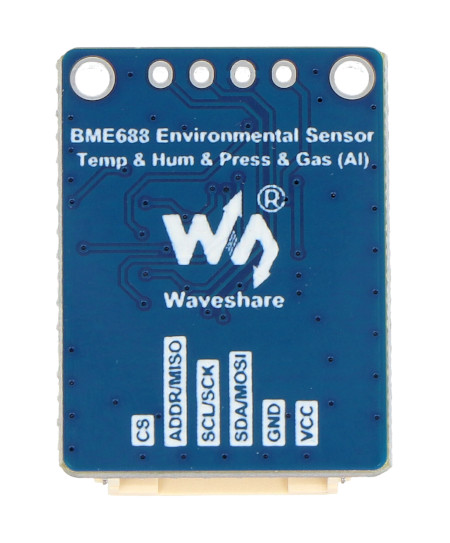

Communication with the microcontroller takes place via the I2C or SPI interface.

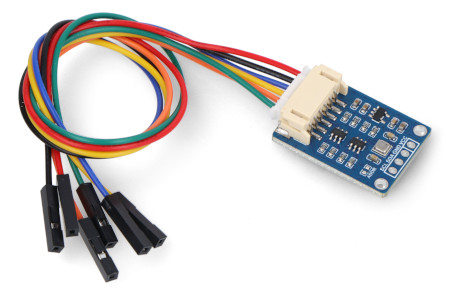

Elements included in the set.
Technical specifications of the module
- Sensor type: environmental
- Built-in chip: BME688
- Measured parameters: temperature, relative humidity, pressure, gas content
- Built-in artificial intelligence system
- Communication interface: I2C and SPI
- I2C interface address: 0x76 (can be changed to 0x77)
- Support for modes "00" and "11" of the SPI interface
- Module connection: 6-pin JST connector and soldering pins
- Built-in logic converter
- Supply voltage: 3.3 V or 5 V
- Two mounting holes
- Dimensions: 27 x 20 mm
Set contents
- 1x BME688 - 4in1 environmental sensor - AI module - I2C / SPI - Waveshare 24244
- 1x PH2.0 6-pin cable (20 cm)
