Product description: BleBox ShutterBox DIN - roller shutter controller 230 V WiFi - Android / iOS application
A module that allows remote control of roller shutters via WiFi using an application for mobile devices. The device is designed to be mounted on a DIN rail in a distribution box, therefore the installation requires the assistance of an electrician. In addition to standard roller shutters, ShutterBox can also control facade roller shutters, roof windows, awnings, projector screens and blinds . To operate the roller shutters, you can create a wired central or wireless button with the actionBox module, sending a signal to the controller via WiFi. The controller is powered by 230 V.
You can download the free wBox application on both Andriod and iOS devices. It is also possible to operate the controller via a Windows application.

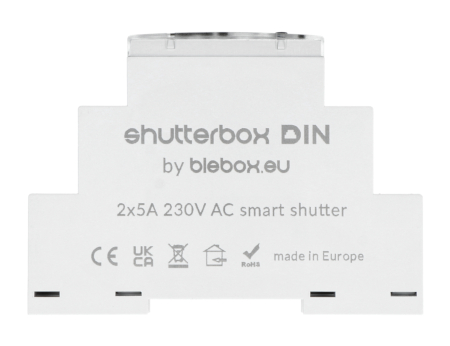

BleBox ShutterBox DIN roller shutter controller.

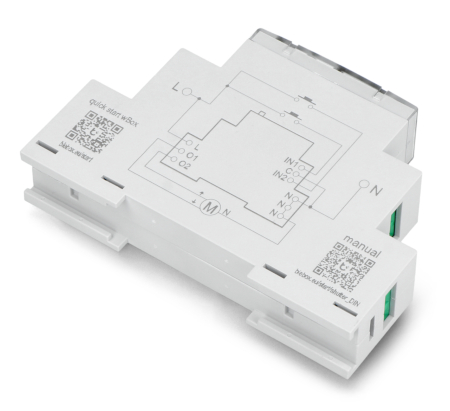

The device is designed to be mounted on a 35 mm DIN rail.
ShutterBox DIN main features
- Remote control of roller shutters
- DIN rail mounting
- It is also possible to control facade roller blinds, roof windows, awnings, projector screens and blinds
- An individual schedule that opens or closes the blinds at a given time
- Astronomical clock function that opens the blinds at sunrise and closes them at sunset
- Can be wired central or wireless button, with actionBox module
- Compatible with voice assistants such as Google Home or Alexa
- Possibility of pairing with uRemote and sRemote remote controls and with the inBox button module
- Automation in combination with other BleBox sensors:
- windSensor - protects blinds, blinds and awnings against strong wind
- airSensor - closes the windows and does not let poor quality air into your home
- rainSensor - closes windows during rain
- tempSensor - covers the blinds to avoid heating the room by the sun
ShutterBox DIN technical specification
- Mounting: on a 35 mm DIN rail
- Supply voltage: 230V AC
- Power Consumption: < 1W
- Number of outputs: 2
- Maximum current: 2x 5 A (5 A per output)
- Maximum power:
- AC1 (ohmic, power factor: 0.95): 2x 5 A @ 230 V AC = 2x 1150 W
- AC3 (IEC60947-4-1): 2x ~0.15kW @ 240VAC
- Input voltage range: from 12 V to 230 V AC / DC
- Supported buttons: monostable, bistable
- Signaling on the housing: colored backlight
- Transmission standard: µWiFi, compatible with WiFi, 802.11g
- Transmission frequency: 2.4 GHz
- Transmission type: two-way, encrypted
- API: open
- Degree of protection: IP20
- Housing: ABS, acrylic
- Operating temperature: -20°C to 50°C
- Dimensions: 98.8 x 17.5 x 64.5mm

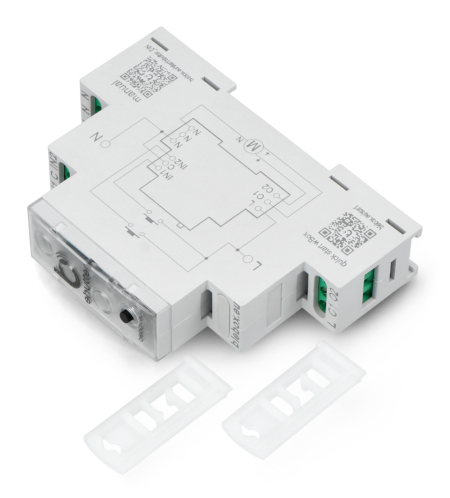

The controller uses the existing WiFi network, you do not need any additional control panel.
