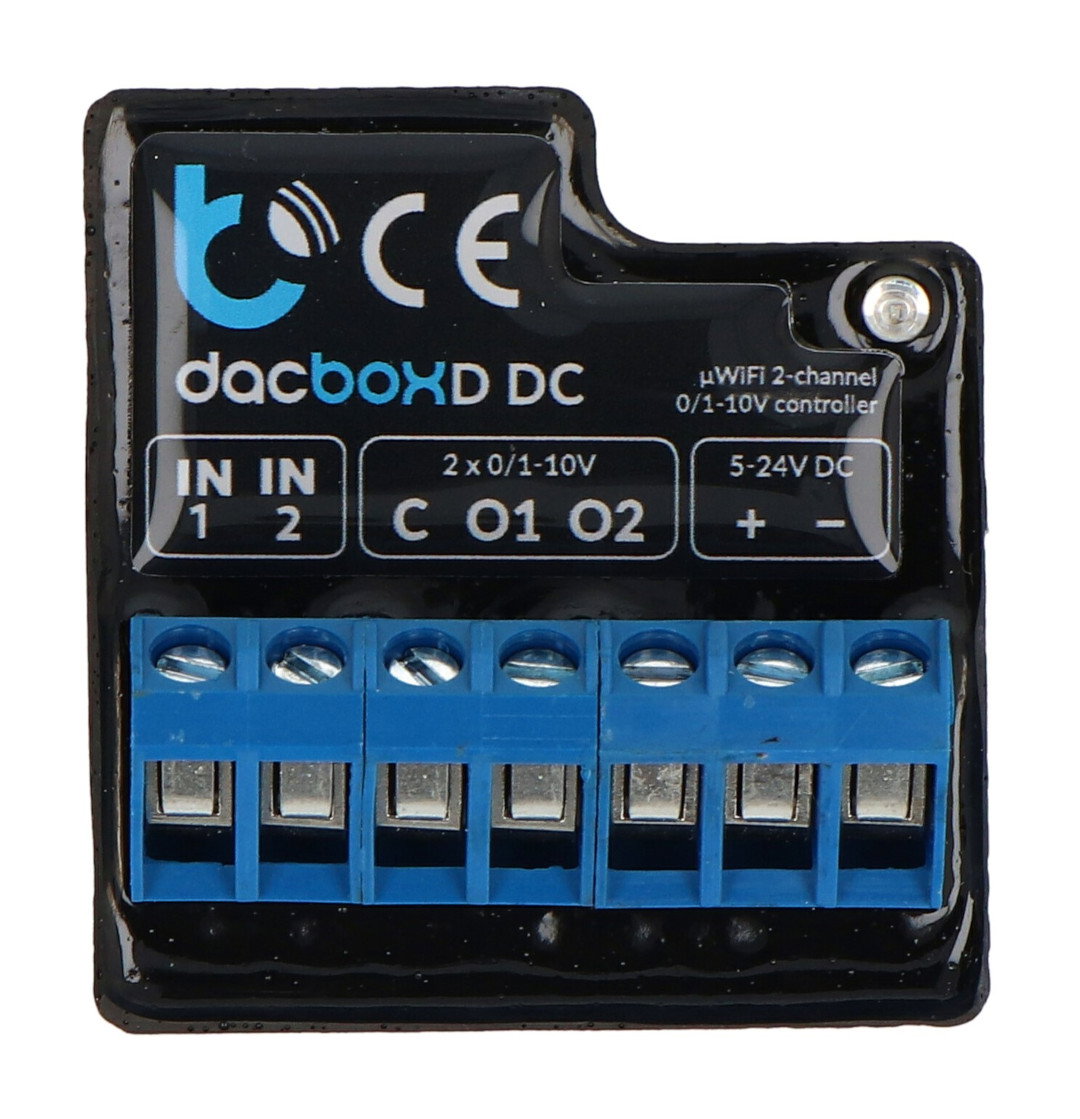

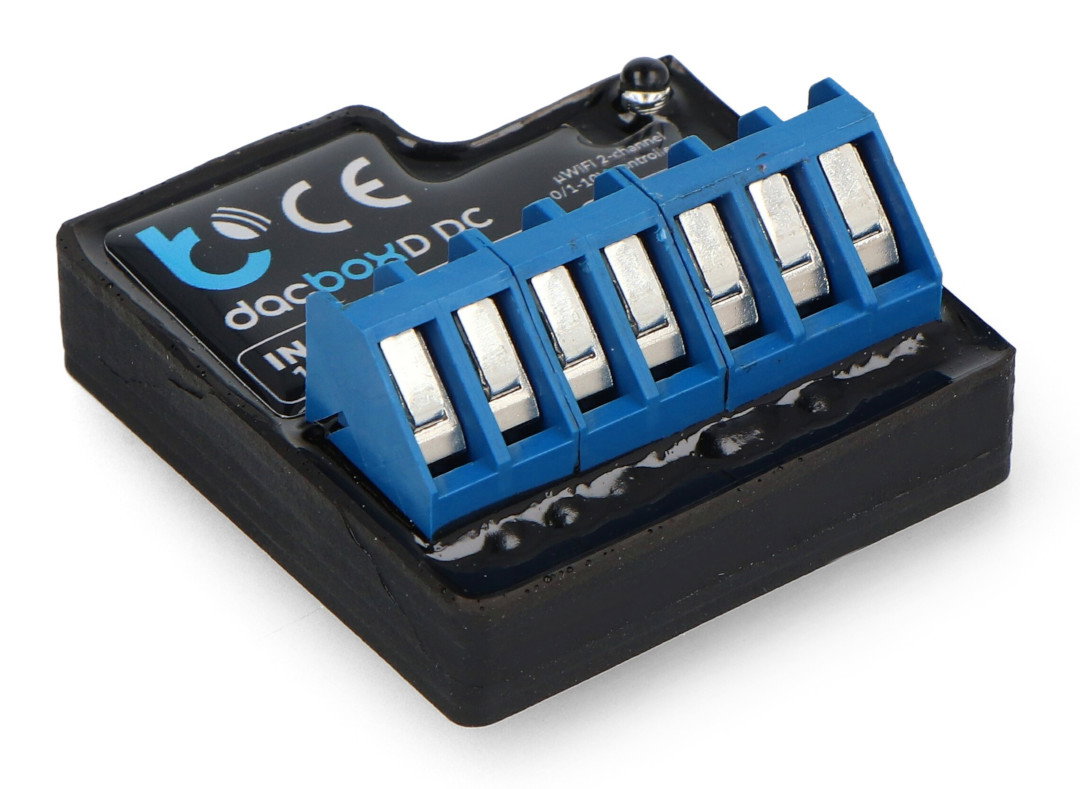

Product description: BleBox dacBoxD DC - 2-channel WiFi controller - dimmer / speed controller - 5 - 24 V - Android / iOS application
BleBox dacBoxD DC is a versatile, dual-channel WiFi controller powered by 5 V to 24 V DC . It allows direct and remote control of devices using a smartphone or computer. Thanks to the lighting regulation function, it is ideal for working with 2 MONO or CCT channels. Additionally, it allows you to control inverters, rotational speed and power of devices operating with a voltage of 0 V to 10 V. The available schedule function and astronomical clock allow automatic control based on the time of day . Thanks to the possibility of integration with BleBox sensors , dacBoxD DC provides advanced automation and comfort in everyday use.
BleBox dacBoxD DC - 2-channel WiFi controller - dimmer / speed controller - 5 - 24 V - Android / iOS application.
Two-channel controller powered by 5 V to 24 V DC.
Discover a new dimension of automation!
The BleBox dacBoxD DC WiFi controller provides full control over signals from 0 V to 10 V, 1 V to 10 V or 0 V to 5 V , enabling local and remote management from anywhere in the world. With the wBox application, you can create intelligent scenes and groups that will make everyday life easier, increasing comfort and efficiency in your home or office.
Power supply 5V to 24V DC
With a DC power supply ranging from 5 V to 24 V DC, the controller can be easily integrated into many systems. This wide voltage range ensures installation flexibility and safety in various environments, both domestic and industrial.
MONO and CCT lighting
The dacBoxD DC controller works perfectly with MONO and CCT LED lighting . With two output channels, you can easily adjust the brightness of monochrome lighting , as well as change the color temperature of bicolor lighting (CCT). It is an ideal solution for controlling light in different rooms.
Manage power, revs and position
The BleBox dacBoxD DC controller enables smooth regulation of fan speed , which allows you to adjust their operation to the user's needs, ensuring comfort and energy savings. Additionally, it works well in the automation of heaters, pumps and other devices with voltage from 0 V to 10 V, which allows for precise temperature and flow management. Thanks to these functions, it increases the efficiency of heating systems.
Allows you to control the power, speed and position of devices.

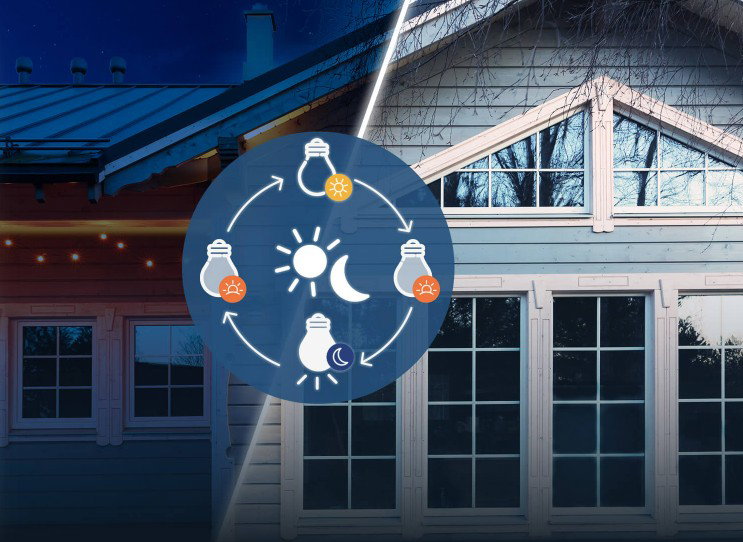

A schedule with an astronomical clock function allows you to control devices at specific times.
Schedule and astronomical clock
The controller offers schedule and astronomical clock functions that allow devices to be automatically turned on and off depending on the time of day or year . This allows for energy savings and ease of use, without the need for manual control.
Voice control
Integration with Google Assistant and Alexa makes control even easier. Simply use a voice command to change the settings of your lights, fans or other connected devices.
You can download the free wBox application to your device with both Android and iOS systems . It is also possible to operate the driver via an application for Windows .
Button control
The BleBox dacBoxD DC controller allows you to connect two independent buttons from 12 V to 24 V DC , which extends the capabilities of the Smart Home system. You can use both monostable and bistable buttons and configure them freely in the wBox application.
Sensor integration
dacBoxD DC is compatible with BleBox sensors , allowing you to create advanced automation scenes. For example, lights can turn on in response to presence, or a fan can adjust its speed based on environmental conditions.
BleBox dacBoxD allows you to connect two independently operating buttons.

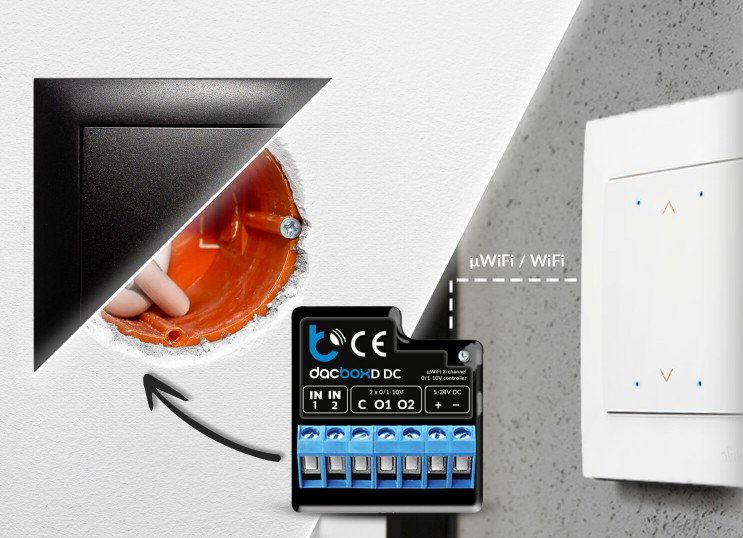

The controller can be easily mounted in a flush-mounted box or receiver housing.
dacBoxD DC Technical Specification
- Model: dacBoxD DC
- Supply voltage: 5 V to 24 V DC
- Power consumption: < 1 W
- Protection: short circuit, reverse polarity
- Number of outputs: 2
- Output type: analog voltage output
- Output voltage range: 0 V to 10 V / 1 V to 10 V / 0 V to 5 V
- Maximum load: 20 mA per channel
- Number of inputs: 2
- Input type: opto-isolated, logical, configurable, 5 V to 24 V DC, shorted to GDN
- Supported buttons: monostable and bistable (no backlight)
- API: open
- Communication standard: µWiFi, compatible with WiFi 802.11g
- Transmission frequency: 2.4 GHz
- Transmission type: two-way, encrypted
- Operating mode: direct connection, WiFi via router, remote access
- Encryption: WPA2-PSK, Authenticated Encryption (AEAD)
- Compatibility: iOS, Android, Windows (x64), macOS (ARM)
- Installation: in a flush-mounted box or device housing
- Housing: polyurethane, self-extinguishing (class B)
- Degree of protection: IP20
- Operating temperature: -20°C to 50°C
- Dimensions: 41 x 39 x 17 mm
