MCP9808 - high precision I2C temperature sensor - Adafruit 1782

Index: ADA-03144 EAN: 5903351249751

Module with digital thermometer MCP9808 operating in the range of -40 °C to 125 °C with an average accuracy of 0.25 C. It communicates via the I2C bus, it is powered with the voltage from 2.7 V to 5.5 V.

MCP9808 - high precision I2C temperature sensor - Adafruit 1782
€6.90
€5.61 tax excl.
Delivery 4 pcs scheduled for 2024-12-20
Waiting for delivery
PayPal payment
Manufacturer: Adafruit
Compatibility: Arduino Raspberry Pi

Description

Module with digital temperature sensorMCP9808 equipped with a communications I2C interface (TWI). Pins are the popular goldpin connectors, to connect the sensor to the main module (e.g. Raspberry PiorArduino) viawires.



The product is compatible with Arduino

The manufacturer providessample codealong with the connection scheme for users ofArduino.

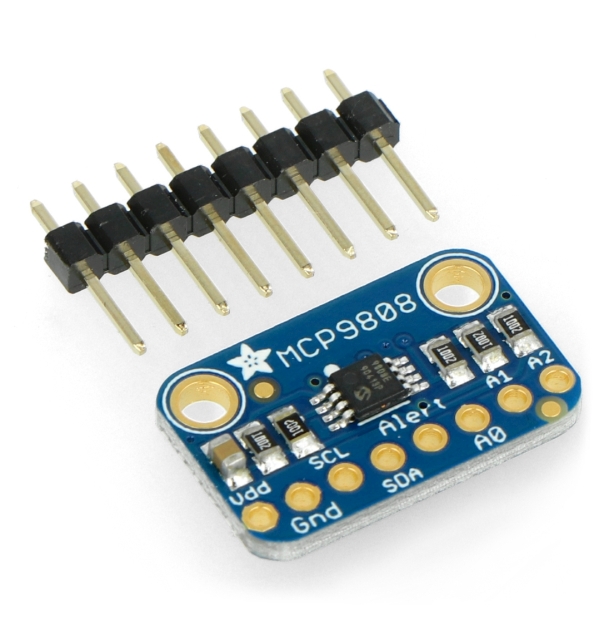

Pins



Pin Description
VDD Supply voltage in the range from 2.7 V to 5.5 V.
GND The ground of the system.
SCL Clock line of the I2C bus (installed resistor pulling-up 10 kΩ).
SDA The data line of the I2C bus (installed resistorpulling-up 10 kΩ).
ALERT The external interrupt of open collector type.
A0, A1, A2

Pins of address selection of I2C bus. Default adress is: 0x18. Indicating the high status on a single bit will lead to the change of address in accordance with patterns: 0x18 + A2 + A1 + A0.

For example, when indicating a high statusn on all bits, the address will be: 0x18 + 4 + 2 + 1.

When we indicate a high status only on A2 and A0, then: 0x18 + 4 + 1 = 0x1D.



Specification

  • Supply voltage: from 2.7 V to 5.5 V
  • Pins are working with logic of 3.3 V and 5 V
  • Measuring range: -40°C to 125°C
  • Accuracy: on average - 0.25 °C, maximum 0.5°C
  • Resolution: 8-bit ( 0,0625°C)
  • Communication interface: I2C (TWI)
  • Built-in resistors pulling-up the SCL and SDA 10 kΩ lines
  • The bus address: from 0x18 to 0x1F
  • Dimensions: 21 x 13 x 2 mm
  • Weight: approx. 1 g



The set includes:

  • Module with temperature sensor
  • Goldpin strap, pitch of 2.54 mm for self-soldering



Interface I2C
Sensor - Temperature to 125 °C
Sensor - Temperature accuracy +/- 0.25 °C
Sensor - Temperature from -40 °C - 120 °C
Package width 7.5 cm
Package height 13.5 cm
Package depth 0.2 cm
Package weight 0.004 kg
