Product description: SenseCAP S2107 - temperature sensor with external probe PT1000 - LoRaWAN - Seeedstudio 114993078
SenseCAP S2107 is an advanced temperature sensor based on LoRaWAN technology that uses a high-precision PT1000 probe . The device can measure temperatures over a wide range from -50°C to 300°C , which makes it ideal for industrial applications and monitoring in various environments. The sensor supports up to three PT1000 probes simultaneously, increasing its versatility and measurement capabilities. Thanks to the built-in Bluetooth module , you can easily configure and calibrate the device using the SenseCAP Mate mobile app, eliminating the need for coding. The sensor is characterized by exceptional durability and reliability thanks to the IP66 tightness class, which allows its use in difficult outdoor conditions, including places exposed to intense rainfall, high UV radiation and high dust. The battery power supply allows the device to operate for up to 10 years , and replacing the battery is simple and quick.
The manufacturer has prepared a detailed user's guide to help you start working with the device - check it out!

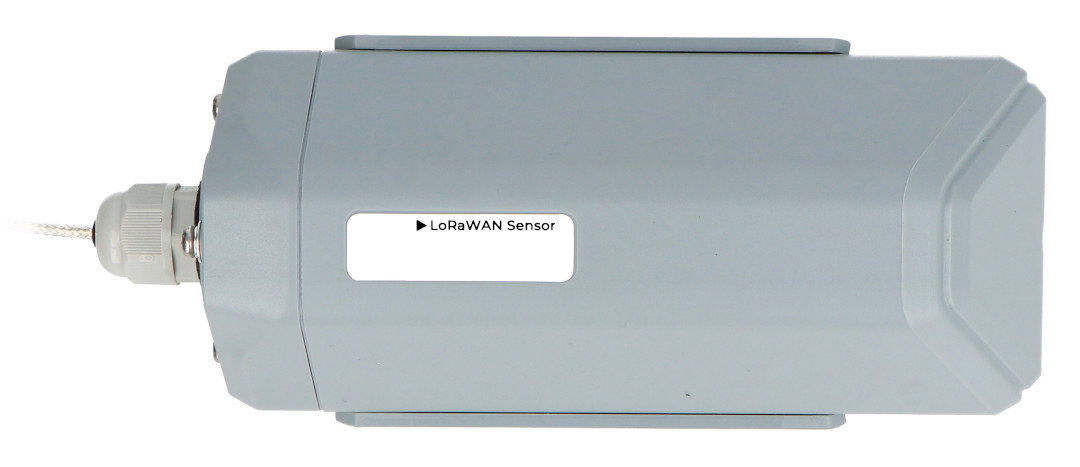

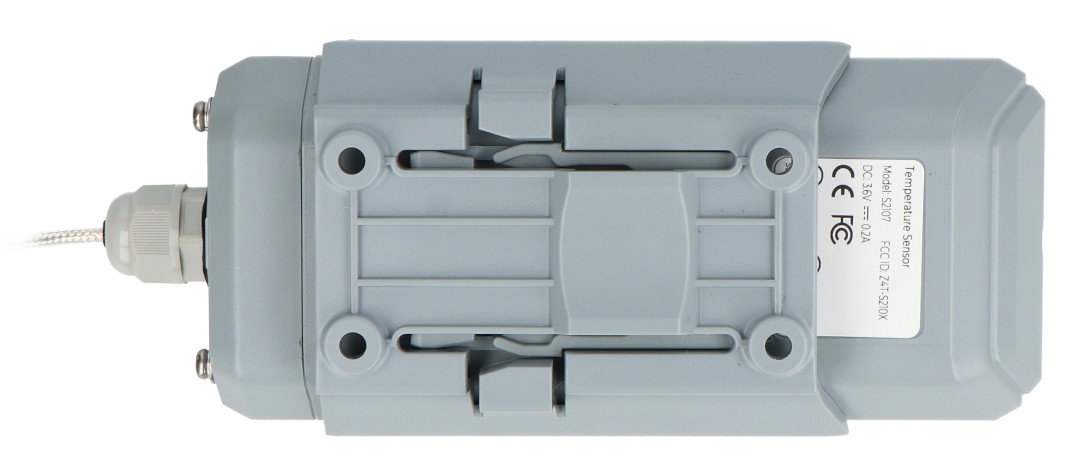

SenseCAP S2107 - temperature sensor with external probe PT1000 - LoRaWAN - Seeedstudio 114993078.
The sensor monitors the temperature in the range from -50°C to 300°C.
Special Features of SenseCAP S2107
- Temperature measurement range: -50°C to 300°C, ideal for a wide range of applications.
- Multiple probe support: up to three PT1000 probes can be connected simultaneously.
- Easy setup: Built-in Bluetooth and the SenseCAP Mate app enable quick setup and calibration with no coding required.
- Long battery life: battery powered for up to 10 years of operation, with easy battery replacement.
- Highly resistant: IP66 protection class provides protection against dust and water, enabling use in harsh outdoor conditions.
- Wide Compatibility: Compatible with various LoRaWAN networks around the world, supporting universal frequency plans from 863MHz to 928MHz.
- Wide transmission range: transmission range up to 2 km in urban areas and up to 10 km in open areas within sight.
- Simple installation: the device is easy to install and configure, even for users without technical experience.
- Remote Management: The SenseCAP Portal platform and SenseCAP Mate app enable remote management and monitoring of data.
Remote data management
SenseCAP S2107 offers advanced remote data management capabilities with the SenseCAP Portal platform and SenseCAP Mate application. SenseCAP Portal is a web-based tool that allows you to manage devices, view data and configure through an intuitive interface. The SenseCAP Mate app provides quick and easy device configuration, data visualization and remote management using the built-in Bluetooth module. With these tools, you can effectively monitor and manage sensors from anywhere, increasing operational efficiency and ease of operation even in difficult conditions.
The device uses a precise PT1000 probe.
Example applications of SenseCAP S2107
- Liquid monitoring : accurate temperature measurement in various types of liquids.
- Temperature control in cold chains : reliable supervision over storage conditions of food and pharmaceutical products.
- Industrial boilers : precise temperature monitoring in heating systems.
- Aquaculture : maintaining optimal environmental conditions in farms for fish and other aquatic organisms.
- Agriculture : application in controlling the microclimate in greenhouses and monitoring temperature in warehouses.
- Food industry : supervision of food production and storage processes.
- Harsh environments : work in extreme conditions thanks to the high IP66 tightness class and large measurement range.
Check out other Seeedstudio products in our offer!
Technical specifications of the SenseCAP S2107 sensor
- Model: S2107
- Temperature measurement range: -50°C to 300°C
- Accuracy: ± 0.5°C
- Resolution: 0.1°C
- Microcontroller: Wio-E5
- Supported protocol: LoRaWAN v1.0.3 Class A
- Built-in Bluetooth: yes, for changing parameters via APP
- LoRaWAN channel plans: IN865 / EU868 / US915 / AU915 / AS923 / KR920 / RU864
- Maximum transmission power: 19 dBm
- Sensitivity: -136 dBm for SF12 BW = 125 KHz
- Communication range: from 2 to 10 km (depending on terrain)
- Tightness class: IP66
- Operating temperature: -40 to 85 °C (LoRa DTU); from -50 to 200℃ (cable); from -50 to 300℃ (probe)
- Operating humidity: 0 to 100%RH (non-condensing)
- Cable length: 3 m
- Battery life: up to 10 years
- Battery capacity: 19 Ah (non-rechargeable)
- Battery type: standard D-size SOCl2 battery
- Weight: 360 g
Set contents
- SenseCAP S2107
- Handle
- KA self-drilling screws 4 x 20 mm
- Quick User Guide

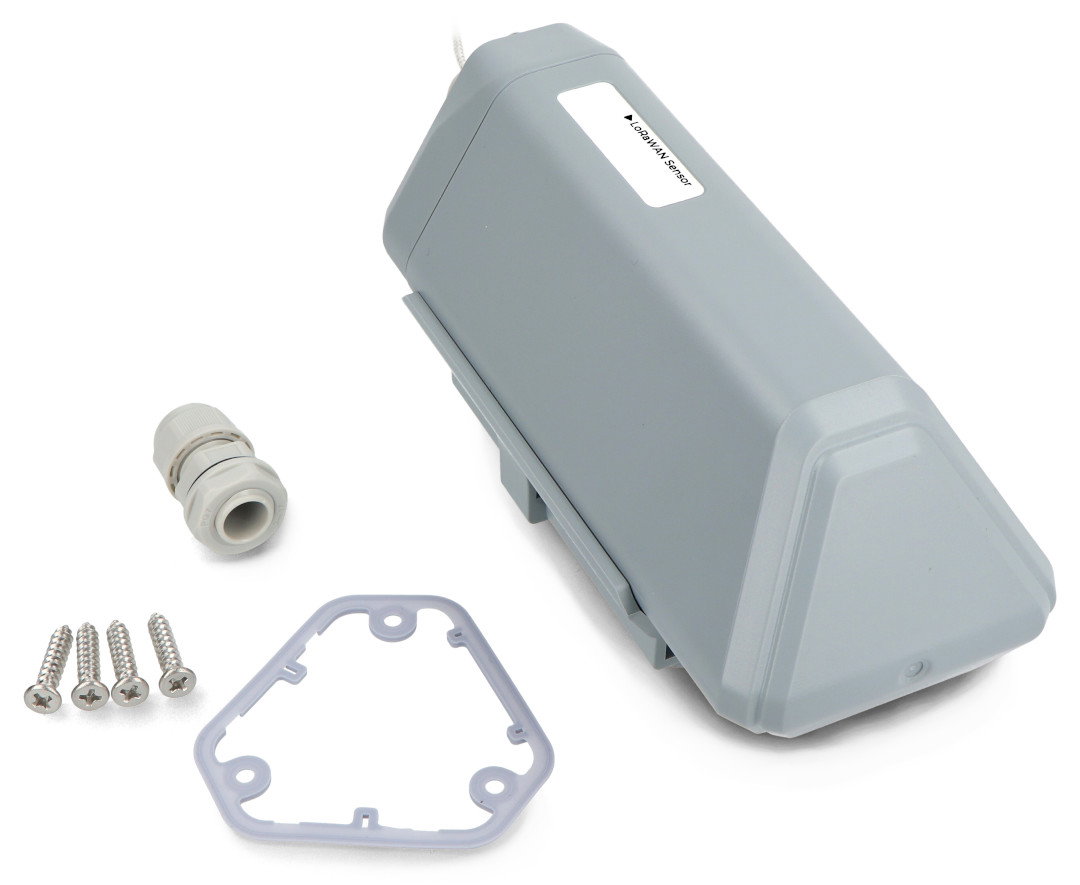

Elements included in the set.
