Reflectance sensor KTIR0711S

Index: MOD-00918 EAN: 5904422351410

Module with reflective sensor KTIR0711S powered with the voltage of up to 5 V. It is characterized by small dimensions: 9 x 14 mm.

Reflectance sensor KTIR0711S
€1.90
€1.54 tax excl.
Delivery 20 pcs scheduled for 2024-12-06
Waiting for delivery
PayPal payment
Manufacturer: MSX Elektronika
Compatibility: Arduino

Specification:

  • Supply voltage: 5.0 V
  • Current: 25 mA max.
  • Output: analog signal
  • The range of output signal: 0 V to VIN ( 5 V)
  • Dimensions: 13 x 7.5 mm
  • Hole diameter: 2.5 mm
  • Weight: 0.5 g (without connectors)



Details inthe documentation.



Method of application

  • Using the built-in into some microcontrollers, the internal comparator

The module has three pins that need to be connected:
  • VIN- supply voltage
  • GND- ground of the system
  • OUT- analog output signal



Check how to connect the module with Arduino!

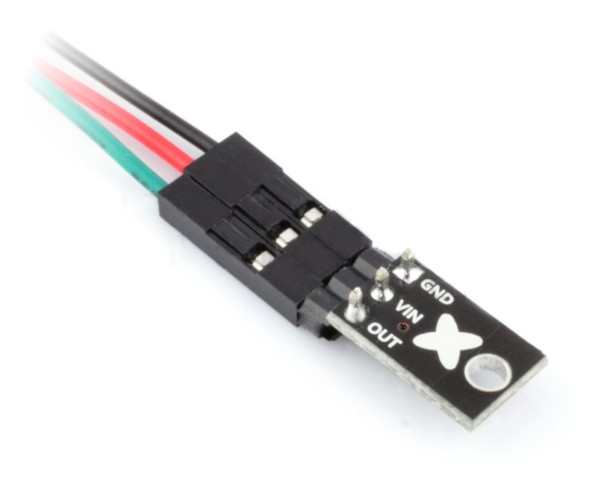

Czujnik odbiciowy KTIR0711S
Pins are the popular goldpin connectors to connect sensor with breadboardor commissioning module execution (for example,the Raspberry Pi - via an analog-to-digital converter,STM32DiscoveryorArduino) viawires. Sensors of this typefind use in robots likeline followeras sensors detecting the track as a black line on a white background.



Package width 5 cm
Package height 0.8 cm
Package depth 7 cm
Package weight 0.001 kg
