Rotation sensor, encoder with button - module - Waveshare 9533

Index: WSR-04483 EAN: 5904422366582

Knob in the form of an encoder with a button that allows you to create a simple user interface. The module sends a digital signal on the SIA and SIB pins, depending on the direction of rotation. It works with the voltages from 3 V to 5.3 V.

€3.67
€2.98 tax excl.
In stock, shipping 24 hours!
Check quantity
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: Waveshare
Compatibility: Arduino

Description

Knob in the form of an encoder with a button that allows you to create a simple user interface. The module sends a digital signal on the SIA and SIB pins, depending on the direction of rotation. It works with the voltages from 3 V to 5.3 V.

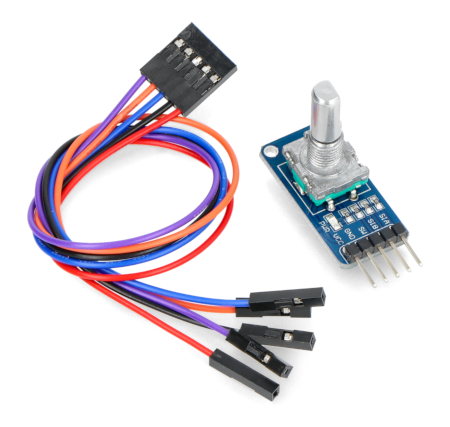

To module, added is connecting cable with the female ends.

Sensor's maintenance

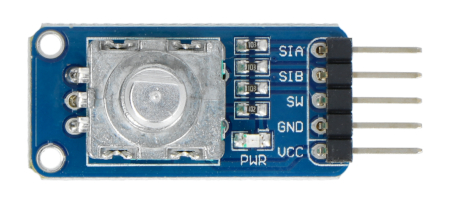

The sensor has a 5 pin connector with digital outputs SIA, SIB and SW to be attached to the pin of the microcontroller, e.g.Arduino.

Pin Description
VCC Supply voltage from 3 V to 5.3 V.
GND The ground of the system.
SW An output, digital signal from the button.
SIA The frequency output from the quadrature encoder A.
SIB The frequencyoutput from the quadrature encoderB.



The product is compatible with Arduino

The manufacturer has prepared a user guide along witha sample program for Arduino and STM32.

The operating principle of the encoders.

Specification

  • Supply voltage: from 3.0 V to 5.3 V

  • It detects the clockwise and counterclockwise rotation
  • The number of steps in 360°: 20 steps
  • Button in the knob
  • Module dimensions: 32 x 15 mm





Switch - type2 monostable
Switch - type Joystick + module
Switch - shape rectangular
Switch - backlight no
Colour blue
Length 32 mm
Width 15 mm
