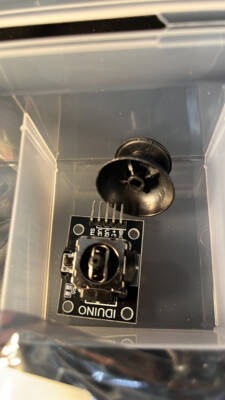

Thumb Joystick with v2 button - module with a plate - Iduino ST1079
The module is equipped with a joystick similar to analog devices used for example in PlayStation 2 controllers. It has the possibility of detecting movement in two directions and the button is activated by pressing the handle.
We could not load the price.
The promotional price does not combine with quantity discounts.
Description
A joystick similar to analog devices used for example in PlayStation 2 controllers. The detection of the direction of movement is done via two potentiometers - one (4.7 kΩ) for each axis. The device also has a button activated by pressing the handle.
To use the device sufficient is microcontroller with analog-to-digital converter (analogue input in theArduino). Information about the position of the handle is transmitted via an analog signal, in which voltage corresponds to the given position. Each axis has a separate analog pin. The status of the button is detected via the digital output which, in case of activation, reaches a low status.
Connection
Using the board to connect the joystick is reduced to the following pins:
- VCC - supply voltage (5 V).
- GND- ground of the system.
- VRx - the analog output for the vertical axis (in the middle position, the value is equal to half of the supply voltage VCC/2).
- VRy- Analog output for the horizontal axis (in the middle position, the value is equal to half of the supply voltage VCC/2).
- SW- Digital signal button, in case of activation, it reaches the value of the GND, deactivated - is in thefloating status - so you need to add a pulling-up resistor to power.
Connection
- VCC: - supply voltage (5 V).
- GND: - ground of the system.
- VRx - the analog output for the vertical axis (in the middle position, the value is equal to half of the supply voltage VCC/2).
- VRy: - Analog output for the horizontal axis (in the middle position, the value is equal to half of the supply voltage VCC/2).
- SW: - Digital signal button, in case of activation, it reaches the value of the GND, deactivated - is in the floating status - so you need to add a pulling-up resistor to power.
Attention!
|
Useful links
| Name | Value |
|---|---|
| Switch - type2 | monostable |
| Switch - type | Joystick + module |
| Switch - shape | round |
| Switch - backlight | no |
| Colour | black |
| Length | 25 mm |
| Width | 25 mm |
| Height | 35 mm |
| Width | 6 cm |
| Height | 7 cm |
| Depth | 3.5 cm |
| Weight | 0.011 kg |
GLS
Shipping in 24 hours
from €8.07
Raben - pallet delivery
Delivery in 3–5 days, no inside delivery
from €96.75
The full delivery terms are on the page Delivery and payment.
30 days to return, without giving a reason
If the product does not meet your expectations, you have 30 days from receiving the parcel to withdraw from the contract. The product only has to be complete. The right of return belongs to consumers (a purchase unrelated to business activity).
Complaints
If the product turns out to be faulty, you can make a claim under the guarantee or the statutory warranty. We handle claims without delay, at the latest within 14 working days of receiving the report together with the goods.
Question: Does the joystick return to its zero position when you move it
Instructions and documents
GPSR data
Product information
This product is a component intended for further assembly or prototyping. It is not a finished product within the meaning of the product safety regulations.
