Product description: Electric tin extractor 30W - Yihua 929D-V
The Yihua electric soldering extractor is a professional tool that will satisfy both beginners and advanced users. The heater's power of 30 W allows the tip to heat up quickly, which allows for quick and effective removal of tin during the soldering process. The ergonomic design of the device allows for one-handed operation , ensuring comfort and precision. A vacuum cleaner is essential when desoldering electronic components and helps remove excess tin from unwanted places, which is crucial to maintaining the integrity and functionality of delicate components. Yihua 929D-V is an extremely versatile and practical tool that allows you to work on a variety of projects precisely and without any problems.

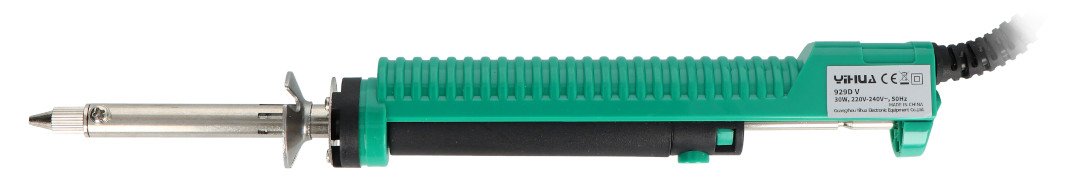

Electric tin extractor 30W - Yihua 929D-V.
The device is equipped with a nozzle with a diameter of 1.2 mm.
Special features of the tin extractor
- The power of the 30 W heater ensures quick heating of the tip.
- Enables precise tin removal while maintaining the integrity of electronic components.
- One-handed design for comfort and precision.
- Versatile and practical, perfect for professionals and amateurs.
- The set includes an additional tip and a cleaner.
You can also find other soldering accessories in our offer!
Operation of the Yihua 929D-V tin extractor
The Yihua 929D-V electric vacuum cleaner works by heating tin until it melts and then sucking it into a special chamber. The entire process can be easily performed with one hand, ensuring comfort and precision. Once the tip of the device is heated, press the plunger to create a vacuum and quickly remove the liquid tin. The design of the device also allows for easy cleaning and replacement of the nozzle.
How to use a vacuum cleaner?
- Plug in and wait 5 minutes to warm up.
- Press the plunger until it locks and point the tip at the part to be desoldered.
- When the tin melts, press the button on the vacuum cleaner handle.

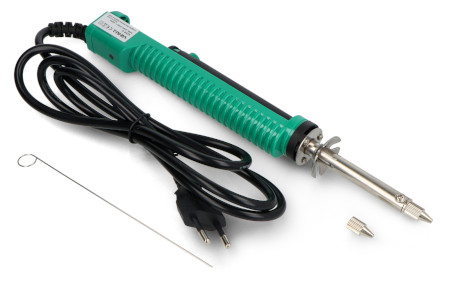

Yihua 929D-V electric solder extractor with a power of 30 W.
Elements included in the set.
Technical specifications of the Yihua 929D-V vacuum cleaner
- Model: 929D-V
- Voltage: 230 V AC, 50 Hz
- Power: 30W
- Operating ambient temperature: from 0ºC to 40ºC
- Nozzle diameter: 1.2 mm
- Dimensions: 260 x 35 x 26 mm ± 5 mm
Set contents
- Electric tin vacuum cleaner 30 W - Yihua 929D-V
- Additional spearhead
- Cleaner
