Product description: 3mm LED set - 30 pcs. - justPi
Set of 30 pieces of light emitting diodes (LED) in red, yellow and green. The diameter of the lenses is 3 mm. The diodes emit radiation in the visible light range. They are designed for THT through-hole mounting. LEDs are manufactured in various housings and are intended for various applications. They are especially useful during creation of various projects e.g. with Arduino board. In Botland shop offer there are also holders for 3 mm LEDs.
Contents of set
- 10 red LEDs
- 10 yellow LEDs
- 10 green diodes

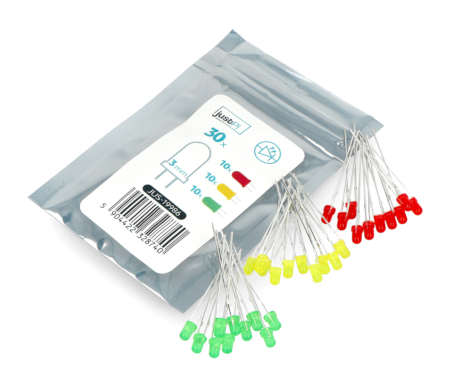

Set of 3mm LEDs - 30 pcs. - justPi.
Set of 3mm LEDs - 30 pcs. - justPi.
Parameters of a yellow diode:
- Lens in yellow color
- Housing: 3 mm DIP
- Emitted wavelength: 589 nm
- Brightness: 250 mcd
- Operating parameters:
- Current If: 20 mA
- Voltage Vf: 2.0 V to 2.3 V
- Current If: 25 mA
- Voltage Vf: 2,0 V
Green diode parameters:
- Green lens
- Housing: 3 mm DIP
- Emitted wavelength: from 625 to 645 nm
- Brightness: 15 to 20 mcd
- Operating parameters:
- Current If: 20 mA
- Voltage Vf: 2.1 V to 2.4 V
Red diode parameters:
- Red lens
- Housing: 3 mm DIP
- Emitted wavelength: 625 nm to 645 nm
- Brightness: 450 to 800 mcd
- Angle of illumination: 70°
- Operation temperature: from -40°C to +80°C
- Operating parameters:
- Current If: 20 mA
- Voltage Vf: from 2.0 V to 2.3 V
