DRV8833 - two-channel motor controller 10,8V/1,2A - Pololu 2130

Index: PLL-00546 EAN: 5904422367213

Two-channel driver for DC motors. Continuous current per channel 1.2 A (temporary up to 2 A). Power supply from 2.7 to 10.8 V.

DRV8833 - two-channel motor controller 10,8V/1,2A - Pololu 2130
€20.40
€16.58 tax excl.
Available
Check quantity
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: Pololu
Compatibility: Arduino Raspberry Pi

Product description: Pololu DRV8833 - two-channel motor controller 10.8 V / 1.2 A

The module based on the Texas Instruments DRV8833 system is a two-channel DC motor driver. The advantage of the system are extremely small dimensions - the board is the size of a DIP 14-pin housing. The module can control motors powered with the voltage in the range of 2.0 V to 11 V with a continuous current consumption of 1.2 V. The channels of the controller can be connected to increase the current efficiency - up to 2.4 A. The kit includes the module and goldpin connectors.

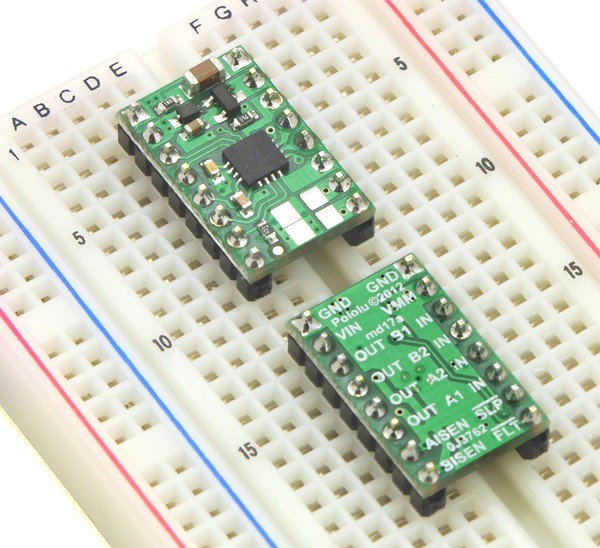

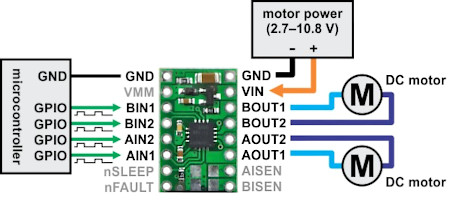

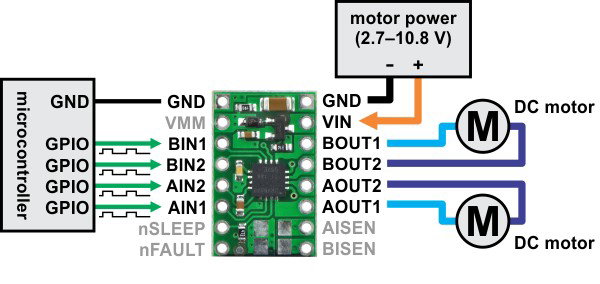

Connecting a two-channel motor controller 10.8 V / 1.2 A - Pololu DRV8833

For the correct operation of the module, you must connect the power supply - between the pins - VIN and GND and connect the pins responsible for the motor movement, the description of which is in the table below. In order to control the rotational speed, a PWM signal should be given to the direction control inputs.

Dwukanałowy sterownik silnika pololu

Pololu DRV8833

Pololu DRV8833

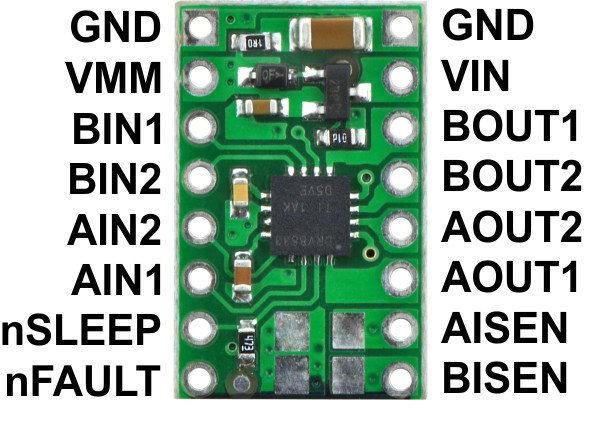

PIN Description
VIN Supply voltage (2.7 V - 10.8 V)
GND System mass potential
VMM Power output with reverse connection protection.
AOUT1, AOUT2 Channel A outputs controlled by pins AIN1 and AIN2
BOUT1, BOUT2 Channel B outputs controlled by pins BIN1 and BIN2
AIN1, AIN2 Digital inputs controlling channel A. It is possible to connect PWM signal to them. Defaults to low.
BIN1, BIN2 Digital inputs controlling channel B. It is possible to connect PWM signal to them. Defaults to low.
nSLEEP The low state causes the system to go into sleep mode - low power consumption. Default in high state (pull-up).
nFAULT The output goes low when an error is detected related to too low supply voltage, too high temperature of the system or too high current.
AISEN The output allows to limit the current for channel A. The default is low - no limitation.
BISEN The output allows to limit the current for channel B. The default is low - no limitation.

Limiting the flowing current

There are solder pads on the module that allow resistors to be placed in the housing 1206 or smaller. They are used to limit the current flowing through the channel A and B.Szczegóły documentation systemDRV8833.

Heat dissipation with two-channel motor controller 10.8 V / 1.2 A - Pololu DRV8833

The documentation of the DRV8833 system states that the maximum continuous current per channel is 1.5 A. Tests by Pololu have shown that when the current is 1.5 A, the temperature protection switches the system off after about a minute of continuous operation. Stable operation is possible with a current below 1.3 A per channel.

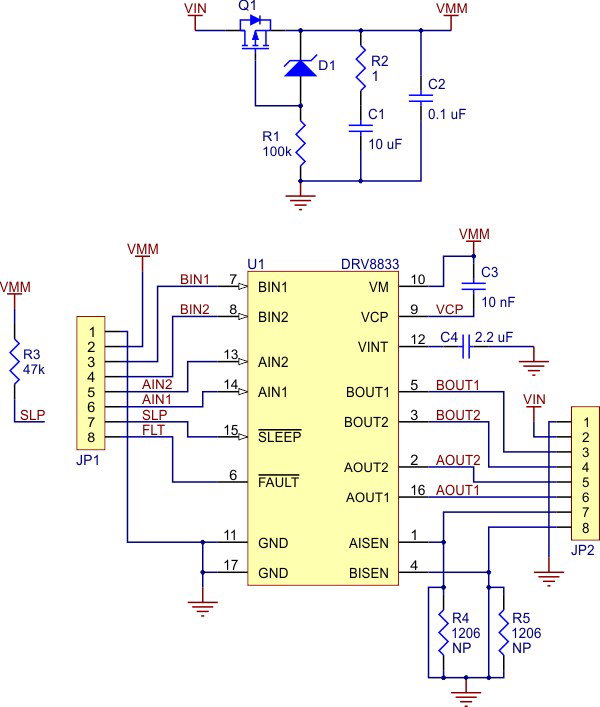

Diagram of a two-channel driver for 10.8 V / 1.2 A motors - Pololu DRV8833

The system includes a transistor that protects the module against reverse power connection and the passive elements necessary for the proper operation of the controller.

Schemat Pololu DRV8833

Diagram of the module DRV8833

Video describing the operation of the H bridge - driver of DC motors.

Specification of a two-channel motor controller 10.8 V / 1.2 A - Pololu DRV8833

  • Number of channels: 2
  • Supply voltage: 2.7 V to 10.8 V
  • Continuous current per channel: 1.2 A
  • Maximum instantaneous current per channel: 2 A
  • Continuous current with connected channels: 2.4 A
  • Protection against reverse power connection
  • Protection against too low and too high voltage
  • Dimensions: 11.7 x 20.3 mm
  • Weight: 1 g
Voltage to 2.7 V
Voltage from 10.8 V
Current 1.2 A
Channels 2
