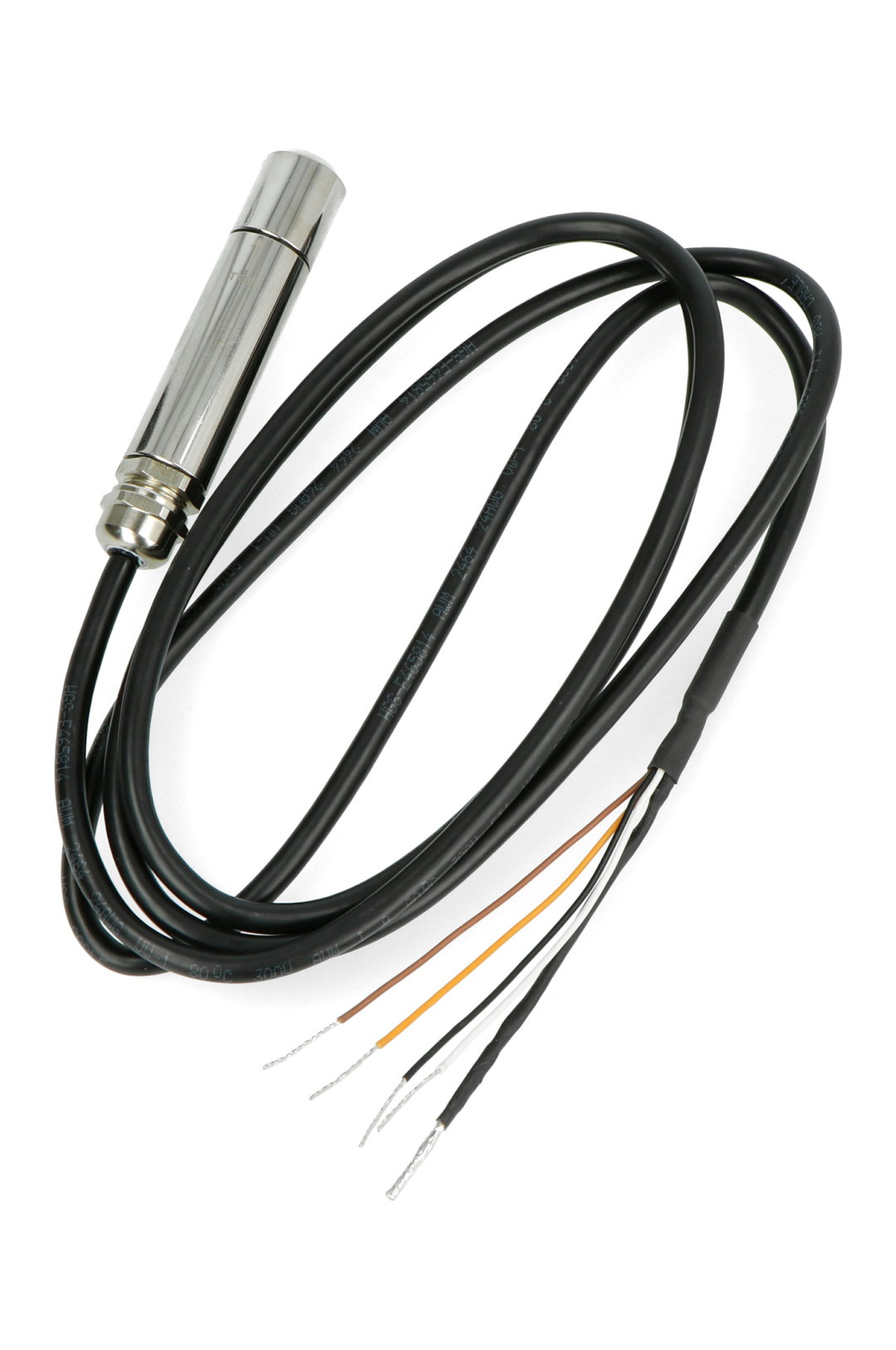

Non-contact temperature sensor IR 16x4px TC01 - DFRobot SEN0254
The temperature sensor TC01 measures with an infrared matrix of 16 x 4 px, which allows for non-contact measurements from -20°C to 300°C. For communication it uses Modbus-RTC protocol through RS485 interface. The sensor is enclosed in a waterproof casing with IP65 protection class. Powered from 9 V to 24 V.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Non-contact IR 16x4px TC01 temperature sensor - DFRobot SEN0254
The temperature sensorTC01 measures with aninfraredmatrix of16 x 4 px, whichallows for non-contact measurements from -20°C to300°C.For communication it uses Modbus-RTC protocol via RS485 interface, whichmakesit compatible with most industrial applications. The sensor is enclosed in a waterproof housing with IP65 protection class. Poweredfrom 9 V to 24 V.
Botland is an official distributor of DFRobot open-source hardware. Every roboticist and practitioner of emerging technology has heard at least once of DFRobot solutions, built above all around Arduino. Our range holds original DFRobot products only.
It can be widely used in applications such as: precise, non-contact temperature measurement, temperature scanner, human motion detection.
Diagram of TC01 IR sensor matrix.
Product compatible with Arduino The manufacturer provides auser guide forArduino. |
TC01 sensor connections
The IR temperature sensor communicates via Modbus-RTC protocol via RS485 interface. It is powered from 9 V to 24 V.
| Cable | Description |
|---|---|
| White | Supply voltage from 9 V to 24 V. |
| Black | The weight of the system. |
| Orange | Pin A of the RS485 interface |
| Brown | RS485 interface Pin B |
IR temperature sensor specification TC01
- Operating temperature: -40°C to 85°C
- Measurement temperature: from -20°C to 300°C
- Measurement accuracy: from± 1°Cto ± 5.5°C
- IR matrix: 16 x 4 px
- Angle of vision: 60° x 16°
- Leakage class: IP65
- Communication interface: RS485
- Communication protocol: Modbus-RTU
Specifications
- Supply voltage: 9 V to 24 V
- Rated power: 0.1 W
Probe Details
- The diameter of the probe: 15.4 mm
- The length of the probe: 79 mm
- Cable length: 1,5 m
Useful links
| Name | Value |
|---|---|
| Voltage to | 9.0 V |
| Voltage from | 24.0 V |
| Sensor - type | temperature IR |
| Sensor - Temperature to | 300 °C |
| Sensor - Temperature accuracy | +/- 1 °C |
| Sensor - Temperature from | -20 °C - 60 °C |
| Width | 9 cm |
| Height | 2 cm |
| Depth | 23 cm |
| Weight | 0.136 kg |
