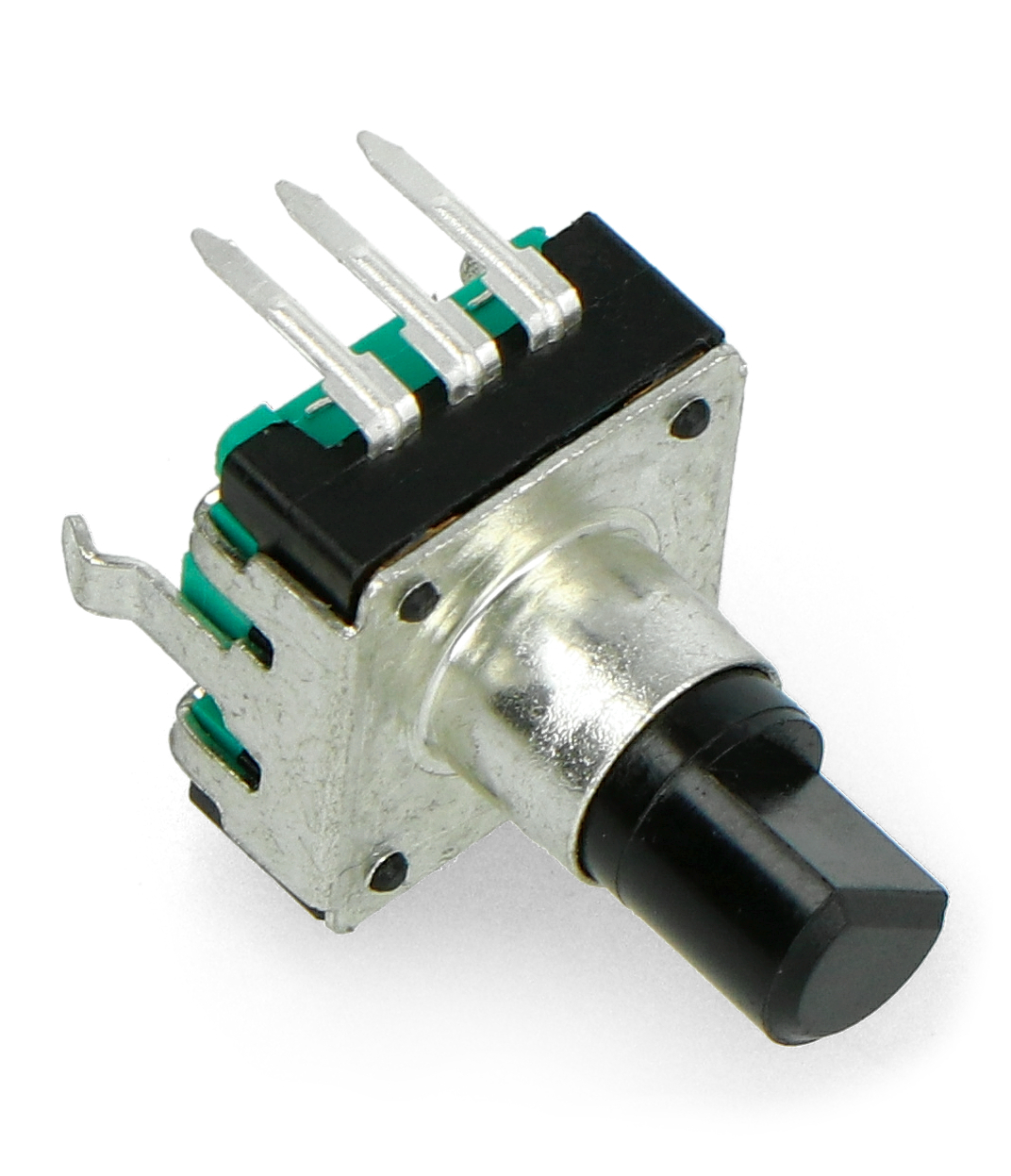

Product description: Encoder with pushbutton 24 pulses 12 mm - EC12 vertical - 5 pcs.
The encoder-style knob and button allow for the creation of a simple user interface. The module sends a digital signal to two pins, depending on the direction of rotation.
Items sold in packs of 5. |
The video presents basic information about encoders.
Arduino compatible product You can find an example program for Arduino on the Internet. |
Sensor operation
The sensor has a 5-pin connector with two digital outputs that provide an impulse in the event of movement in one direction and one output from the button.
Specification
- Detects clockwise and counterclockwise rotation
- Number of steps in 360°: 24 steps
- Button in the knob
- Plastic beveled axle: 5 mm
- Module dimensions (without pins): 13 x 12.5 x 19.5 mm
