Optical sensor with LM393 comparator - 10mm

Index: MOD-07562 EAN: 5904422335977

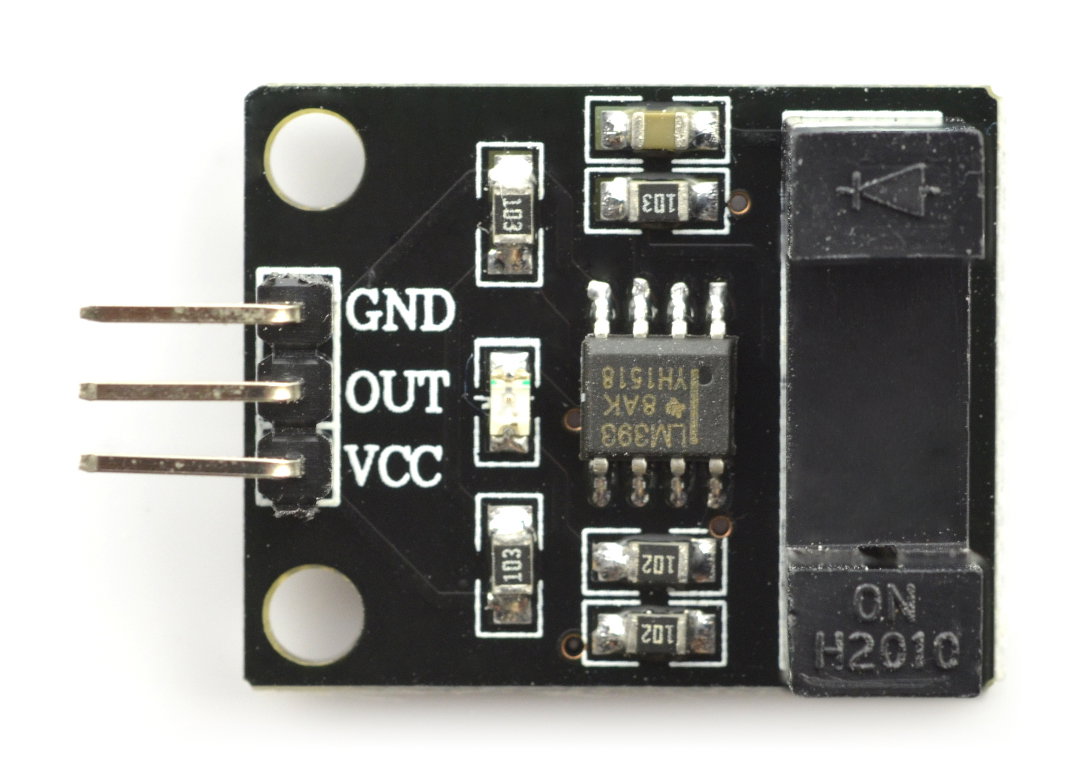

Digital module with optical sensor, with a slit of 10 mm. The module has a built-in LM393 comparator because the output is a digital signal. The supply voltage is 5 V. Along with the disc of the encoder, it can be used as a device counting the pulses, etc.

Optical sensor with LM393 comparator - 10mm
€1.50
€1.22 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: OEM

Description

Digital module with optical sensor, with a slit of 10 mm. The module has a built-in LM393 comparator because the output is a digital signal. The supply voltage is 5 V. Along with the disc of the encoder, it can be used as a device counting the pulses, etc.

Czujnik szczelinowy 10 mm z komparatorem LM393.

Slit sensor of 10 mm with comparator LM393.

Specification

  • Supply voltage: from 3.3 V to 5 V
  • Output voltage level: 5 V TTL
  • Slit width: 10 mm
  • The system of comparator: LM393
  • Pins:
    • VCC: power supply is from 3.3 V to 5 V
    • OUT: digital signal
    • GND: ground of the system
  • Module dimensions: 25 x 20 x 17 mm



Details inthe documentation of the LM393 comparator.

Package width 4.5 cm
Package height 2 cm
Package depth 8 cm
Package weight 0.004 kg
