Product description: Gravity - analog water pressure sensor - DFRobot SEN0257
Analog sensor designed to measure water pressure, manufactured by DFRobot. It uses a 3-pin Gravity interface. The supported input voltage (standard) is equal to 5 V, and the linear output voltage ranges from 0.5 V to 4.5 V. The sensor is compatible with controllers such as Arduino and can be used in a wide range of smart home control systems (SCS) or Internet of Things (IoT).
Arduino compatible product
The manufacturer has prepared a detailed user's guide, which includes a description of projects using the sensor and sample program code.

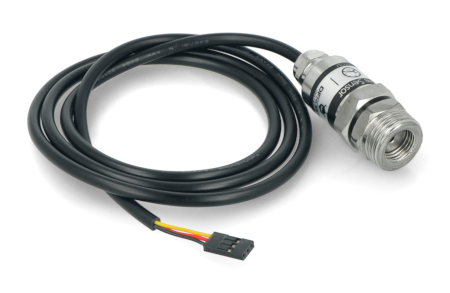

Gravity: analog water pressure sensor - Arduino compatible - DFRobot SEN0257.
Sensor has leads in form of wires with BLS connector in three colors.
Sensor leads description and connection diagram
Sensor terminals are wires with BLS connector available in three colors: red, black and yellow. Module is compatible with Arduino and derived boards. On the example diagram, the DFRduino board is used (available for purchase separately). In order to obtain correct operation of the element it is necessary to connect the leads with the controller board according to the following dependencies:
- red wire - VCC - power supply 5 V
- black wire - GND - GND - Ground
- yellow wire - Signal - analog signal (output from 0.5 V to 4.5 V)
Technical specifications of the sensor from DFRobot
- Module: analogue water pressure sensor
- Connections: 3 x cable (Signal - VCC - GND)
- Pressure measurement range: 0 MPa to 1,6 MPa
- Measurement accuracy: 0.5%
- Input voltage: 5 V DC
- Output voltage range: from 0.5 V to 4.5 V
- Thread: G1 / 4
- Adapter: G1 / 2 to G1 / 4
- Response time: < 2 ms
- Rest current: 2.8 mA
- Operating pressure: < 2 MPa
- Fault pressure: ≥3.0 MPa
- Service life: ≥ 10 million measurements
- Working temperature: from -20°C to 85°C
- Module dimensions: 49 x 14 mm

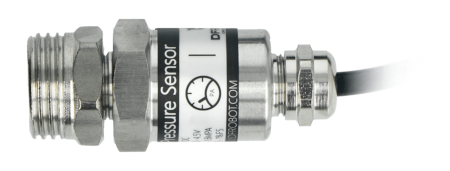

Built-in adapter G1 / 2 to G1 / 4 facilitates the use of the element in many situations.

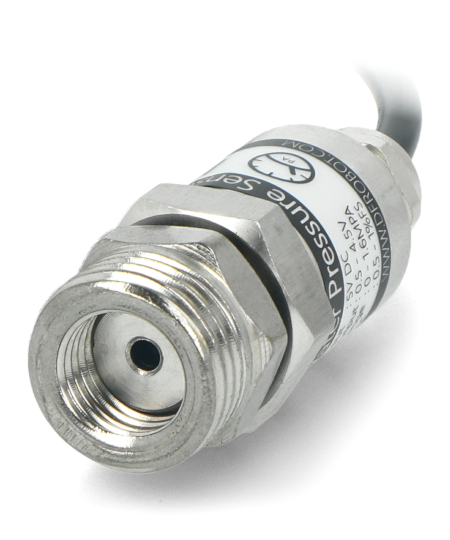

Analog sensor designed to measure water pressure.
Suggested use

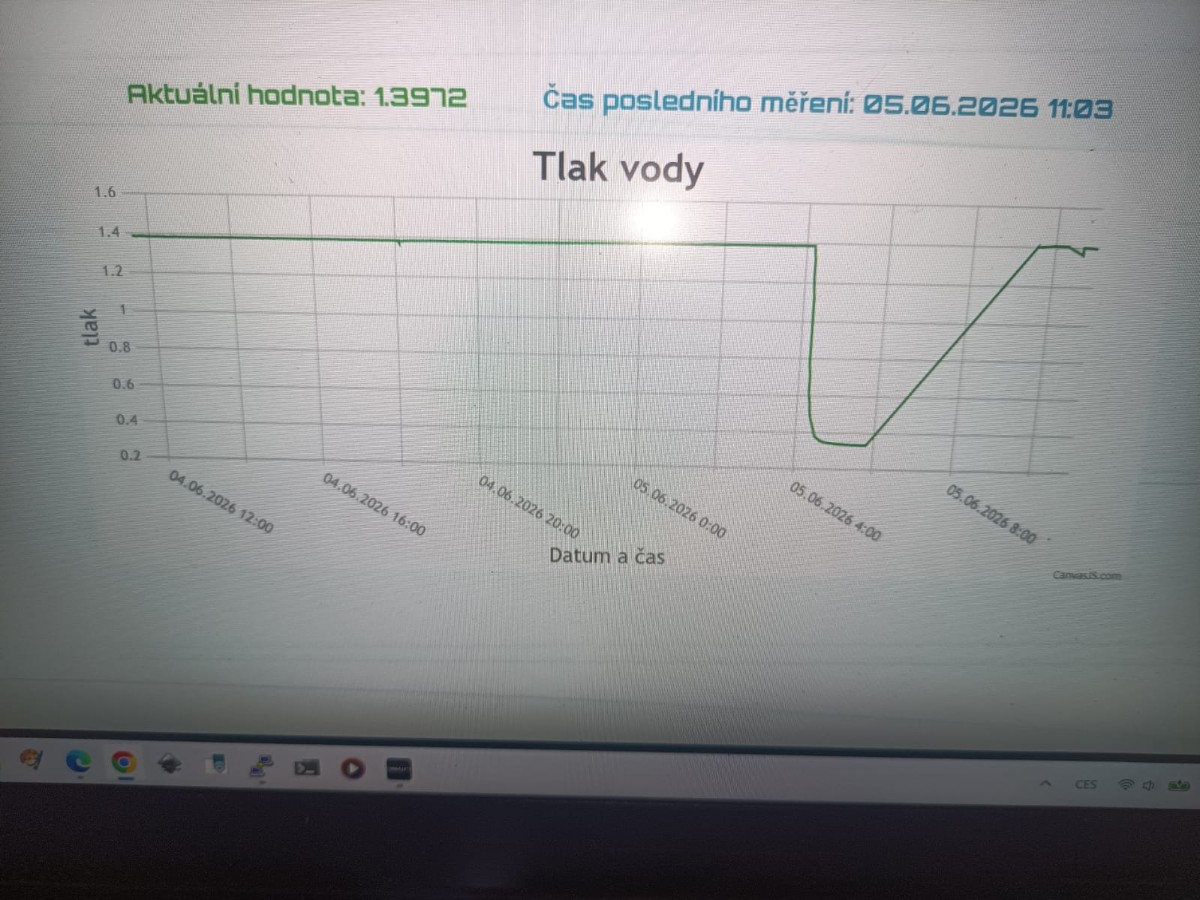

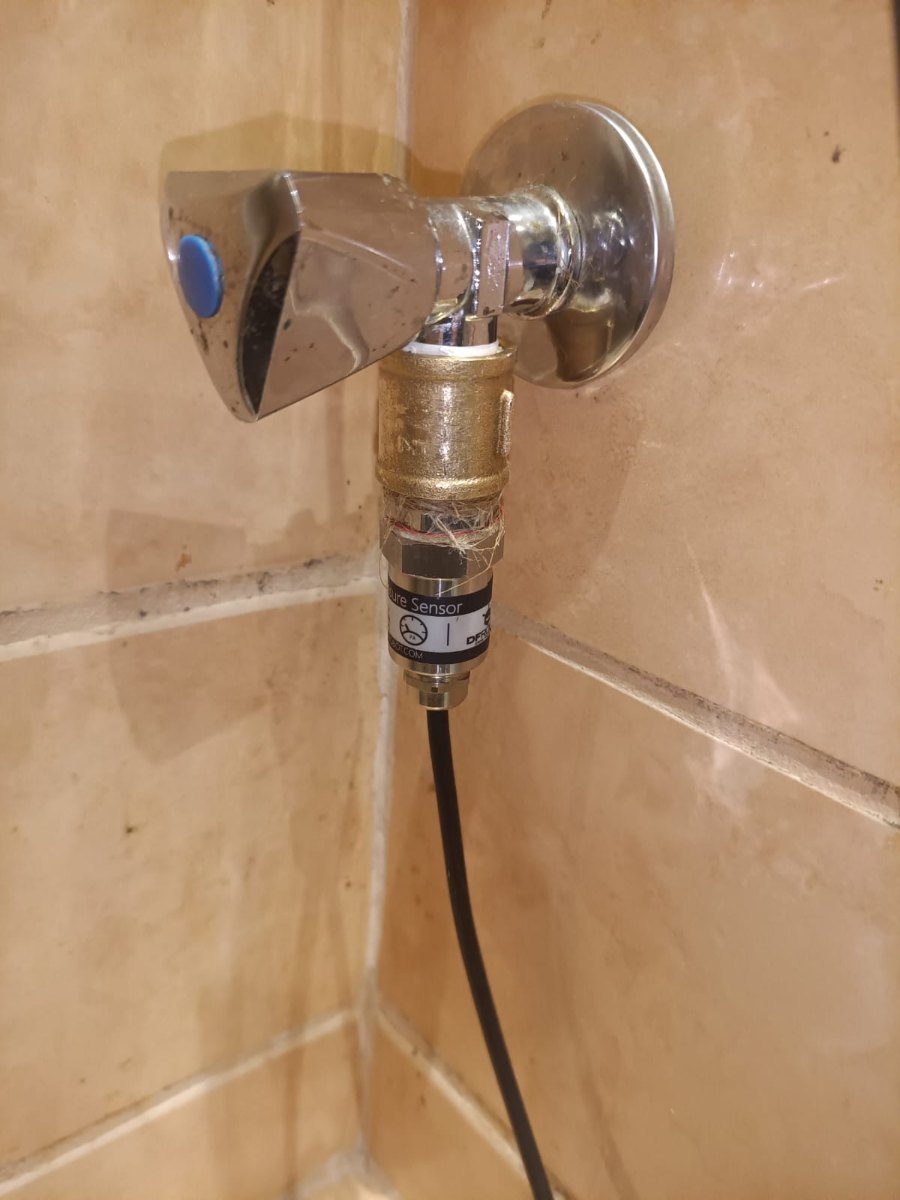

- Water pressure measurement in residential environments, e.g. homes, gardens, farms
- Measuring water pressure in outdoor environments such as rivers, lakes and the sea
- Pressure measurement of water in tanks
- Supports liquid level measurement in unique situations and non-standard circumstances
Kit contents
- Gravity: analog sensor for measuring water pressure
- Adapter G1 / 2 to G1 / 4 (included)
In our assortment you will also find other sensors. We invite you to familiarize with the offer.
Useful links |
Advantages
- High accuracy with a measurement accuracy of 0.5%.
- Wide output voltage range from 0.5 V to 4.5 V.
- Compatible with Arduino and other derived boards.
- Detailed user guide provided by the manufacturer, including project descriptions and sample code.
- Built-in adapter G1/2 to G1/4 facilitates versatile usage.
- Suitable for various environments such as residential areas, outdoor water bodies, and tanks.
- Long service life of ≥10 million measurements.
Disadvantages
- Some reviews mention lower speed performance.
- Limited documentation in languages other than English.
AI generated based on user reviews
