Product description: Gravity - analog temperature and humidity sensor - SHT30 - DFRobot DFR0588
Analoguetemperaturesensorihumiditymanufactured by DFRobot. The module is equipped with a high quality new generationSHT30chip from Sensirion. It uses CMOSens technology, guaranteesreliabilityand long-term measurement stability withlow power consumption. It has a fast response time and high resistance to interference.The sensoris internally calibrated, linearized and amplified. Compatible with controllers operating at3.3 V / 5 V, which include Arduino, ESP32 or micro:bit. SHT30 sensor allows you to measure the temperature in the rangefrom -40 ° C to 125° C and humidity in the rangefrom 0% to 100% RH.

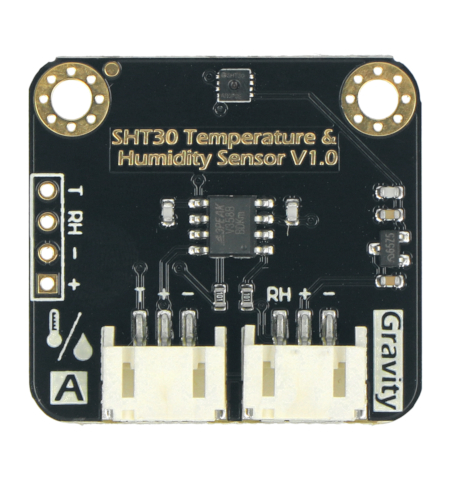

Gravity - analog temperature and humidity sensor.
Compatible with 3.3 V / 5 V controllers
The manufacturer provides a detaileduser guide, which greatly facilitates getting started with the module. It includes instructions for connecting the sensor and sample program codes.

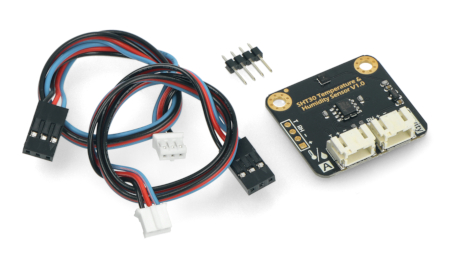

Necessary connection elements are included - Gravity wires and 1x4 goldpin strip.
Special features
- Internal self-calibration, linear analogue voltage output
- High precision measurement, low power consumption, fast response time
- Sensor compatible with controllers operating at 3.3 V / 5 V
- Suitable for applications such as urban environment monitoring, smart home and building projects, and general industrial automation
Set contents
- Gravity - analog sensor of temperature and humidity
- Gravity connection cable - 2 pcs.
- Goldpin strip 1x4

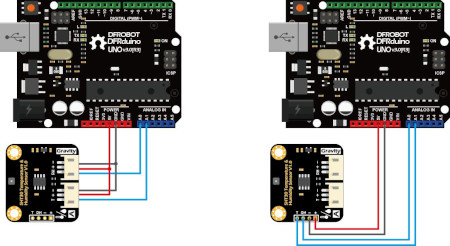

Leads description and connection diagram
The sensor has a Gravity connector, which improves and accelerates the process of connection, and soldering fields, where you have to solder the goldpin 1x4 included in the set. The user can choose the way of connection according to individual needs and design assumptions. The modules should be connected according to the relation:
- "-" - GND - system ground
- "+" - VCC - power supply in range from 3,3 V to 5,5 V
- RH - analogue humidity measurement output
- T - analog output for temperature measurement

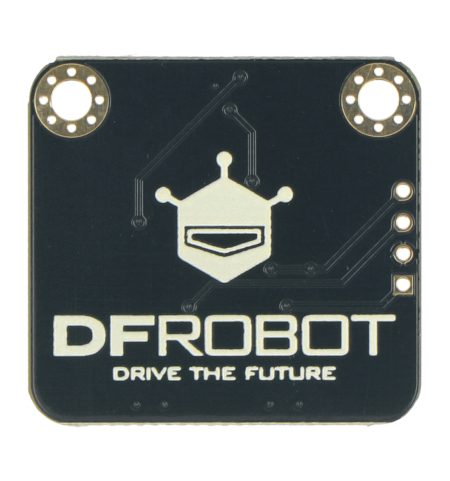

Module with integrated SHT30 chip from Sensirion.
Technical specification of the sensor
- Type: analog temperature and humidity sensor
- Embedded chip: Sensirion SHT30
- Input voltage range: 3.3 V to 5.5 V
- Connector: Gravity / solder fields
- Resting current: < 0.5 mA
- Temperature:
- measuring range: -40°C to 125°C
- measurement resolution: 0.01°C, 14 bits
- accuracy of measurement: ± 0.2°C from 10°C to 55°C / ± 1.5°C from -40°C to 125°C
- response time > 2 s
- Humidity
- measuring range: from 0% to 100% RH
- Measurement resolution: 0.006%, 14 bits
- Measurement accuracy: ± 3% RH from 10% to 90% RH / ± 8% RH from 0% to 100% RH
- Response time: > 8 s
- Module dimensions: 30 x 32 mm
- Weight: 4 g
