Product description: ANO Rotary Navigation Encoder - encoder module - I2C - Stemma QT - Adafruit 5740
ANO Rotary Navigation Encoder from Adafruit is an advanced encoder module used to measure the position, rotation angle, speed or direction of rotation of various machine parts. Requires the encoder knob to be connected to the module for proper operation. This device is equipped with a microcontroller with seesaw software that accurately tracks all pulses and pins, storing incremental values for user use. The module is compatible with Arduino and Raspberry Pi microcontrollers and with various programming languages, e.g. Python . The module offers the ability to change the I2C address using solder jumpers, allowing you to connect up to 16 such devices to one I2C bus .
Also check out the encoder offers available on our website!

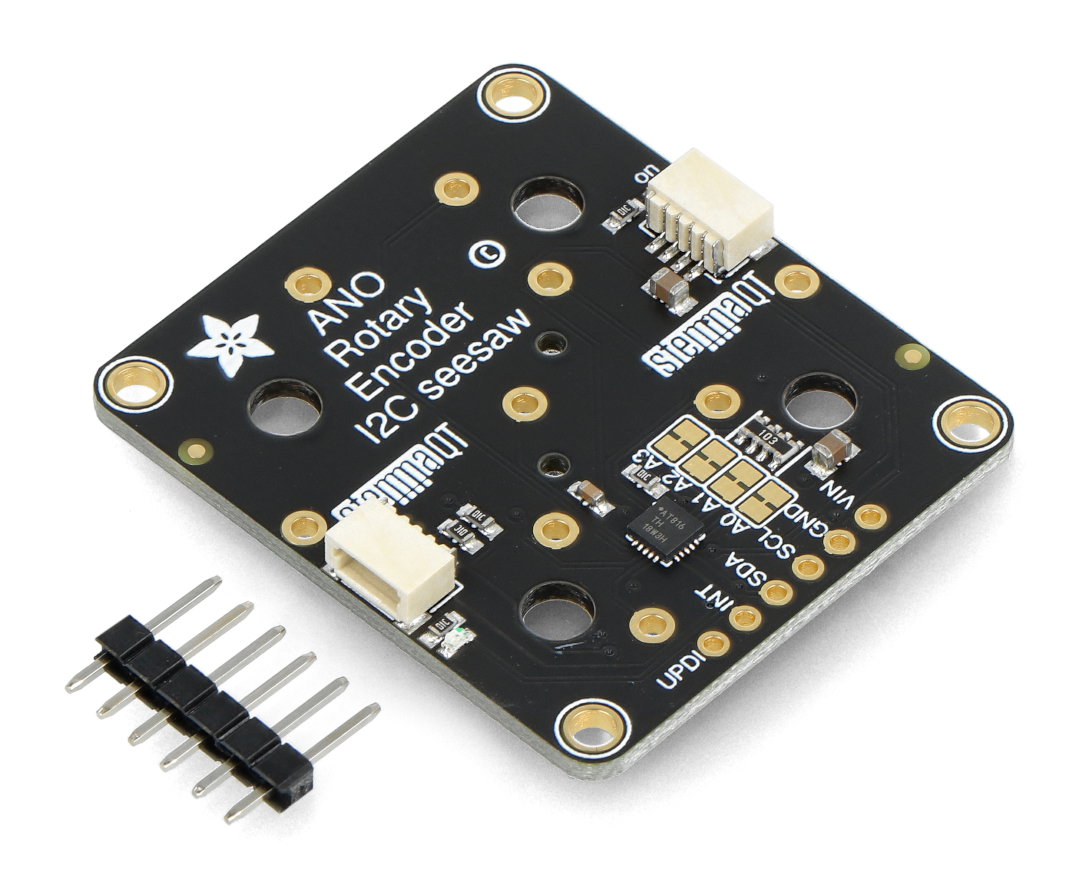

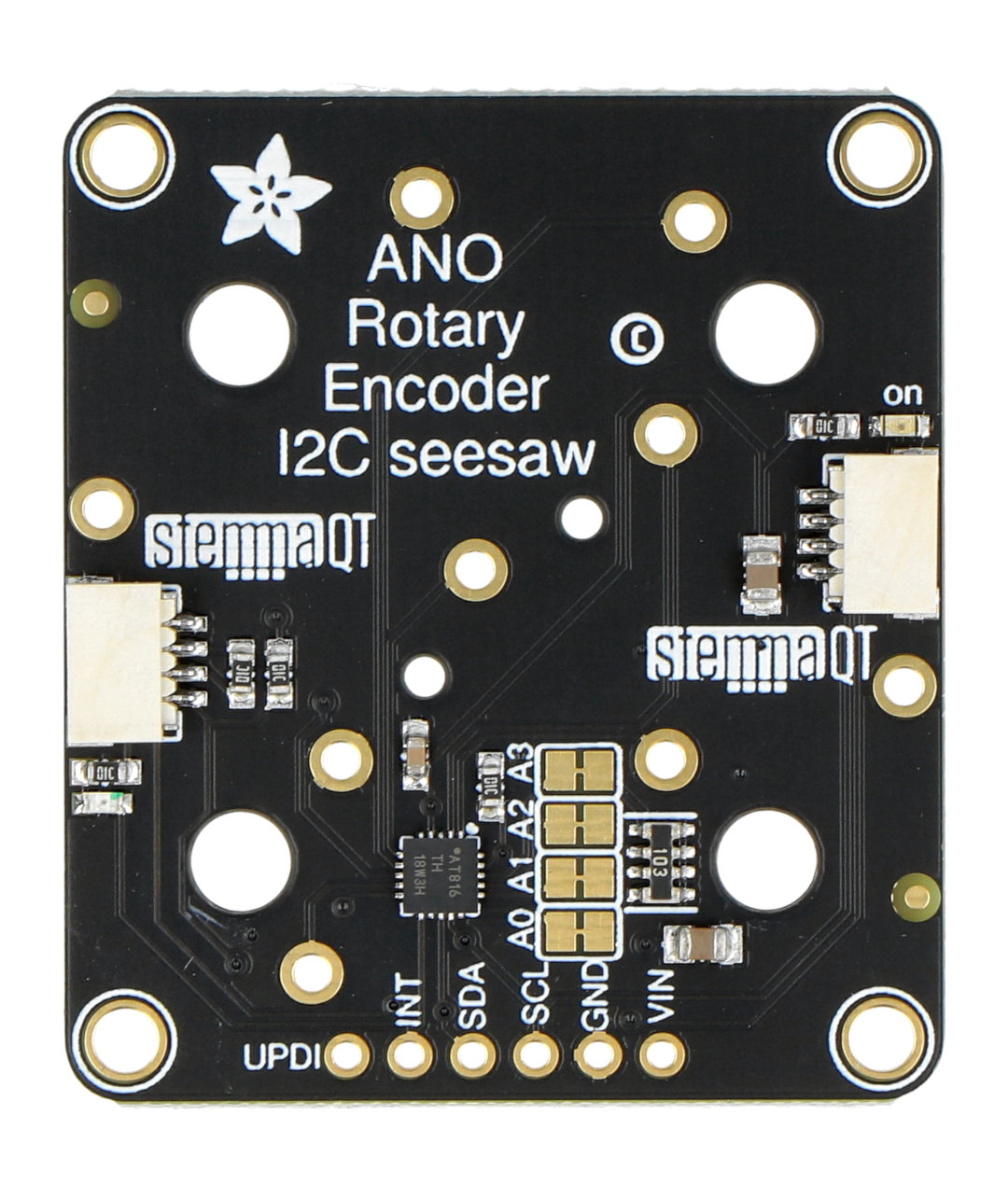

ANO Rotary Navigation Encoder - encoder module - I2C - Stemma QT - Adafruit 5740.

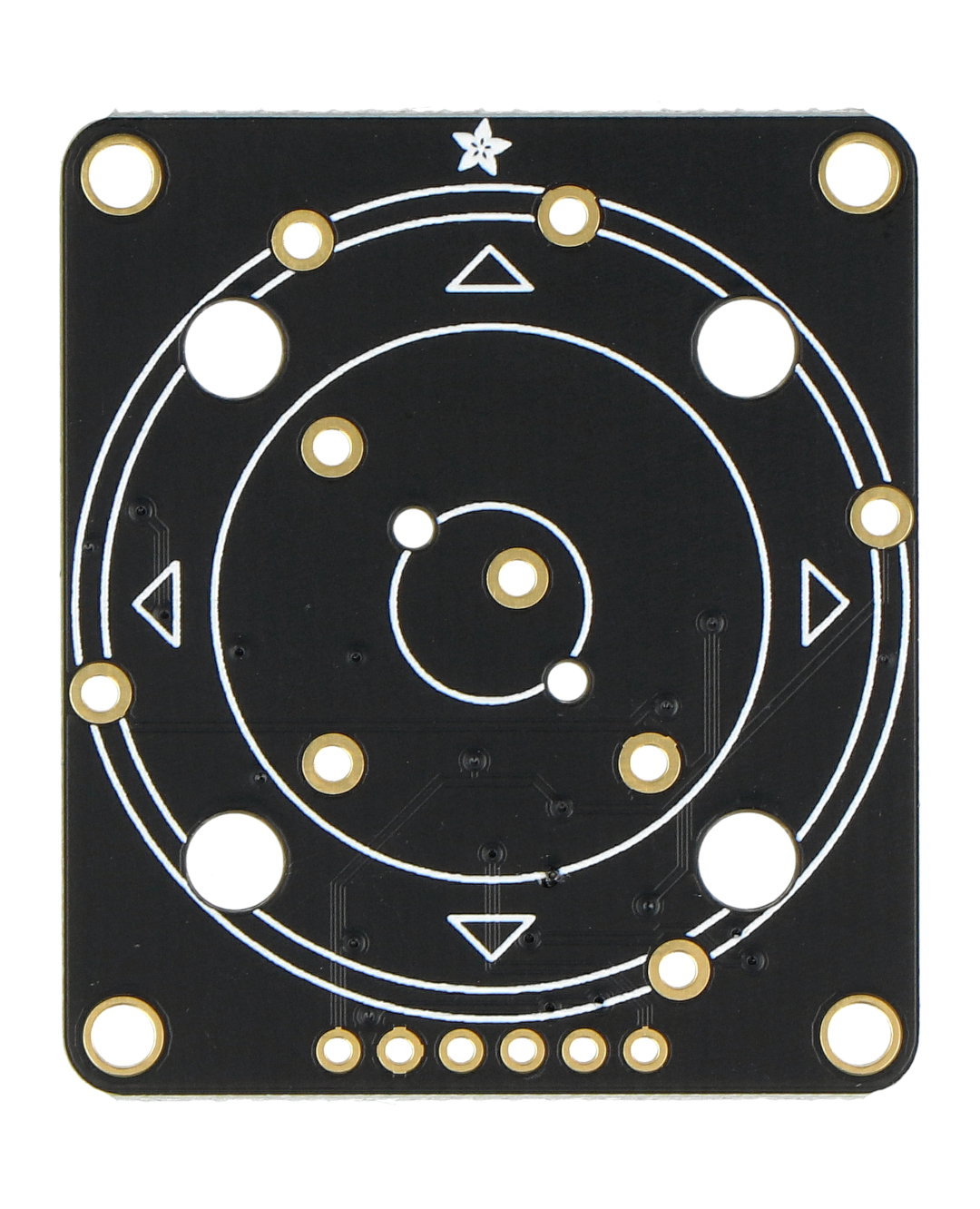

The device allows you to connect an encoder knob.
Special features of the encoder module
- Requires attachment of the ANO rotary encoder knob for proper operation, knob not included
- Provides integration with Arduino, Raspberry Pi and other devices
- It has a built-in microcontroller that tracks pulses and pin states
- Supports power supply ranging from 3V to 5V DC
- It has an INT pin that sends a signal to the microcontroller when it detects the movement of the knob or presses the button
- Allows you to change the I2C address using solder jumpers, allowing you to connect up to 16 devices to one I2C bus
Also check out other Adafruit products in our offer.
Technical specifications of the module
- Producer: Adafruit
- Model: ANO Rotary Navigation Encoder
- Product code: 5740
- Device type: encoder module
- Communication interface: I2C
- Power supply: 3V to 5V DC
- Built-in INT pin: yes
- Maximum number of devices on the I2C bus: 16
- Compatibility: Arduino, Raspberry Pi and others
- Dimensions: 40.7 x 35.8 x 4.8 mm
Attention! The kit does not include the ANO rotary encoder knob and must be purchased separately.
Elements included in the set.
