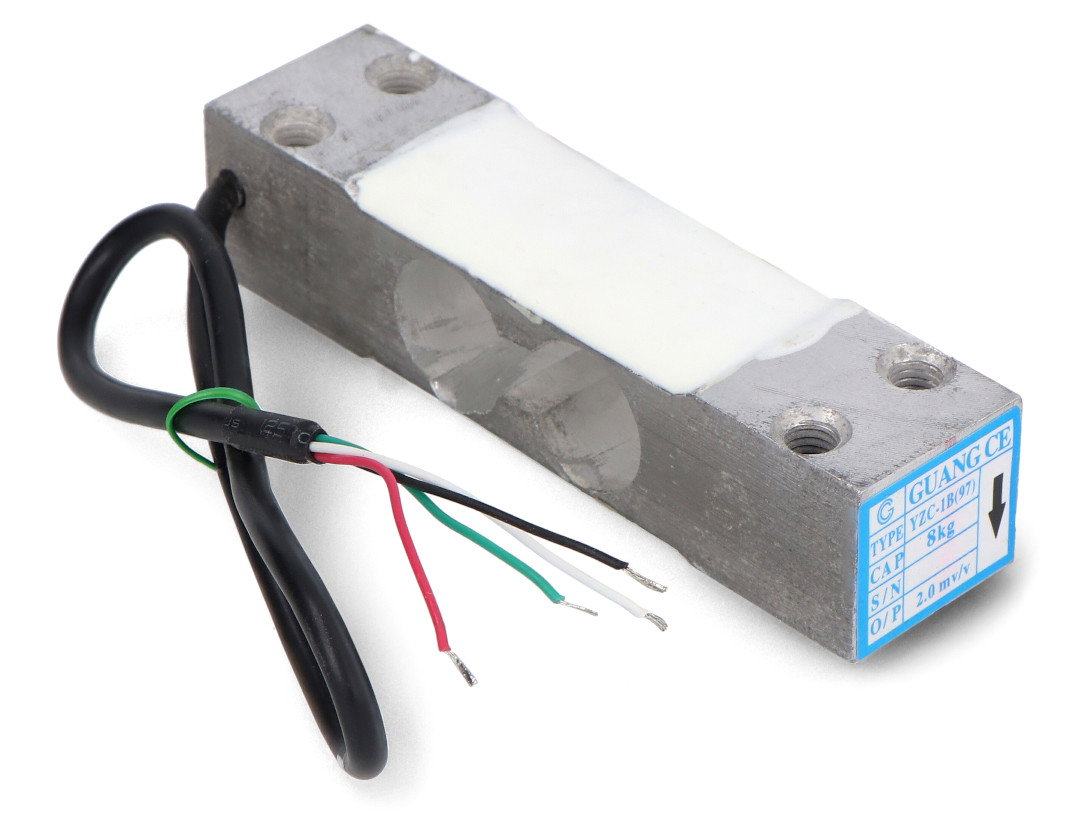

Tensometric beam NA1 8kg (80N)

Index: DNG-12671 EAN: 5904422319861

Strain-gauge beam operating in the range of up to 8 kg (80 N approx.). It is applied, for example, for kitchen scales, portable scales. The connecting cable has tips with the removed insulation, and its length is 30 cm.

€8.03
€6.53 tax excl.
Waiting for confirmation of delivery date
Temporarily unavailable
30-day returns
PayPal payment
Manufacturer: OEM

Specification

  • Operating voltage: from 10 V to 15 V
  • Measuring range: 8 kg (approx. 80 N)
  • Output: analog signal
  • Case: NA1 - aluminum
  • Cable: 4-vain, φ0,8, the length of 20 cm
  • Dimensions: 95 x 24 x 20 mm
  • Weight: 61,5 g

Description

Strain-gauge beam operating in the range of up to 8 kg (80 N approx.). It is applied, for example, for kitchen scales, portable scales. The connecting cable has tips with the removed insulation, and its length is 30 cm.



Belka tensometryczna NA27 5kg



Connection:

  • Red cable: input voltage, positive pole (+)
  • Black wire: input voltage, negative pole (-)
  • Green wire: output signal +
  • White wire: output signal -



Check how to connect the beam with the Arduino!
