MP6550 - single-channel motor controller 22V/1,7A - Pololu 4733

Index: PLL-22594
Driver based on the MP6550 chip that allows you to control the speed and direction of one DC motor. It works with motors powered by a voltage of 1.8 V to 22 V , with a continuous current consumption of up to 1.7 A. The controller can also withstand several-second current surges of up to 2.5 A.
MP6550 - single-channel motor controller 22V/1,7A - Pololu 4733
€5.50
€4.47 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Pololu

Product description: MP6550 - single-channel motor controller 22 V / 1.7 A - Pololu 4733

Driver based on the MP6550 chip that allows you to control the speed and direction of one DC motor . It works with motors powered by a voltage of 1.8 V to 22 V , with a continuous current consumption of up to 1.7 A. The controller can also withstand several-second current surges of up to 2.5 A.

The set also includes a goldpin strip intended for self-soldering.

Pins of the MP6550 single-channel motor driver.

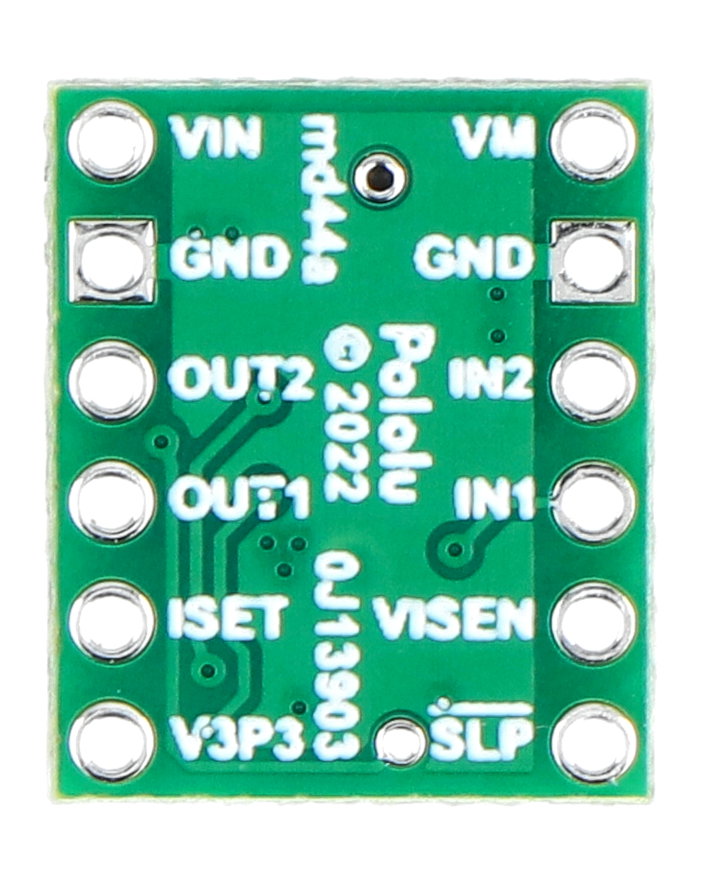

Pins of the MP6550 driver

  • VIN - engine supply voltage in the range from 1.8 V to 22 V with protection against reverse connection
  • GND - module ground
  • VM - motor supply voltage in the range from 1.8 V to 22 V without protection against reverse connection.
  • OUT1, OUT2 - outputs for connecting motor terminals
  • IN1, IN2 - PWM control signal
  • SLEEP - logic input that switches the system to sleep
  • ISET - current detection and limiting pin; a 2 kΩ resistor is connected to ground from this pin
  • VISEN - current sensor output; this pin provides an analog feedback voltage of 200mV/A
  • V3P3 - 3.3V output; disabled by default

Status table

IN1 IN2 OUT1 OUT2 Operating mode
0 0 WITH WITH free running
outputs disconnected
PWM 0 PWM (H/Z) PWM (L/Z) forward rotation / deceleration at PWM speed %
0 PWM PWM (L/Z) PWM (H/Z) reverse rotation / deceleration at PWM speed %
PWM 1 L PWM(L/H) reverse rotation / deceleration at 100% speed - PWM %
1 PWM PWM(L/H) L forward rotation / deceleration at 100% speed - PWM %
1 1 L L stop (outputs shorted to ground)

Technical specification of the MP6550 controller

  • Number of channels: 1
  • Supply voltage: from 1.8 V to 22 V
  • Operating voltage of the logic part: from 1.8 V to 5 V
  • Continuous current: 1.7A
  • Maximum instantaneous current: 2.5 A
  • PWM frequency: 100kHz
  • Dimensions: 12.7 x 15.24mm
  • Weight: 0.5g

Kit contents

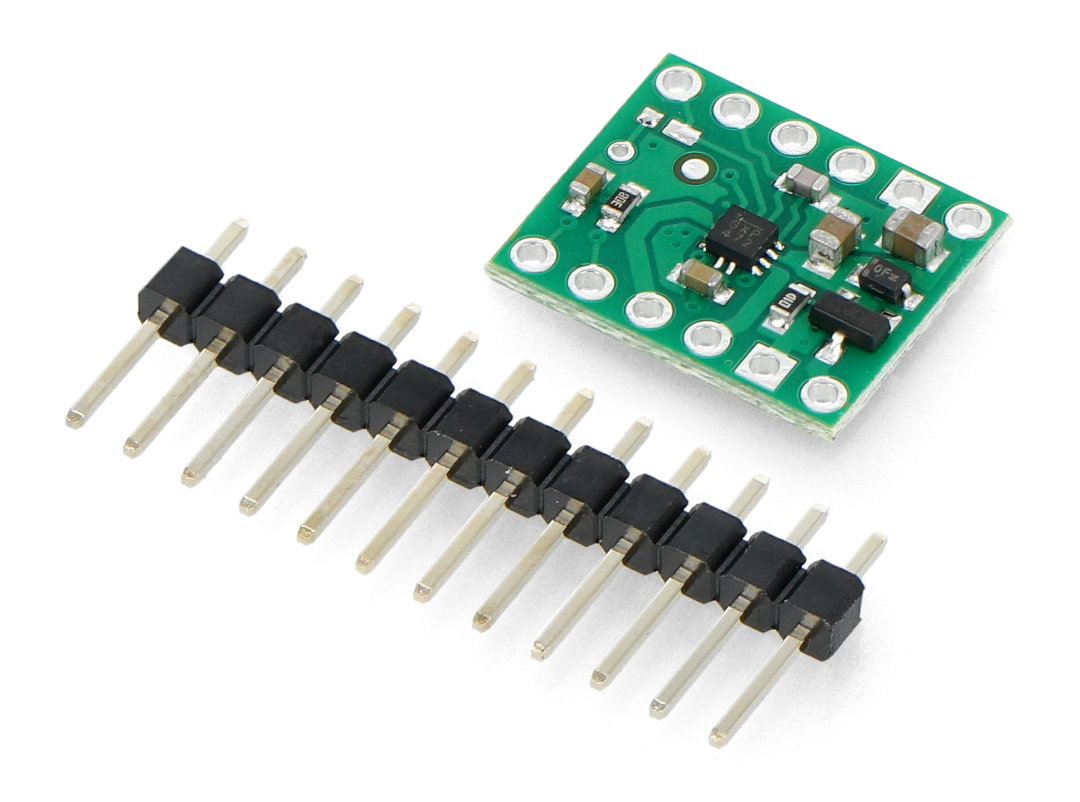

  • MP6550 - single-channel motor controller 22 V / 1.7 A - Pololu 4733
  • Goldpin strip 1x12 raster 2.54 mm

Connection diagram.

Voltage to 1.8 V
Voltage from 22.0 V
Current 1.7 A
Channels 1
Package width 8 cm
Package height 8.5 cm
Package depth 0.5 cm
Package weight 0.002 kg
