ESP32-S3-BOX-3 - ESP32 AIoT developer kit - Espressif Systems
ESP32-S3-BOX-3 is an advanced AIoT development kit that enables the use of artificial intelligence and the Internet of Things in projects. The set is based on the powerful ESP32-S3 SoC , which offers WiFi and Bluetooth 5 wireless communication.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: ESP32-S3-BOX-3 - ESP32 AIoT development kit - Espressif Systems
ESP32-S3-BOX-3 is a development kit created by Espressif Systems that provides users with extensive capabilities in the field of artificial intelligence AI and the Internet of Things IoT . It has an advanced ESP32-S3 SoC system , enabling wireless communication via WiFi and Bluetooth 5. The set is also equipped with a 2.4'' SPI touch screen , microphones , speaker , USB Type-C port and PCIe connector. Additionally, the device supports the Matter/Thread ecosystem , which allows users to use the ESP32-S3-BOX-3 as Thread border router, Matter gateway or Matter over WiFi/Thread end device.
The manufacturer has prepared a user's guide that makes it easier to start working with the set.
ESP32-S3-BOX-3 - ESP32 AIoT development kit - Espressif Systems.
The device has a built-in ESP32-S3 SoC.
Main features of ESP32-S3-BOX-3
- It has a built-in ESP32-S3 SoC module, enabling wireless WiFi and Bluetooth communication
- It has a 2.4'' SPI touch screen, speaker and microphones
- It offers offline AI voice assistant and online AI chatbot features
- Enables the ESP32-S3-BOX-3 to be used as a Matter over WiFi/Thread end device, a Thread border router or a Matter gateway
- It allows you to create Edge AI and HMI applications
- It is equipped with a USB Type-C port and a PCIe connector
- Supports various programming platforms, including Arduino, ESP-IDF and UIFlow, providing extensive programming possibilities
AI/IoT capabilities
ESP32-S3-BOX-3 allows the use of artificial intelligence AI and the Internet of Things IoT, thanks to which it enables the creation of Edge AI applications and HMI user interfaces . It is the perfect tool for those who want to implement advanced AI and IoT capabilities in their projects.
Compatibility with various platforms
ESP32-S3-BOX-3 is a device compatible with the Home Assistant home automation platform , which is an advanced tool for local home management. This device also offers integration with cloud platforms such as ESP RainMaker , enabling simple configuration of GPIO and voice commands without Internet access, as well as remote control via mobile applications and voice assistants.
The development kit allows you to create Edge AI and HMI applications.
ESP32-S3-BOX-3 communicates wirelessly via WiFi and Bluetooth.

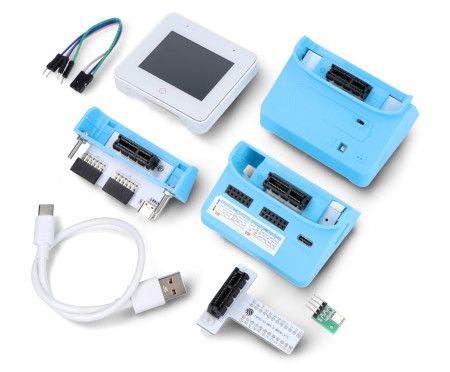

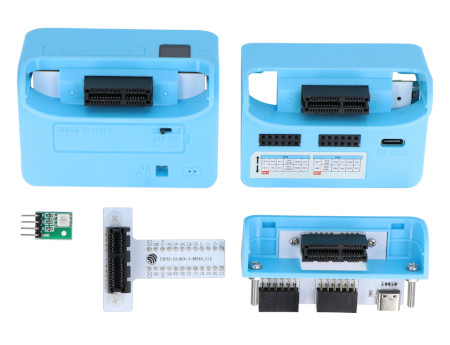

Set contents
- ESP32-S3-BOX-3 - main unit that can work independently

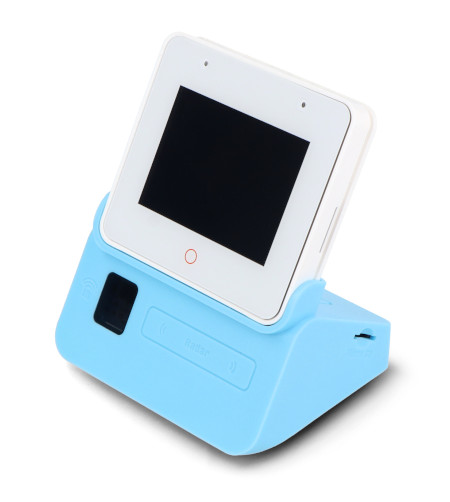

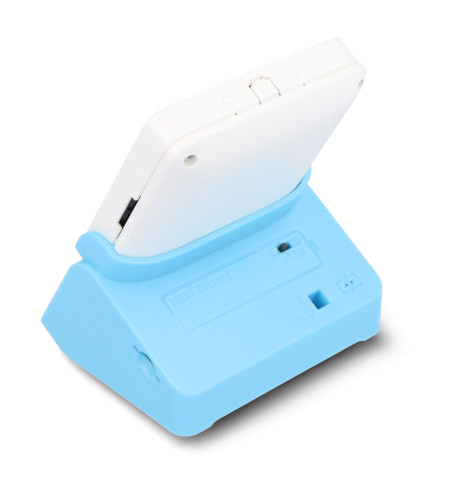

- ESP32-S3-BOX-3-DOCK - stand for the main box
- ESP32-S3-BOX-3-SENSOR - 3-axis gyroscope and accelerometer
- ESP32-S3-BOX-3-BRACKET - adapter enabling installation of the main box to other devices
- ESP32-S3-BOX-3-BREAD - adapter facilitating the connection of the main box to a standard breadboard
- USB Type-C power cable
- RGB LED module and Dupont test cables
Extensive technical documentation for the product is available on GitHub.
Technical specifications of ESP32-S3-BOX-3
- Built-in chip: ESP32-S3 SoC
- Processor: Xtensa LX7 Dual-Core 32 bit 240 MHz
- Wireless communication: WiFi, Bluetooth 5 Low Energy
- Memory:
- 512 KB SRAM
- 16MB Quad Flash
- 16 MB Octal PSRAM, 120 MHz
- 384 KV ROM
- Power supply: voltage 5 V, current 2 A, via USB Type C
- Built-in ports: 1x USB Type C, 1x PCIe
- Screen: 2.4'' SPI touch screen, 320 x 240 px, 40 MHz
- Microphone: dual microphone with ES7210 A/D converter and mute function
- Speaker: 8 Ω, NS4150 power amplifier, ES8311 chip
- Sensor: 3-axis gyroscope and accelerometer ICM-42607-P
- Compatibility with systems: Matter, ESP RainMaker, Home Assistant
- Development environments: Arduino, ESP-IDF, PlatformIO, CircuitPython and others
- Additional functions: speech recognition, AIoT application control
- Dimensions: 61 x 66 x 16.6 mm
- Weight: 292 g

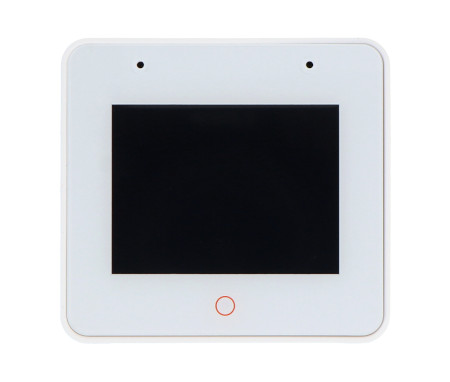

The product has a built-in 2.4" SPI touch screen.
Useful links
| Name | Value |
|---|---|
| UC - Microcontroller | ESP32-S3 |
| UC - Core | Tensilica Xtensa LX7 |
| UC - Flash | 16 MB |
| UC - RAM | 512 kB |
| UC - core | 2. Dual Core |
| UC - freq | 240 MHz |
| UC - WiFi | yes |
| UC - USB | USB C |
| UC - Bluetooth | yes |
| UC - Connector | USB typ C |
| Width | 10.5 cm |
| Height | 17.6 cm |
| Depth | 7.5 cm |
| Weight | 0.341 kg |
