Product description: 3D printer - Elegoo Saturn 4 Ultra 16K - resin
Elegoo Saturn 4 Ultra 16K is a new generation resin 3D printer , working in mSLA technology. It is equipped with a 10-inch mono LCD 16K screen with a resolution of 15120 x 6230 px , which allows for exceptional XY precision - 14 x 19 micrometers. Thanks to the large working area measuring 211.68 x 118.37 x 220 mm , the device allows for the implementation of both small and larger projects while maintaining the highest quality of details. The printer offers a number of intelligent functions, such as automatic leveling, resin heating system, quick model peeling and real-time monitoring with the help of an AI camera , which makes it an ideal tool for demanding users - from hobbyists to professionals.

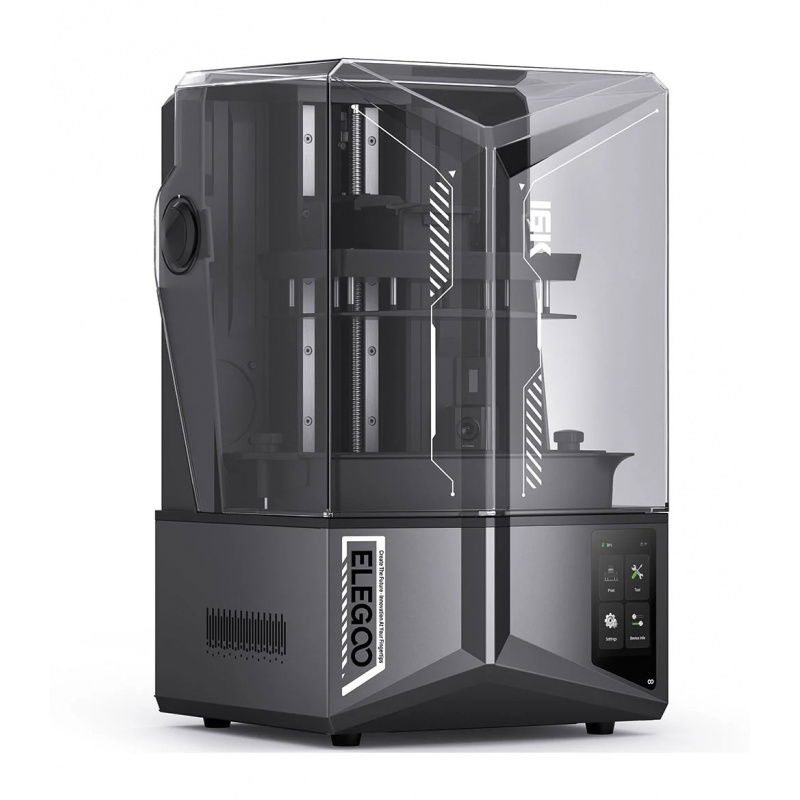

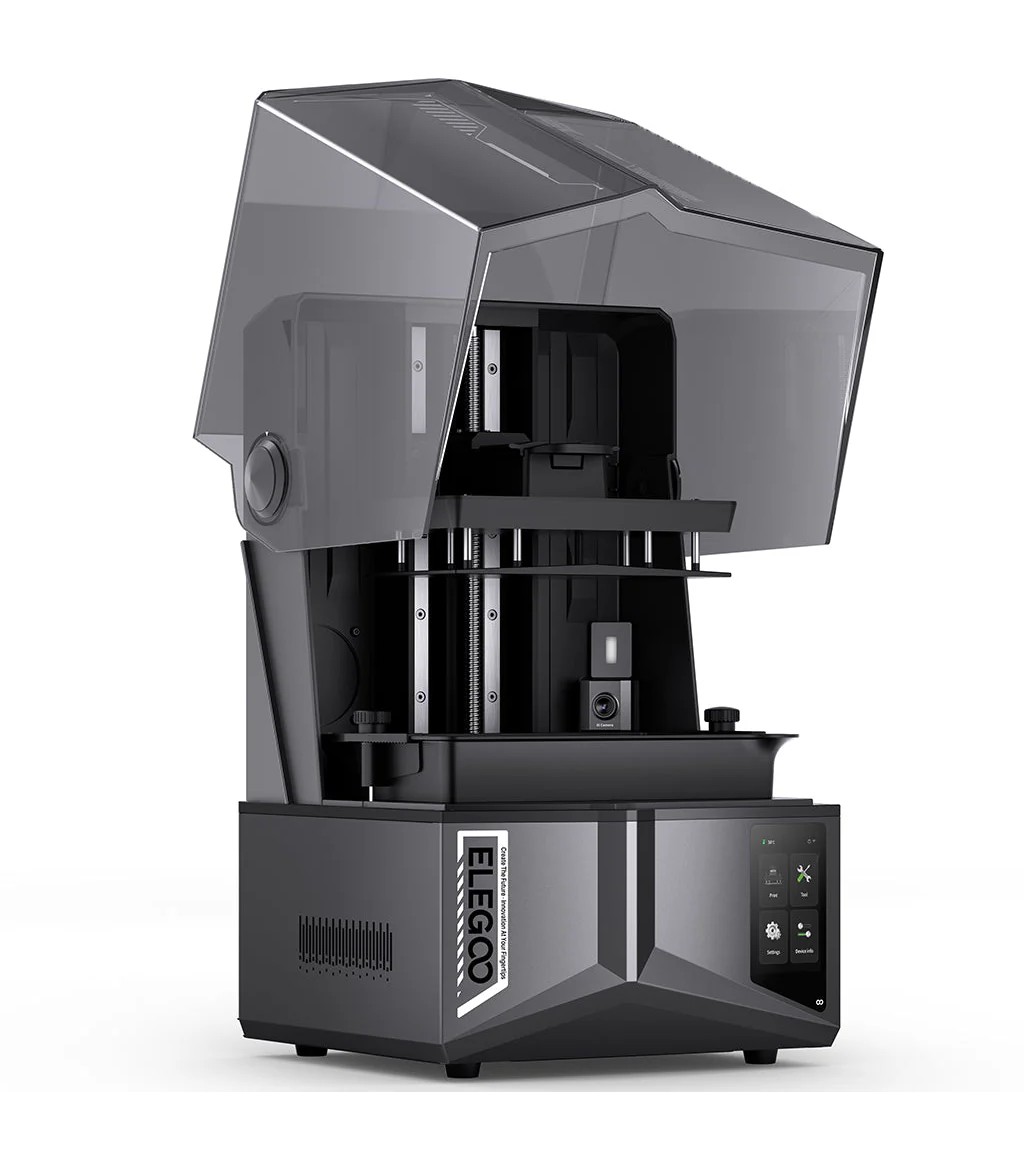

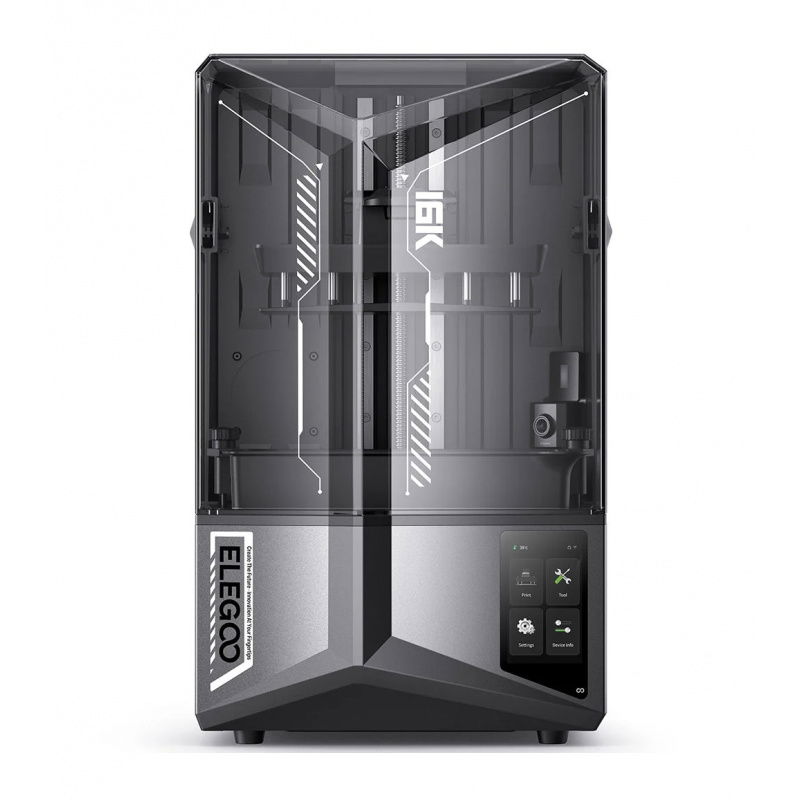

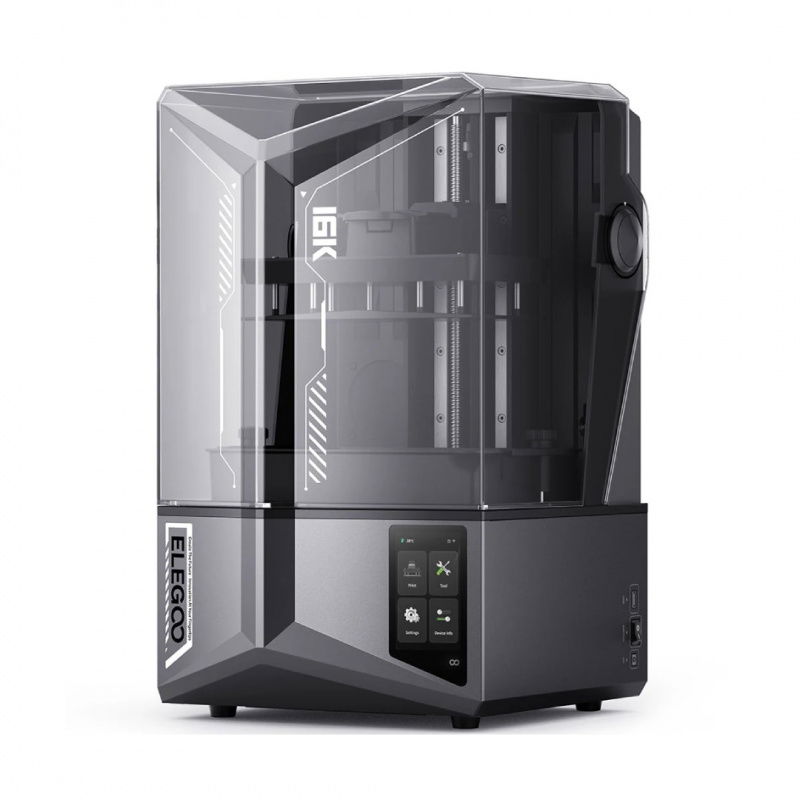

3D printer - Elegoo Saturn 4 Ultra 16K - resin.

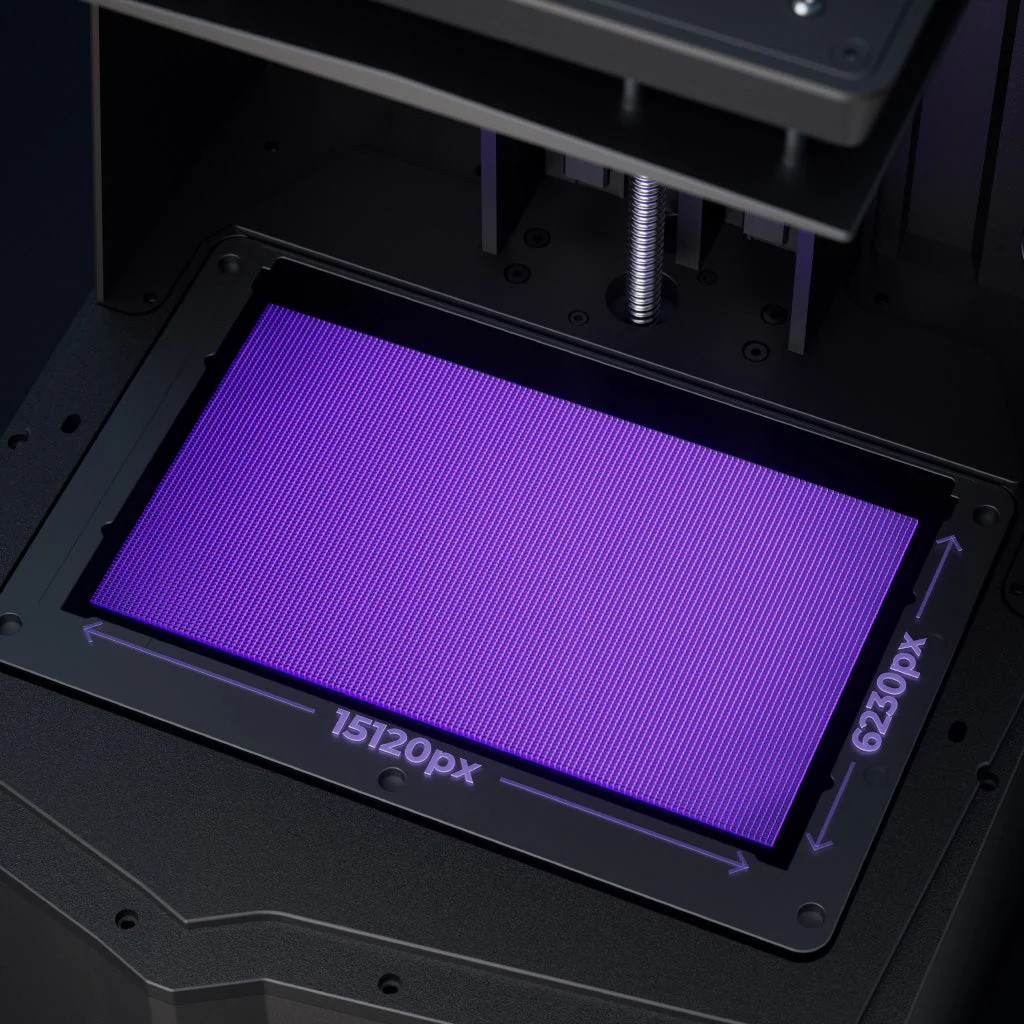

The screen resolution is as high as 15120 x 6230 px.
16K 3D printing - a new level of precision
With a 15120 x 6230 px LCD screen and 14 x 19 micrometer XY precision, Saturn 4 Ultra 16K provides unprecedented detail reproduction quality. Each layer of the model is smooth, and geometric structures are exceptionally sharp and clear. It is the perfect solution for modelers, creators of figurines, prototypes and utility elements requiring the highest precision.
Intelligent resin tank heating
The printer is equipped with an intelligent heating system that maintains a constant resin temperature of 30°C . Thanks to this, the material maintains ideal viscosity, and each layer connects better. This reduces the risk of defects such as air bubbles or delamination, ensuring greater efficiency and stability of printing.
Automatic leveling and ease of use
The automatic leveling system eliminates the need for manual platform calibration . Thanks to Plug and Play technology, Saturn 4 Ultra 16K is ready to work immediately after unpacking. Intuitive interface and simple operation make it a device accessible even for novice users.
AI Backlight Camera with Real-Time Monitoring
The built-in AI camera enables ongoing monitoring of the printing process . The function of detecting an empty platform or deformed models allows for a quick reaction and avoiding losses. Additional chamber lighting and the option of creating timelapses make it easier to check prints both during the day and at night.

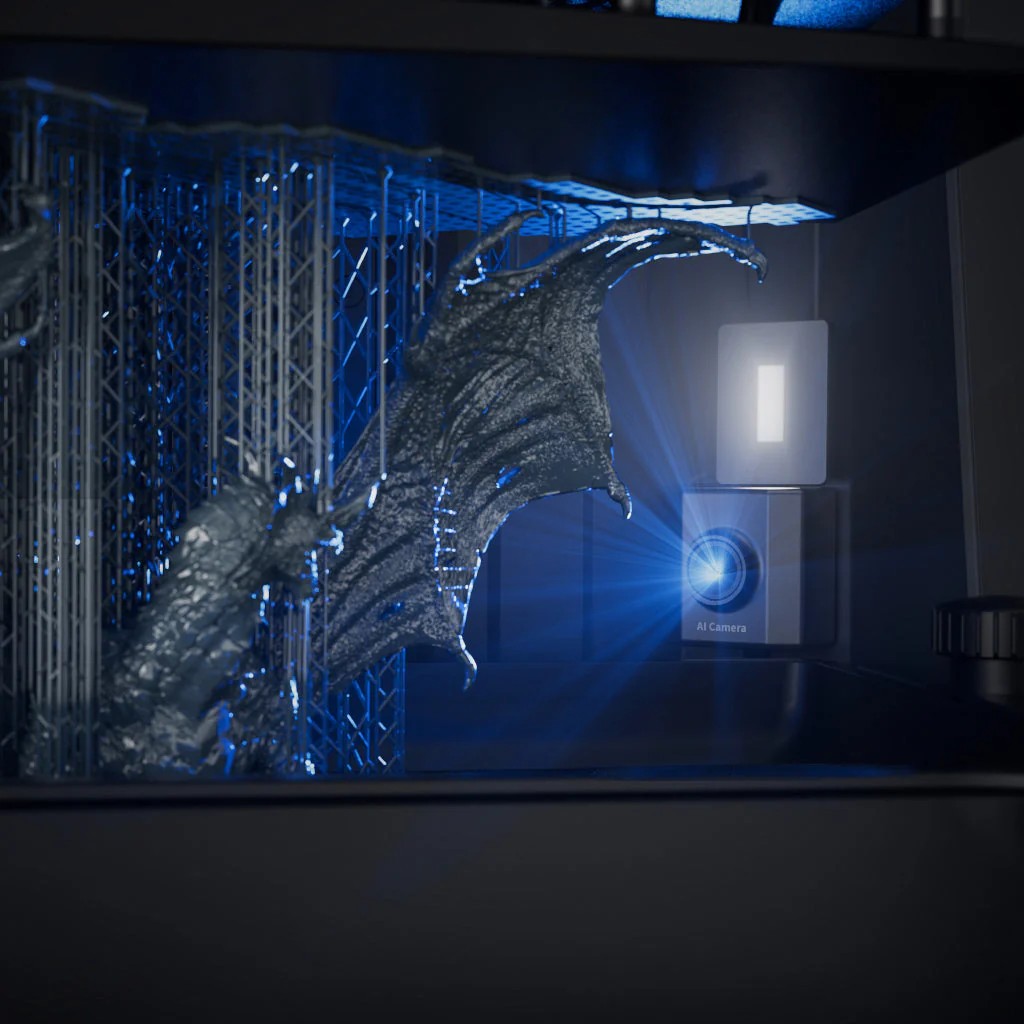

The improved AI camera has a backlight, allowing for 24/7 monitoring of the printing process.

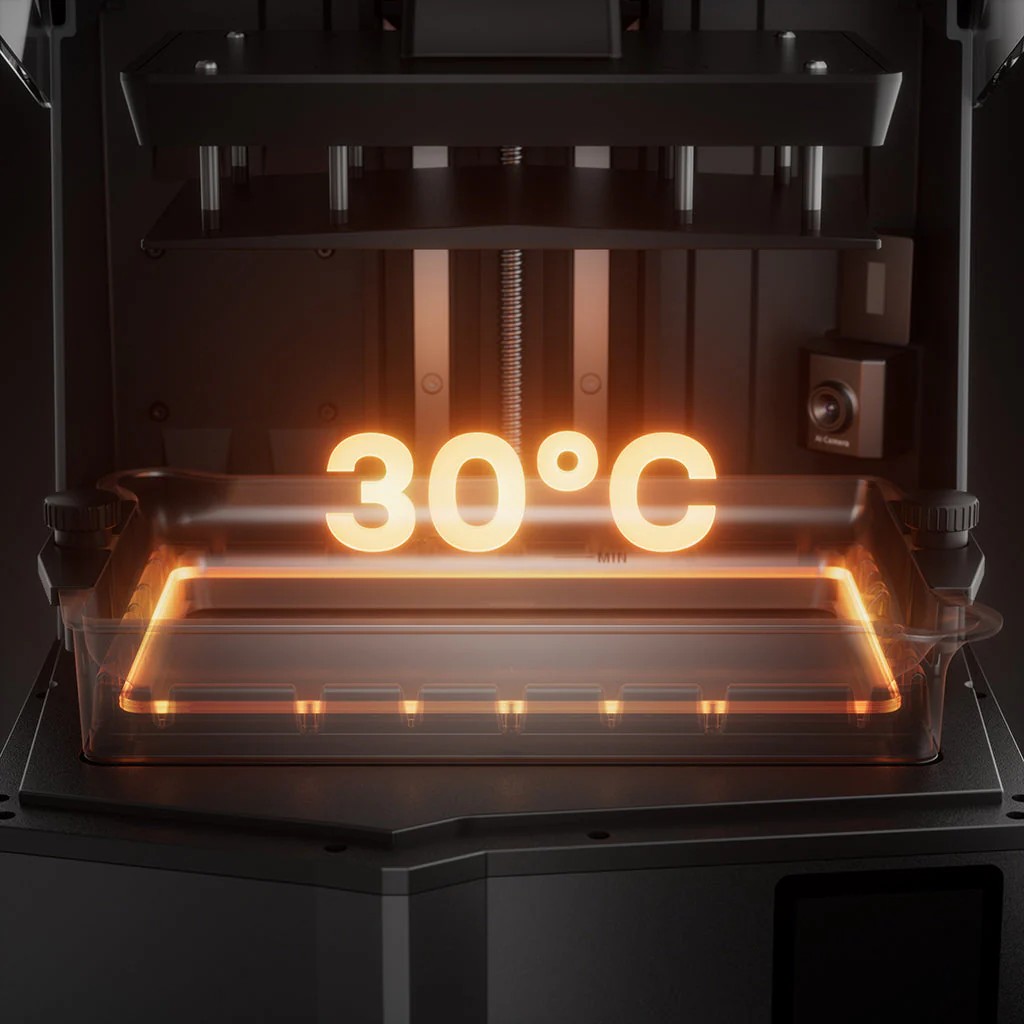

The printer offers intelligent resin tank heating at 30°C.
Tilt Release Technology and Fast Printing
The innovative Tilt Release function allows for quick model peeling , which, combined with a maximum printing speed of up to 150 mm/h, speeds up project implementation by up to twice as much as the previous generation. The shortened layer formation time - just 5.5 seconds - does not affect the quality, which remains at the highest level.
Safety sensors and autonomous functions
The Elegoo Saturn 4 Ultra 16K is equipped with a range of sensors and safeguards, such as resin residue detection, low resin and leveling error alarms , and LED overheat protection . Additionally, the printer has an auto-resume function after a power outage , which minimizes losses and the risk of losing progress.
Other printer features
- Dual-Band 2.4G/5G WiFi Module with Cluster Printing Support
- EL3D-4.0 operating system with OTA and support for 12 languages
- Laser engraved work platform with high grip
- PFA foil with increased resistance to adhesion
- Tempered LCD protective glass with a hardness of 9H
- SatelLite and Chitubox software support
- Compatibility with Mars Mate Air Purifier
- Automatic component self-test before printing
- Dual resin spouts, drip tray, non-slip handles

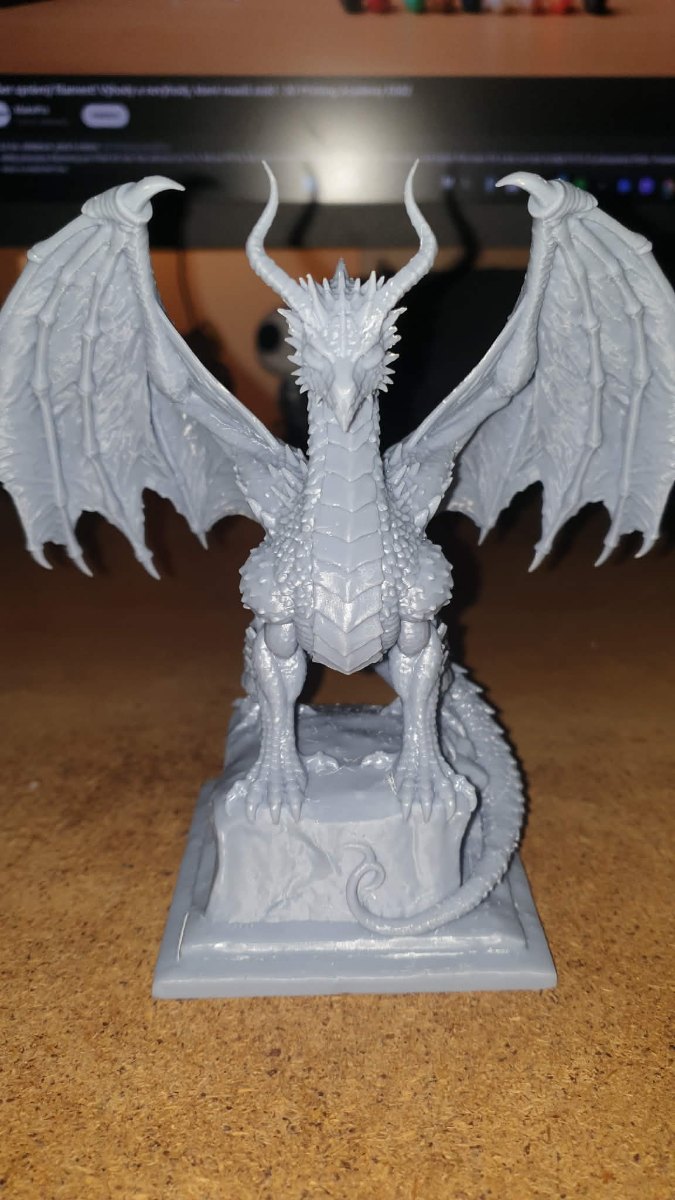

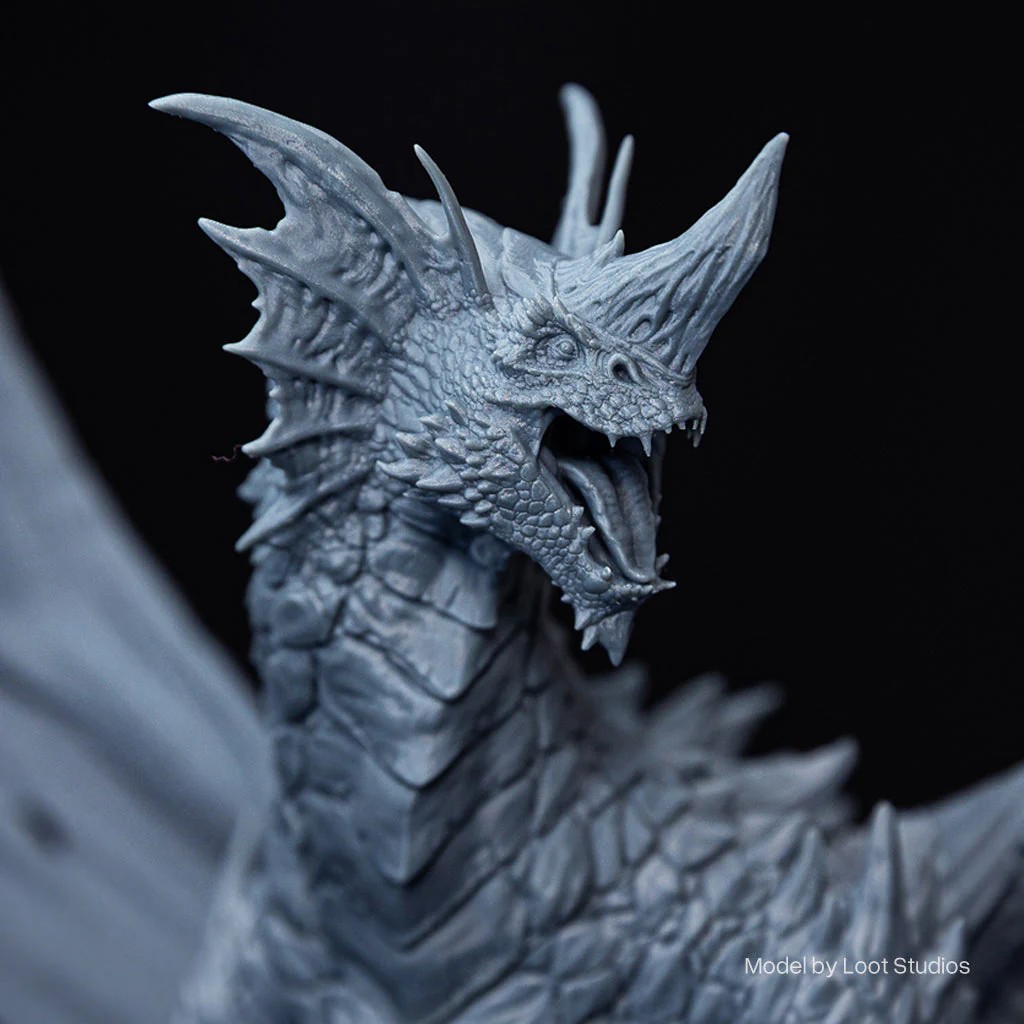

Sample printout.

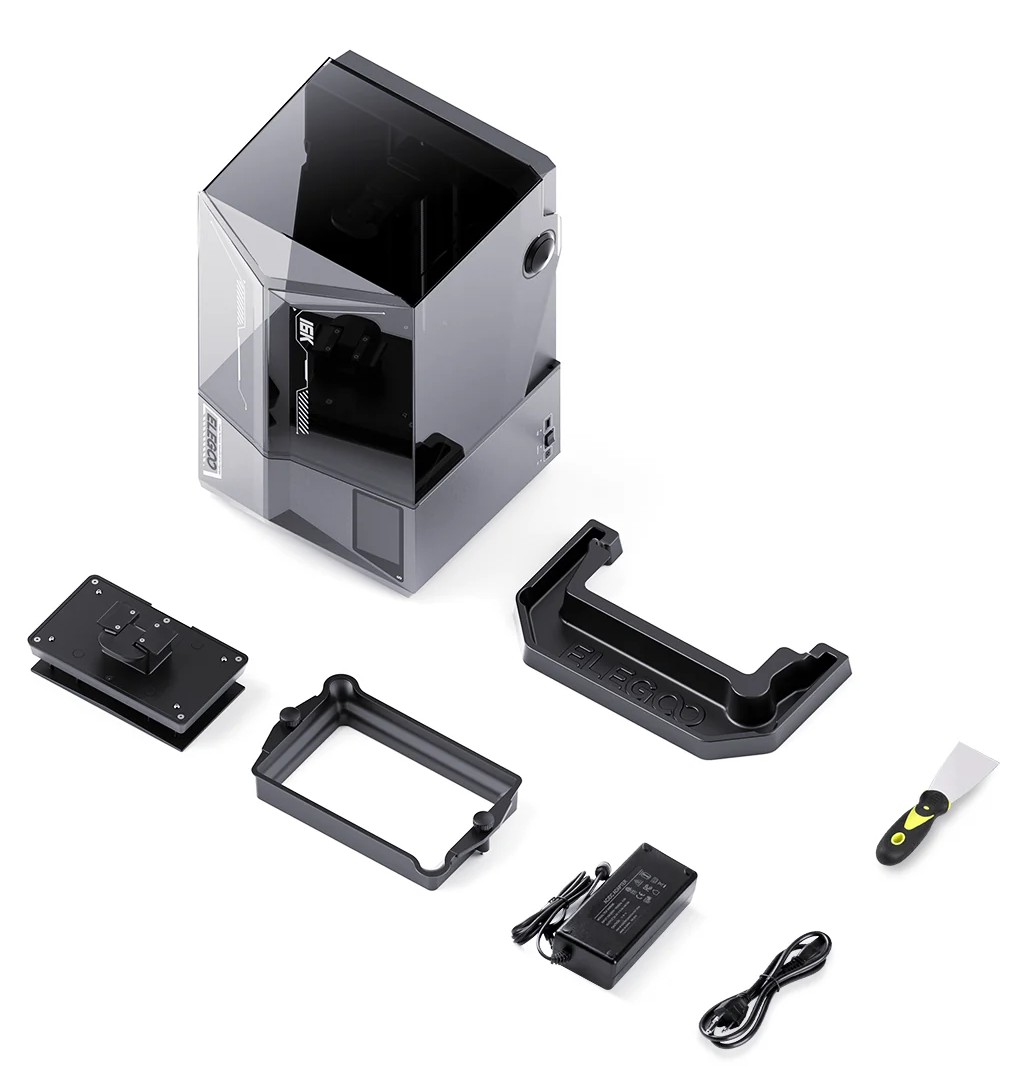

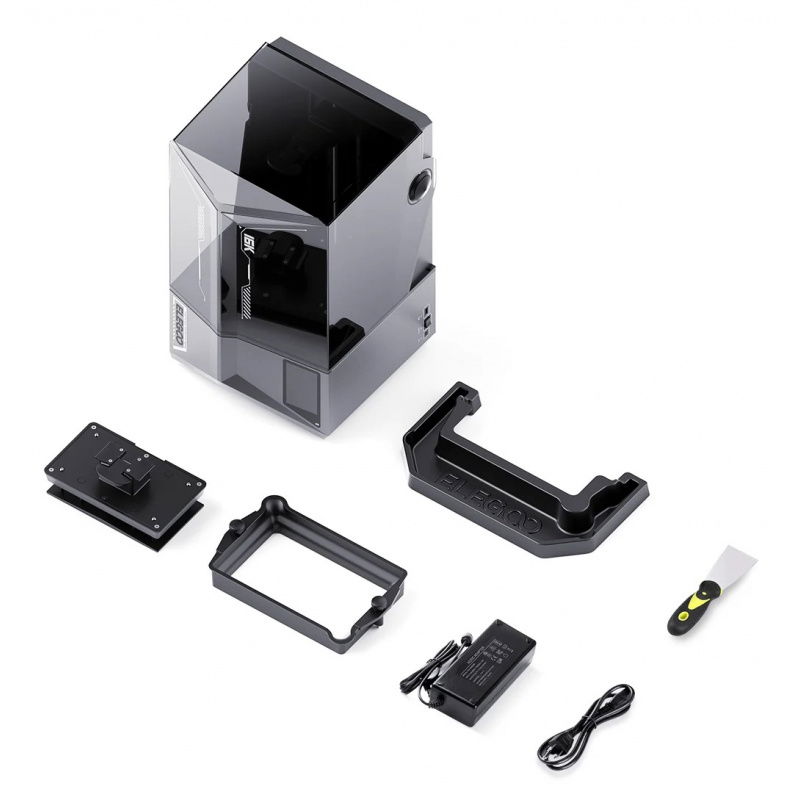

Items included in the set.
Kit Contents
- Elegoo Saturn 4 Ultra 16K Printer
- Work platform
- Resin tank
- Resin Funnel
- Drip tray
- USB memory
- Gloves
- Protective mask
- Spare screws
- Spatula
- Power supply with cable
- Tool kit
- User manual
| Elegoo 3D Printer Technical Specifications and Comparison | |||
|---|---|---|---|
| Elegoo Saturn 4 Ultra | Elegoo Saturn 4 Ultra 16K | ||
| Working volume: | 218.88 x 122.88 x 220mm | 211.68 x 118.37 x 220mm | |
| Print speed: | up to 150 mm/h | up to 150 mm/h | |
| Layer thickness: | from 0.01mm to 0.2mm | from 0.01mm to 0.2mm | |
| XY resolution: | 19 x 24 μm (11520 x 5120 px) | 19 x 24 μm (15120 x 6230 px) | |
| Z axis precision: | 0.02mm | 0.02mm | |
| Printing technology: | mSLA | mSLA | |
| Light source: | COB + Fresnel | COB + Fresnel | |
| LCD screen: | monochrome, 10'' 12K | monochrome, 10'' 16K | |
| LCD Screen Protection: | tempered glass with a hardness of 9H | tempered glass with a hardness of 9H | |
| Communication method: | USB and WiFi antenna | built-in USB and WiFi | |
| System: | EL3D-4.0 | EL3D-4.0 | |
| Slicer: | SatelLite and Chitubox | SatelLite and Chitubox | |
| Touch screen: | 4-inch capacitive screen | 4-inch capacitive screen | |
| Resin tank: | standard | with intelligent heating | |
| Camera: | AI camera | improved AI camera with backlight | |
| Languages: | Chinese, English, Japanese, Dutch, Korean, French, German, Russian, Italian, Spanish, Turkish, Portuguese | Chinese, English, Japanese, Dutch, Korean, French, German, Russian, Italian, Spanish, Turkish, Portuguese | |
| Air purifier: | compatible with Mars Mate | compatible with Mars Mate | |
| Resins: | supports most resins (water-soluble, standard, ABS-like, plant-based, etc.) | supports most resins (water-soluble, standard, ABS-like, plant-based, etc.) | |
| Power supply: | from 100 V to 240 V 50 / 60 Hz 24 V 6 A | from 100 V to 240 V 50 / 60 Hz 24 V 6 A | |
| Heat dissipation: | 4 copper heat pipes + fan | 4 copper heat pipes + fan | |
| Dimensions: | 327.4 x 329.2 x 548mm | 327.4 x 329.2 x 548mm | |
| Mass: | 14.5kg | 16.1 kg | |
