Inkplate 6COLOR - 600x448px e-paper display module - ESP32 - Arduino compatible - Soldered 333238
Soldered Inkplate 6COLOR is a module with an e-paper display with a diagonal of 5.85'' and a resolution of 600 x 448 px. It has a built-in ESP32 system with WiFi and Bluetooth 4.0 and a real-time clock. It is powered from the USB C port. Inkplate 6COLOR can display up to 7 colors , and the screen refresh takes about 12 s . The current consumption is very low and is only 18 µA, the module consumes energy only when changing the content on the screen. The built-in dithering function allows you to get the impression of more colors and deeper shades.
We could not load the price.
The promotional price does not combine with quantity discounts.
Botland is an official distributor of Soldered products. Soldered is a European maker of modern electronic modules, sensors and accessories for DIY projects, education and industrial use. Soldered products stand out for build quality, inventiveness and easy integration with popular platforms such as Arduino and Raspberry Pi. Botland carries a wide choice of original Soldered modules for hobby and professional electronics projects alike.
Product description: Inkplate 6COLOR - e-paper display module 600 x 448 px - ESP32 - Arduino compatible - Soldered 333238
Soldered Inkplate 6COLOR is a module with an e-paper display with a diagonal of 5.85'' and a resolution of 600 x 448 px . It has a built-in ESP32 system supporting WiFi and Bluetooth 4.0 (BLE) connectivity and a real-time clock. It is powered from the USB C port. Inkplate 6COLOR can display up to 7 colors , and the screen refresh takes about 12 s . The current consumption is very low and is only 18 µA, the module consumes energy only when changing the content on the screen. The built-in dithering function allows you to get the impression of more colors and deeper shades.
Product compatible with Adruino and Micropython.
The manufacturer provides a user guide , libraries for Arduino and libraries for Micropython .
Inkplate 6COLOR - e-paper display module 600 x 448 px - ESP32 - Arduino compatible - Soldered 333238.
Inkplate 6COLOR - module with e-paper display 600 x 448 px.
Features of the display module
- 5.85-inch e-paper display with 600 x 448 px resolution
- It can display up to 7 different colors - black, white, red, yellow, blue, green and orange
- It takes about 12 seconds to refresh the screen
- The built-in ESP32 microcontroller supports WiFi and Bluetooth 4.0 (BLE) connectivity
- Module powered via USB C port
- The built-in microSD reader allows you to read images stored on the card
- Real time clock with battery holder
- Built-in GPIO pins, easyC/Qwiic compatibility and I2C and SPI support
- The dithering function allows for greater color depth and smoother tonal transitions on the display by using dot dispersion techniques, which improves image quality
Inkplate 6COLOR display module specification
- Display: e-paper
- Display diagonal: 5.85"
- Resolution: 600 x 448 px
- 7 display colors: black, white, red, yellow, blue, green and orange
- MicroSD card reader: Yes
- Programming: Arduino and MicroPython compatible
- Real time clock
- Compatible battery: CR 2032 3V
- Interface: USB-C, GPIO, I2C, SPI
- Refresh time: about 12 seconds
- Microcontroller: ESP32
- Connectivity: WiFi and Bluetooth 4.0 (BLE)
- Compatible with easyC, Qwiic
- Dimensions: 131.5 x 105.5 x 10 mm
Inkplate 6COLOR - Soldered 333238.
Kit contents.

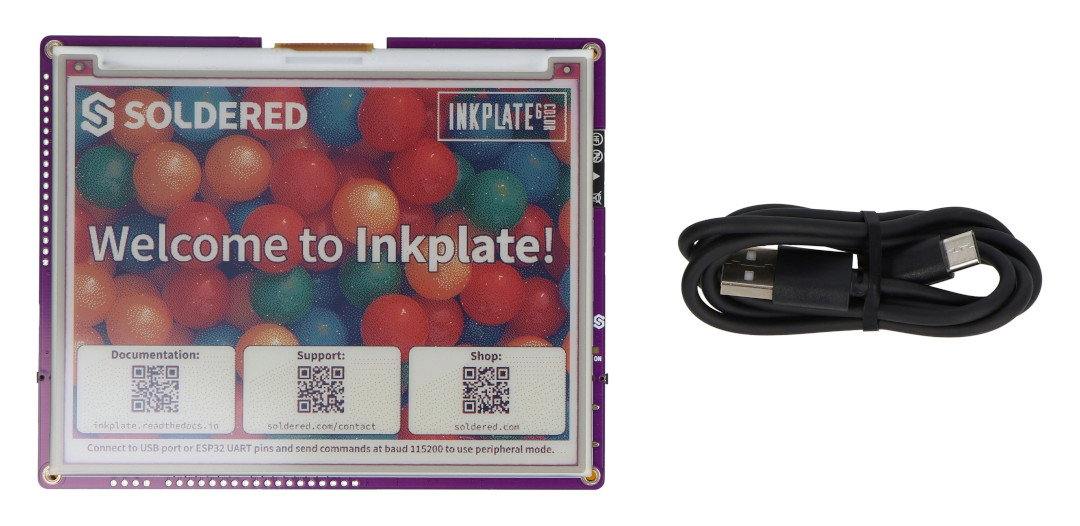

Kit Contents
- Inkplate 6COLOR - Soldered 333238
- USB Type A - USB Type C cable - 1 m long
Useful links
| Name | Value |
|---|---|
| Screen - type | e-paper |
| Screen - diagonal | 5.85 '' |
| Screen - interface | SPI+I2C |
| Screen - touch | no |
| Screen - resolution | 600x448px |
| UC - Microcontroller | ESP32 |
| UC - Core | Tensilica Xtensa LX6 |
| UC - core | 2. Dual Core |
| UC - freq | 240 MHz |
| UC - WiFi | yes |
| UC - USB | USB C |
| UC - microSD | yes |
| UC - Bluetooth | yes |
| UC - I2C | yes |
| UC - Connector | USB typ C |
| UC - SPI interface | yes |
| Width | 20 cm |
| Height | 6 cm |
| Depth | 15 cm |
| Weight | 0.181 kg |
