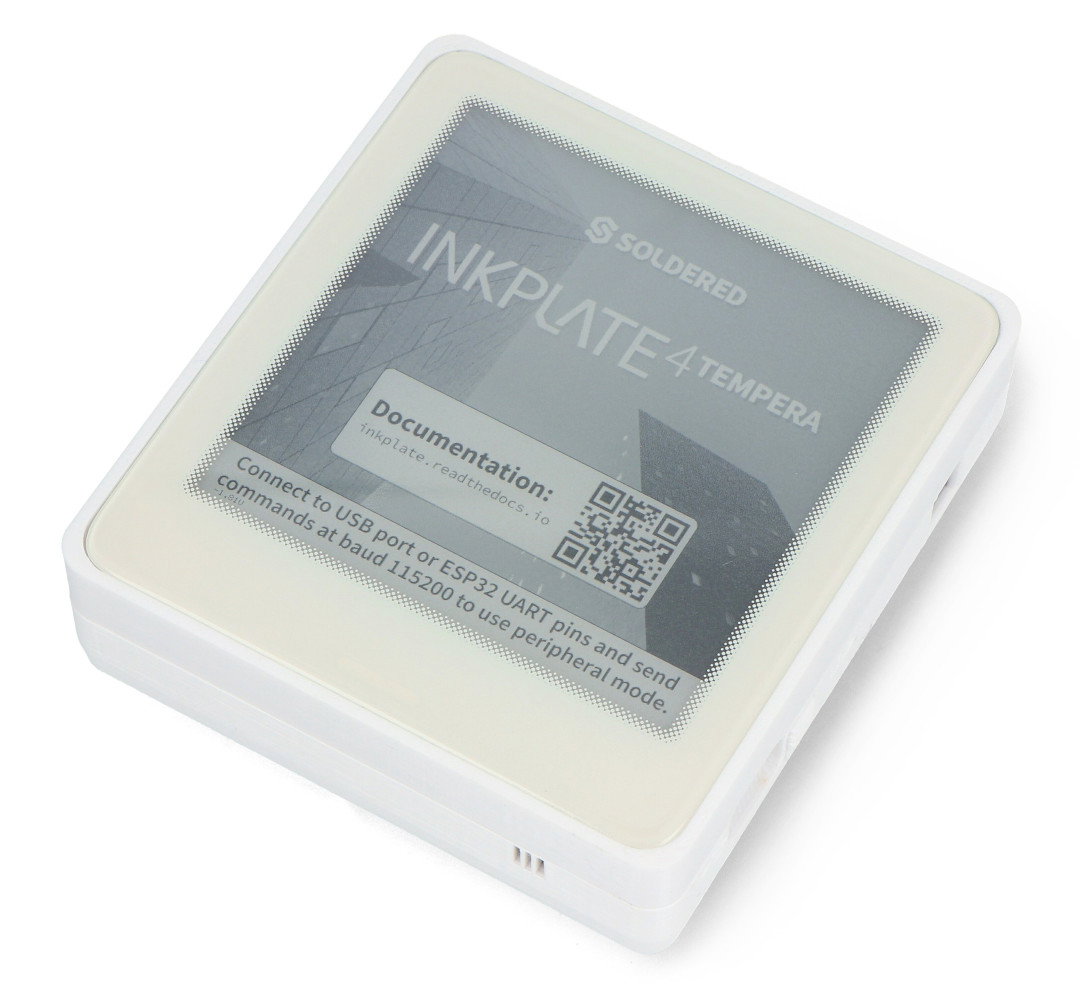

Inkplate 4 TEMPERA - e-paper display 3,8'' 600x600px - ESP32 - with glass panel - Soldered 333308
Inkplate 4 TEMPERA combines advanced e-paper technology with functionality tailored to the user's needs. Equipped with an ESP32 microcontroller with WiFi and Bluetooth 4.0 . The module has a 3.8'' e-paper display with a resolution of 600 x 600 px , ensuring exceptional readability and low power consumption. Thanks to support for Arduino, ESP32 and MicroPython environments, the user can easily integrate them with existing projects. Protection is provided by a durable glass panel, giving the device a modern and elegant look.
We could not load the price.
The promotional price does not combine with quantity discounts.
Botland is an official distributor of Soldered products. Soldered is a European maker of modern electronic modules, sensors and accessories for DIY projects, education and industrial use. Soldered products stand out for build quality, inventiveness and easy integration with popular platforms such as Arduino and Raspberry Pi. Botland carries a wide choice of original Soldered modules for hobby and professional electronics projects alike.
Product description: Inkplate 4 TEMPERA - e-paper display 3.8'' 600 x 600 px - ESP32 - with glass panel - Soldered 333308
Inkplate 4 TEMPERA combines advanced e-paper technology with functionality tailored to user needs. The module has a 3.8'' e-paper display with a resolution of 600 x 600 px , ensuring exceptional readability and low energy consumption. Equipped with an ESP32 microcontroller with WiFi and Bluetooth 4.0 . It stands out with high contrast even in full daylight, and the backlight ensures comfort of work regardless of lighting conditions. Thanks to support for Arduino , ESP32 and MicroPython environments, the user can easily integrate them with existing projects. Protection is provided by a durable glass panel, giving the device a modern and elegant look.
Inkplate 4 TEMPERA - e-paper display 3.8'' 600 x 600 px - ESP32 - with glass panel - Soldered 333308.
Inkplate 4 TEMPERA combines advanced e-paper technology with functionality tailored to user needs.
Special features of Inkplate 4 TEMPERA
- Ecology and Sustainability : Inkplate 4 TEMPERA uses recycled E Ink ED038TH2 displays, supporting the reduction of e-waste
- Built-in sensors : equipped with environmental sensors such as BME680 (measuring temperature, humidity and air quality), accelerometer, gyroscope and APDS-9960 gesture sensor
- Wireless connectivity : WiFi and Bluetooth modules ensure easy integration with other devices and networks
- Low power consumption : thanks to optimized power management, the module operates for a long time on a single charge
- ESP32 microcontroller : compatible with Arduino and MicroPython, making it easy to create new applications
- Built-in battery and microSD card slot : 1200mAh lithium-ion battery and microSD card slot enable efficient operation and data storage
Display Technical Specifications
- Display: e-paper, touchscreen
- Display diagonal: 3.8"
- Display resolution: 600 x 600 px
- Microcontroller: ESP32 with WiFi and Bluetooth 4.0 (BLE)
- Battery: Li-Ion 1200 mAh
- Sensors:
- BME680 (temperature, humidity, air quality)
- APDS-9960 (gestures)
- Accelerometer
- Gyroscope
- Connectors: USB Type-C, easyC, GPIO, battery connector
- Communication: USB, I2C, SPI
- USB to UART Converter: CH340C
- Power consumption: 18 µA in deep sleep mode
- Dimensions: 90 x 83 x 24 mm

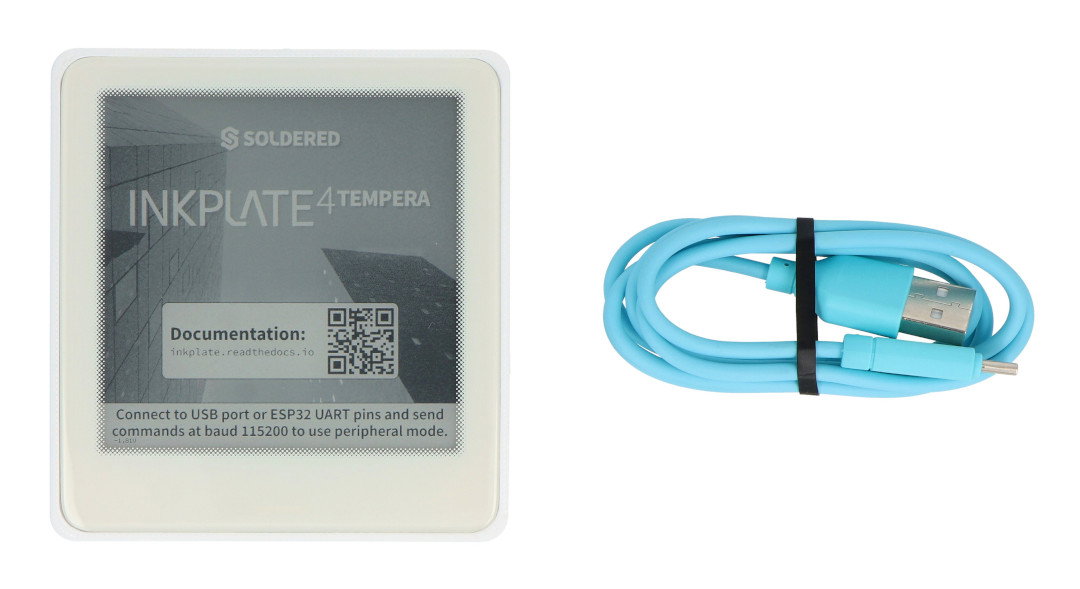

Kit Contents
- Inkplate 4 TEMPERA - e-paper display
- 1200 mAh Li-Ion battery
- Glass panel
- USB cable
The display is protected by a durable glass panel.
Useful links
| Name | Value |
|---|---|
| Screen - diagonal | 3,8 " |
| Screen - interface | SPI+I2C |
| Screen - touch | yes |
| Screen - resolution | 600x600px |
| UC - Microcontroller | ESP32 |
| UC - Core | Tensilica Xtensa LX6 |
| UC - core | 2. Dual Core |
| UC - freq | 240 MHz |
| UC - WiFi | yes |
| UC - USB | USB C |
| UC - Bluetooth | yes |
| UC - I2C | yes |
| UC - Connector | USB typ C |
| UC - SPI interface | yes |
| Width | 20.5 cm |
| Height | 15.5 cm |
| Depth | 6.3 cm |
| Weight | 0.244 kg |
