Product description: M5StickC Plus SE - IoT development module - ESP32-PICO-D4 - M5Stack K016-P-SE
The M5Stack M5StickC Plus SE is a small development platform based on the dual-core ESP32-PICO-D4 chip with an Xtensa LX6 processor clocked at up to 240 MHz . It is a simplified version of the M5StickC Plus – it retains its basic capabilities but lacks the built-in 6-axis IMU sensor. The module is equipped with a 1.14" color TFT LCD display , an SPM1423 microphone, a BM8563 real-time clock, an infrared transmitter, an LED , and a passive buzzer. A built-in 120 mAh Li-Ion battery allows you to create portable devices, while the HY2.0-4P and Hat-Bus interfaces enable system expansion. The entire thing is housed in a distinctive, translucent orange enclosure with a magnetic back.

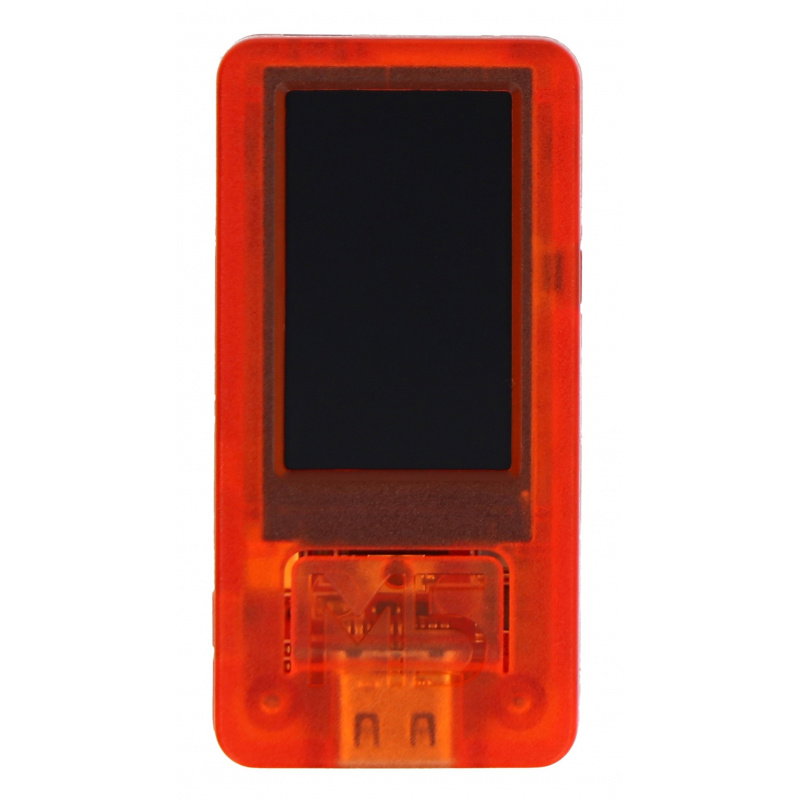

M5StickC Plus SE - IoT development module - ESP32-PICO-D4 - M5Stack K016-P-SE.

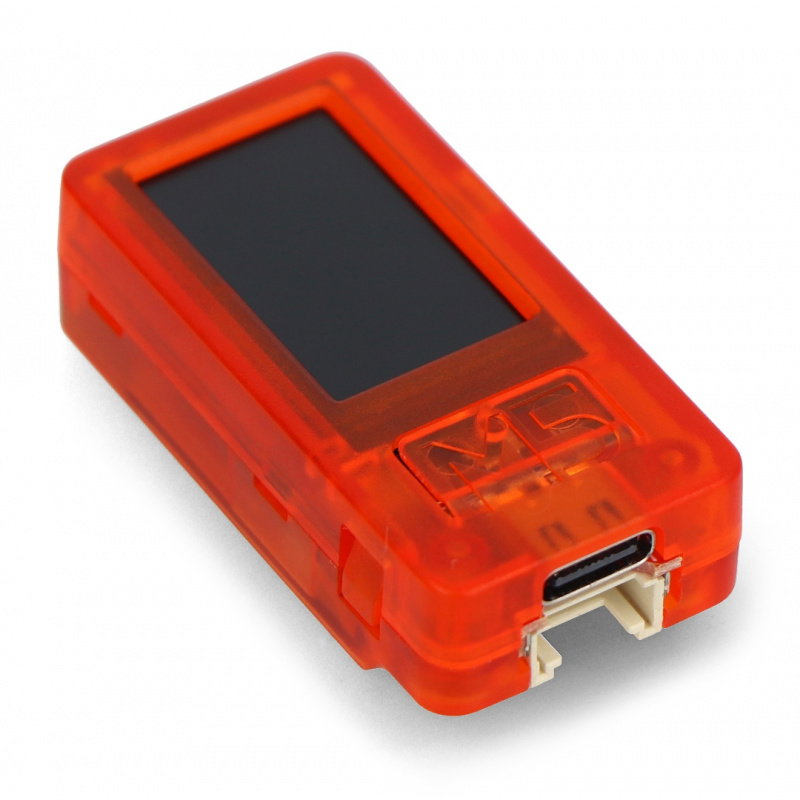

The display, buttons, microphone, buzzer and IR transmitter allow you to create standalone devices without having to connect many additional components.
Main Features of M5Stack M5StickC Plus SE
- ESP32-PICO-D4 : Xtensa 32-bit LX6 dual-core processor with clock speed up to 240 MHz
- 2.4 GHz WiFi connectivity : enables network communication and the creation of Internet of Things devices
- 4 MB Flash and 520 kB SRAM : memory for software and data used by the application
- 1.14" TFT LCD display : 135 x 240 px color screen using the ST7789v2 driver
- Built-in SPM1423 microphone : allows you to use the audio signal in your projects and applications
- BM8563 Real Time Clock : Enables projects that require measuring and storing time information
- Infrared Transmitter : allows you to create applications that use IR transmission, e.g. device drivers
- Passive buzzer : allows you to generate simple audible signals and notifications
- Programmable buttons : Two user buttons can be used to operate the interface and control program functions.
- 120 mAh battery : built-in power source allows the module to be used in portable devices

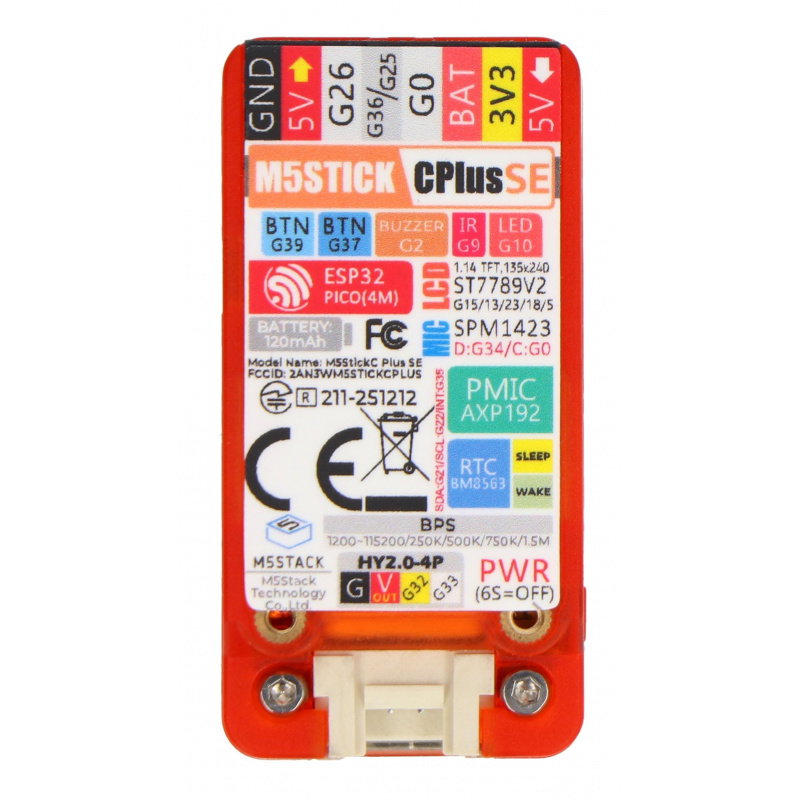

- HY2.0-4P and Hat-Bus interfaces : allow the connection of compatible expansion modules and accessories
- Magnetic back cover : makes it easy to attach the device to suitable metal surfaces
- Compact dimensions : the housing measures only 48 x 24 x 8.4 mm, making it easy to integrate the module into small projects
- No built-in IMU : The SE version is intended for projects that do not require motion and orientation measurement
M5StickC Plus SE Programming - UiFlow, Arduino IDE and ESP-IDF
The M5StickC Plus SE can be programmed using UiFlow1, UiFlow2, the Arduino IDE, ESP-IDF, and PlatformIO , making the platform suitable for both learning and developing more advanced applications. The graphical UiFlow environment allows you to quickly get started with the device and create programs using blocks, while the Arduino IDE allows for programming in C/C++ and using Arduino ecosystem libraries. More advanced users can use ESP-IDF or PlatformIO for greater control over the ESP32 microcontroller's software. The manufacturer also provides the M5Unified and M5GFX libraries , which simplify hardware and display management.

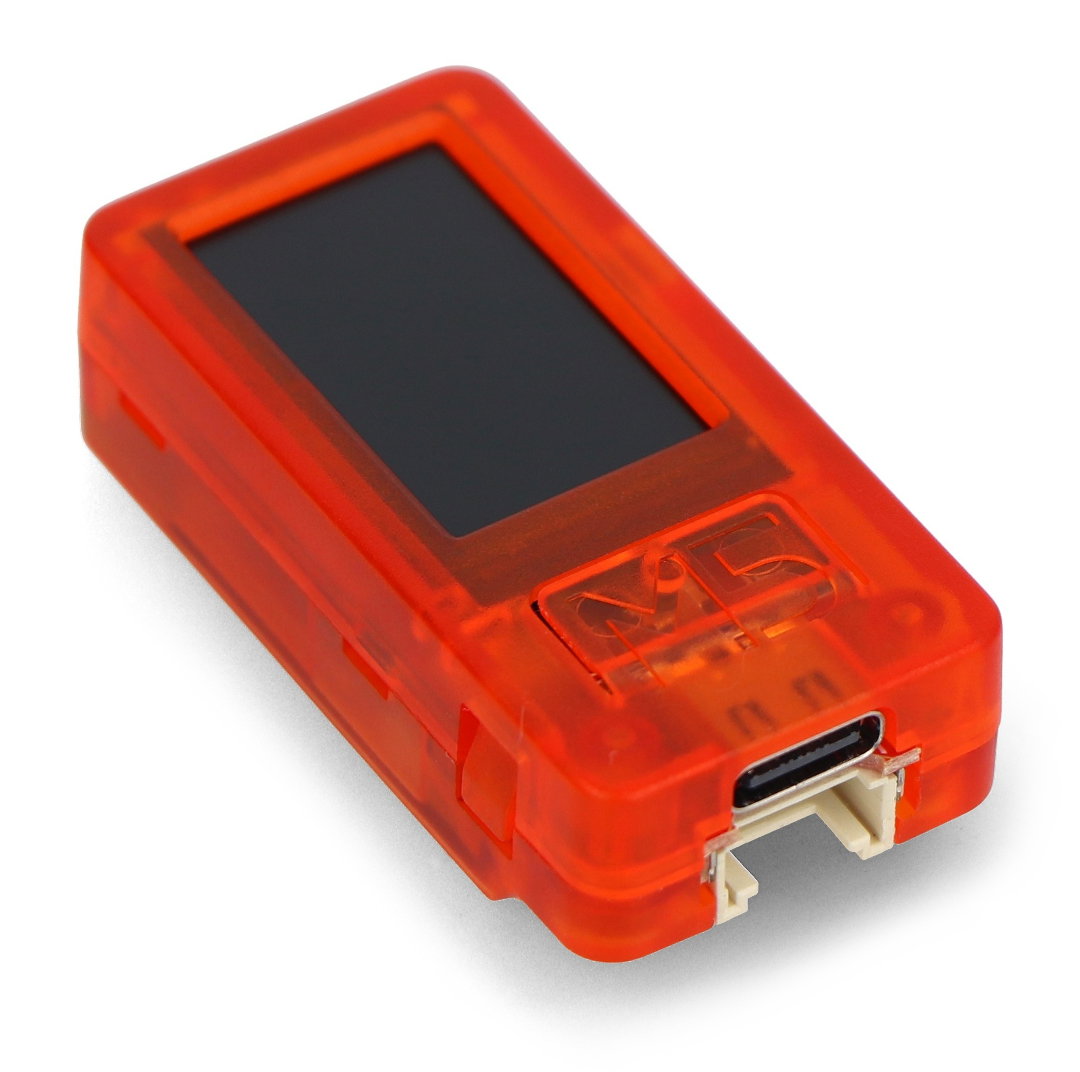

Thanks to its small size and battery power, the module is suitable for lightweight wearable devices and mobile DIY projects.

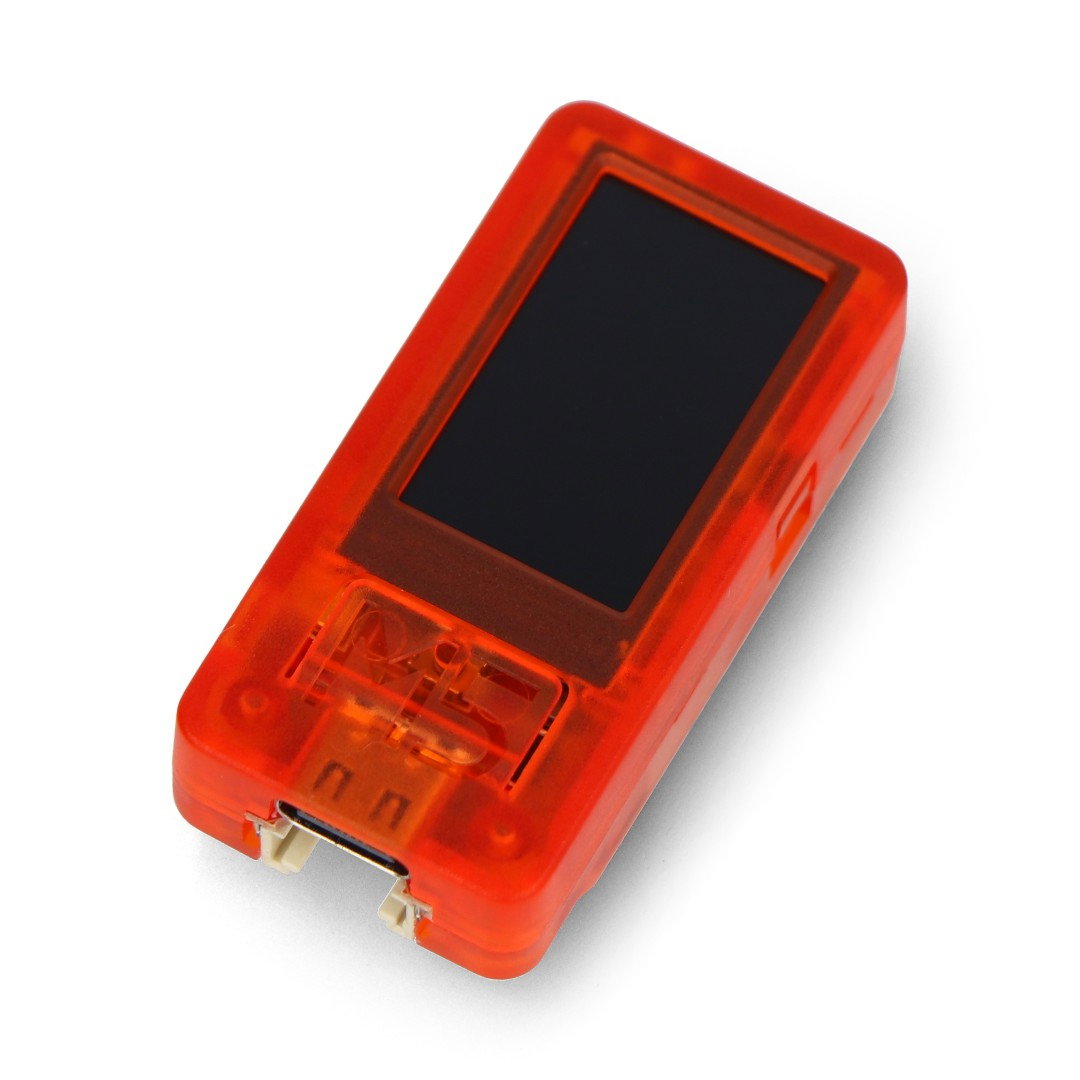

M5Stack M5StickC Plus SE is based on the ESP32-PICO-D4 chip with an Xtensa LX6 processor clocked at up to 240 MHz.
M5StickC Plus SE Technical Specifications
- SoC: ESP32-PICO-D4
- Processor: Xtensa 32-bit LX6, dual-core
- Clock speed: up to 240 MHz
- Flash memory: 4 MB
- SRAM memory: 520 kB
- Wireless connectivity: WiFi 2.4 GHz
- Antenna: 3D 2.4GHz
- Input voltage: 5V
- Input current: 500 mA
- Battery: Li-Ion 3.7 V, 120 mAh
- Power management system: AXP192
- Display: 1.14" color TFT LCD
- Display resolution: 135 x 240 px
- Display driver: ST7789v2
- Microphone: SPM1423
- RTC: BM8563
- Infrared transmitter: yes
- Programmable buttons: 2
- LED: 1 x red
- Buzzer: passive
- Expansion Interfaces: 1 x HY2.0-4P, Hat-Bus 2.54 mm 8-pin
- Supported environments: UiFlow1, UiFlow2, Arduino IDE, ESP-IDF, PlatformIO
- IMU: none
- Case: translucent orange with magnetic back
- Operating temperature: 0°C to 60°C
- Dimensions: 48 x 24 x 8.4 mm
- Weight: 17 g
Contents of the set
- 1x M5Stack M5StickC Plus SE
