Product description: M5Stickc Mini Encoder HAT - STM32F030 - Unit expansion module for M5Stick modules - M5Stack U157
M5StickC Mini Encoder HAT extension of the Unit type, on board an encoder intended for use with M5Stack development modules of the M5Stick series. The module is equipped with the STM32F030 system and a 200 mAh lithium-polymer battery. It integrates a rotary AB encoder with push-button function and comes with a standard LEGO hole for easy expansion of structural parts.
The manufacturer has prepared a detailed user's guide , in which you will find, among others, example Arduino and UIFlow program code and firmware. Check!

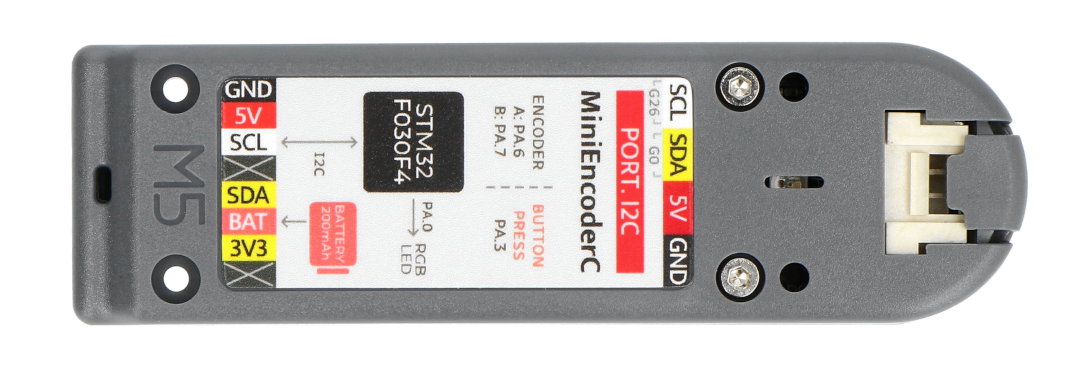

M5Stickc Mini Encoder HAT - STM32F030 - Unit expansion module for M5Stick - M5Stack U157 modules.

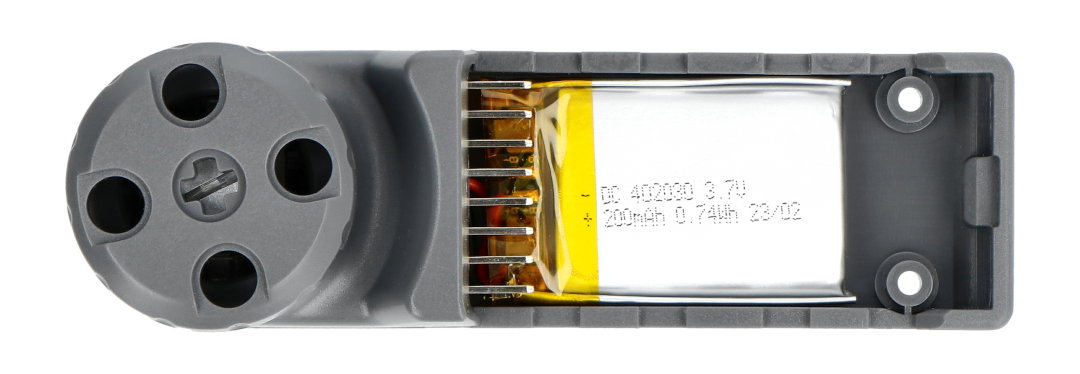

The built-in 200 mAh battery is responsible for powering the module.
Special features of the module
- Equipped with the STM32F030 chip
- It has a 30-bit pulse encoding knob (30 pulses per revolution)
- Programmable RGB LED SK6812
- 4-pin HY2.0 interface
- 4x holes compatible with LEGO standard
- It contains a built-in 200 mAh lithium-polymer battery
- Compatible with the M5Sticik series
- Programmed using popular programming environments such as Arduino and UIFlow
Suggested use
- Remote lighting adjustment
- Remote control of the robot's joints
M5 Stickc Mini technical specification
- Type: Unit type extension
- Type: rotary encoder with push-button function
- Purpose: for M5StickC and M5StickC Plus development modules
- Built-in MCU chip: STM32F030F4P6
- Support voltage: 3.3 V
- Built-in RGB LED: SK6812-3535
- Built-in battery: 3.7 V 200 mAh lithium-polymer
- Module dimensions: 81.05 x 29 x 24 mm
- Weight: 19.3g

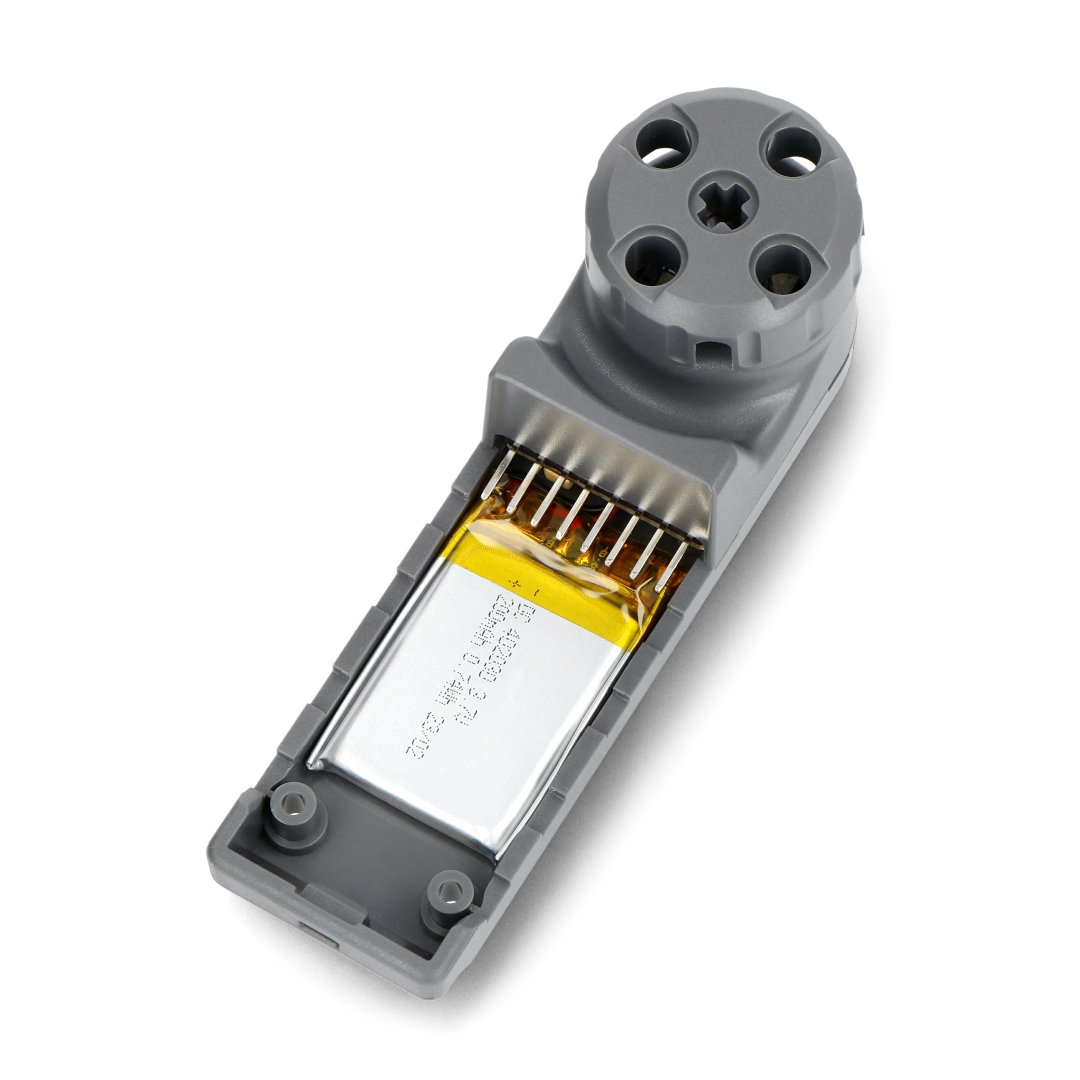

M5Stickc Mini Encoder HAT.

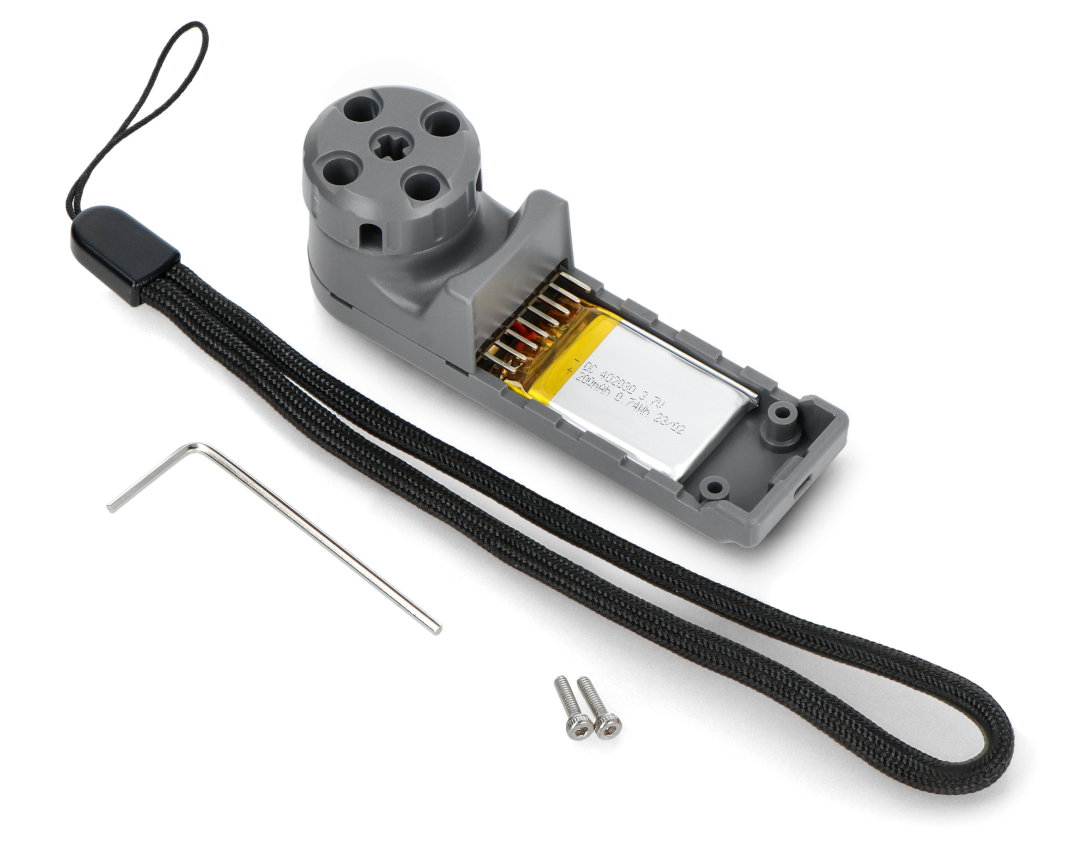

Components included in the set.
Kit contents
- M5Stickc Mini Encoder HAT - STM32F030 - Unit expansion module for modules
- Leash in black
- Mounting screws - 2 pieces
- Allen key
