M5StickC Plus2 - IoT development module - ESP32-PICO-V3-02

Index: MSS-17988 EAN: 6972934172167

The M5StickC Plus2 based on the ESP32-PICO-V3-02 is equipped with the larger M5StackC display. The Plus2 version uses a 1.14" colour display, as well as its smaller screen equivalent, and is ideal for all wearable equipment projects, as well as miniature IoT system controllers or basic educational projects.

M5StickC Plus2 - IoT development module - ESP32-PICO-V3-02
€21.87 tax excl.
Waiting time: 6-8 weeks
Temporarily unavailable
PayPal payment
Manufacturer: M5Stack
Compatibility: M5Stick

Product description: M5StickC Plus2 - IoT developer module - ESP32-PICO

The M5StickC Plus2 based on the ESP32-PICO-V3-02  is equipped with the larger M5StackC display. The Plus version uses a1.14"colourdisplay, as well as its smaller screen equivalent, and is ideal for allwearableequipment projects, as well as miniatureIoTsystem controllers or basiceducational projects.

Wersja StickC Plus nie posiada przewodu USB C w zestawie. Niezbędny przewód należy zakupić osobno.

M5StickC Plus2 - IoT development module - ESP32-PICO-V3-02.

Wersja StickC Plus nie posiada przewodu USB C w zestawie. Niezbędny przewód należy zakupić osobno.

The StickC Plus version does not include a USB C cable. The necessary cable must bepurchased separately.

StickC module option, extensions and additions

The Stick series products are equipped with a 6-axisIMUthat continuously monitors the position of the device, which allows, among other things, to call up previously programmed functions by means of movement or changing the position of the device. For communication, the module uses aWi-Fi and Bluetoothcommunication module integrated with the master controller. The StickC modules are also available:

  • RTC clock BM8563
  • microphone SPM1423
  • three programmablebuttons
  • infrared transmitter
  • LED
  • Built-inLi-Pol 200 mAh / 3.7 Vbattery

The devices created byM5Stackare also distinguished by the large number of expansion modules and their ease of use. All extensions can be connected using GPIO connectors (in this case they are dedicated Stick Hat devices) orGroveconnectors (with this connector we can connect both dedicated sensors and sensors from Grove system). To power and charge the deviceUSB Cport is used, power supply voltage is 5 V and current capacity is 500 mA.

Programming and working with the module

Apart from the power supply, the USB C connector is also used to program our small module. In this matter we have quite a wide choice, because M5StickC can be programmed in 3 ways, usingUIFlow, Arduino IDE and MicroPython.For proper work of the module with the computer you also need CP210X driver, whose installation has beendescribed in detailby the manufacturer andM5BurnerorEasy Loaderapplication, which allow you to upload the firmware you are interested in.

Technical Specification

  • Controller: ESP32-PICO-V3-02
  • Flash memory: 8 MB
  • Power supply: 5 V / 500 mA
  • Connectors: GPIO, USB C, Grove
  • Display: colour, 1.14" TFT LCD
  • RTC: BM8563
  • The battery: 200 mAh / 3.7 V
  • Operating temperature: 0°C to 60°C
  • Dimensions: 48 x 25 x 13 mm
  • Weight: 17 g
Na odwrocie modułu znajduje się naklejka zawierająca najważniejsze informacje o module.

On the back of the module there is a sticker containing the most important information about the module.

UC - Microcontroller ESP32
UC - Flash 4 MB
UC - WiFi yes
UC - Bluetooth yes
UC - I2C yes
UC - UART yes
UC - Connector USB typ C
Package width 3 cm
Package height 5.5 cm
Package depth 2 cm
Package weight 0.021 kg

Be the first to ask a question about this product!

Product reviews

M5StickC Plus2 - IoT development module - ESP32-PICO-V3-02


Average grade


Customers opinion
The following opinions are collected
and verified by
an external partner Trustmate
and come from the post-purchase process.

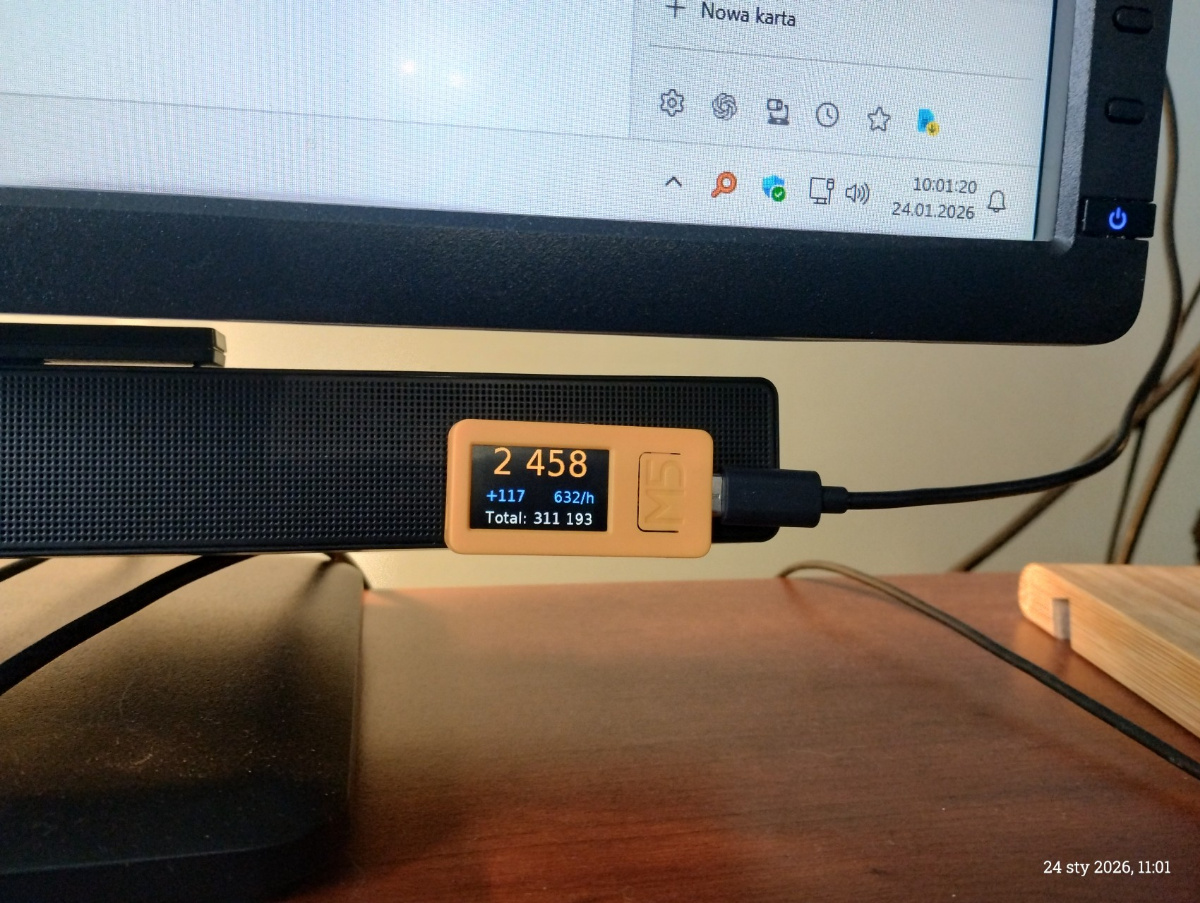

Zdjęcia użytkowników
