Product description: 3D printer - Original Prusa XL - 1 head - Enclosure Bundle - partially assembled
The Original Prusa XL is designed for large models, advanced prototypes, and multi-material printing. Its 360 x 360 x 360 mm build volume allows you to create large parts in one piece, and the active tool changer allows you to expand the printer with up to five independent printheads . Each printhead can use its own filament and nozzle, reducing waste when switching materials. The Enclosure Bundle also includes a dedicated enclosure that provides more stable thermal conditions and helps when printing with warping-prone materials. The partially assembled version requires final assembly before printing.

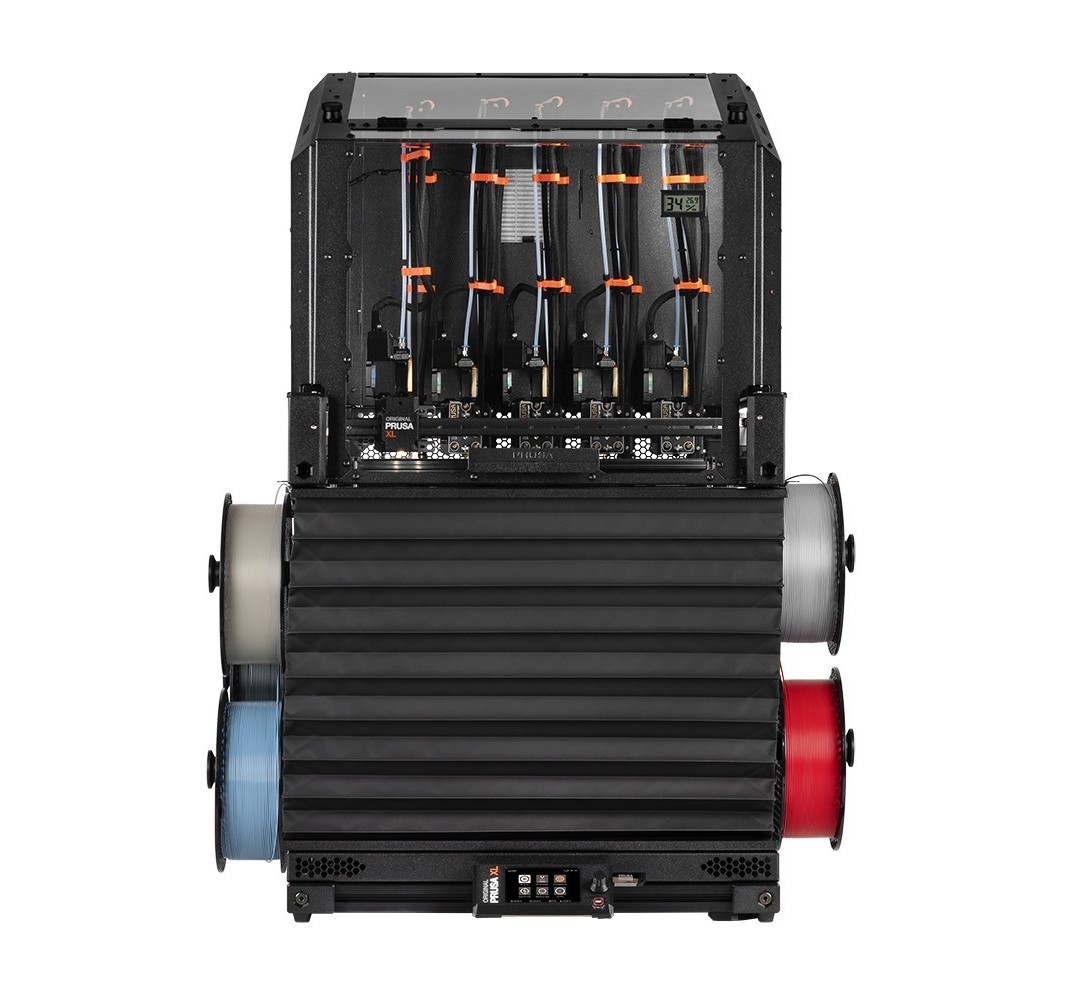

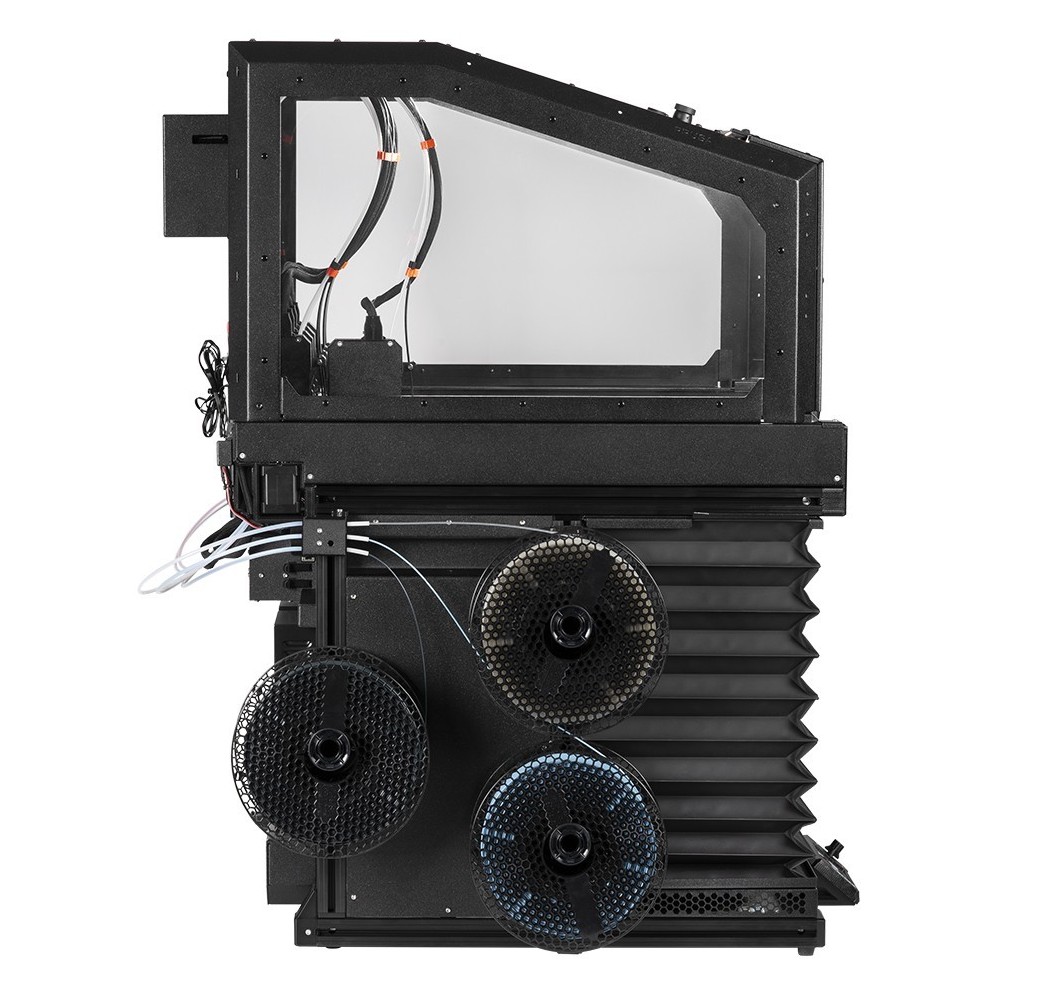

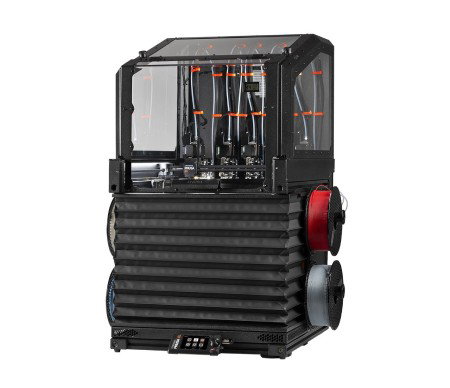

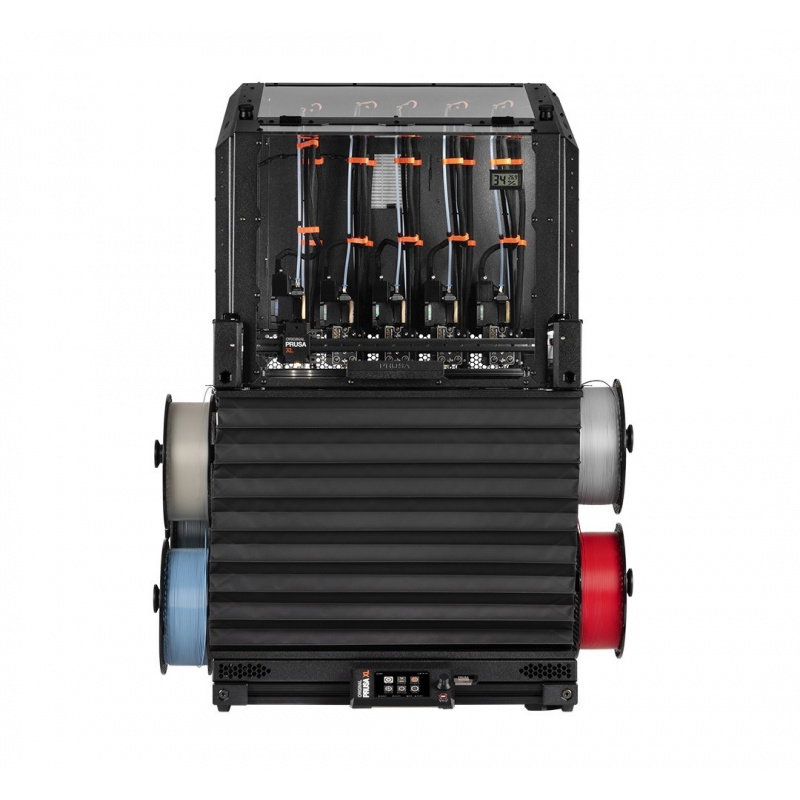

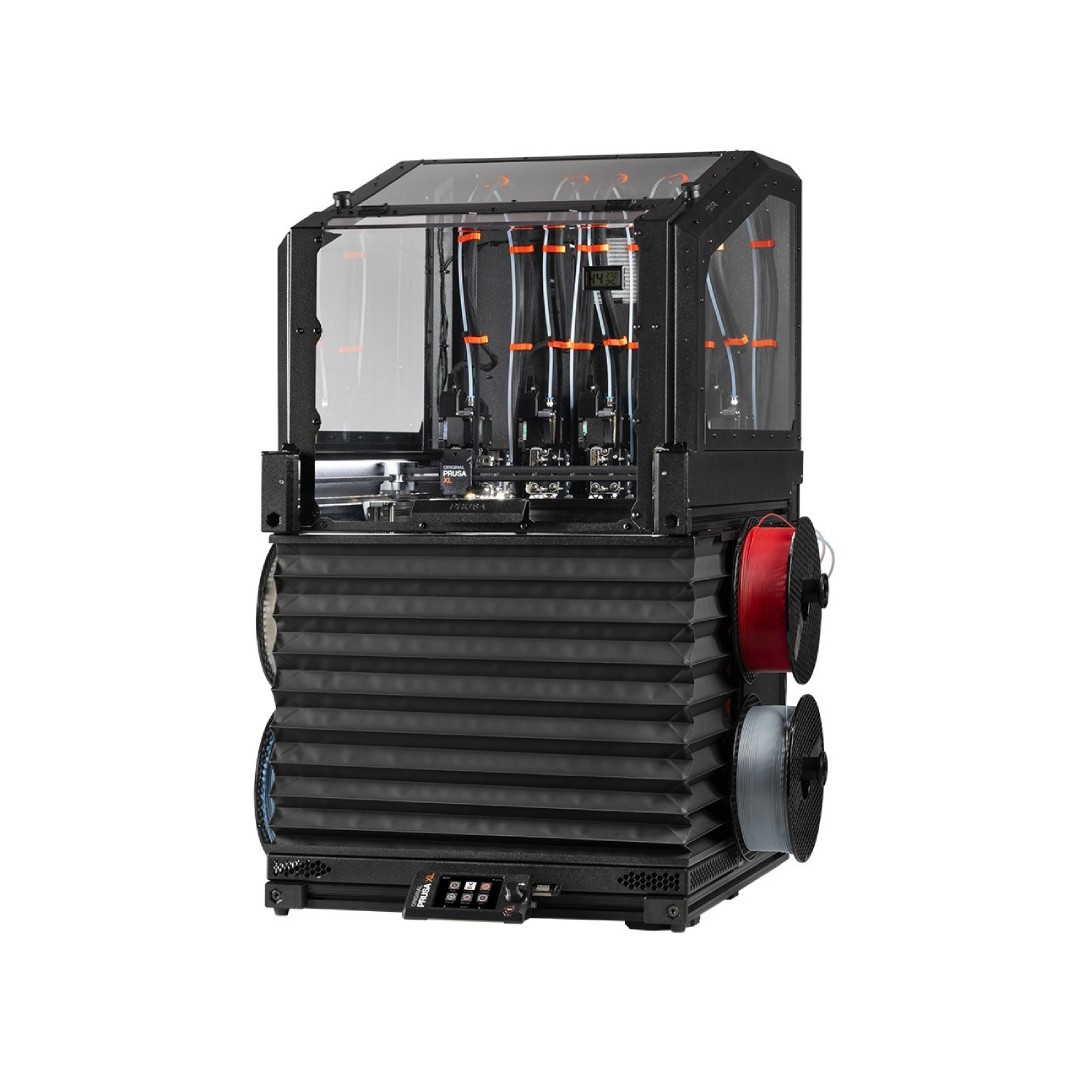

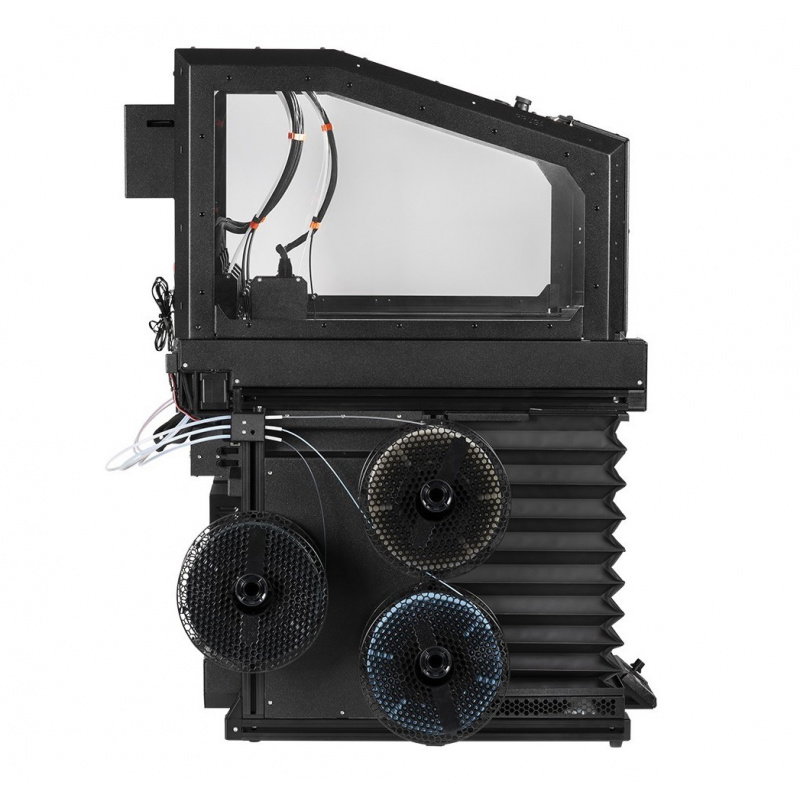

3D Printer - Original Prusa XL - 1 head - Enclosure Bundle - partially assembled.
Prusa XL offers a large build volume of 360 x 360 x 360 mm.
Main features of the Original Prusa XL 3D printer
- Large build area of 360 x 360 x 360 mm : allows you to print large models without having to divide them into smaller parts
- CoreXY kinematics : ensures efficient head movement and high precision when producing large and complex prints
- Possibility of using up to five heads : the platform can be expanded to a configuration allowing for multi-material and multi-color printing
- Nextruder Direct Drive : planetary gear with a 10:1 ratio ensures precise filament feeding, even when working with flexible materials
- Segmented heating table : consists of 16 individually controlled segments, which reduces thermal deformations and allows for more efficient heating of the work area
- Automatic first layer calibration : Loadcell strain gauge sensor allows automatic determination of the correct nozzle distance from the work surface

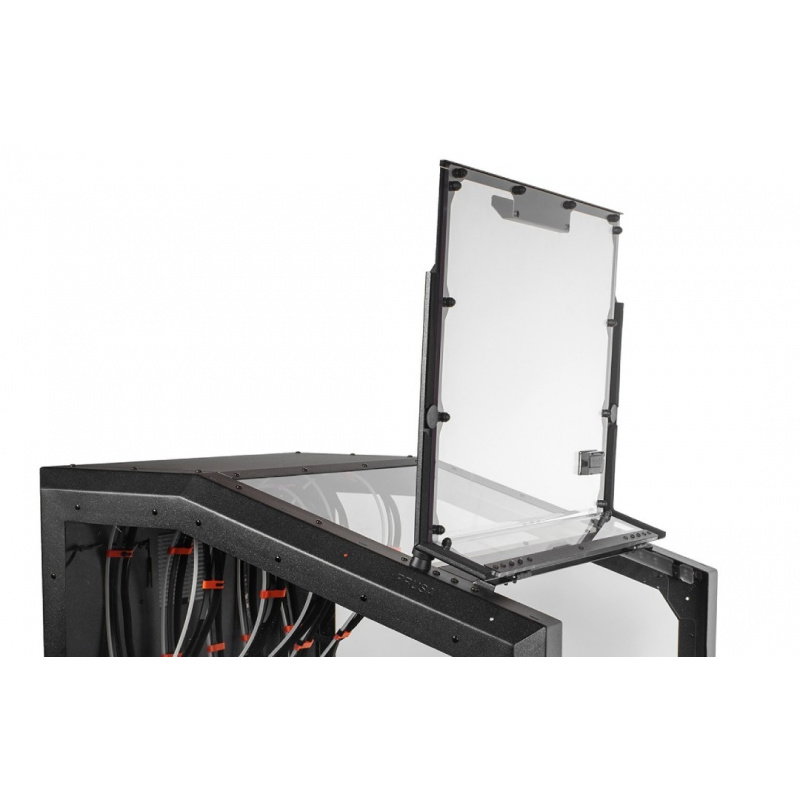

- Original Prusa XL Enclosure : passive enclosure stabilizes the temperature around the print and limits the impact of drafts
- 99.9% HEPA filtration : the filtration system helps reduce the spread of ultra-fine particles and unpleasant odors
- Technical material support : the housing facilitates printing with ABS, ASA, PA and other filaments requiring more stable conditions.
- Power Panic : the system allows you to resume printing after a power outage
- Network connectivity : LAN, WiFi and Prusa Connect support allows you to conveniently submit jobs and manage the printer
- 3.5" color touchscreen : provides convenient access to settings and information about the device's operation
- Open platform: the design allows for maintenance, repair and further expansion of the printer
Contents of the set
- The Original Prusa XL 3D printer, partially assembled
- Head with nozzle
- Work table overlay
- Components required for printer assembly
- Filament Prusament PLA Galaxy Black 1 kg
- Alcohol wipes
- Tool kit
- USB memory stick with sample printouts
- 3D Printing Manual

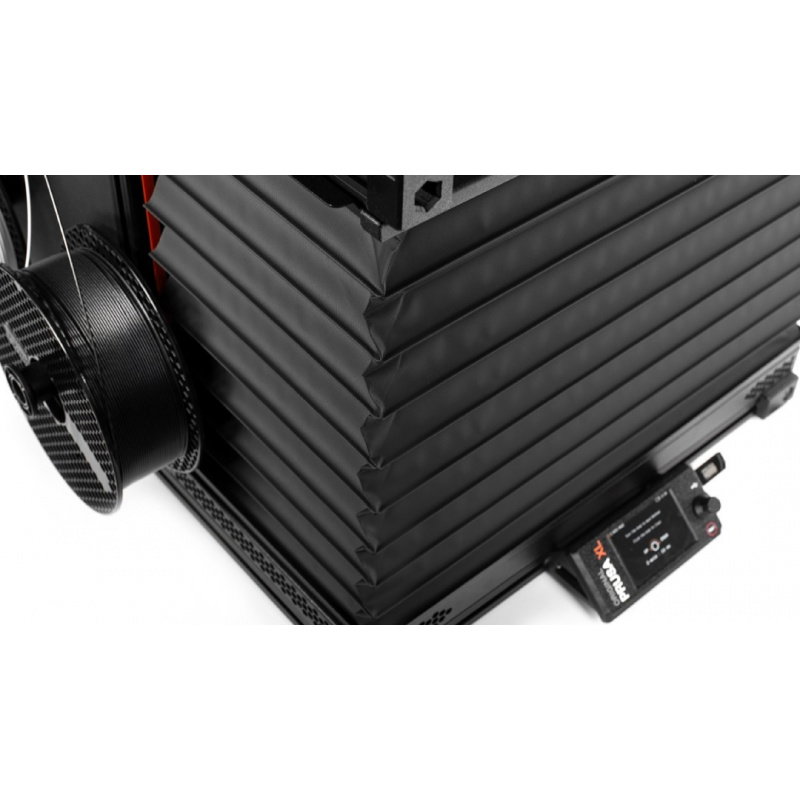

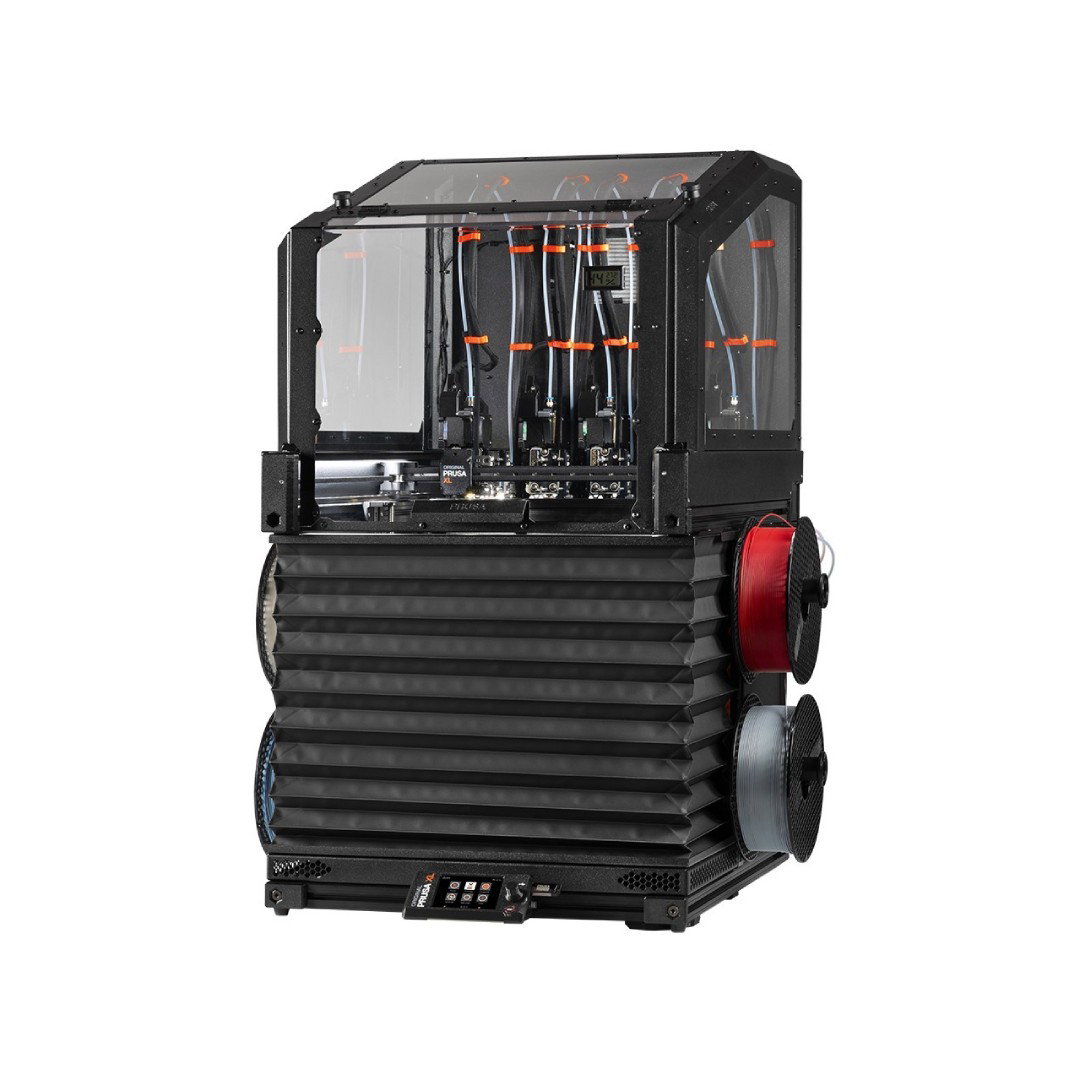

The accordion cover is foldable, allowing for better airflow when printing with filaments such as PLA.
| Technical specifications of the Original Prusa XL printer | |
|---|---|
| Printer type | FFF / FDM |
| Design | CoreXY |
| Work area | 360 x 360 x 360 mm |
| Working volume | about 46.7 liters |
| Filament diameter | 1.75 mm |
| Layer height | from 0.05 mm to 0.3 mm |
| Number of supported heads | 1 (optional up to 5) |
| Extruder | Nextruder Direct Drive |
| Extruder ratio | 10:1 |
| Standard nozzle diameter | 0.4 mm |
| Maximum nozzle temperature | 290°C |
| Maximum table temperature | 120°C |
| Heating table | 16 individually controlled segments |
| Work surface | removable magnetic steel plate |
| Table calibration | Automatic Mesh Bed Leveling |
| Height sensor | Loadcell |
| Sensors | filament sensor, Loadcell, Power Panic, thermistors and fan speed monitoring |
| Motherboard | 32-bit xBuddy with STM32 |
| Display | 3.5" color graphic screen with touchscreen operation |
| Communication | WiFi, LAN, Prusa Connect |
| File carrier | USB memory stick |
| Supported materials without casing | PLA, PETG, Flex, PVA, PC, PP, CPE, PVB |
| Additional materials when using a casing | ABS, ASA, HIPS, PA |
| Charger | 240 W with Power Panic |
| Average power consumption while printing | about 235 W |
| Housing type | passive, heated by energy from the printer table |
| Chamber temperature with Original Prusa XL Enclosure | up to about 45°C |
| Filtering | HEPA, 99.9% efficiency |
| Housing frame material | metal |
| Side and top panel material | PETG |

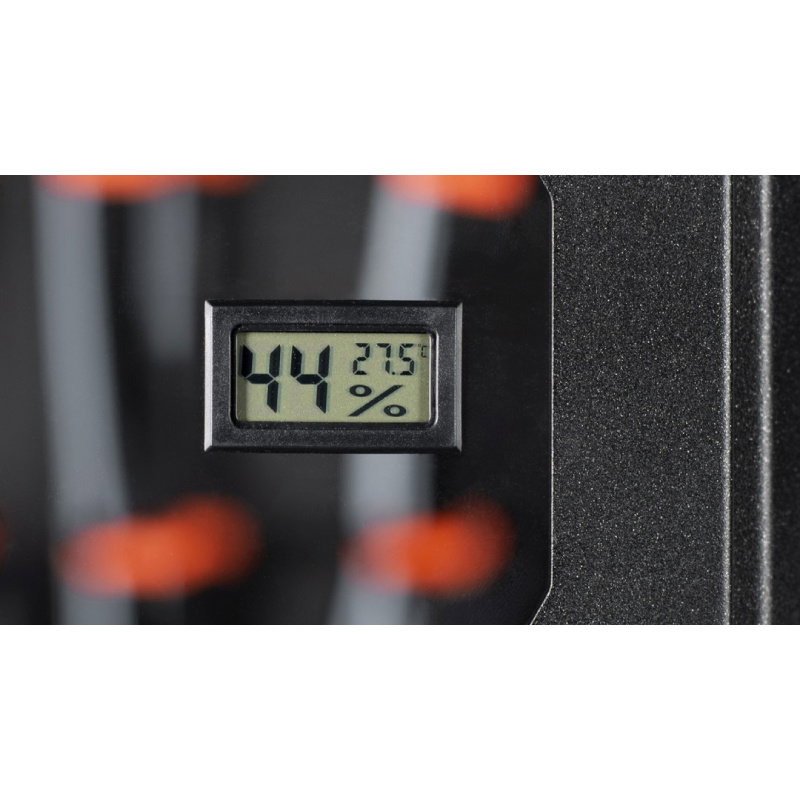

| Additional housing equipment | temperature sensor, synchronized LED strip, foldable accordion cover |
| Dimensions of the printer with the Enclosure kit components | 700 x 900 x 720 mm |
| Printer weight | 27.9 kg |
| Weight of the Original Prusa XL Enclosure | 15.7 kg |
