4-channel current, voltage, and power monitor HAT for Raspberry Pi - I2C/SMBus - Waveshare 17539
The 4-Channel Current , Voltage, and Power Monitoring HAT for Raspberry Pi is an I2C/SMBus measurement module designed for monitoring power supply parameters in DC projects. It measures bidirectional current up to ±3.2A and voltage from 0V to 26V , as well as calculating power based on the readings. Its standard 40-pin GPIO connector makes it compatible with a wide range of Raspberry Pi boards.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: 4-channel current, voltage and power monitoring HAT for Raspberry Pi - I2C / SMBus - Waveshare 17539
This current, voltage, and power monitoring HAT is designed to simultaneously measure parameters on four independent channels . The module utilizes the INA219 measurement chip, which measures the bus voltage and voltage drop across the shunt resistor, and provides the results for further analysis via the I2C/SMBus interface. The built-in 12-bit ADC and precision 0.1Ω 1% sensing resistors ensure repeatable and stable readings, useful for both prototyping and production applications. Thanks to the standard 40-pin GPIO connector, it is compatible with a wide range of Raspberry Pi boards.
4-channel current, voltage and power monitoring HAT for Raspberry Pi - I2C / SMBus - Waveshare 17539.
Botland is an official distributor of Waveshare devices. Their versatility and compatibility, particularly in display and power technology, have won over customers all over the world. Our team guarantees that all Waveshare products presented here are original.

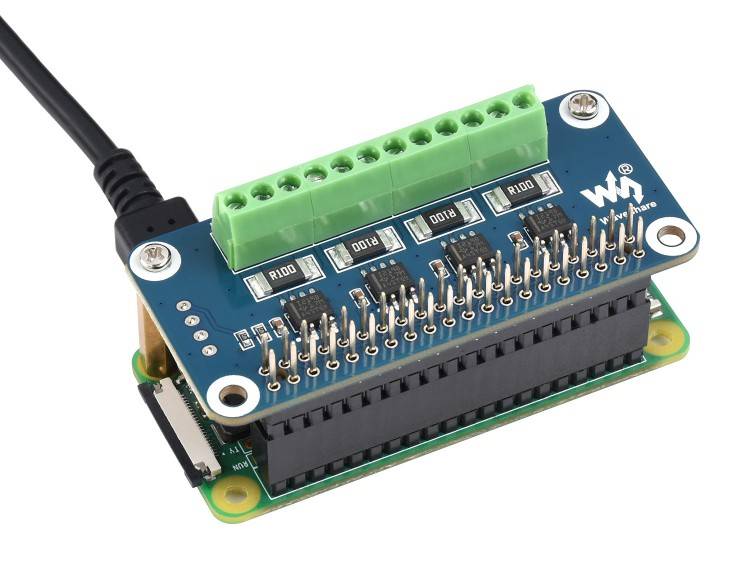

The standard 40-pin GPIO expansion connector supports various boards from the Raspberry Pi series.
Main features of the HAT overlay
- 4 measurement channels : enable simultaneous monitoring of four DC circuits
- I2C/SMBus interface : simple communication with Raspberry Pi and cross-platform compatibility
- Voltage range from 0V to 26V : allows you to test and control various power sources
- Current measurement up to 3.2 A : bidirectional current support in each channel
- 0.1 Ω 1% measuring resistor : increases measurement accuracy and stability
- 12-bit ADC : Provides reliable readings for test and measurement applications
- Power calculation : the module allows you to obtain the power value without additional calculations on the application side
- 40-pin GPIO connector : compatible with the Raspberry Pi family of boards
Technical specifications of the overlay
- Type: 4-channel HAT for monitoring current, voltage and power (DC)
- Measuring system: INA219
- Supply voltage: 3.3V / 5V
- Interface: I2C / SMBus
- Measuring resistor: 0.1 Ω 1%
- Voltage measurement range: 0 V to 26 V
- Current measurement range: ± 3.2 A
- Resolution: 0.8 mA (range ±3.2 A) or 0.1 mA (range ±400 mA)
- Number of channels: 4
- Mounting holes: 3 mm
- Dimensions: 65 x 30 mm

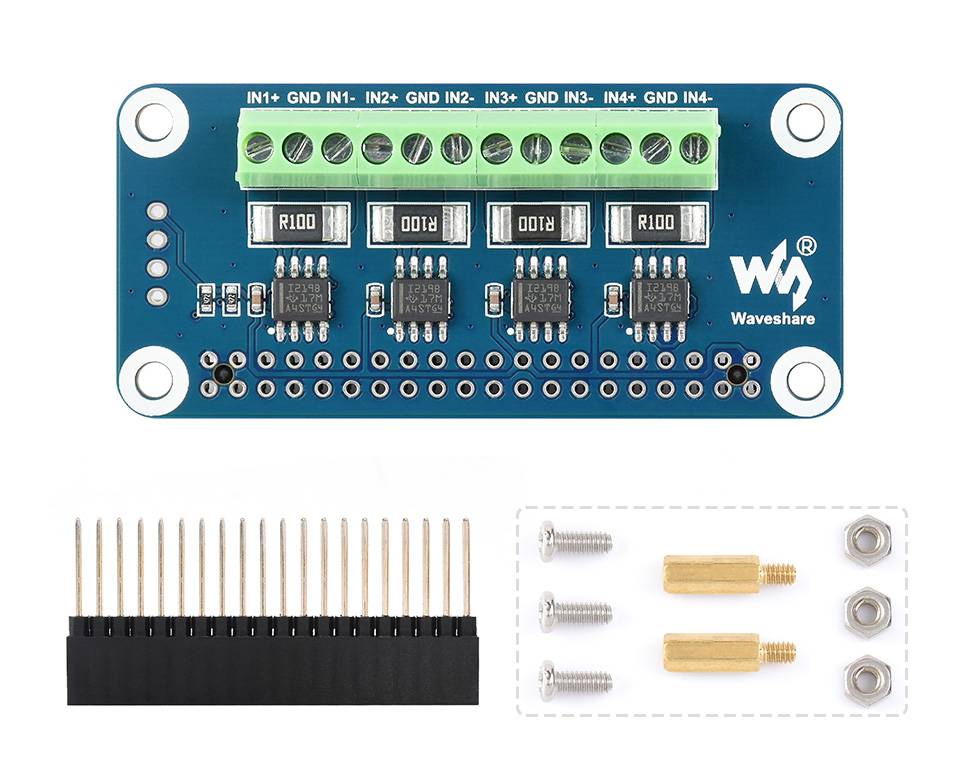

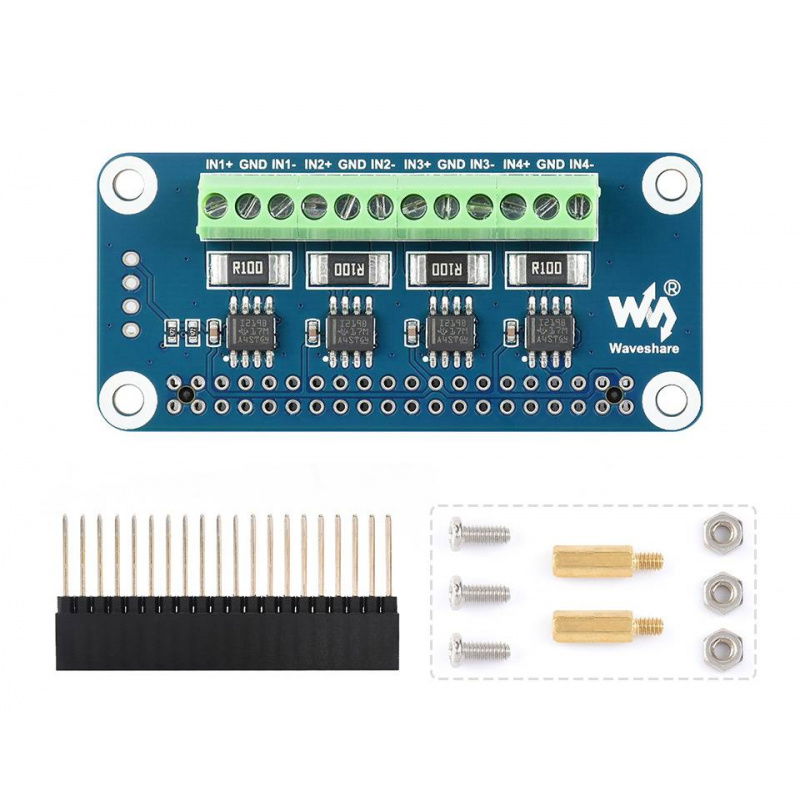

Contents of the set
- 1x 4-Channel Current, Voltage and Power Monitoring HAT for Raspberry Pi
- 1x Female header 2x20-pin
- 1x Set of mounting screws
