Product description: reComputer Super J4011 - Nvidia Jetson Orin NX - 8 GB RAM - Seeedstudio 114110313
The reComputer Super J4011 is a versatile edge system based on the Nvidia Jetson Orin NX with 8 GB of RAM that combines high performance with energy efficiency and extensive expandability. The reComputer Super J4011 offers a whopping 117 TOPS in MAXN Super mode , making it ideal for applications in artificial intelligence , robotics, and video analytics. Performance is tailored to demanding applications while providing energy savings thanks to a regulated power supply (from 10 W to 40 W). The system offers a range of interfaces, including 2x RJ45 Ethernet, 4x USB 3.2, HDMI 2.1, Mini PCIe, M.2 Key E , and support for CSI and CAN cameras . With the JetPack 6.2 operating system pre-installed and a built-in 128GB NVMe SSD , the reComputer Super J4011 enables the rapid deployment and development of AI applications such as Nvidia Isaac, Hugging Face, ONNX, and ROS2/1.
reComputer Super J4011 - Nvidia Jetson Orin NX - 8 GB RAM - Seeedstudio 114110313.
Super Boost AI performance delivers up to 117 TOPS in MAXN Super mode.
Main features of the reComputer Super J4011
- AI Performance : 117 TOPS in MAXN Super mode, ideal for advanced AI applications including video analytics, robotics, and generative AI
- Power Flexibility : Configurable power modes (from 10W to 40W) allow you to optimize performance and power consumption based on your needs.
- Rich interfaces : 2x RJ45 Ethernet (1 Gb/s), 4x USB 3.2, HDMI 2.1, CAN and Mini PCIe and M.2 Key E enable easy system expansion
- JetPack 6.2 Installed : Pre-installed software with full support for AI frameworks such as Nvidia Isaac, Hugging Face, and ROS2/1
- Camera support : up to 4 cameras can be connected (8 via virtual channels) thanks to MIPI CSI ports
- Operating temperature : Operating temperature range from -20°C to 65°C in MAXN Super mode, making the system resistant to harsh operating conditions
What makes the Super version stand out?
Super versions, including the reComputer Super J4011, offer exceptional performance in MAXN Super mode , tailored for demanding AI applications. Compared to the classic versions, the reComputer Super delivers up to 1.7x faster AI performance . Combined with flexible power management (from 10W to 40W) and extensive connectivity options , Super versions are the ideal choice for developing compute-intensive applications. including robotics , real-time video processing, and generative AI applications.
Optimized for demanding AI applications
The reComputer Super J4011 is designed for the most demanding AI applications, such as robotic automation (AMR), smart commerce, industrial automation, video analytics, and smart surveillance . With a powerful Nvidia Orin NX processor and support for multiple AI frameworks (including Nvidia Isaac and Hugging Face), this system provides sufficient processing power to handle complex, compute-intensive, low-latency applications , such as image recognition, multimodal interactions, and video analytics.

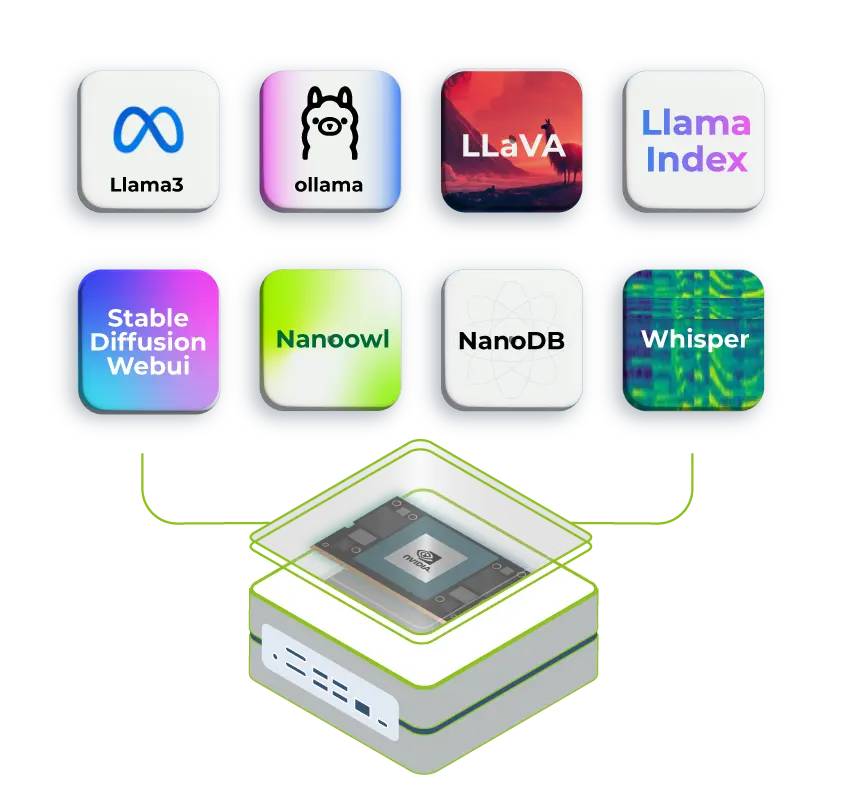

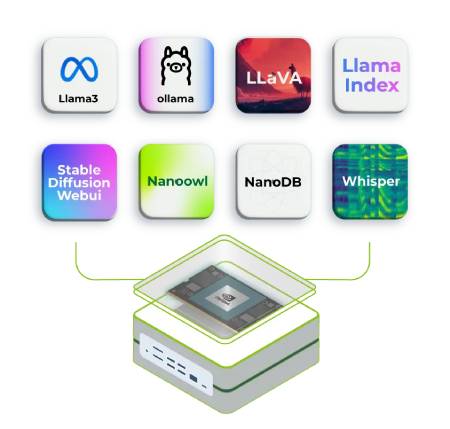

reComputer is designed for demanding AI applications.

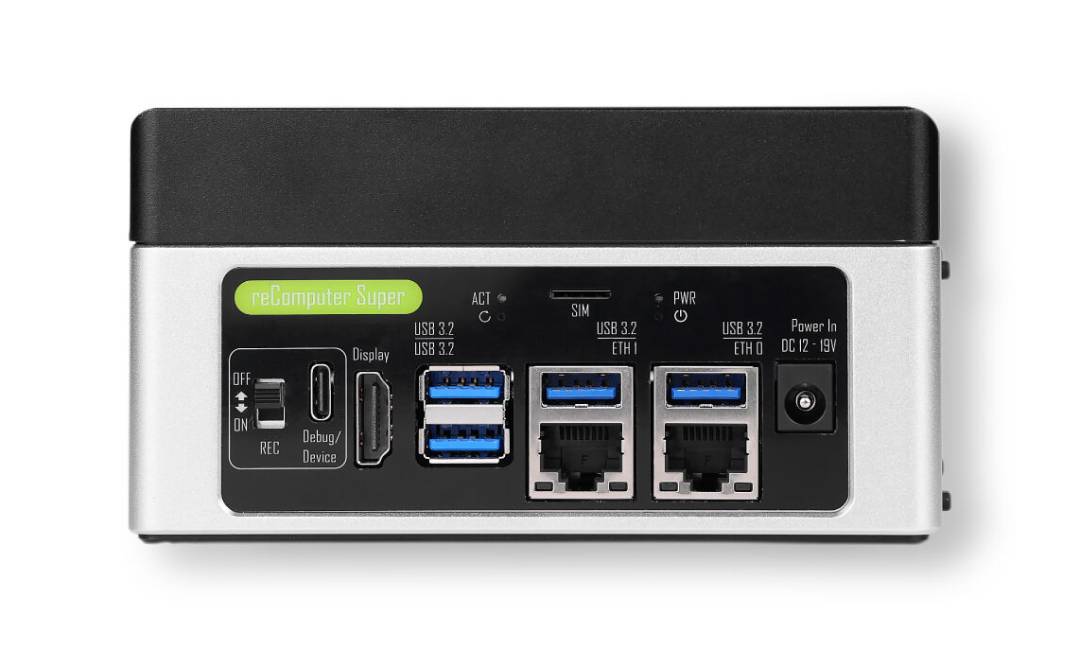

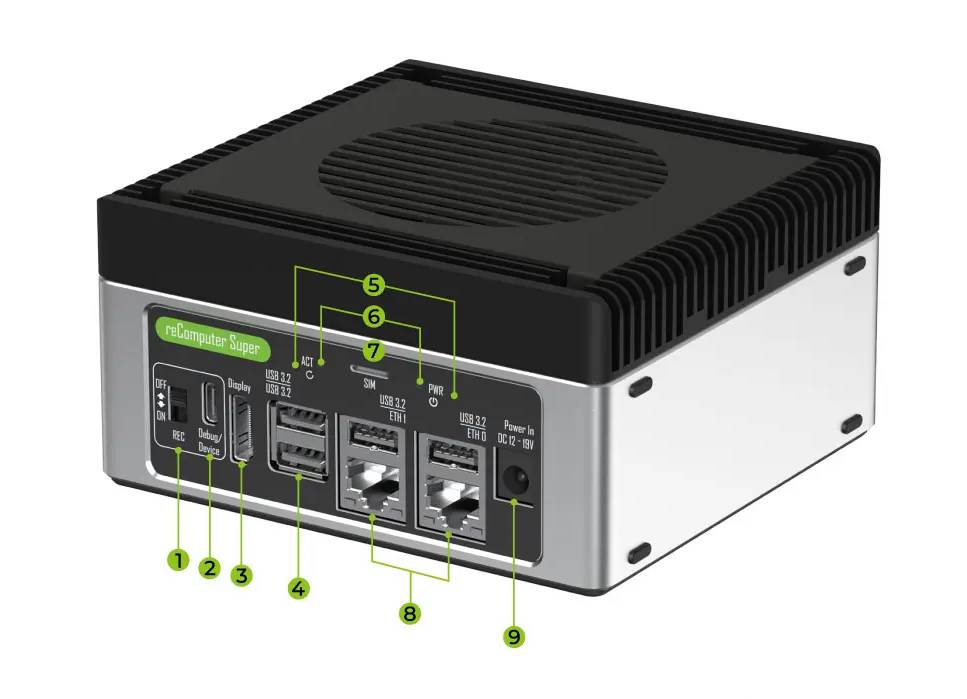

Pins and connectors in reComputer.
Pins and connectors in reComputer
- DIP switch
- USB Type-C 2.0
- HDMI 2.1 output
- USB 3.2 Type-A port x4
- Pinhole buttons x2
- LEDs x2
- SIM card slot
- Ethernet port RJ45 x2
- DC Power Jack (5525)
Arrangement of elements
- Nvidia Jetson Orin Module
- Expansion board
- 4-pin fan connector (5V PWM)
- 4-pin fan connector (12V PWM)
- 40-pin expansion connector
- CAN bus connector
- 12-pin connector (control and UART)
- MIPI CSI connectors (15-pin) x4
- RTC battery socket (CR1220)
- 2-pin RTC connector (3V)
- M.2 Key E socket
- Mini PCIe slot
- M.2 Key M slot (with SSD)

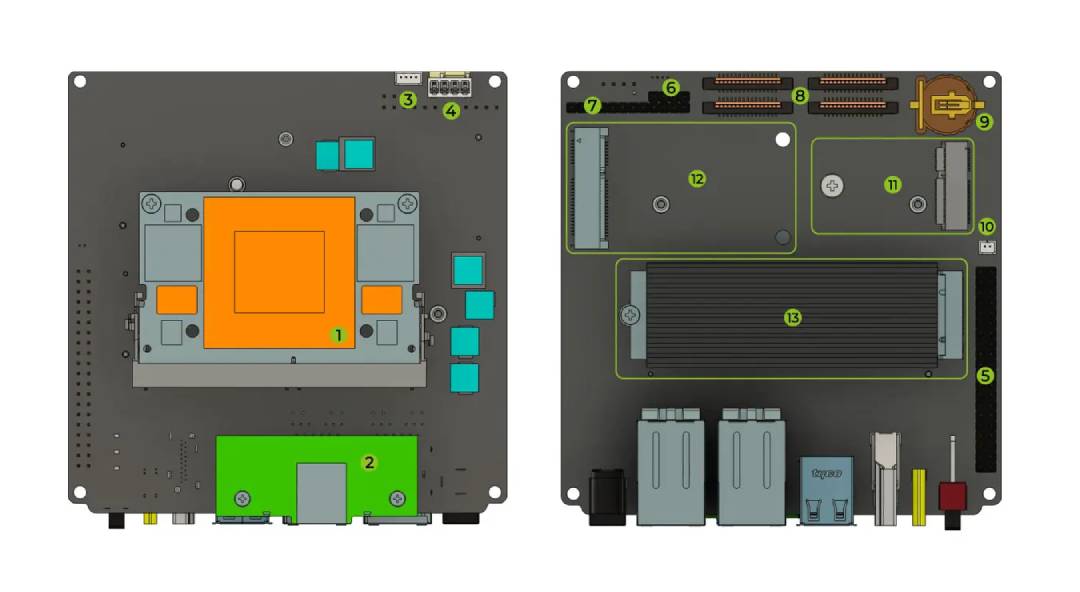

Element arrangement - top and bottom view.

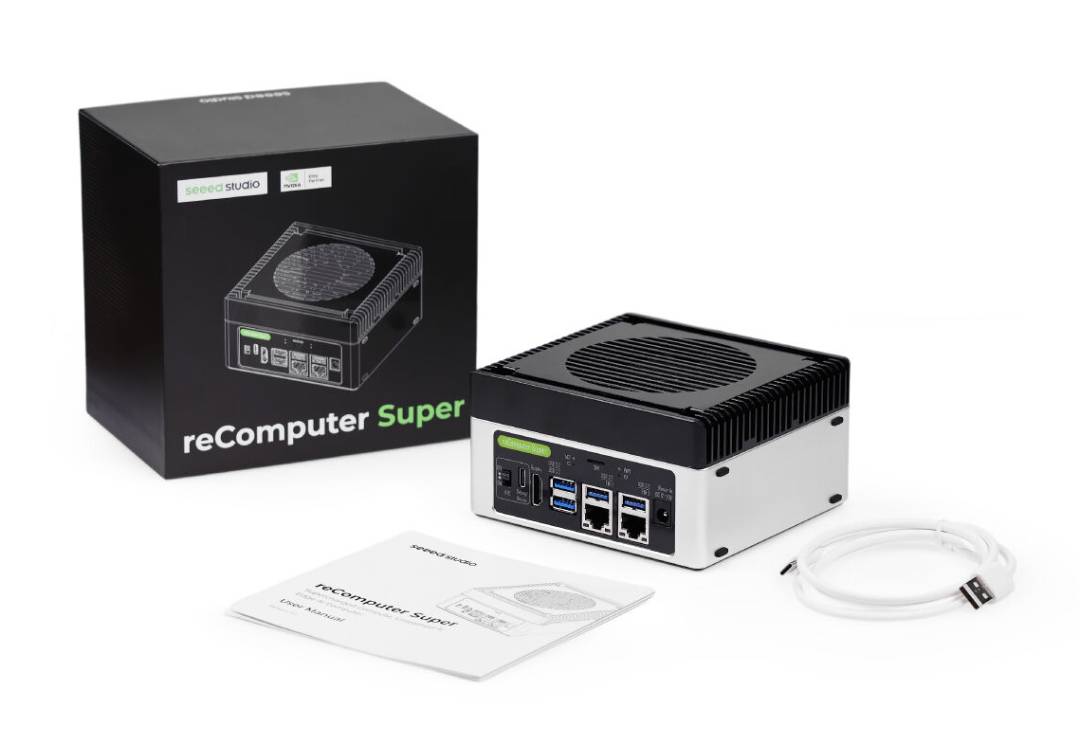

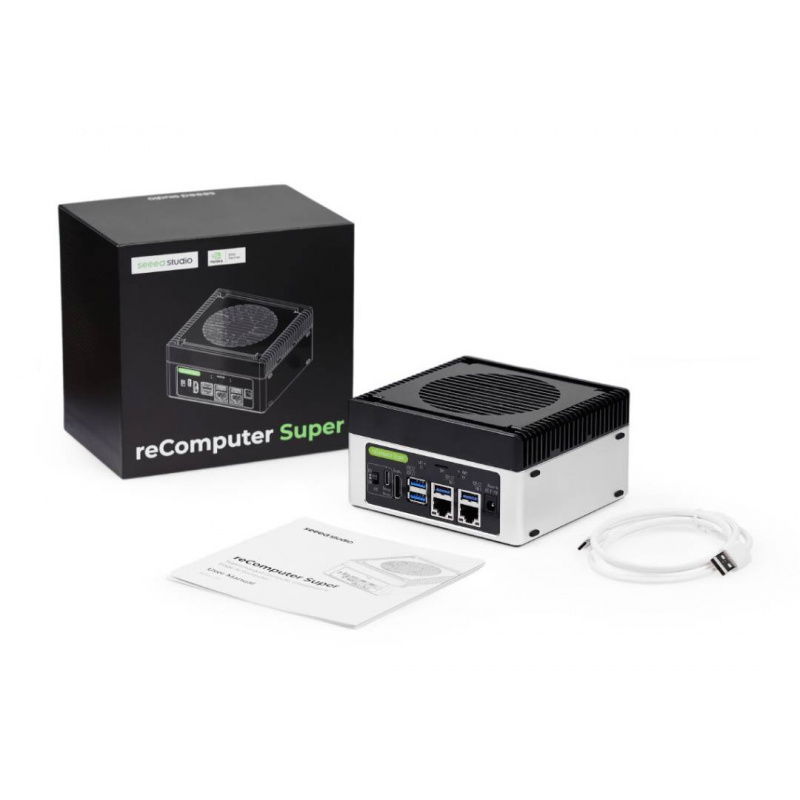

Elements included in the set.
Contents of the set
- 1x reComputer Super J4011 with Jetson Orin NX 8 GB
- 1x Seeed Carrier Board (reComputer Super J401)
- 1x SSD NVMe 128GB
- 1x Aluminum case with fan
- 1x USB Type-A to USB Type-C Cable
- 1x User Manual
| Technical specifications of the reComputer Super J4011 | |
|---|---|
| Module | Nvidia Jetson Orin NX 8GB |
| AI Performance | up to 117 TOPS (MAXN Super Mode) |
| GPU | 1024-core Ampere, 32 Tensor |
| GPU frequency | 1173 MHz |
| CPU | 6 Arm Cortex-A78AE 2 GHz cores |
| DL Accelerator | 1x NVDLA v2.0, 1.23 GHz |
| Vision Accelerator | 1x PVA v2.0 |
| RAM | 8 GB LPDDR5, 128-bit, up to 102.4 GB/s |
| Video codec | 1x 4K60, 3x 4K30, 6x 1080p60, 12x 1080p30 (H.265) |
| Video decoder | 1x 8K30, 2x 4K60, 4x 4K30, 9x 1080p60, 18x 1080p30 (H.265) |
| CSI cameras | up to 4 cameras (8 virtual channels), 8 MIPI CSI-2 lanes, D-PHY 2.1 (up to 20 Gb/s) |
| SSD | NVMe 128GB M.2 (Key M, PCIe) |
| WiFi / Bluetooth | M.2 Key E |
| LTE | mini PCIe slot + SIM slot |
| Ethernet | 2x RJ45 Gigabit Ethernet |
| USB | 4x USB 3.2 Type A, 1x USB-C 2.0 (debug) |
| HDMI | 1x HDMI 2.1 |
| CAN | 1x CAN (4-pin) |
| Expansion connectors | 1x 40-pin GPIO, 1x 12-pin UART / control |
| Ventilation | 2x PWM: 5V (1.25mm), 12V (2.54mm) |
| Real-time clock | 2-pin + CR1220 socket |
| Controls and buttons | 2x LED (PWR, ACT), 1x PWR, 1x Reset, 1x DIP switch REC |
| Antennas | 4x holes for external antennas |
| Power supply | from 12 V to 19 V DC |
| JetPack | version 6.2 (Linux BSP) |
| Installation | on a desk or wall mounted |
| Operating temperature | from -20°C to 65°C |

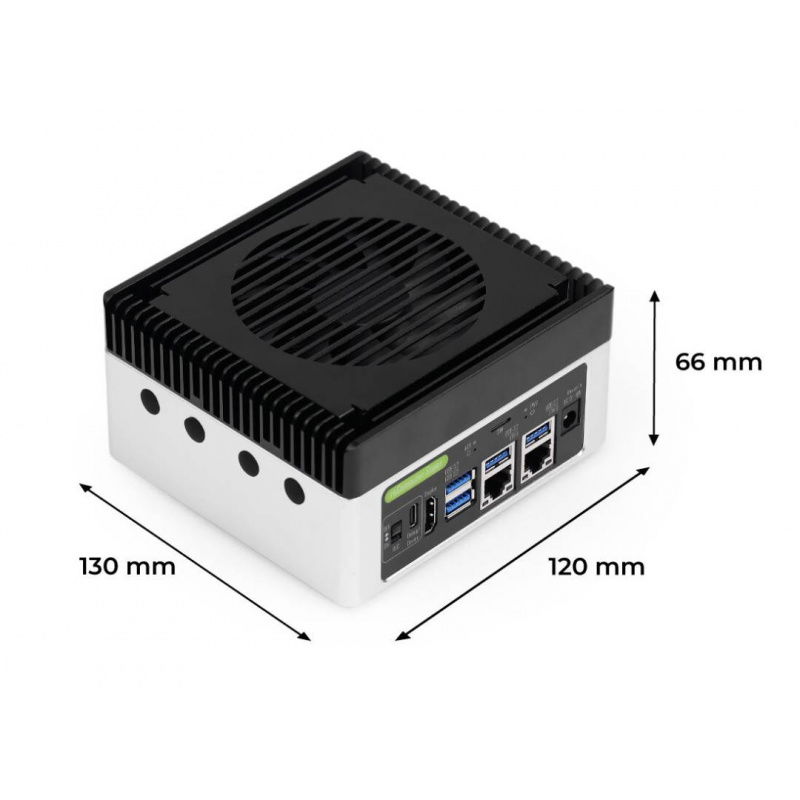

| Dimensions | 130 x 120 x 66 mm |
| Mass | 1110 g |
