Product description: reComputer Super J4012 - Nvidia Jetson Orin NX - 16 GB RAM - Seeedstudio 114110314
The reComputer Super J4011 is an advanced Edge AI system based on the Nvidia Jetson Orin NX platform with 16GB of RAM , delivering incredible AI performance with 157 TOPS in Super MAXN mode . With a wide operating temperature range (-20℃ to 65℃), it's a reliable solution for applications that require high computing power and stability in harsh environments. It's ideal for computer vision, robotics, and multimodal AI tasks, including video analysis and real-time data processing. It supports diverse connectivity options, including WiFi, Bluetooth, LTE, and Ethernet (with two RJ45 ports), ensuring seamless integration in various environments. Additionally, it offers four USB 3.2 ports, an HDMI 2.1 port, and four CSI camera ports , enabling the development of comprehensive video and robotic applications. It comes pre-installed with JetPack 6.2 and comes with a 128GB NVMe SSD , allowing you to quickly get started with popular AI frameworks like Nvidia Isaac, Hugging Face, and ROS2/1.
reComputer Super J4012 - Nvidia Jetson Orin NX - 16 GB RAM - Seeedstudio 114110314.
Super Boost AI performance delivers up to 157 TOPS in MAXN Super mode.
Main features of the reComputer Super J4012
- AI Performance : With 157 TOPS in MAXN Super mode, the reComputer Super J4012 is ideal for compute-intensive applications such as computer vision AI, robotics, or generative AI
- Energy Efficiency : Efficient power modes from 10W to 40W optimize performance and energy consumption, matching power to application requirements
- Robust thermal design : The device operates reliably in temperatures from -20°C to 60°C at 40W of power, and at 25W it can operate at temperatures up to 65°C
- Rich interfaces : offers two RJ45 ports, a SIM slot, four USB 3.2 ports, HDMI 2.1, and CAN. It also supports M.2 Key E/M, miniPCIe, and four CSI slots for connecting cameras and other devices.
- Ready to deploy : the system comes pre-installed with JetPack 6.2 and a 128GB NVMe SSD, and supports AI frameworks such as Nvidia Isaac, Hugging Face, and ROS2/1, enabling rapid development of AI applications
What makes the Super version stand out?
Super versions offer exceptional performance in MAXN Super mode , tailored for demanding AI applications. Compared to the classic versions, reComputer Super delivers up to 1.7x faster AI performance . Combined with flexible power management (from 10W to 40W) and extensive connectivity options , the Super versions are the ideal choice for developing compute-intensive applications, including robotics , real-time video processing, and generative AI applications.
Optimized for demanding AI applications

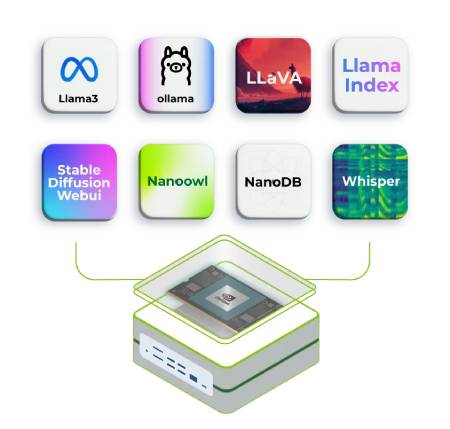

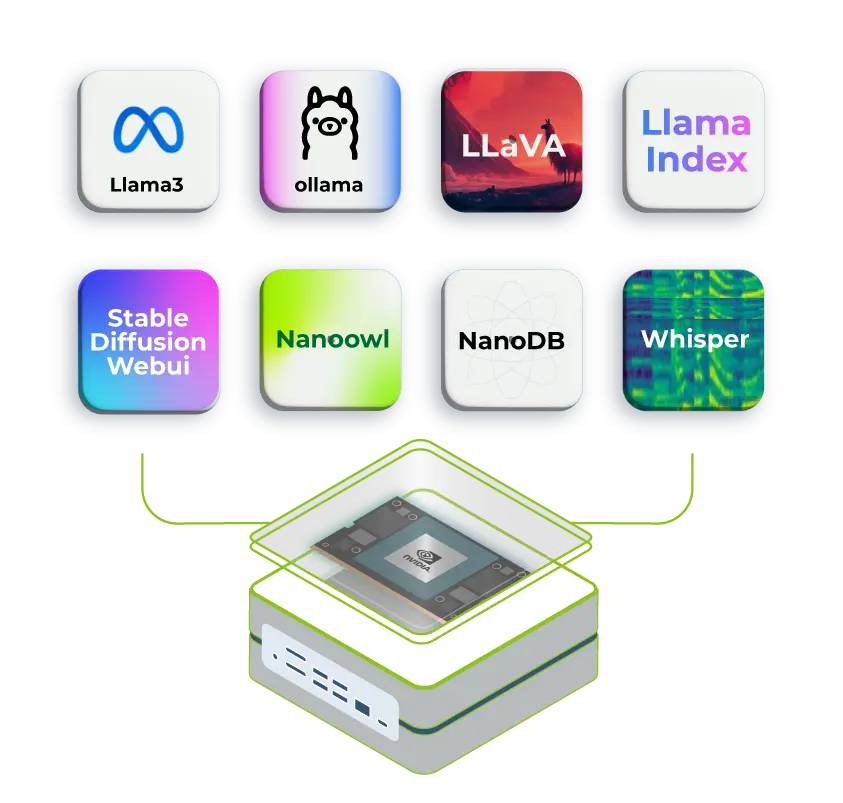

The reComputer Super J4012 is a system designed specifically for demanding AI applications . Its performance and advanced features make it ideal for applications such as automated mobile robots (AMRs), smart commerce, industrial automation, and real-time video analytics . Support for multimodal AI applications and easy integration with popular frameworks such as YOLOv8, Ollama, and Llama3 make the system ready for advanced AI solutions.
reComputer is designed for demanding AI applications.

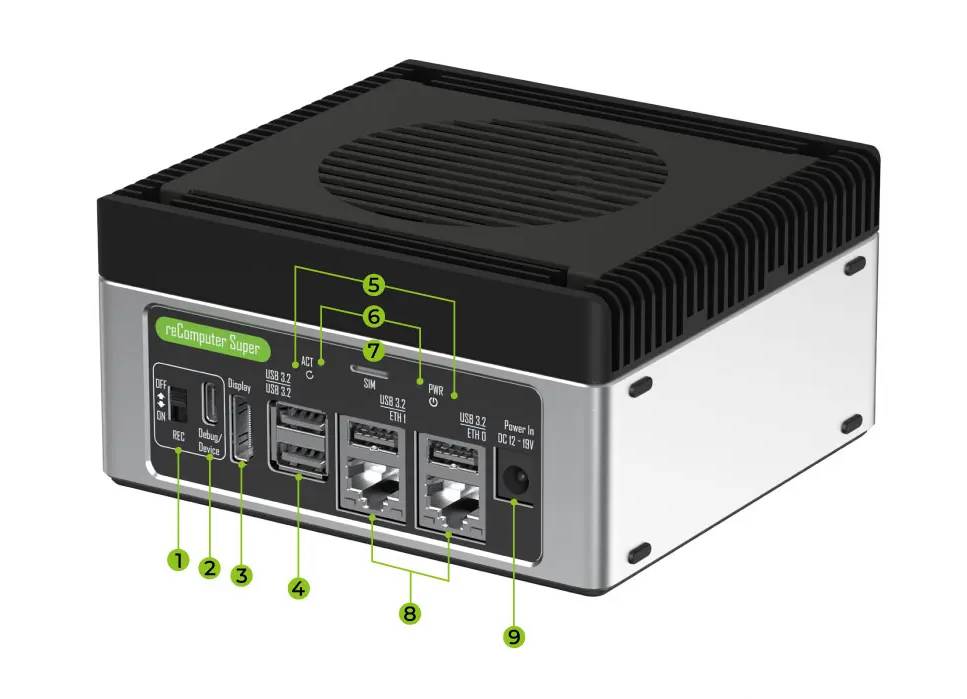

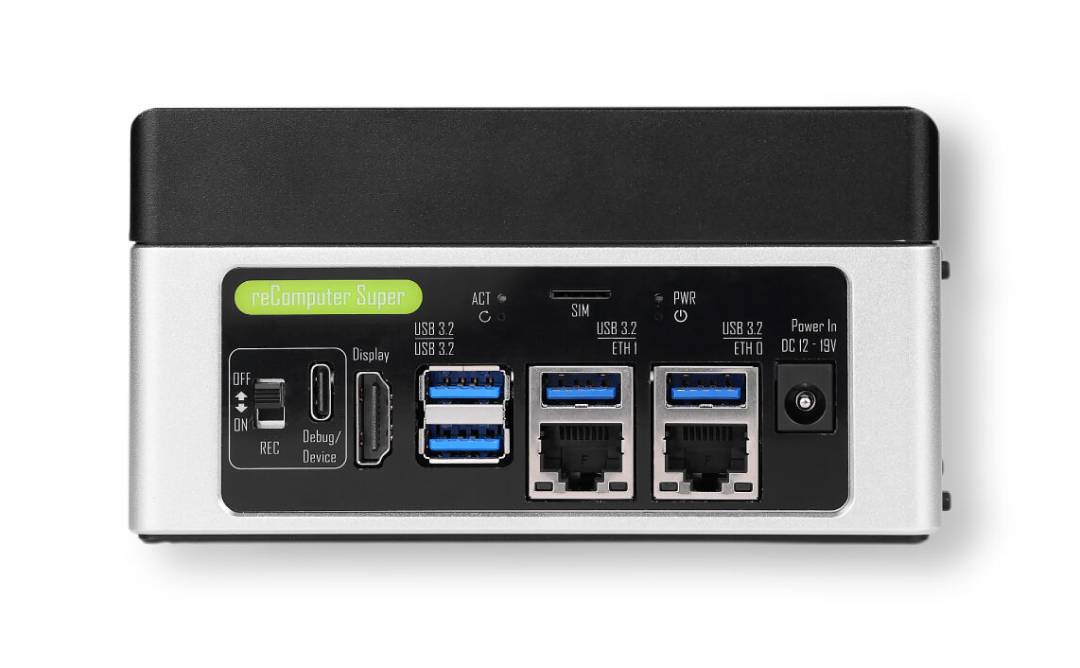

Pins and connectors in reComputer.
Pins and connectors in reComputer
- DIP switch
- USB Type-C 2.0
- HDMI 2.1 output
- USB 3.2 Type-A port x4
- Pinhole buttons x2
- LEDs x2
- SIM card slot
- Ethernet port RJ45 x2
- DC Power Jack (5525)
Arrangement of elements
- Nvidia Jetson Orin Module
- Expansion board
- 4-pin fan connector (5V PWM)
- 4-pin fan connector (12V PWM)
- 40-pin expansion connector
- CAN bus connector
- 12-pin connector (control and UART)
- MIPI CSI connectors (15-pin) x4
- RTC battery socket (CR1220)
- 2-pin RTC connector (3V)
- M.2 Key E socket
- Mini PCIe slot
- M.2 Key M slot (with SSD)

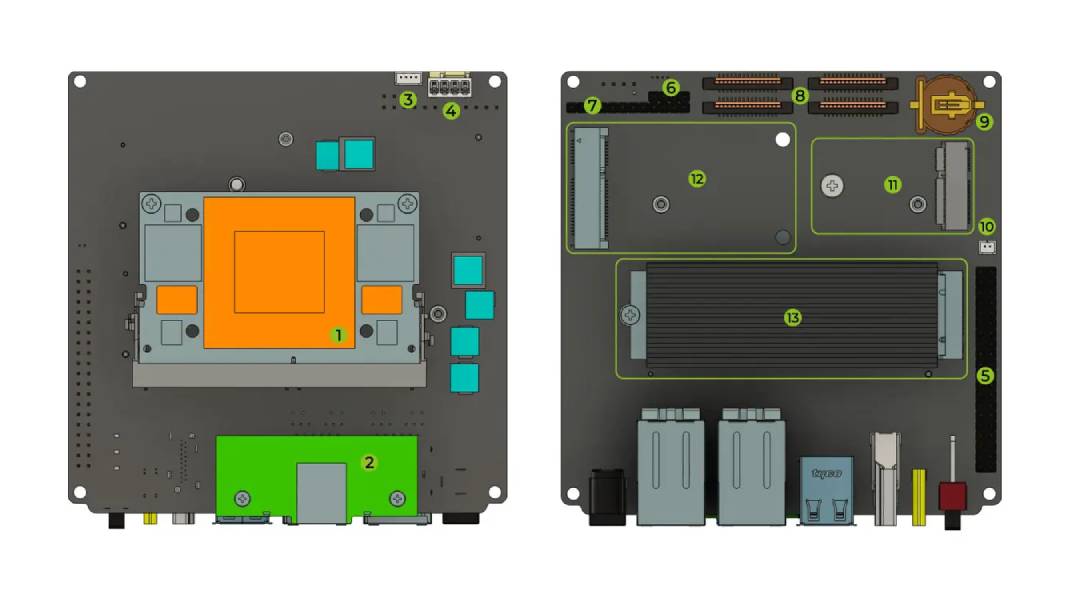

Element arrangement - top and bottom view.

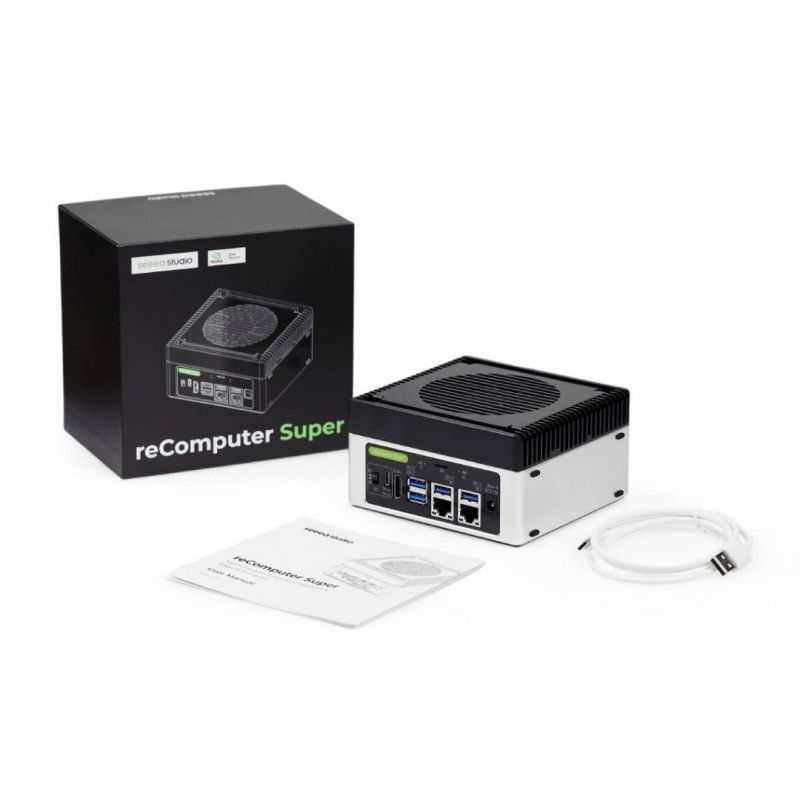

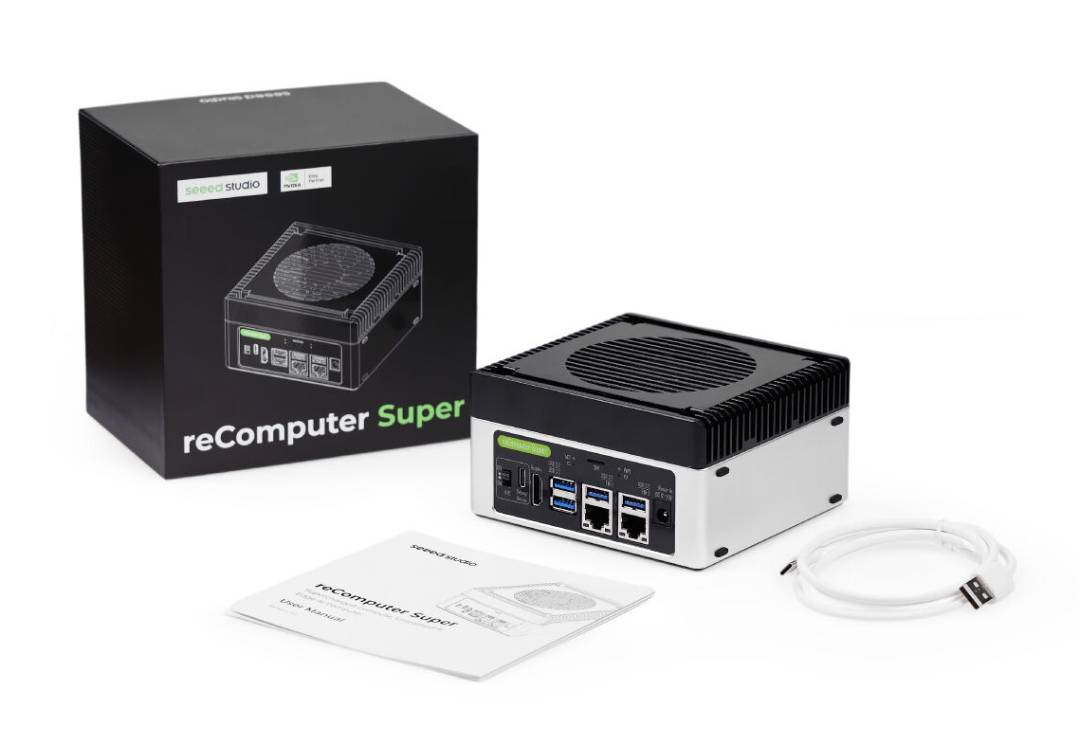

Elements included in the set.
Contents of the set
- 1x reComputer Super J4012 with Jetson Orin NX 16 GB
- 1x Seeed Carrier Board (reComputer Super J401)
- 1x SSD NVMe 128GB
- 1x Aluminum case with fan
- 1x USB Type-A to USB Type-C Cable
- 1x User Manual
| Technical specifications of the reComputer Super J4012 | |
|---|---|
| Module | Nvidia Jetson Orin NX 16GB |
| AI Performance | up to 157 TOPS (MAXN Super Mode) |
| GPU | 1024-core Ampere, 32 Tensor |
| GPU frequency | 1173 MHz |
| CPU | 8 Arm Cortex-A78AE 2 GHz cores |
| DL Accelerator | 2x NVDLA v2.0, 1.23 GHz |
| Vision Accelerator | 1x PVA v2.0 |
| RAM | 16 GB LPDDR5, 128-bit, up to 102.4 GB/s |
| Video codec | 1x 4K60, 3x 4K30, 6x 1080p60, 12x 1080p30 (H.265) |
| Video decoder | 1x 8K30, 2x 4K60, 4x 4K30, 9x 1080p60, 18x 1080p30 (H.265) |
| CSI cameras | up to 4 cameras (8 virtual channels), 8 MIPI CSI-2 lanes, D-PHY 2.1 (up to 20 Gb/s) |
| SSD | NVMe 128GB M.2 (Key M, PCIe) |
| WiFi / Bluetooth | M.2 Key E |
| LTE | mini PCIe slot + SIM slot |
| Ethernet | 2x RJ45 Gigabit Ethernet |
| USB | 4x USB 3.2 Type A, 1x USB-C 2.0 (debug) |
| HDMI | 1x HDMI 2.1 |
| CAN | 1x CAN (4-pin) |
| Expansion connectors | 1x 40-pin GPIO, 1x 12-pin UART / control |
| Ventilation | 2x PWM: 5V (1.25mm), 12V (2.54mm) |
| Real-time clock | 2-pin + CR1220 socket |
| Controls and buttons | 2x LED (PWR, ACT), 1x PWR, 1x Reset, 1x DIP switch REC |
| Antennas | 4x holes for external antennas |
| Power supply | from 12 V to 19 V DC |
| JetPack | version 6.2 (Linux BSP) |
| Installation | on a desk or wall mounted |
| Operating temperature | from -20°C to 65°C |

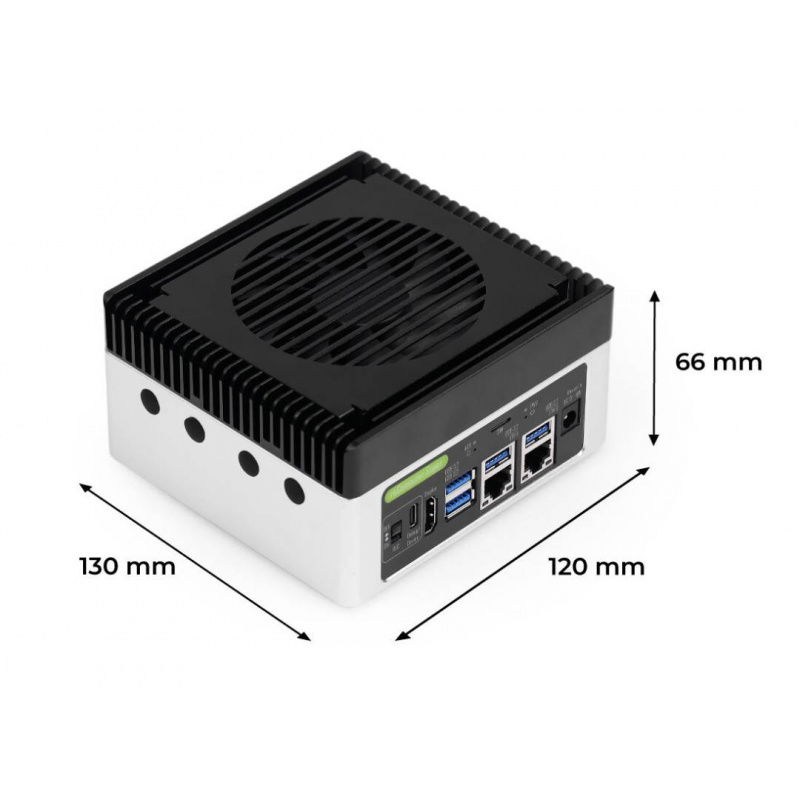

| Dimensions | 130 x 120 x 66 mm |
| Mass | 1110 g |
