Product description: reComputer Super J3010 - Nvidia Jetson Orin Nano - 4 GB RAM - Seeedstudio 114110311
The reComputer Super J3010 is a powerful edge computing solution based on the Nvidia Jetson Orin Nano platform with 4GB of RAM , providing powerful computing power and support for the development of advanced AI applications. The minicomputer offers 34 TOPS in MAXN Super mode , enabling fast data processing and low latency for high-performance applications. With a wide range of ports, including 2x RJ45, 4x USB 3.2, HDMI 2.1, and support for WiFi, Bluetooth , and LTE , it is an excellent tool for integration in IoT, robotics, and transportation systems. With JetPack 6.2 software pre-installed and a built-in 128GB NVMe SSD , the reComputer Super J3010 offers a ready-to-use platform for AI frameworks such as Nvidia Isaac, Hugging Face, ROS2, and ONNX, enabling rapid application development.

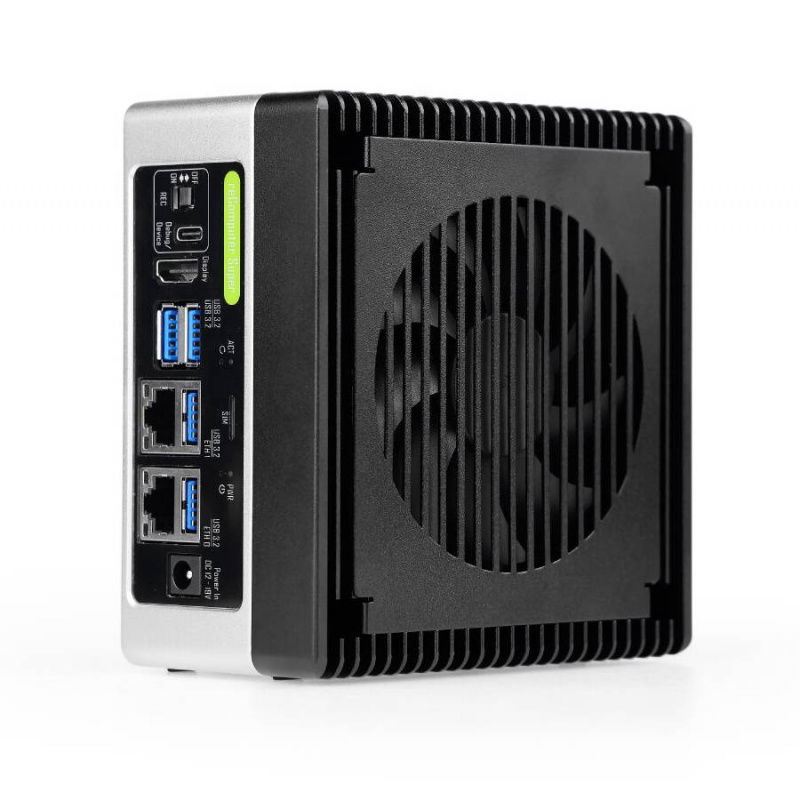

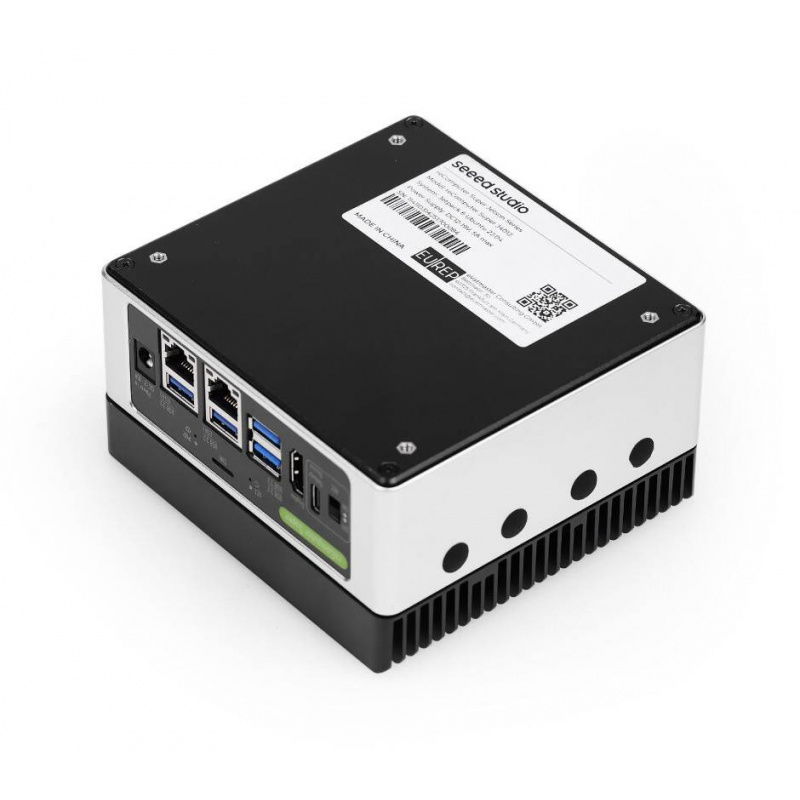

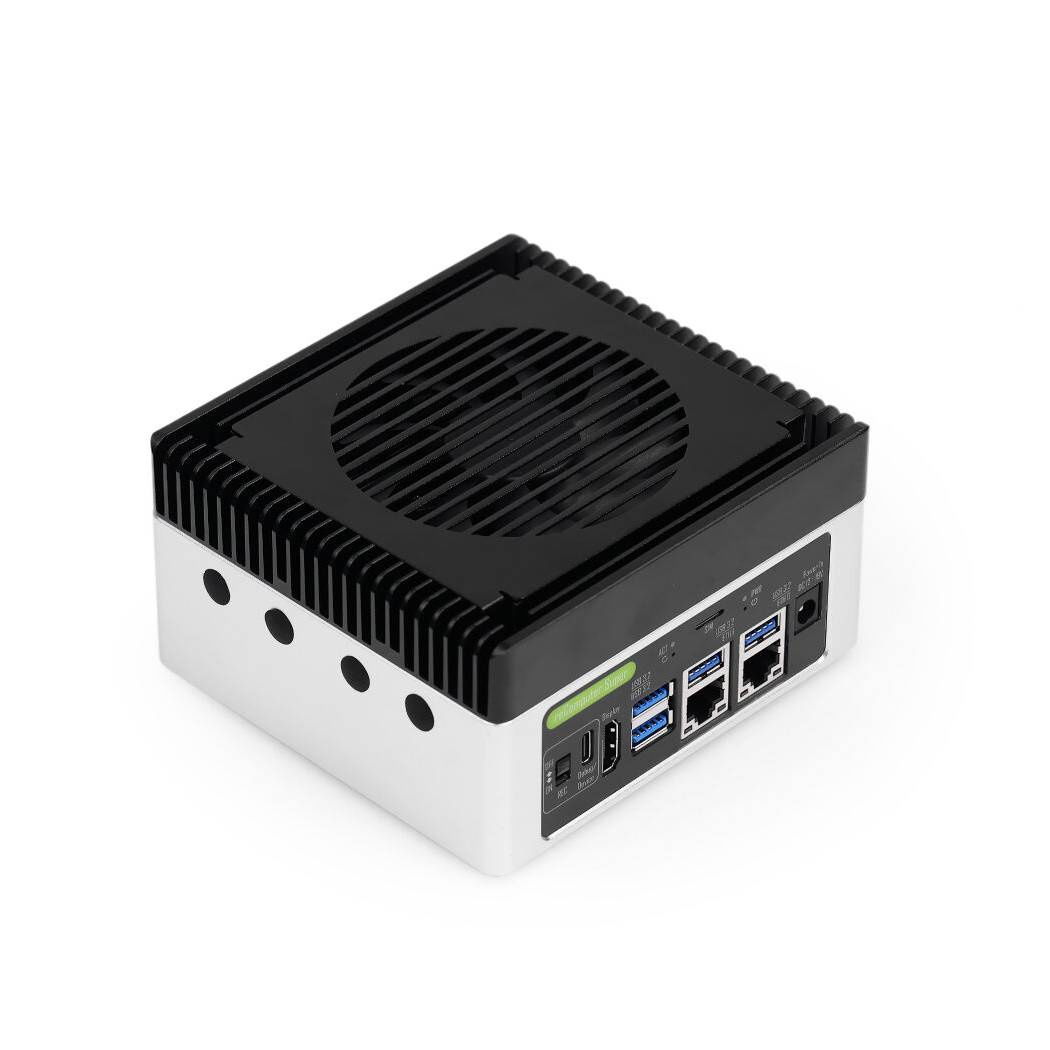

reComputer Super J3010 - Nvidia Jetson Orin Nano - 4 GB RAM - Seeedstudio 114110311.
AI performance delivers up to 34 TOPS in MAXN Super mode .
Main features of the reComputer Super J3010
- AI Performance : Delivers 34 TOPS in MAXN Super mode, ideal for AI, robotics, and generative AI applications
- Wide temperature range : from -20°C to 65°C, which allows operation in difficult environmental conditions
- Flexible power supply : Power modes from 7W to 25W allow you to optimize performance and energy consumption
- Rich interfaces : 2x RJ45 Ethernet (1 Gb/s), 4x USB 3.2, HDMI 2.1, mini PCIe, M.2 Key E, CAN - ideal for system expansion
- Ready to use : JetPack 6.2 installed, supports various AI frameworks (Nvidia Isaac, Hugging Face, ROS2/1)
- Optimized for robotics : ideal for robotics, industrial automation, and real-time video analysis applications
What makes the Super version stand out?
The Super reComputer versions, including the reComputer Super J3010, offer up to 1.7x faster AI performance than the Classic version, delivering up to 34 TOPS in MAXN Super mode. This feature enables faster data processing, improved performance in compute-intensive applications, and lower latency in AI inference , which is especially important in industries such as robotics, intelligent transportation, and generative AI. It features active cooling, dual Ethernet ports , more CUDA and Tensor cores, and support for expansion via LTE, WiFi and NVMe SSD.
Optimized for demanding AI applications
The reComputer Super J3010 is designed for the most demanding AI applications, such as industrial automation, video analytics, smart retail, and robotics . Featuring a powerful Nvidia Orin Nano processor and support for the latest AI frameworks (including Nvidia Isaac and Hugging Face), the system delivers the computing power needed to perform complex calculations in real time . Applications utilizing robots, vision sensors, and multimodal perception systems will find powerful development support here.
reComputer is designed for demanding AI applications.

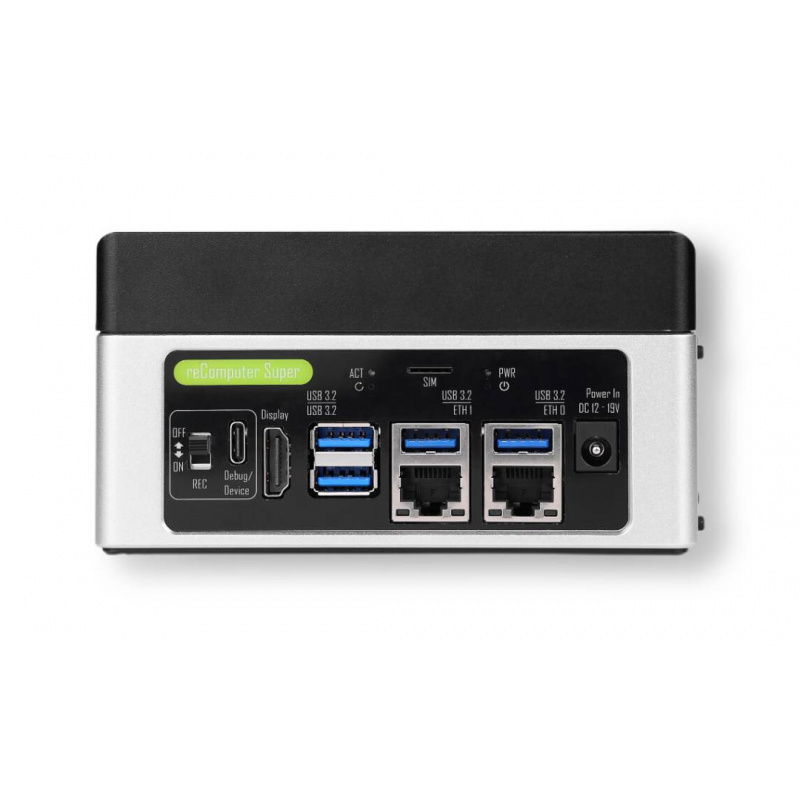

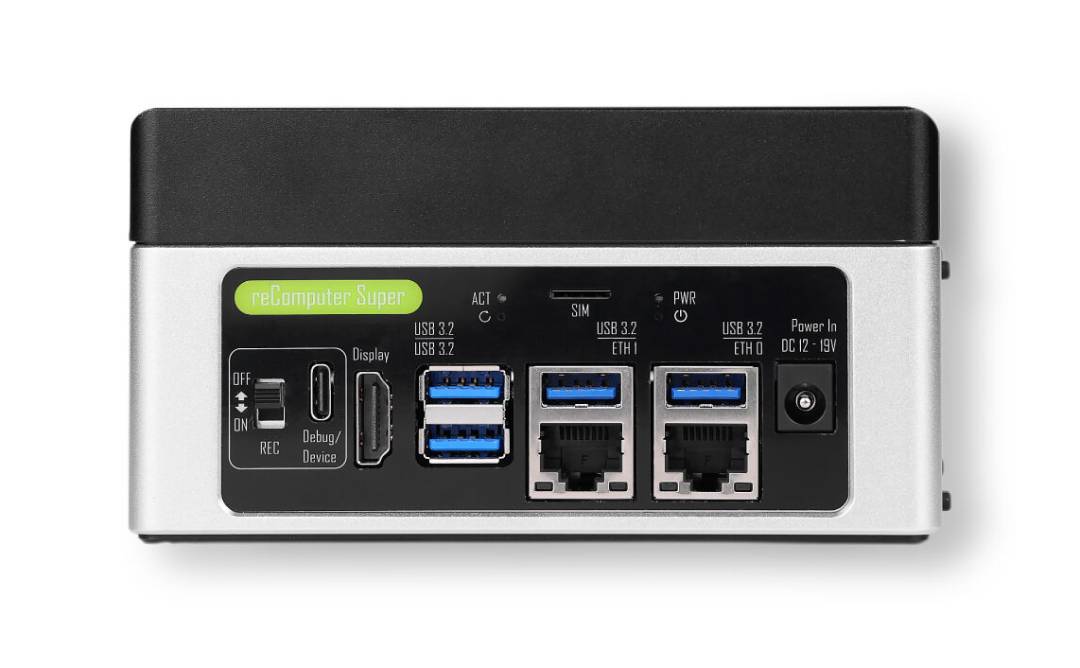

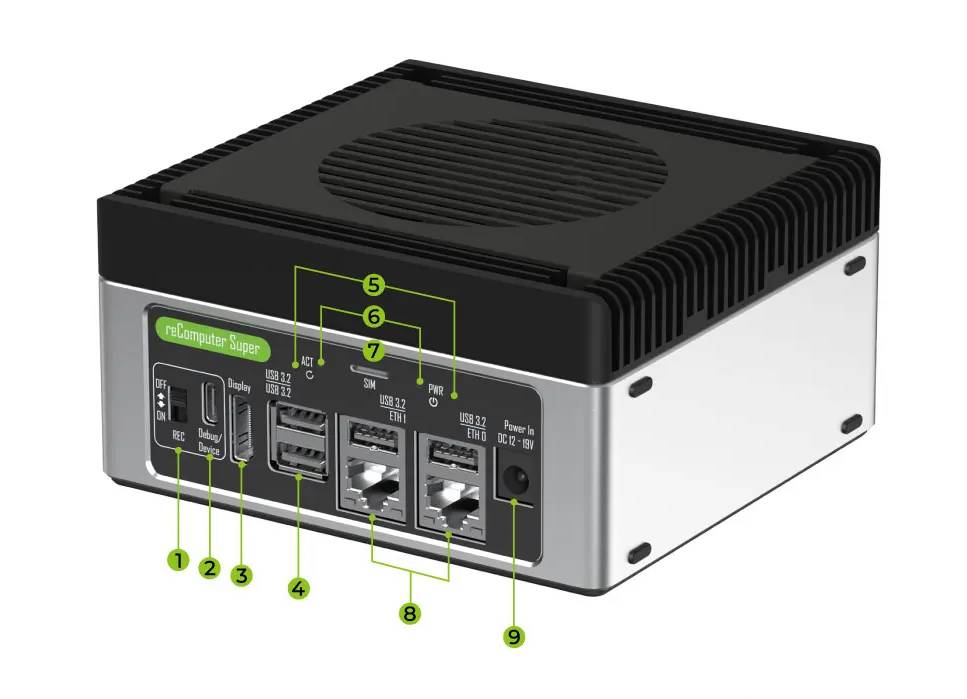

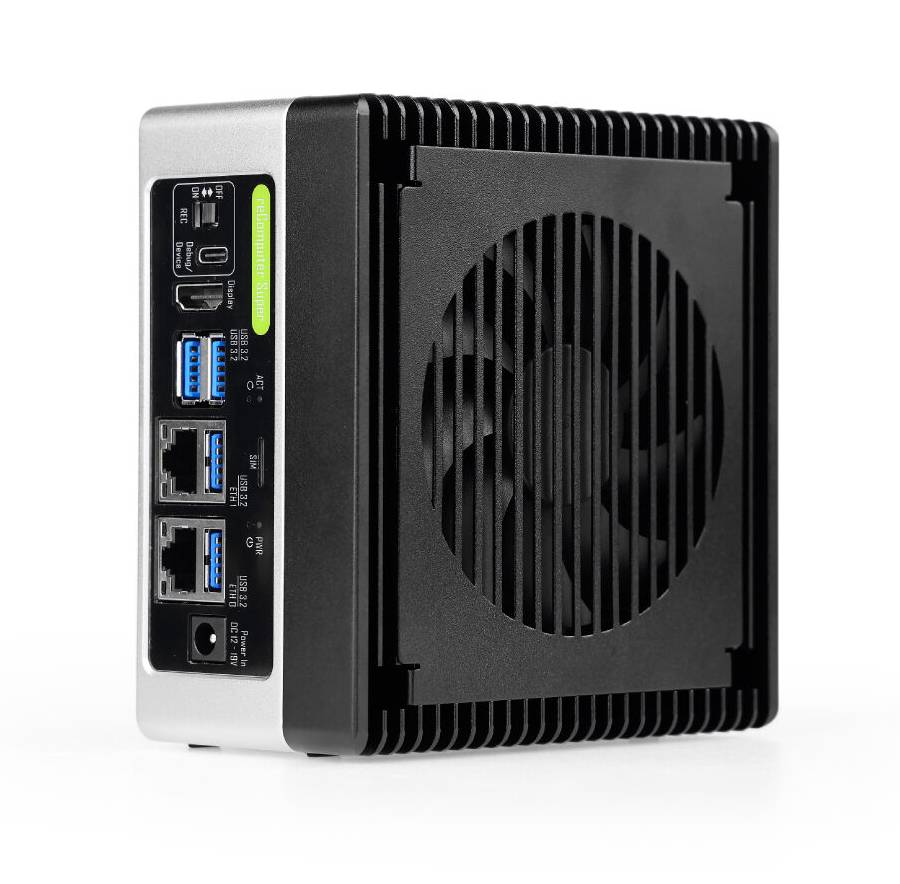

Pins and connectors in reComputer.
Pins and connectors in reComputer
- DIP switch
- USB Type-C 2.0
- HDMI 2.1 output
- USB 3.2 Type-A port x4
- Pinhole buttons x2
- LEDs x2
- SIM card slot
- Ethernet port RJ45 x2
- DC Power Jack (5525)
Arrangement of elements
- Nvidia Jetson Orin Module
- Expansion board
- 4-pin fan connector (5V PWM)
- 4-pin fan connector (12V PWM)
- 40-pin expansion connector
- CAN bus connector
- 12-pin connector (control and UART)
- MIPI CSI connectors (15-pin) x4
- RTC battery socket (CR1220)
- 2-pin RTC connector (3V)
- M.2 Key E socket
- Mini PCIe slot
- M.2 Key M slot (with SSD)

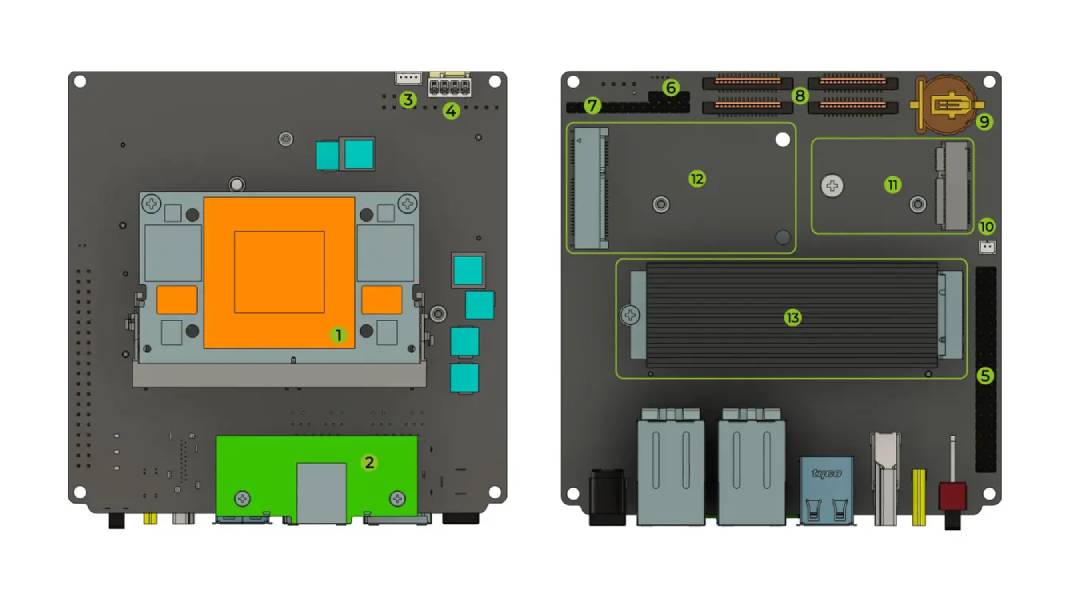

Element arrangement - top and bottom view.

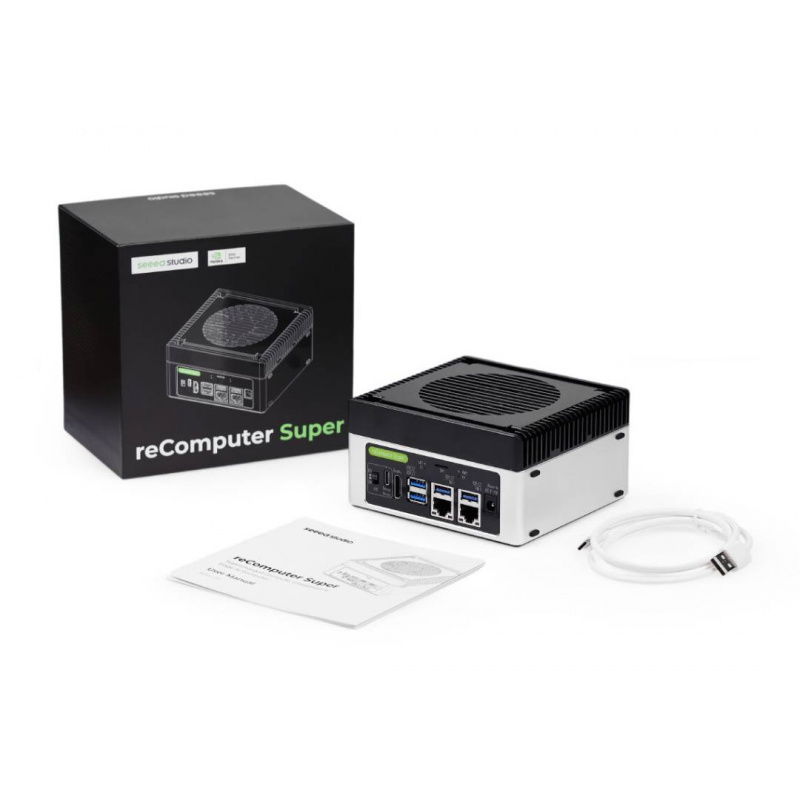

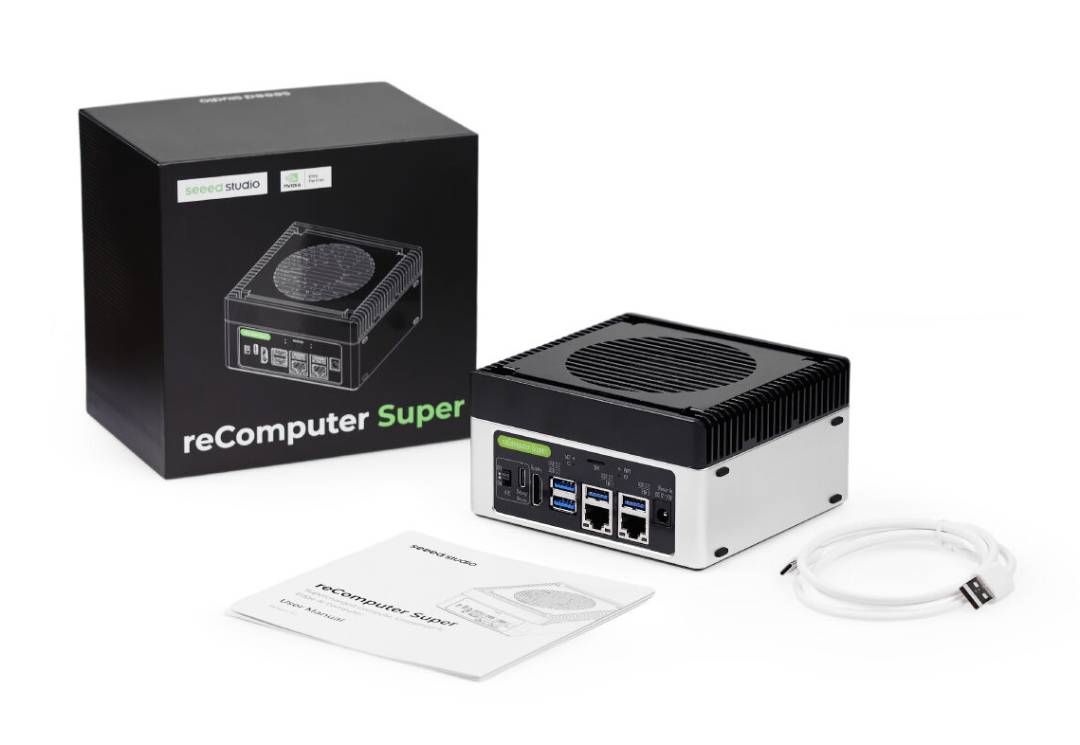

Elements included in the set.
Contents of the set
- 1x reComputer Super J3010 with Jetson Orin Nano 4 GB
- 1x Seeed Carrier Board (reComputer Super J401)
- 1x SSD NVMe 128GB
- 1x Aluminum case with fan
- 1x USB Type-A to USB Type-C Cable
- 1x User Manual
| Technical specifications of the reComputer Super J3010 | |
|---|---|
| Module | Nvidia Jetson Orin Nano 4GB |
| AI Performance | up to 34 TOPS (MAXN Super Mode) |
| GPU | 512-core Ampere, 16 Tensor |
| GPU frequency | 1020 MHz |
| CPU | 6 Arm Cortex-A78AE 1.7 GHz cores |
| RAM | 4 GB LPDDR5, 64-bit, up to 51 GB/s |
| Video codec | 1080p30 (1-2 CPU cores) |
| Video decoder | 1x 4K60, 2x 4K30, 5x 1080p60, 11x 1080p30 (H.265) |
| CSI cameras | up to 4 cameras (8 virtual channels), 8 MIPI CSI-2 lanes, D-PHY 2.1 (up to 20 Gb/s) |
| SSD | NVMe 128GB M.2 (Key M, PCIe) |
| WiFi / Bluetooth | M.2 Key E |
| LTE | mini PCIe slot + SIM slot |
| Ethernet | 2x RJ45 Gigabit Ethernet |
| USB | 4x USB 3.2 Type A, 1x USB-C 2.0 (debug) |
| HDMI | 1x HDMI 2.1 |
| CAN | 1x CAN (4-pin) |
| Expansion connectors | 1x 40-pin GPIO, 1x 12-pin UART / control |
| Ventilation | 2x PWM: 5V (1.25mm), 12V (2.54mm) |
| Real-time clock | 2-pin + CR1220 socket |
| Controls and buttons | 2x LED (PWR, ACT), 1x PWR, 1x Reset, 1x DIP switch REC |
| Antennas | 4x holes for external antennas |
| Power supply | from 12 V to 19 V DC |
| JetPack | version 6.2 (Linux BSP) |
| Installation | on a desk or wall mounted |
| Operating temperature | from -20°C to 65°C |

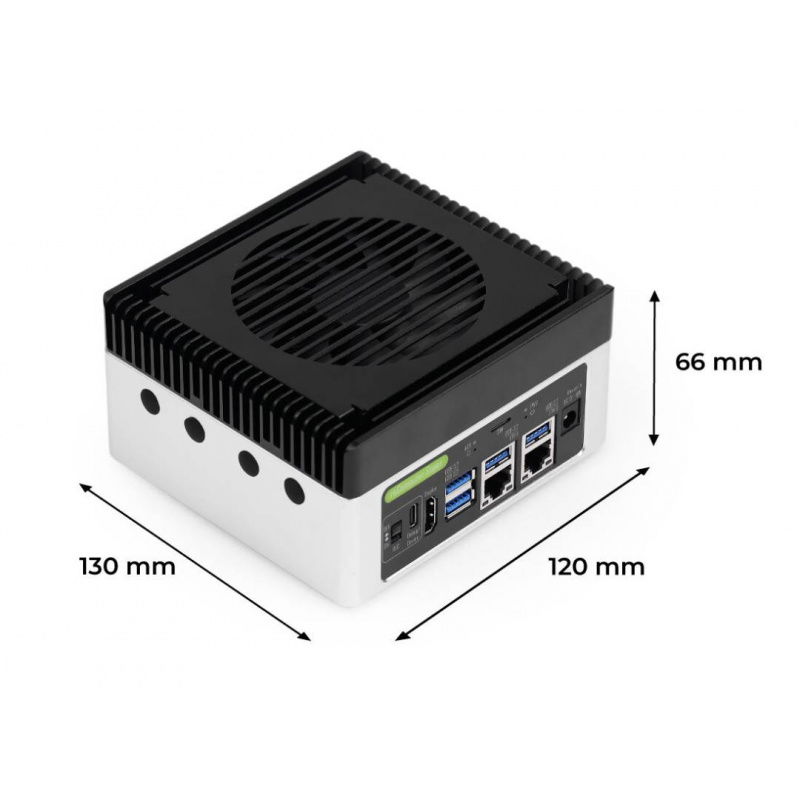

| Dimensions | 130 x 120 x 66 mm |
| Mass | 1110 g |
