Product description: Multifunctional 4in1 environmental sensor - temperature, humidity, pressure and gas - BME680 - I2C / SPI - Waveshare 24245
The Waveshare module with the multi-functional Bosch BME680 environmental sensor enables measurement of temperature , humidity , atmospheric pressure and detection of the presence of volatile organic compounds . This type of sensor is used in intelligent building devices or devices intended for environmental and air quality analysis. It allows you to measure temperature in the range from -40°C to 85°C with an accuracy of +/- 1°C, humidity from 0% to 100% relative humidity with an accuracy of ±3% and pressure from 300 hPa to 1100 hPa with an accuracy of ±0.6 hPa. It communicates with a microcontroller or minicomputer using the I2C or SPI interface. The built-in logic level converter ensures correct operation with voltages of 3.3 V and 5 V.
Multifunctional 4in1 environmental sensor - temperature, humidity, pressure and gas - BME680 - I2C / SPI - Waveshare 24245.
The sensor is compatible with Arduino and Raspberry Pi!
The manufacturer provides a detailed user guide and sample code to operate the module.
This type of sensor is used in intelligent building devices.
Basic parameters of the BME680 sensor
- Measured parameters: temperature, atmospheric pressure, air humidity, presence of volatile organic compounds.
- Measurement range:
- Temperatures: from -40°C to 85°C with an accuracy of +/- 1°C (for temperatures from 0°C to 65°C)
- Relative humidity: from 0% to 100% with an accuracy of ± 3%
- Pressure: from 300 hPa to 1100 hPa with an accuracy of ±0.6 hPa (at temperature from 0°C to 65°C)
- VOC content: 0d 0 to 500 IAQ (Indoor Air Quality)
- Communication interface: I2C and SPI
- Supply voltage: from 1.71 V to 3.6 V
- VOC sensor response time: approximately 0.75 s (continuous measurement mode)
- Humidity sensor response time: 8 s (for a change of 90% RH)
- Maximum measurement frequency of the pressure sensor: 182 Hz
Description of the module pins

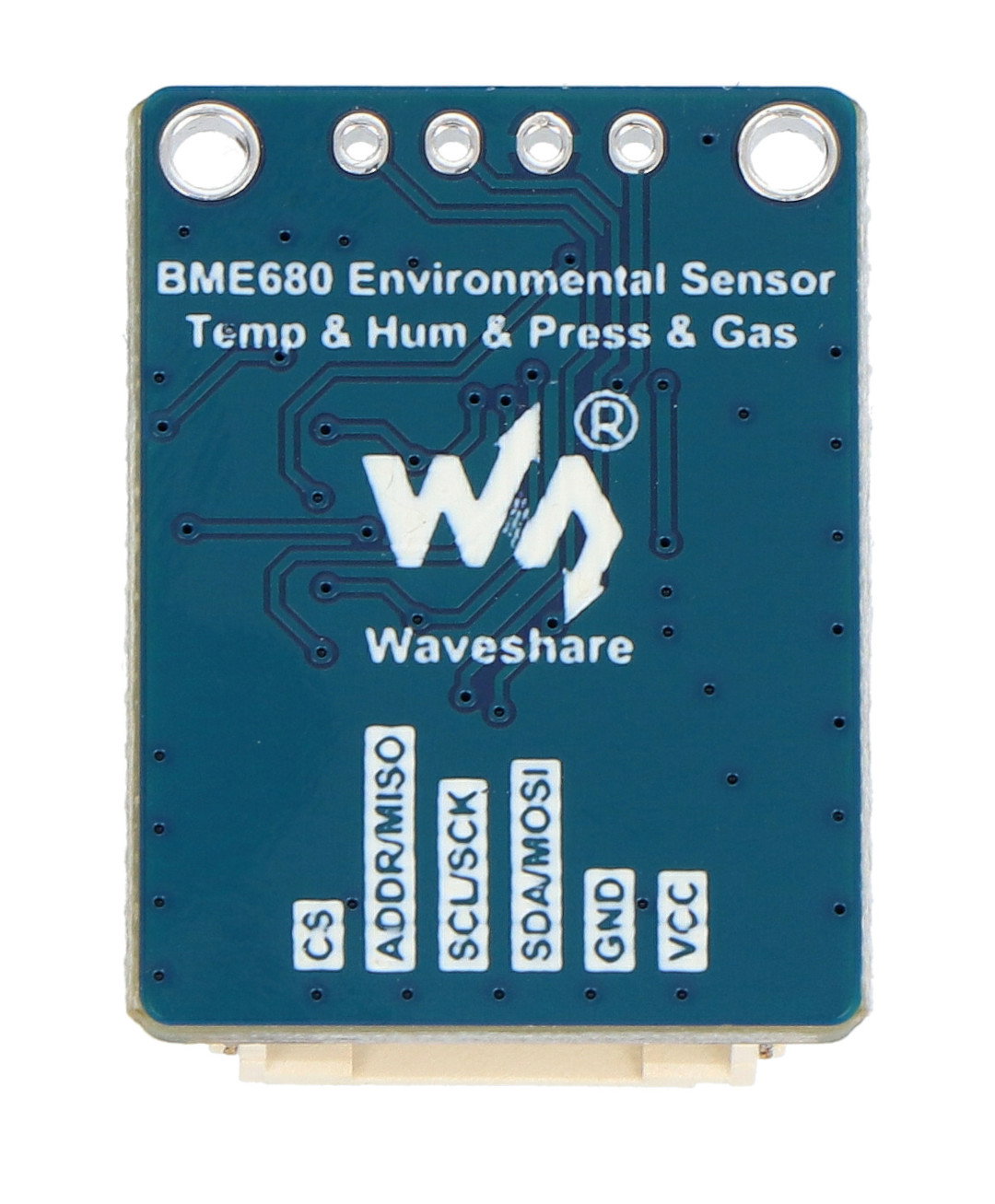

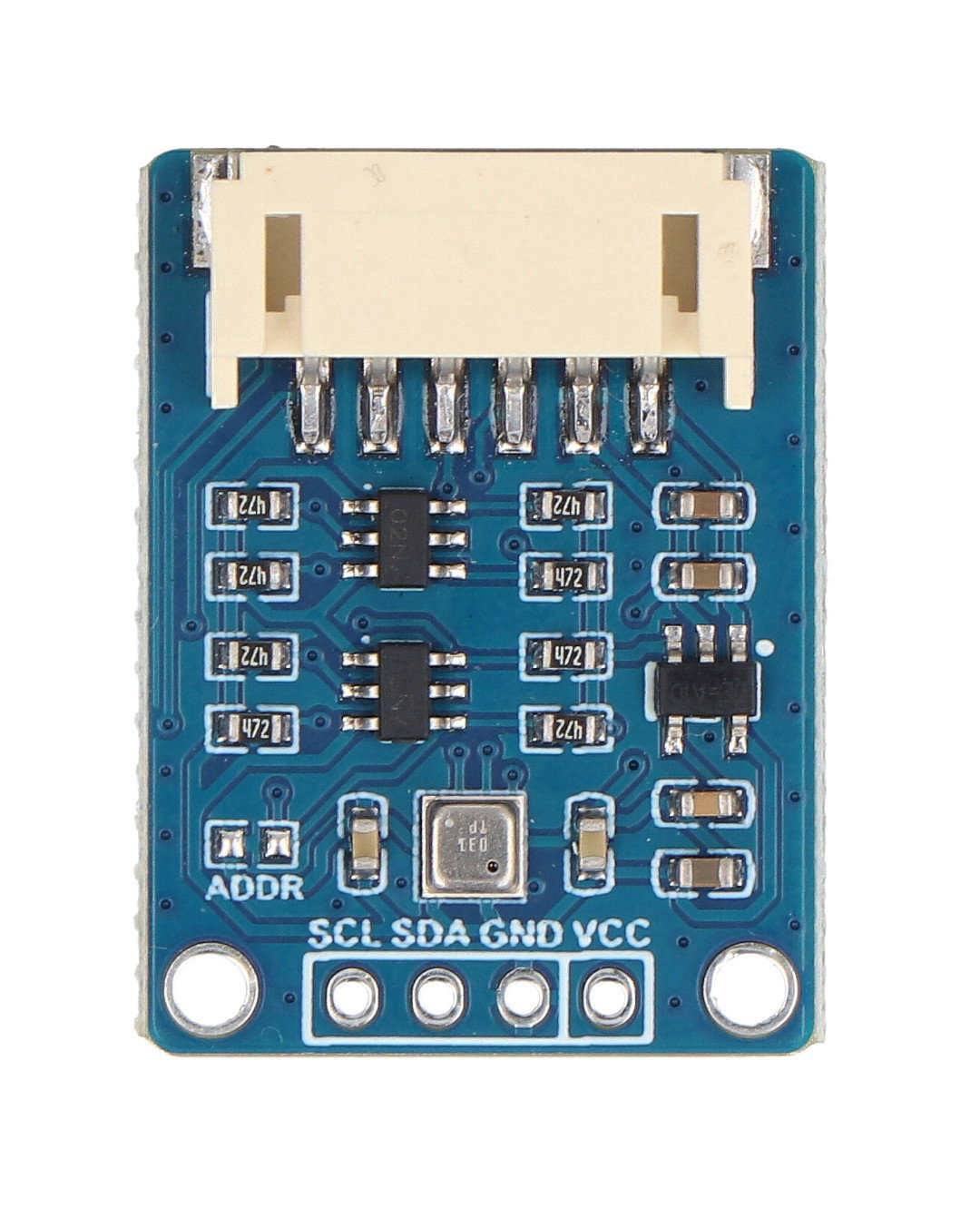

The I2C and SPI interfaces used for communication with the module are provided on the 6-pin JST connector. Additionally, the user has pins at their disposal that allow them to solder their own wires. These include:
- CS - Chip Select SPI interface
- ADDR/MISO - I2C address or SPI data pin
- SCL/SCK - clock of both interfaces
- SDA/MOSI - data pin of the I2C and SPI interfaces
- GND - common ground of the system
- VCC - supply voltage - 3.3 V or 5 V
The sensor has a built-in BME680 system.
Elements included in the set.
Technical specifications of the module
- Sensor type: environmental
- Built-in chip: BME680
- Measured parameters: temperature, relative humidity, pressure, content of volatile organic compounds
- Communication interface: I2C and SPI
- I2C interface address: 0x76 (can be changed to 0x77)
- Support for modes "00" and "11" of the SPI interface
- Module connection: 6-pin JST connector and soldering pins
- Built-in logic converter
- Supply voltage: 3.3 V or 5 V
- Two mounting holes
- Dimensions: 27 x 20 mm
Set contents
- 1x BME680 - 4in1 environmental sensor - I2C / SPI communication - Waveshare 24245

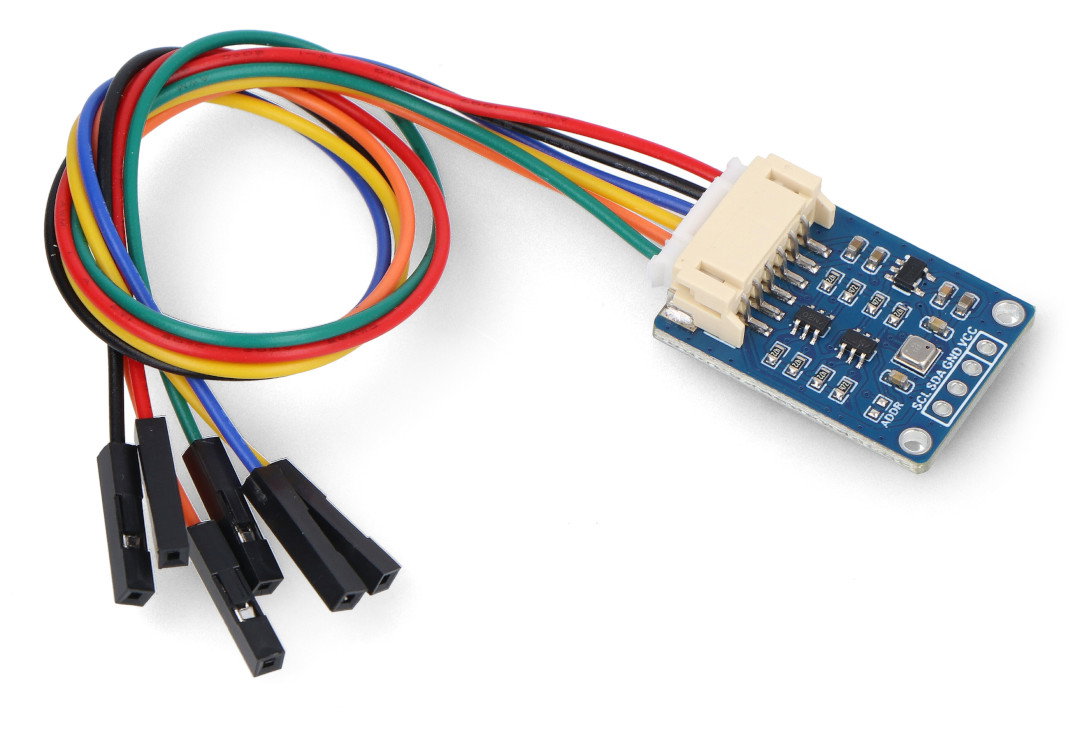

- 1x PH2.0 6-pin cable (20 cm)
