I2C Environmental Sensor - for Raspberry Pi Pico - Waveshare 20232

Index: WSR-20085 EAN: 5904422349219
A module designed for the Raspberry Pi Pico equipped with a range of useful environmental sensors. Manufactured by Waveshare, it includes temperature, humidity, air pressure, ambient light for measuring infrared and visible light, a 9 DoF motion sensor, a sensor for measuring UV rays, and a VOC sensor for detecting volatile organic compounds in the environment. It uses I2C bus to communicate with the main module. It can be programmed using C / C++ and MicroPython language.
I2C Environmental Sensor - for Raspberry Pi Pico - Waveshare 20232
€49.69
€40.40 tax excl.
Available
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: Waveshare
Compatibility: Raspberry Pi

Product description: I2C Environmental Sensor - for Raspberry Pi Pico - Waveshare 20232

A module designed for the Raspberry Pi Pico equipped with a range of useful environmental sensors. Manufactured by Waveshare, it includes temperature, humidity, air pressure, ambient light for measuring infrared and visible light, a 9 DoF motion sensor, a sensor for measuring UV rays, and a VOC sensor for detecting volatile organic compounds in the environment. It uses I2C bus to communicate with the main module. It can be programmed using C / C++ and MicroPython language.

The product is compatible with Raspberry Pi Pico!

A product wiki page is available on the manufacturer's website. Check it out!

Czujnik środowiskowy I2C - do Raspberry Pi Pico - Waveshare 20232

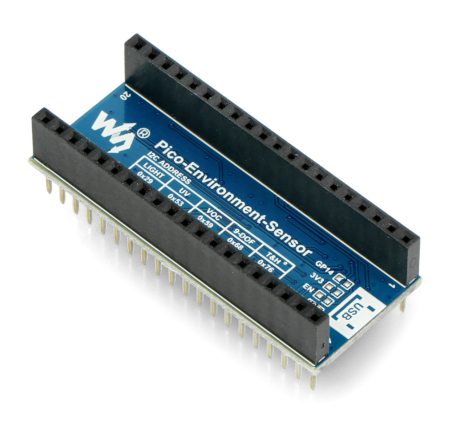

I2C environmental sensor - for Raspberry Pi Pico - Waveshare 20232.

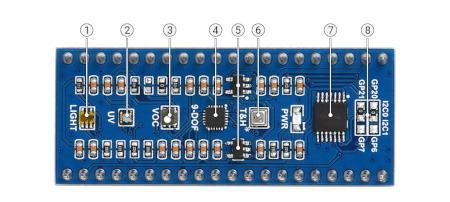

Rozmieszczenie elementów na płytce.
Arrangement of components on the board.

Elements layout on the board

  1. Digital ambient light sensor TSL25911FN, to measure infrared and visible light
  2. UV sensor LTR390-UV-1
  3. SGP40VOC sensor
  4. 3-axis Accelerometer, 3-axis Gyroscope, 3-axis Magnetometer ICM20948
  5. 5V to 3.3V / 1.8V voltage level converter
  6. BME280Temperature, humidity and air pressure sensor
  7. Logic level converter 3.3 V - 1.8 V
  8. I2C address selection jumper

Environmental sensor specifications

  • Purpose: for Raspberry Pi Pico
  • Built-in sensors:
    • digital ambient light sensor
    • temperature, humidity and air pressure sensor
    • motion sensor - 3-axis accelerometer, 3-axis gyroscope, 3-axis magnetometer
    • UV radiation sensor
    • sensor for the detection of volatile organic compounds in the environment
  • Communication interface: I2C bus
  • Board dimensions: 52 x 21 mm

Ambient light sensor specification

  • Embedded chip: TSL25911FN
  • I2C interface address: 0x29
  • Range: 0 lx to 88000 lx

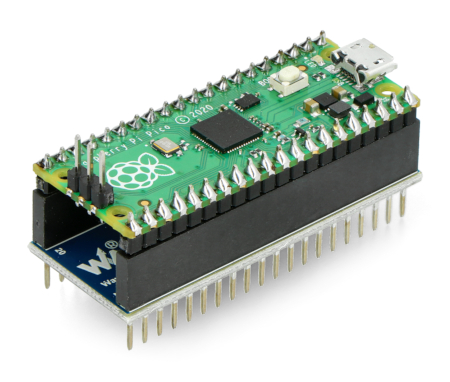

Sposób połączenia czujnika środowisko z Raspberry Pi Pico (do nabycia osobno).

The way to connect the ambient sensor with Raspberry Pi Pico (sold separately).

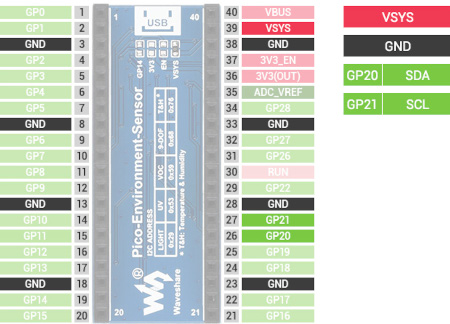

Rozmieszczenie wyprowadzeń na płytce.

Pinout on the board.

Temperature, humidity and air pressure sensor specification

  • Embedded chip: BME280
  • I2C interface address: 0x76
  • Temperature measurement
    • range: from -40°C to 85°C
    • resolution: 0.01°C
    • accuracy: ± 1°C
  • Humidity measurement:
    • range: from 0% to 100% RH
    • resolution: 0.008% RH
    • accuracy: ± 3% RH
    • response time: 1 s
    • delay: ≤ 2% RH
  • Pressure measurement:
    • range: from 300 hPa to 1100 hPa
    • resolution: 0.18 Pa
    • accuracy: ± 1 hPa

Motion detector specifications

  • Integrated circuit: ICM20948
  • Number of degrees of freedom: 9 DoF
  • Number of measurement axes: 3 (X, Y, Z)
  • I2C interface address: 0x68
  • Resolution: 16 bit
  • Accelerometer:
    • measurement: acceleration
    • range: ± 2, ± 4, ± 8, ± 16 g (configurable)
  • Gyroscope:
    • measurement: angular velocity
    • range: ± 250, ± 500, ± 1000, ± 2000 °/s (configurable)
  • Magnetometer:
    • measurement: magnetic field
    • range: ± 4900 µT

Specification of UV measurement sensor

  • Embedded circuit: LTR390-UV-1
  • I2C interface address: 0x53
  • Wavelength: 280 nm to 430 nm

I2C environmental sensor - for Raspberry Pi Pico.

Interpretacja wskazań indeksu VOC.Interpretation of VOC index readings.

Specification of VOC sensor

  • Purpose: to detect volatile organic compounds in the environment
  • Embedded circuit: SGP40
  • I2C interface address: 0x59
  • Measurement scale: from 0 ppm to 1000 ppm
  • VOC index value: from 0 to 500
    • from 0 to 100 - air quality: excellent
    • 100 to 200 - air quality: good
    • 200 to 300 - air quality: slightly polluted
    • 300 to 400 - air quality: moderately polluted
    • between 400 and 500 - air quality: very polluted
Sensor - type gyroscope
Sensor - type temperature, humidity, pressure
Sensor - type air quality
Sensor - type pressure
Sensor - type IMU
Sensor - type accelerometer
