Product description: reComputer Super J3011 - Nvidia Jetson Orin Nano - 8 GB RAM - Seeedstudio 114110312
The reComputer Super J3011 is a turnkey Edge AI hardware solution that combines high computing power with a compact form factor and a rich set of connectors. Built on an Nvidia Jetson Orin Nano module with 8GB of RAM , it offers 1024 CUDA cores, 32 Tensor cores , 102GB/s memory bandwidth, and support for modern AI frameworks (PyTorch, ONNX, Hugging Face). It's designed to operate 24/7 in temperatures ranging from -20°C to 65°C , and thanks to its active cooling enclosure and pre-built JetPack 6.2 system with a 128GB SSD , it allows you to get straight to work. It's a complete tool for engineers, AI developers, and industrial system integrators.

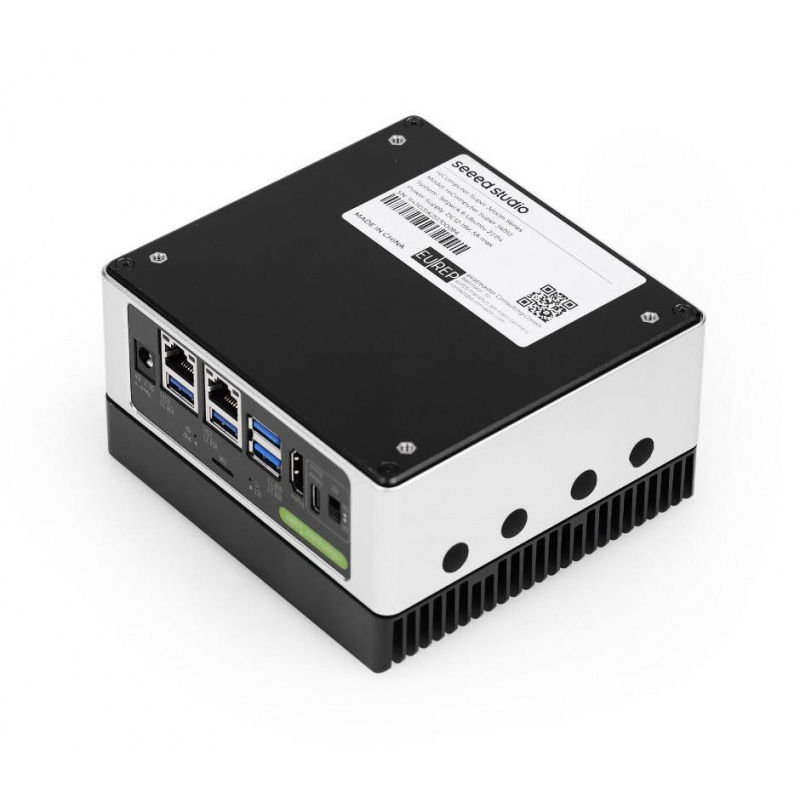

reComputer Super J3011 - Nvidia Jetson Orin Nano - 8 GB RAM - Seeedstudio 114110312.
Super Boost AI performance delivers up to 67 TOPS in MAXN Super mode.
Main features of the reComputer Super J3011
- 67 TOPS AI power : ideal for image processing, object detection, generative AI, and robotics
- Jetson Orin Nano 8 GB : 1024 CUDA cores, 32 Tensor Cores, 8 GB LPDDR5 - platform based on the Ampere architecture
- Ready to go : Pre-installed with JetPack 6.2 and 128GB NVMe SSD
- Rich connectivity : 2x RJ45 GbE, 4x USB 3.2, HDMI 2.1, CAN, WiFi, LTE, CSI (4x MIPI)
- Expansion via M.2 and mini PCIe slots : support for WiFi, Bluetooth, LTE 4G modules and additional SSD
- Stable operation in difficult conditions : operating temperature from -20°C to 65°C, active cooling, aluminum housing

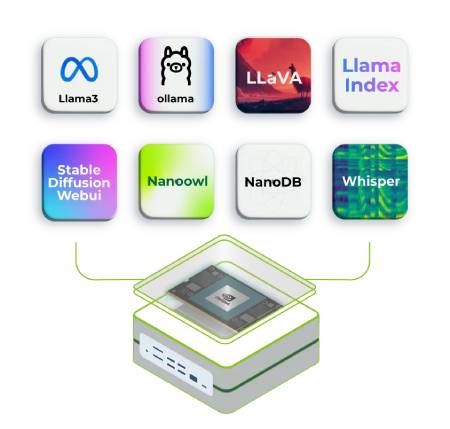

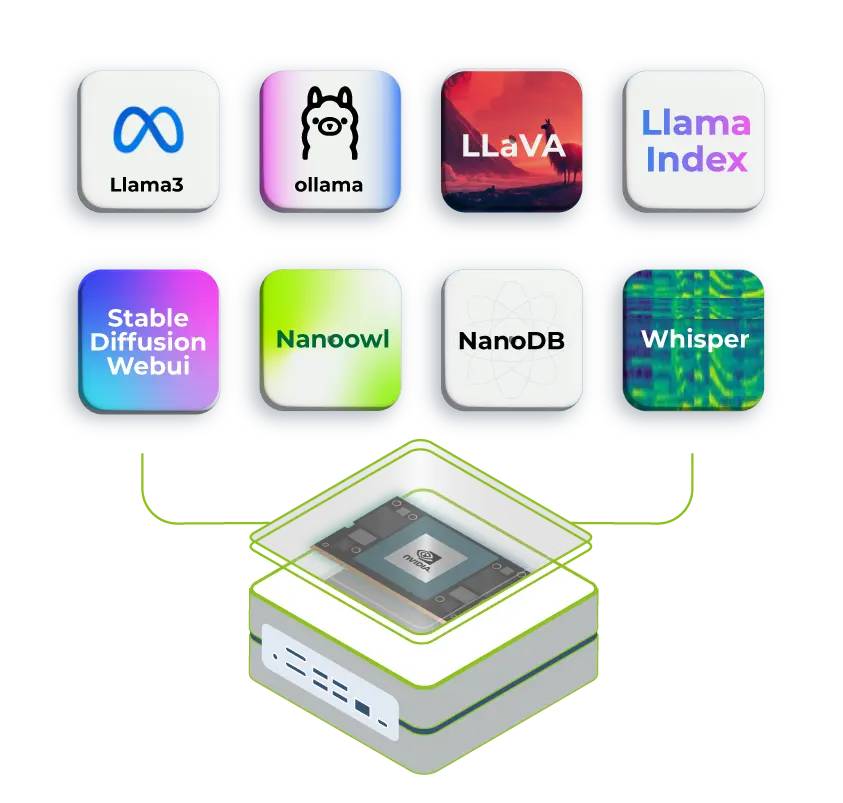

- AI framework compatibility : support for Nvidia SDK, ROS2/1, LLaMA, Whisper, Stable Diffusion and others
What makes the Super J3011 version special?
The Super version is an upgraded version of the classic reComputer, offering up to 1.7x faster AI performance (67 TOPS vs. 21 TOPS in the classic). It features active cooling, dual Ethernet ports (ETH0 + ETH1), more CUDA and Tensor cores, and support for expansion via LTE, WiFi , and NVMe SSDs . The Super J3011 is ready for edge computing deployments requiring low latency, reliability, and fast, cloud-free data processing.
Optimized for demanding AI applications
The reComputer Super J3011 is ideal for applications that require high performance, reliability, and local data processing capabilities. These include autonomous robots, real-time video analytics, intelligent monitoring or industrial vision systems. Local inference eliminates the need to use the cloud and significantly reduces latency.
reComputer is designed for demanding AI applications.

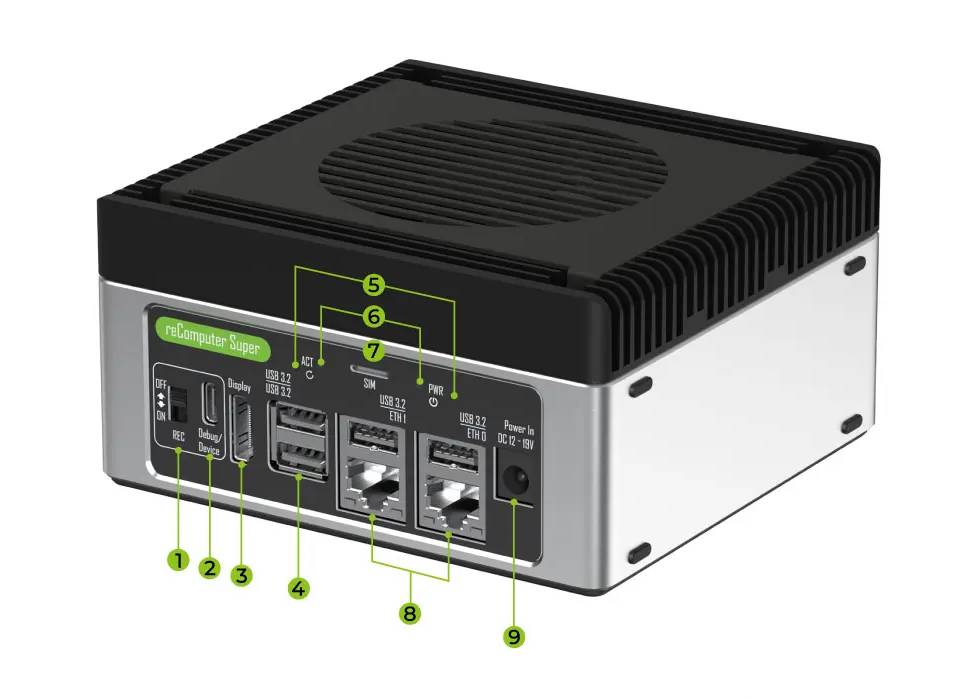

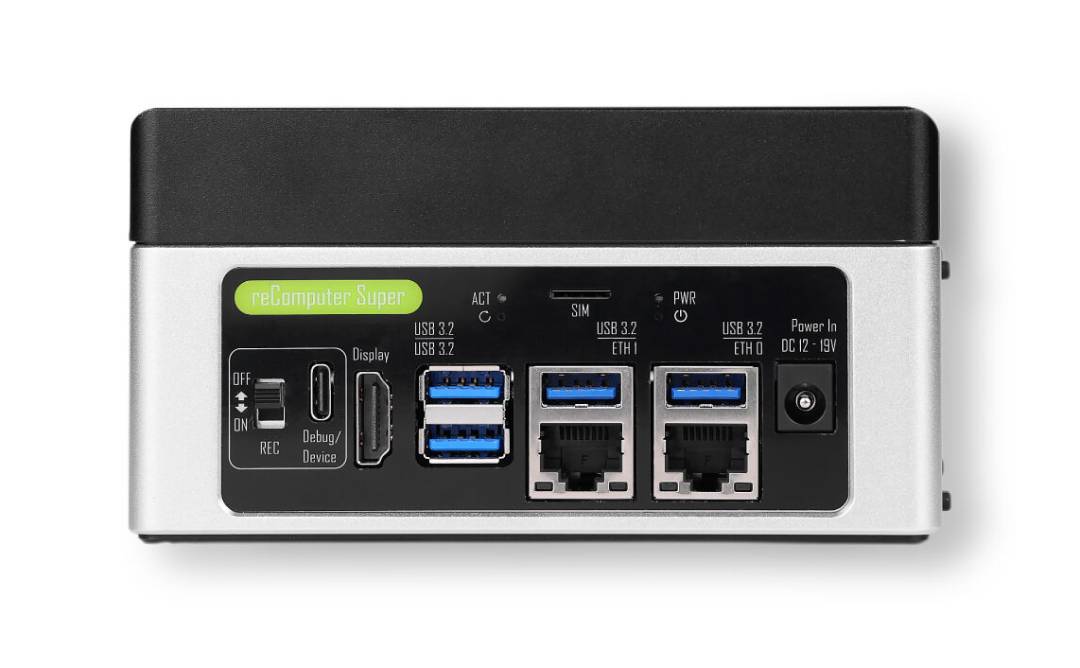

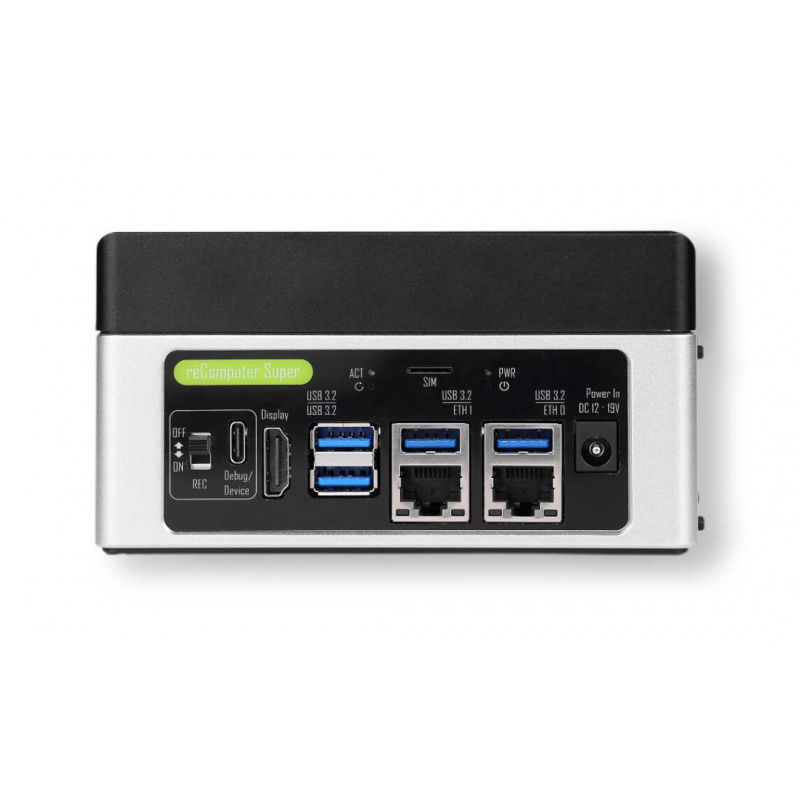

Pins and connectors in reComputer.
Pins and connectors in reComputer
- DIP switch
- USB Type-C 2.0
- HDMI 2.1 output
- USB 3.2 Type-A port x4
- Pinhole buttons x2
- LEDs x2
- SIM card slot
- Ethernet port RJ45 x2
- DC Power Jack (5525)
Arrangement of elements
- Nvidia Jetson Orin Module
- Expansion board
- 4-pin fan connector (5V PWM)
- 4-pin fan connector (12V PWM)
- 40-pin expansion connector
- CAN bus connector
- 12-pin connector (control and UART)
- MIPI CSI connectors (15-pin) x4
- RTC battery socket (CR1220)
- 2-pin RTC connector (3V)
- M.2 Key E socket
- Mini PCIe slot
- M.2 Key M slot (with SSD)

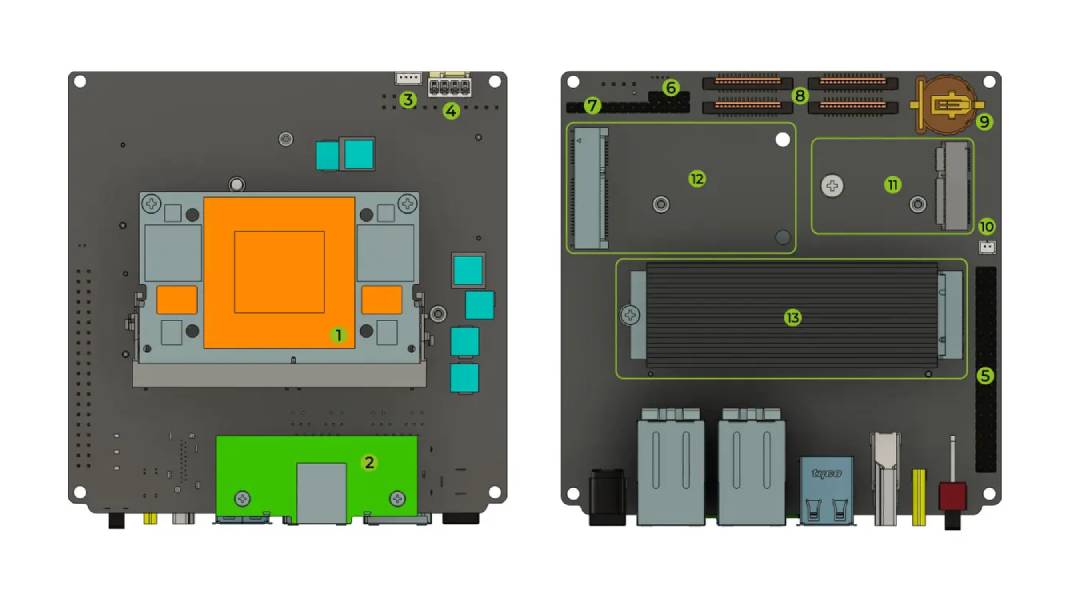

Element arrangement - top and bottom view.

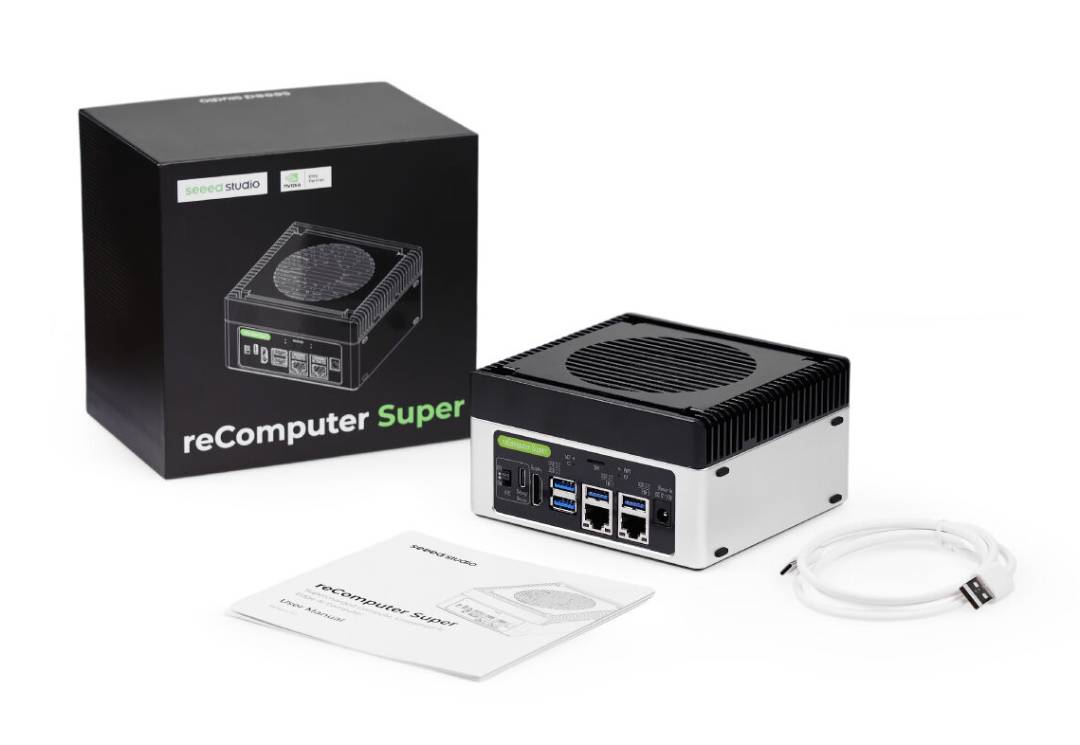

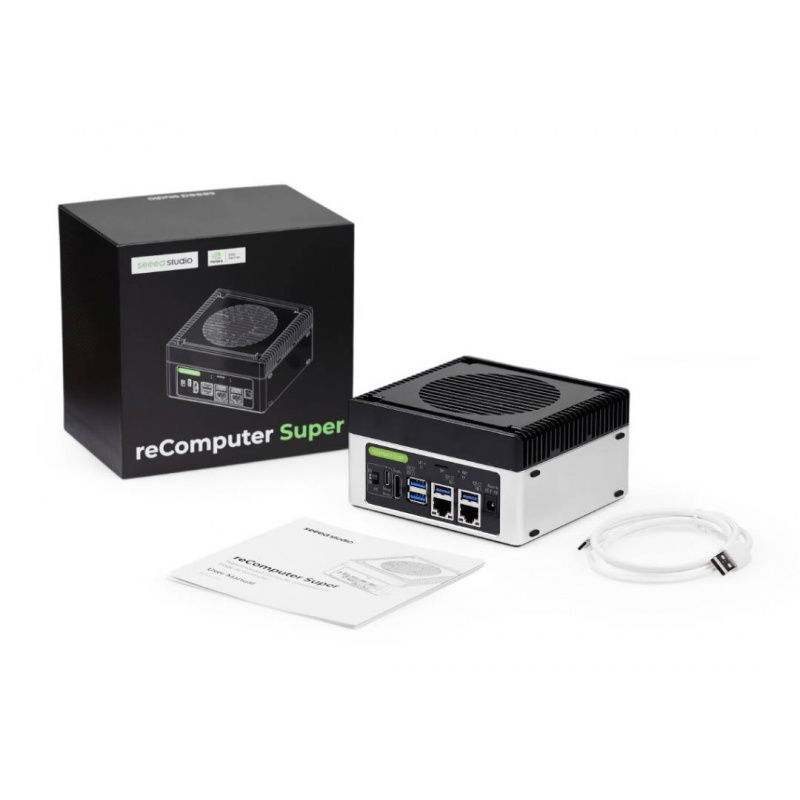

Elements included in the set.
Contents of the set
- 1x reComputer Super J3011 with Jetson Orin Nano 8 GB
- 1x Seeed Carrier Board (reComputer Super J401)
- 1x SSD NVMe 128GB
- 1x Aluminum case with fan
- 1x USB Type-A to USB Type-C Cable
- 1x User Manual
| Technical specifications of the reComputer Super J3011 | |
|---|---|
| Module | Nvidia Jetson Orin Nano 8GB |
| AI Performance | up to 67 TOPS (MAXN Super Mode) |
| GPU | 1024-core Ampere, 32 Tensor |
| GPU frequency | 1020 MHz |
| CPU | 6 Arm Cortex-A78AE 1.7 GHz cores |
| RAM | 8 GB LPDDR5, 128-bit, up to 102 GB/s |
| Video codec | 1080p30 (1-2 CPU cores) |
| Video decoder | 1x 4K60, 2x 4K30, 5x 1080p60, 11x 1080p30 (H.265) |
| CSI cameras | up to 4 cameras (8 virtual channels), 8 MIPI CSI-2 lanes, D-PHY 2.1 (up to 20 Gb/s) |
| SSD | NVMe 128GB M.2 (Key M, PCIe) |
| WiFi / Bluetooth | M.2 Key E |
| LTE | mini PCIe slot + SIM slot |
| Ethernet | 2x RJ45 Gigabit Ethernet |
| USB | 4x USB 3.2 Type A, 1x USB-C 2.0 (debug) |
| HDMI | 1x HDMI 2.1 |
| CAN | 1x CAN (4-pin) |
| Expansion connectors | 1x 40-pin GPIO, 1x 12-pin UART / control |
| Ventilation | 2x PWM: 5V (1.25mm), 12V (2.54mm) |
| Real-time clock | 2-pin + CR1220 socket |
| Controls and buttons | 2x LED (PWR, ACT), 1x PWR, 1x Reset, 1x DIP switch REC |
| Antennas | 4x holes for external antennas |
| Power supply | from 12 V to 19 V DC |
| JetPack | version 6.2 (Linux BSP) |
| Installation | on a desk or wall mounted |
| Operating temperature | from -20°C to 65°C |

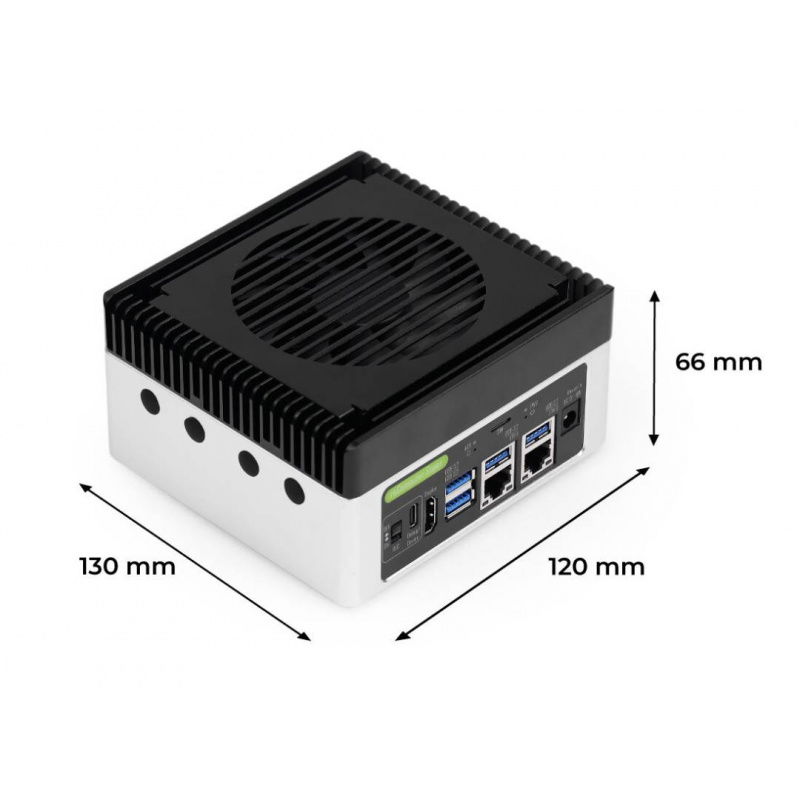

| Dimensions | 130 x 120 x 66 mm |
| Mass | 1110 g |
